Каталог

Америка

Модель

YARIS/VIOS/LIMO

VIN

Дата

2019/11

Двигатель

1200CC 16-VALVE DOHC EFI

Фрейм

NSP152

КПП

вариатор

Опции

правый руль 4 двери HIGH EFFICIENCY TWIN CAM FOR THAILAND R A 681W

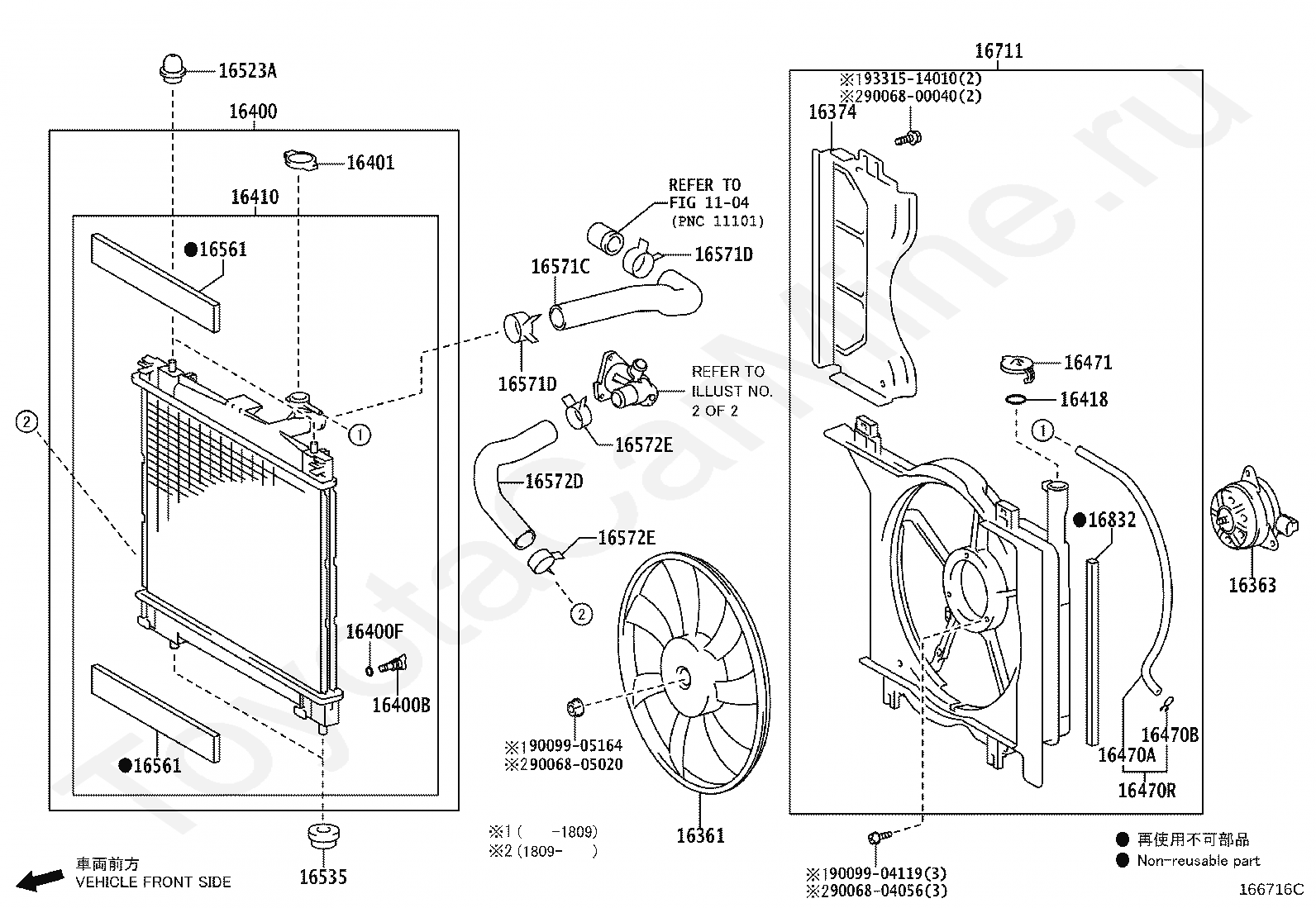

Радиатор и шланги TOYOTA YARIS/VIOS/LIMO

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16410

RADIATOR ASSY, W/O CAP

16418

PACKING

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

16832

SEAL, FAN SHROUD

9006800040

Крепеж

9006804056

Крепеж

9006805020

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9331514010

Крепеж

Код

Описание

1225147030

Крепеж

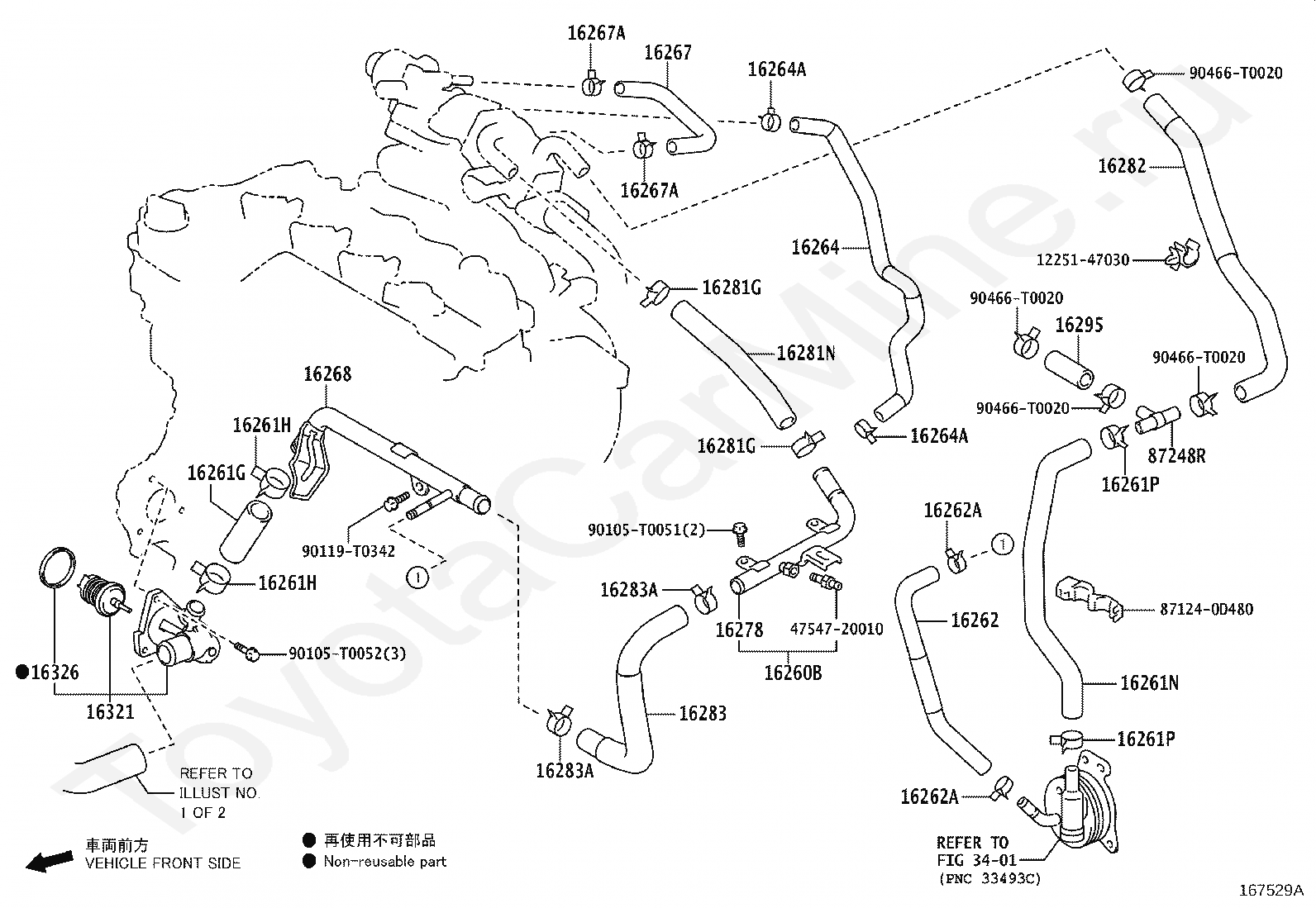

16260B

PIPE ASSY, WATER BY-PASS

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16262

HOSE, WATER INLET

16262A

CLIP(FOR WATER INLET HOSE)

16262A

CLIP(FOR WATER INLET HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16281N

HOSE, WATER BY-PASS, NO.4

16282

HOSE, WATER BY-PASS, NO.5

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16321

INLET, WATER

16326

GASKET, WATER INLET HOUSING, NO.2

3401

переход к группе запчастей

4754720010

Крепеж

871240D480

Крепеж

87248R

PIPE, WATER

90105T0051

Крепеж

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж
