Каталог

Европа

Модель

YARIS/HYBRID (FRP)

VIN

Дата

2011/07

Двигатель

1,3 литра, 16 клапанов DOHC, EFI

Класс

LOUNGE TYPE

Фрейм

NSP130

КПП

механика МКПП, 6 скоростей

Опции

PRODUCED AT TMMF правый руль 5 дверей 509W

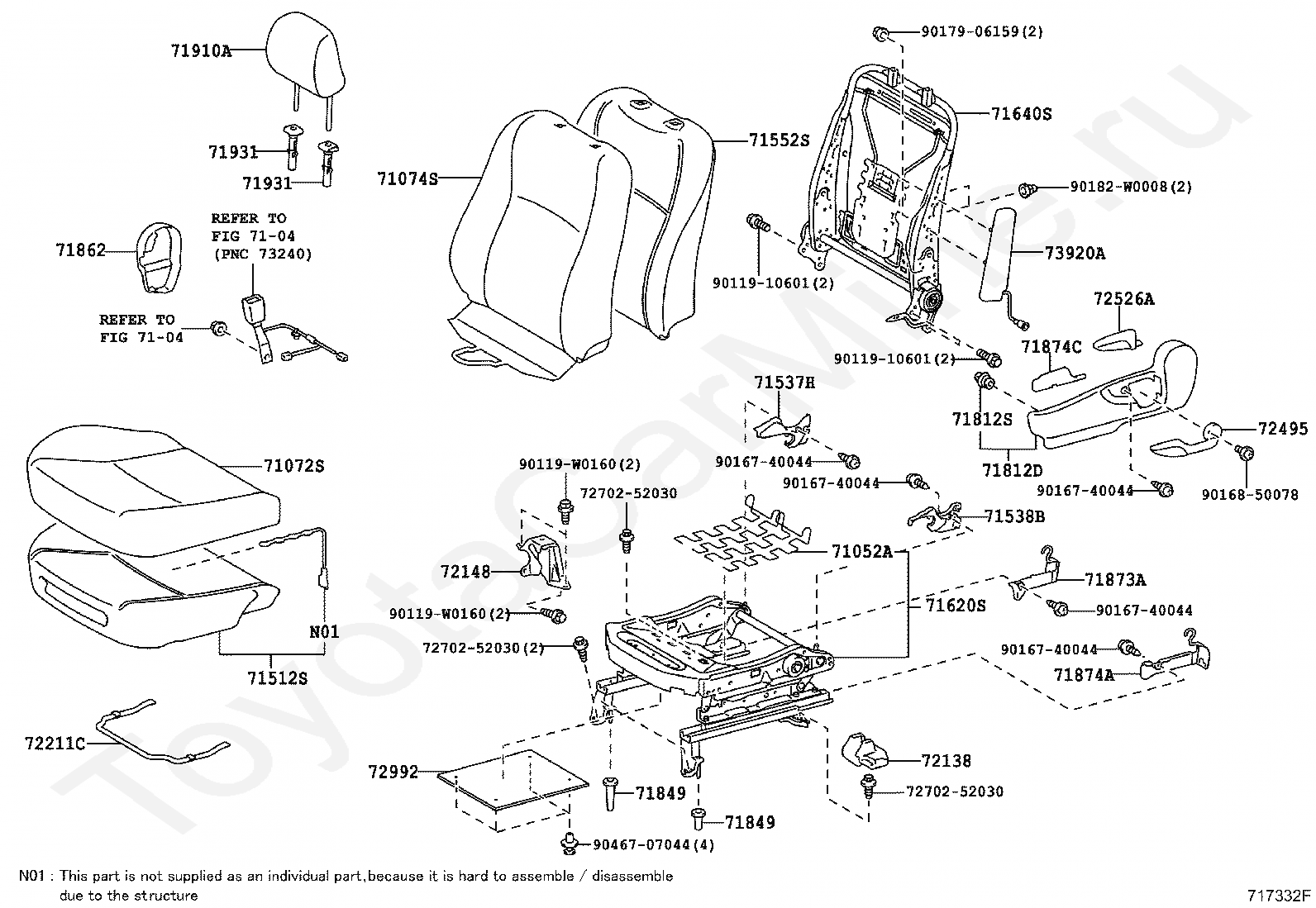

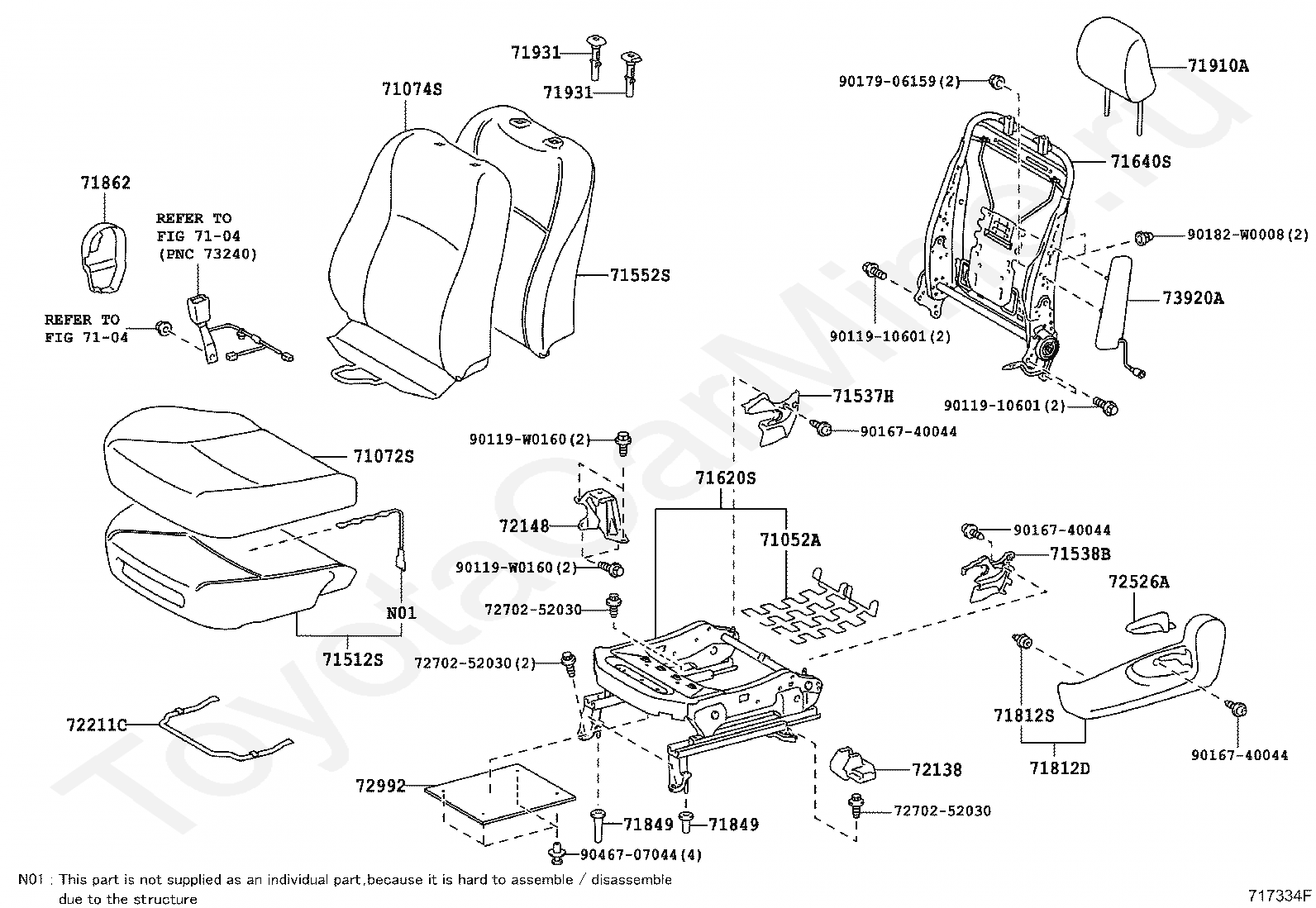

Передние кресла TOYOTA YARIS/HYBRID (FRP)







Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72138

COVER, SEAT TRACK, OUTER LH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

7270252030

Крепеж

72992

COVER, FRONT SEAT CUSHION, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

9011910601

Крепеж

9011910601

Крепеж

90119W0160

Крепеж

90119W0160

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9017906159

Крепеж

90182W0008

Крепеж

9046707044

Крепеж

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71537H

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

71538B

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640S

SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71812S

CLIP, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874A

SHIELD, FRONT SEAT CUSHION, LOWER LH

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72138

COVER, SEAT TRACK, OUTER LH

72148

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72495

HANDLE, VERTICAL ADJUSTING, LH

72526A

HANDLE, RECLINING ADJUSTER RELEASE, LH

7270252030

Крепеж

7270252030

Крепеж

7270252030

Крепеж

72992

COVER, FRONT SEAT CUSHION, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

9011910601

Крепеж

9011910601

Крепеж

90119W0160

Крепеж

90119W0160

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9017906159

Крепеж

90182W0008

Крепеж

9046707044

Крепеж

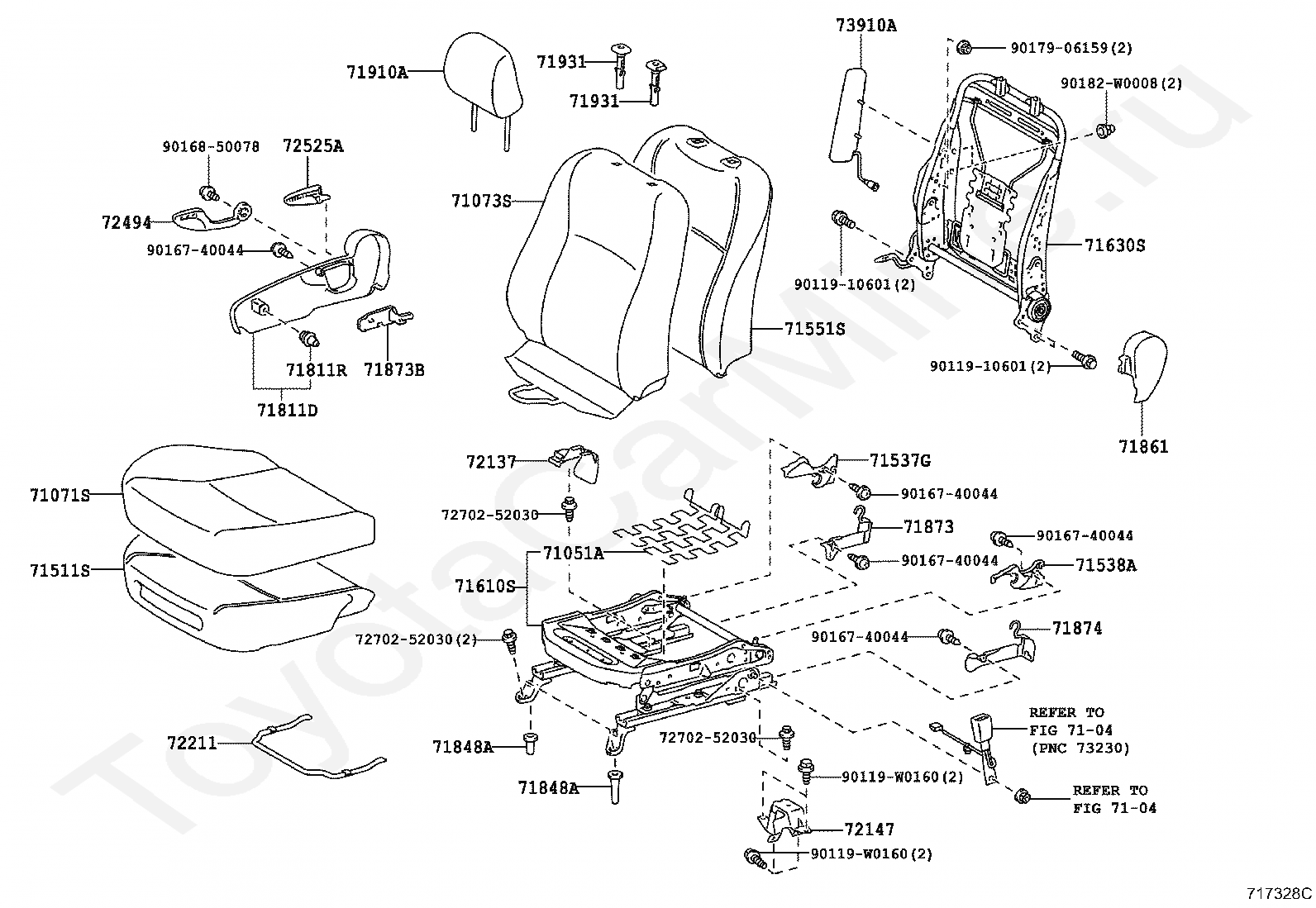

Код

Описание

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71537G

PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

71538A

PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630S

SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71811R

CLIP, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873B

SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137

COVER, SEAT TRACK, OUTER RH

72147

BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

72211

HANDLE, SEAT TRACK ADJUSTING

72494

HANDLE, VERTICAL ADJUSTING, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

7270252030

Крепеж

7270252030

Крепеж

7270252030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

9011910601

Крепеж

9011910601

Крепеж

90119W0160

Крепеж

90119W0160

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016740044

Крепеж

9016850078

Крепеж

9017906159

Крепеж

90182W0008

Крепеж

Код

Описание

9046816019

Крепеж

9046818008

Крепеж
