Каталог

Европа

Модель

YARIS/HYBRID

VIN

Дата

2021/07

Двигатель

1500CC 12-VALVE DOHC EFI

Фрейм

MXPJ15

КПП

вариатор

Опции

левый руль GRAMS 752W

TRANSAXLE ASSY(HEV OR BEV OR FCEV) TOYOTA YARIS/HYBRID

Код

Описание

30900

TRANSAXLE ASSY, HYBRID VEHICLE

30900D

PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

30900E

GASKET(FOR TRANSAXLE HOUSING & CASE)

30900L

UNION(FOR TRANSAXLE HOUSING)

30900N

PLUG, BREATHER(FOR TRANSAXLE)

30900P

PLUG, DRAIN(HEV)

30900Q

PLUG, FILLER(HEV)

30900R

GASKET, DRAIN PLUG(HEV)

30900S

GASKET, FILLER PLUG(HEV)

31270

DAMPER ASSY, TRANSMISSION INPUT

35561A

SEAL, TYPE T OIL(FOR PARKING LOCK SHAFT)

35572D

LEVER, TRANSMISSION CONTROL SHAFT

35710A

SEAL, TYPE T OIL(FOR INPUT SHAFT)

4302

переход к группе запчастей

4302

переход к группе запчастей

82821T

COVER, CONNECTOR

82823M

CAP, TERMINAL

8401

переход к группе запчастей

8401

переход к группе запчастей

8431

переход к группе запчастей

8431

переход к группе запчастей

90105W0092

Крепеж

90105W0267

Крепеж

90105W0289

Крепеж

9011906A57

Крепеж

90119W0037

Крепеж

90119W0037

Крепеж

9030110189

Крепеж

9167180612

Крепеж

9413000802

Крепеж

9451200800

Крепеж

G1148

CABLE, MOTOR

Код

Описание

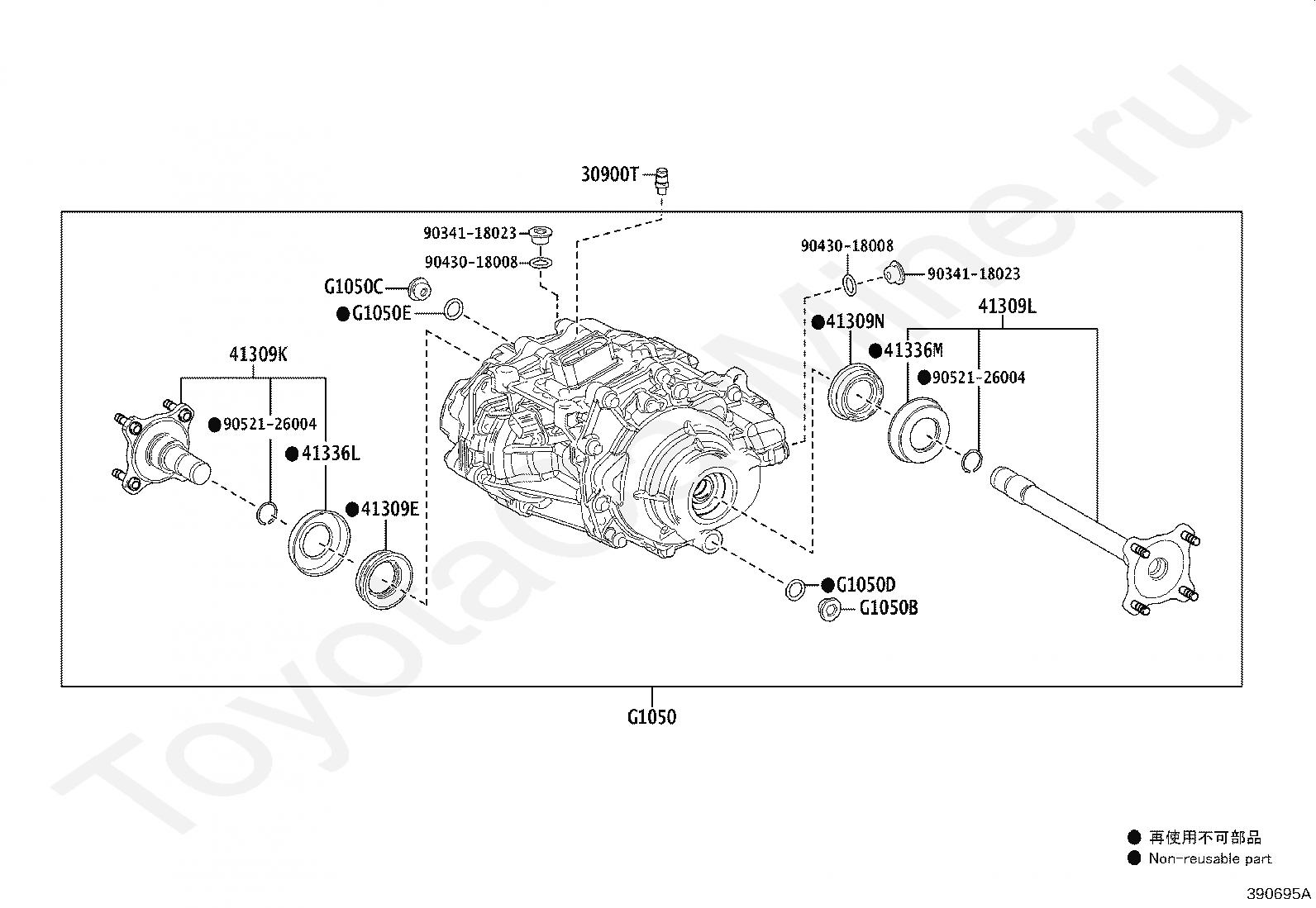

30900T

PLUG, BREATHER(FOR REAR TRACTION MOTOR)

41309E

SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

41309K

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

41309L

SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

41309N

SEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)

41336L

DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH

41336M

DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH

9034118023

Крепеж

9034118023

Крепеж

9043018008

Крепеж

9043018008

Крепеж

9052126004

Крепеж

9052126004

Крепеж

G1050

MOTOR ASSY, RR TRACTION W/TRANSAXLE

G1050B

PLUG, DRAIN(FOR REAR TRACTION MOTOR)

G1050C

PLUG, FILLER(FOR REAR TRACTION MOTOR)

G1050D

GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR)

G1050E

GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR)

Код

Описание

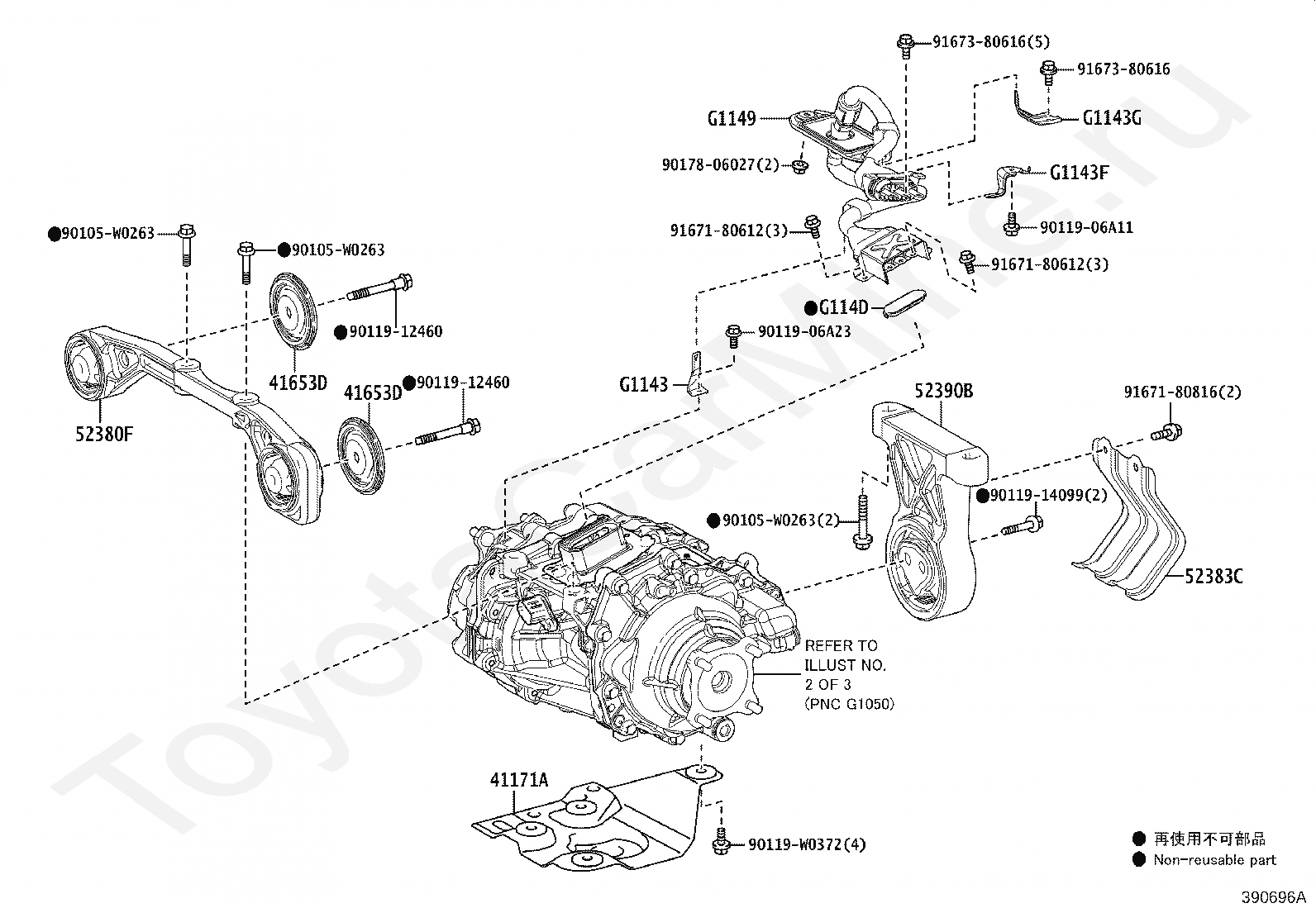

41171A

PROTECTOR, DIFFERENTIAL

41653D

STOPPER, DIFFERENTIAL MOUNT,UPPER

41653D

STOPPER, DIFFERENTIAL MOUNT,UPPER

52380F

SUPPORT ASSY, DIFFERENTIAL, FRONT

52383C

PROTECTOR, DIFFERENTIAL SUPPORT

52390B

SUPPORT ASSY, DIFFERENTIAL, REAR

90105W0263

Крепеж

90105W0263

Крепеж

90105W0263

Крепеж

9011906A11

Крепеж

9011906A23

Крепеж

9011912460

Крепеж

9011912460

Крепеж

9011914099

Крепеж

90119W0372

Крепеж

9017806027

Крепеж

9167180612

Крепеж

9167180612

Крепеж

9167180816

Крепеж

9167380616

Крепеж

9167380616

Крепеж

G1143

BRACKET, MOTOR CABLE

G1143F

BRACKET, MOTOR CABLE, NO.2

G1143G

BRACKET, MOTOR CABLE, NO.3

G1149

CABLE(FOR REAR TRACTION MOTOR)

G114D

CAP, MOTOR CABLE TERMINAL

TRANSAXLE ASSY(HEV OR BEV OR FCEV) TOYOTA YARIS/HYBRID
