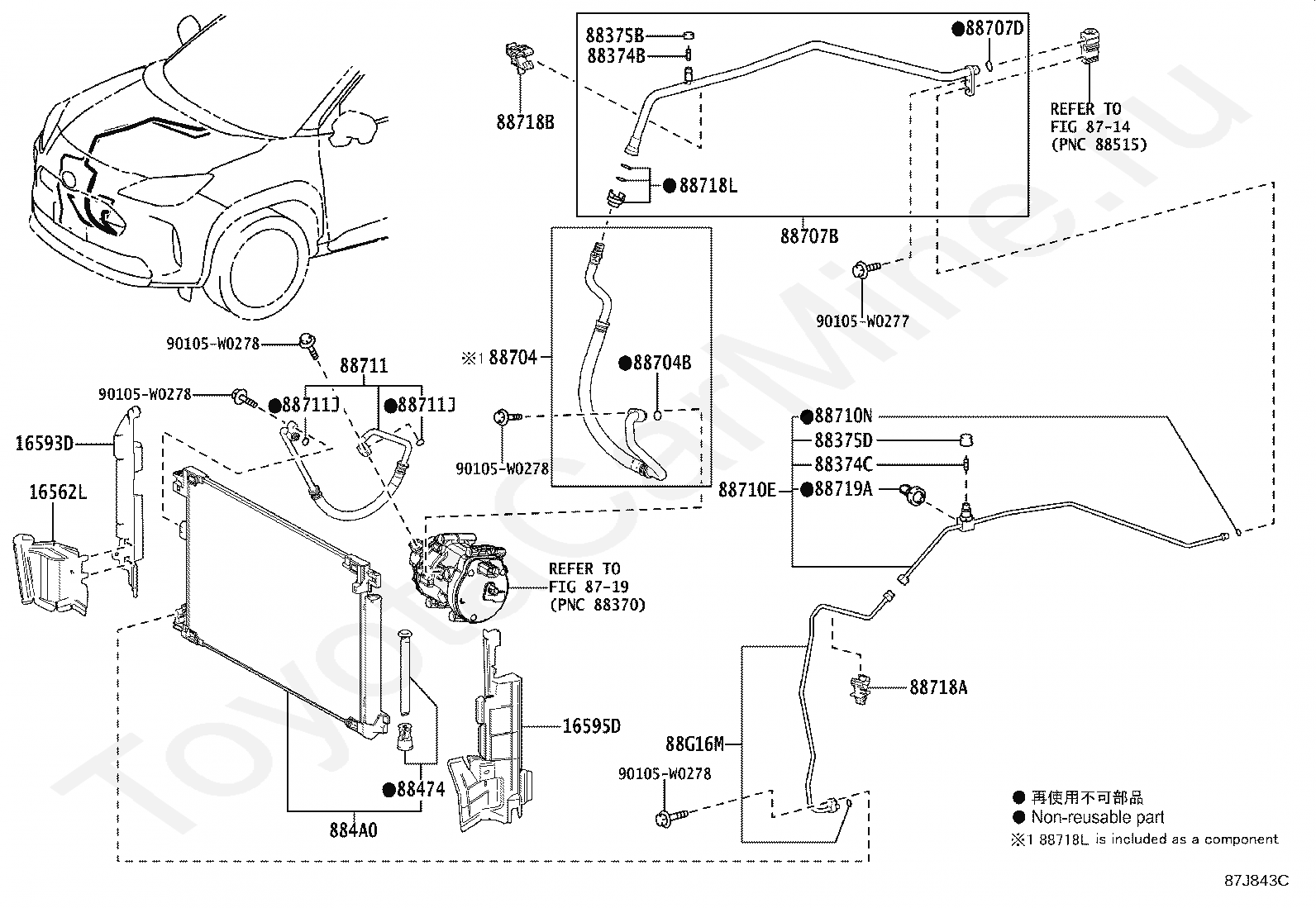

16562L
SEAL, RADIATOR TO SUPPORT, NO.2
16593D
GUIDE, RADIATOR AIR, NO.1 RH
16595D
GUIDE, RADIATOR AIR, NO.1 LH
8714
переход к группе запчастей
8719
переход к группе запчастей
88374B
VALVE, SERVICE, NO.1
88374C
VALVE, SERVICE, NO.2
88375B
CAP, SERVICE VALVE, NO.1
88375D
CAP, SERVICE VALVE, NO.2
884A0
CONDENSER ASSY, COOLER
88704
HOSE SUB-ASSY, SUCTION
88704B
RING, O(FOR SUCTION HOSE)
88707B
TUBE SUB-ASSY, SUCTION, B
88707D
RING, O(FOR SUCTION TUBE)
88710E
TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710N
RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711
HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711J
RING, O, NO.1(FOR DISCHARGE HOSE)
88711J
RING, O, NO.1(FOR DISCHARGE HOSE)
88718A
CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B
CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88719A
SENSOR, AIR CONDITIONER PRESSURE
88G16M
TUBE, LIQUID, NO.1
