Каталог

Япония

Модель

YARIS GR

VIN

Дата

2020/09

Двигатель

1500CC 12-VALVE DOHC

Класс

задний спойлер

Фрейм

MXPA12

КПП

вариатор

Опции

3 двери 801W

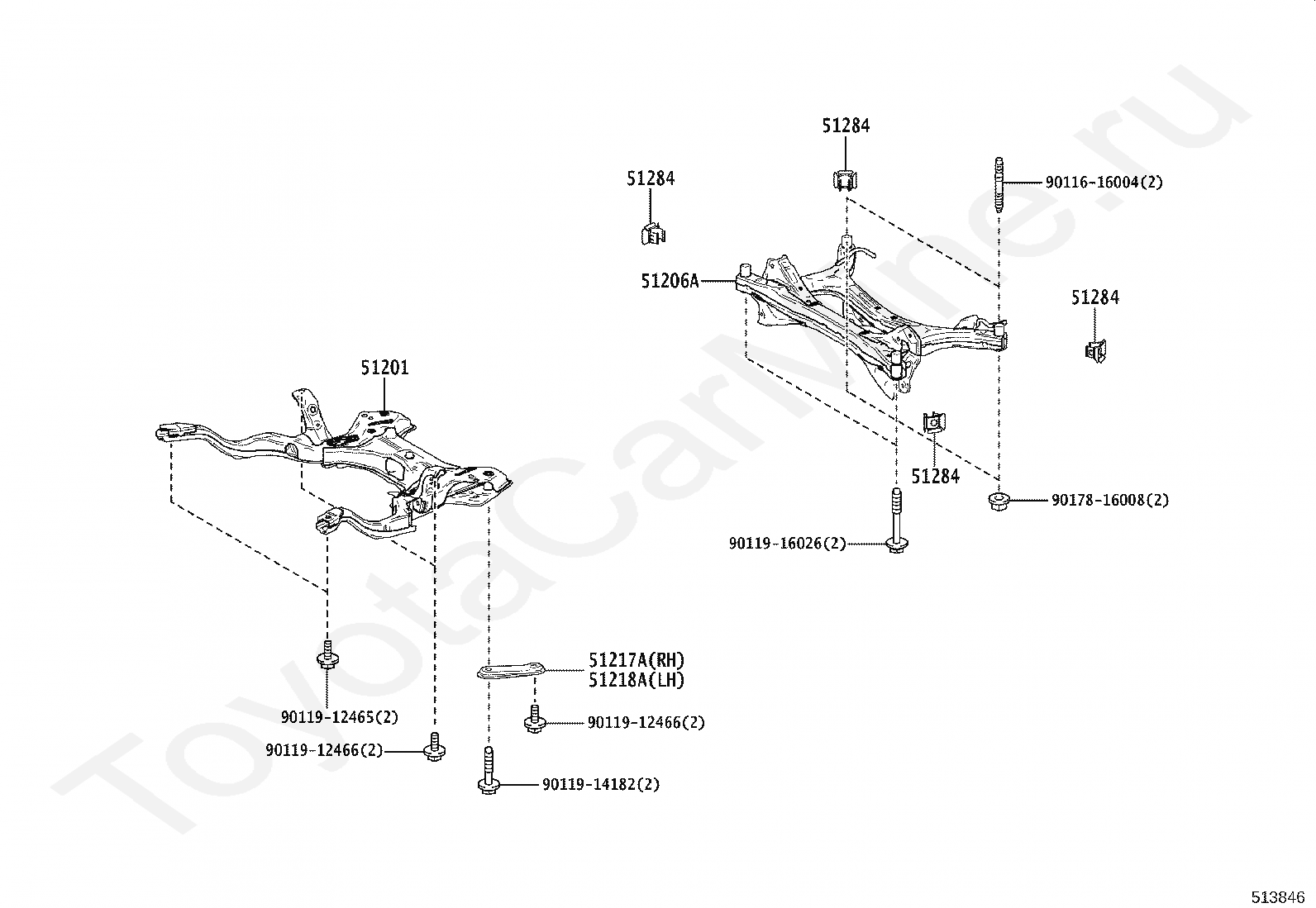

SUSPENSION CROSSMEMBER & UNDER COVER TOYOTA YARIS GR

Код

Описание

51201

CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

51206A

MEMBER SUB-ASSY, REAR SUSPENSION

51217A

REINFORCEMENT, FRONT SUSPENSION MEMBER, RH

51218A

REINFORCEMENT, FRONT SUSPENSION MEMBER, LH

51284

COVER, REAR SUSPENSION MEMBER HOLE

51284

COVER, REAR SUSPENSION MEMBER HOLE

51284

COVER, REAR SUSPENSION MEMBER HOLE

51284

COVER, REAR SUSPENSION MEMBER HOLE

9011616004

Крепеж

9011912465

Крепеж

9011912466

Крепеж

9011912466

Крепеж

9011914182

Крепеж

9011916026

Крепеж

9017816008

Крепеж

Код

Описание

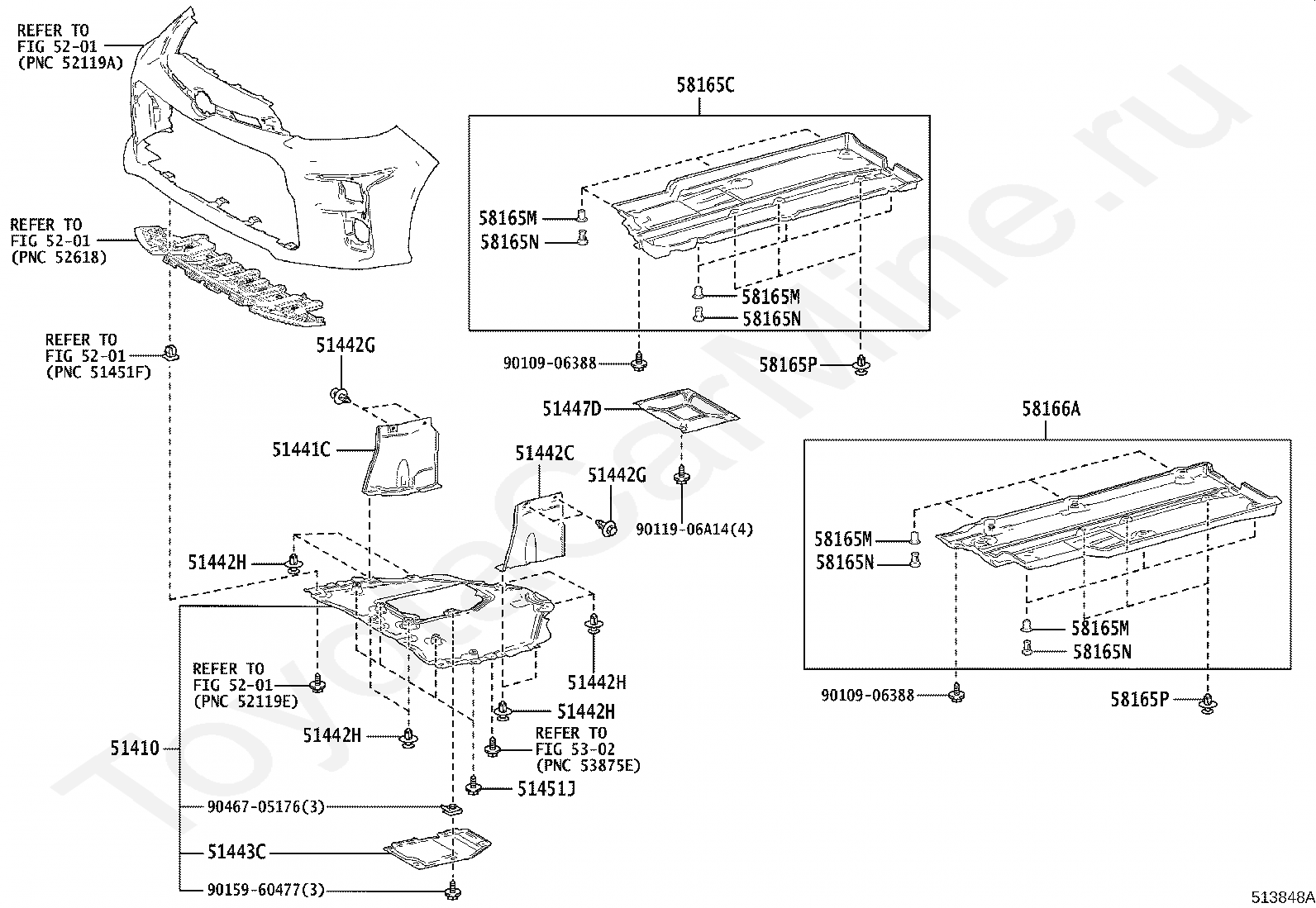

51410

COVER ASSY, ENGINE UNDER, NO.1

51441C

COVER, ENGINE UNDER, RH

51442C

COVER, ENGINE UNDER, LH

51442G

CLIP, ENGINE UNDER COVER, NO.1

51442G

CLIP, ENGINE UNDER COVER, NO.1

51442H

CLIP, ENGINE UNDER COVER, NO.2

51442H

CLIP, ENGINE UNDER COVER, NO.2

51442H

CLIP, ENGINE UNDER COVER, NO.2

51442H

CLIP, ENGINE UNDER COVER, NO.2

51443C

COVER, ENGINE UNDER, REAR RH

51447D

COVER, ENGINE UNDER, NO.4 CENTER

51451J

BOLT, NO.1

5201

переход к группе запчастей

5201

переход к группе запчастей

5201

переход к группе запчастей

5201

переход к группе запчастей

5302

переход к группе запчастей

58165C

COVER, FRONT FLOOR, RH

58165M

CLIP, FRONT FLOOR COVER, NO.1

58165M

CLIP, FRONT FLOOR COVER, NO.1

58165M

CLIP, FRONT FLOOR COVER, NO.1

58165M

CLIP, FRONT FLOOR COVER, NO.1

58165N

CLIP, FRONT FLOOR COVER, NO.2

58165N

CLIP, FRONT FLOOR COVER, NO.2

58165N

CLIP, FRONT FLOOR COVER, NO.2

58165N

CLIP, FRONT FLOOR COVER, NO.2

58165P

CLIP, FRONT FLOOR COVER, NO.3

58165P

CLIP, FRONT FLOOR COVER, NO.3

58166A

COVER, FRONT FLOOR, LH

9010906388

Крепеж

9010906388

Крепеж

9011906A14

Крепеж

9015960477

Крепеж

9046705176

Крепеж
