Каталог

Япония

Модель

YARIS GR

VIN

Дата

2020/08

Двигатель

1600CC TURBO

Класс

RZ TYPE

Фрейм

GXPA16

КПП

механика МКПП, 6 скоростей

Опции

3 двери 801W

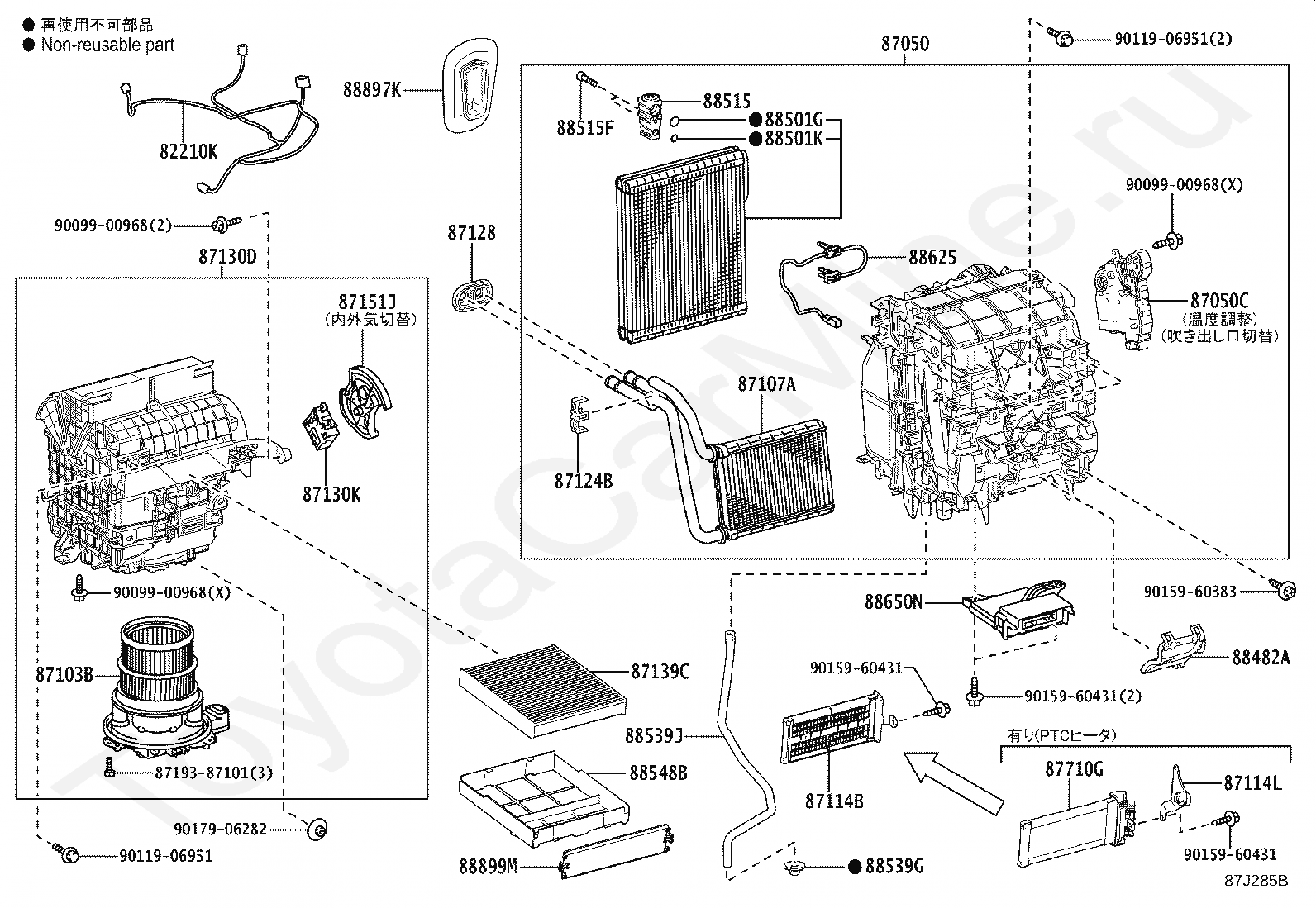

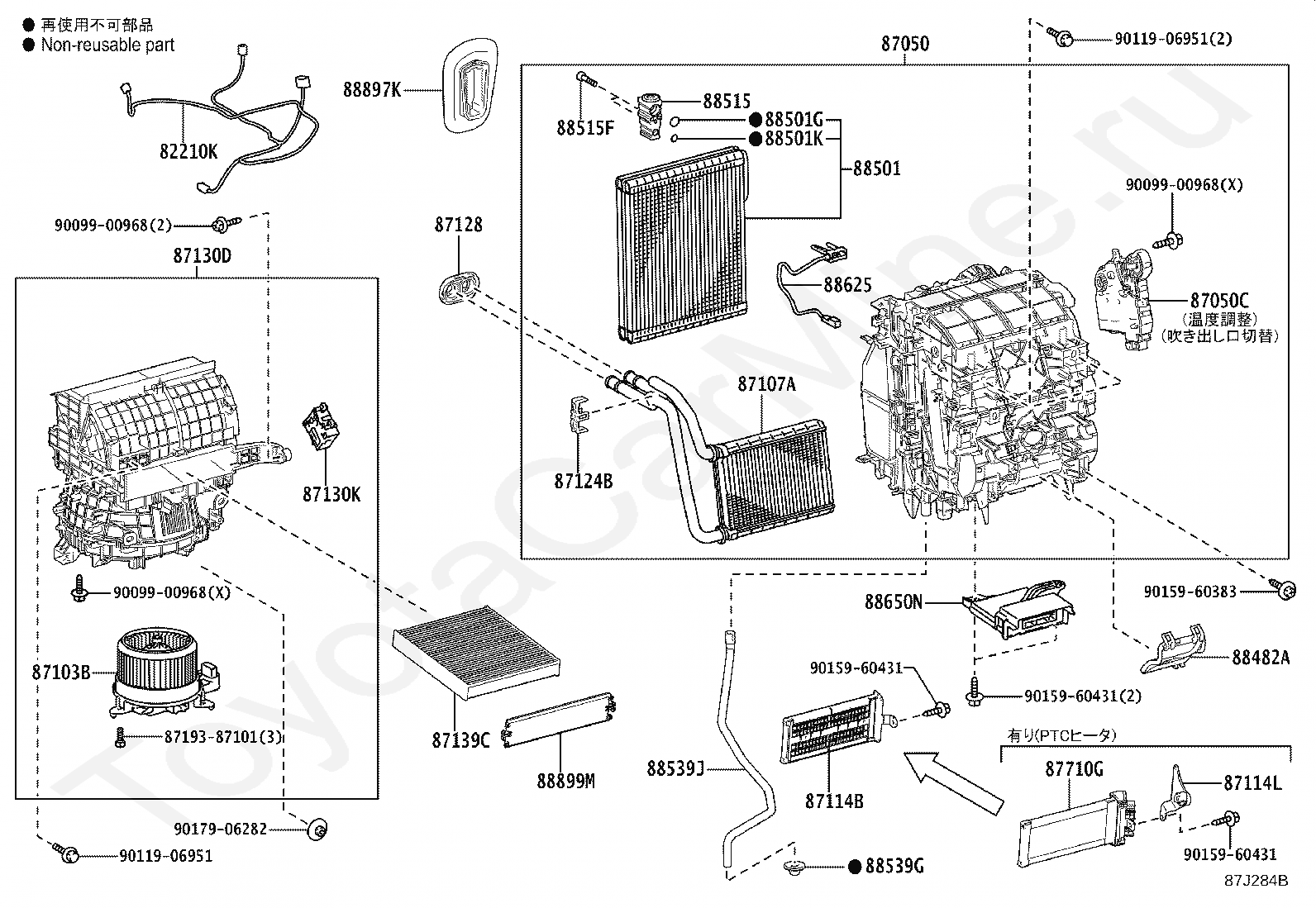

Кондиционер: охлаждающая система TOYOTA YARIS GR

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87114L

COVER, HEATER, NO.2

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

87139C

FILTER, CLEAN AIR

8719387101

Крепеж

87710G

QUICK HEATER ASSY

88482A

COVER

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88501K

O-RING, COOLER EVAPORATOR NO.1(LIQUID)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88897K

GROMMET, (FOR COOLER PIPE)

88899M

PLATE, COVER(FOR AIR FILTER)

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9015960383

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9017906282

Крепеж

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87050

RADIATOR ASSY, AIR CONDITIONER

87050C

DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87114L

COVER, HEATER, NO.2

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87130D

BLOWER ASSY

87130K

DAMPER SERVO SUB-ASSY, BLOWER, NO.1

87139C

FILTER, CLEAN AIR

87151J

PLATE, DAMPER NO.1

8719387101

Крепеж

87710G

QUICK HEATER ASSY

88482A

COVER

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88501K

O-RING, COOLER EVAPORATOR NO.1(LIQUID)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539G

GROMMET (FOR COOLER UNIT DRAIN HOSE)

88539J

HOSE, DRAIN COOLER

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88897K

GROMMET, (FOR COOLER PIPE)

88899M

PLATE, COVER(FOR AIR FILTER)

9009900968

Крепеж

9009900968

Крепеж

9009900968

Крепеж

9011906951

Крепеж

9011906951

Крепеж

9015960383

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9015960431

Крепеж

9017906282

Крепеж
