Реле и кнопки Тойота YARIS GR, Япония, 2020/08 - 2025/, 1600CC TURBO, RZ TYPE, GXPA16, механика, МКПП, 6 скоростей, 3 двери, 801W

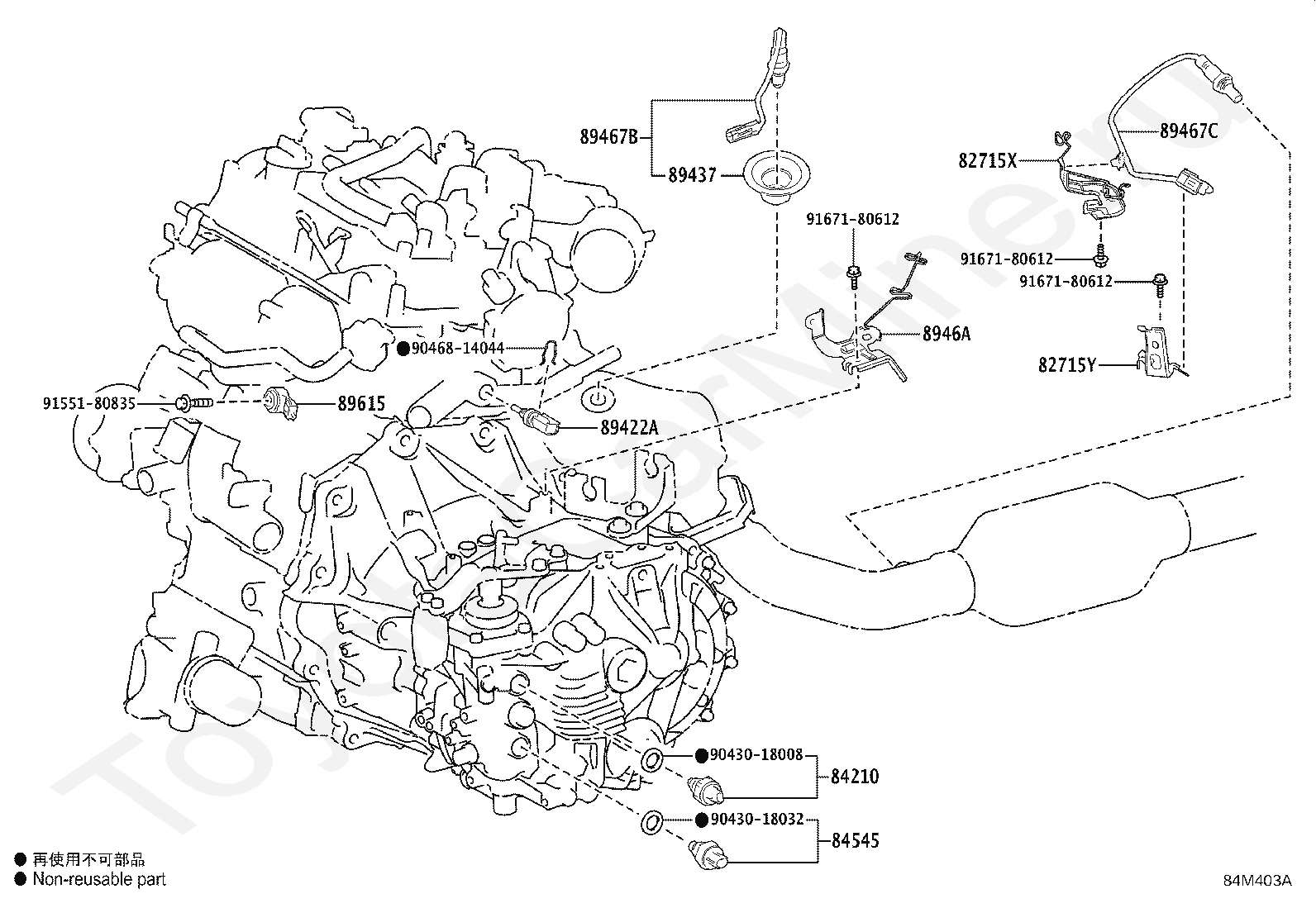

Код

Описание

82715X

BRACKET, WIRING HARNESS CLAMP, NO.2

82715Y

BRACKET, WIRING HARNESS CLAMP, NO.3

84210

SWITCH ASSY, BACK-UP LAMP

84545

SWITCH, NEUTRAL POSITION

89422A

SENSOR, WATER TEMPERATURE

89437

COVER, SENSOR

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

8946A

BRACKET, EXHAUST SENSOR CLAMP

89615

SENSOR, KNOCK CONTROL

9043018008

Крепеж

9043018032

Крепеж

9046814044

Крепеж

9155180835

Крепеж

9167180612

Крепеж

9167180612

Крепеж

9167180612

Крепеж

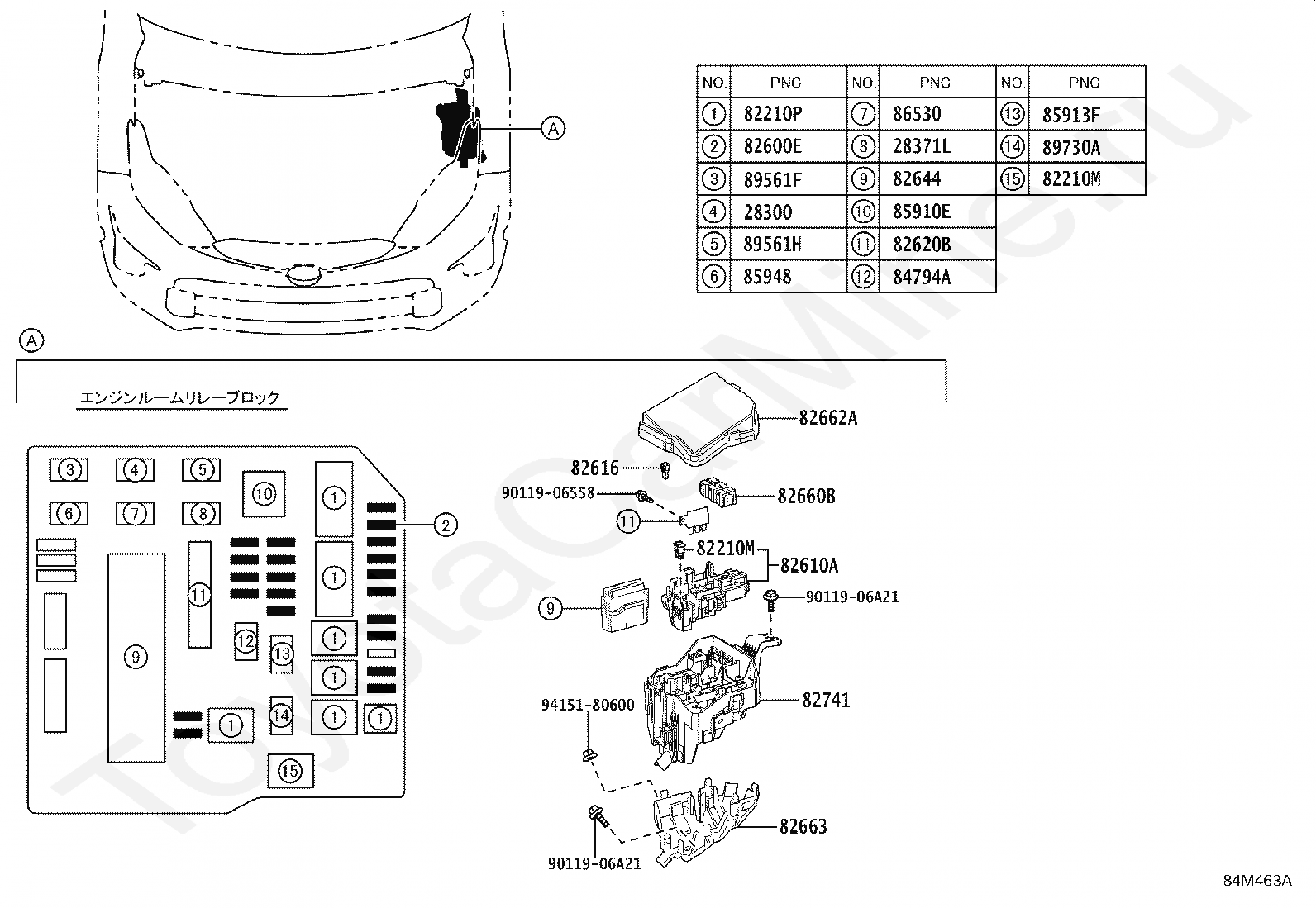

Код

Описание

28300

RELAY ASSY, STARTER

28371L

RELAY, IGP

82210M

FUSIBLE LINK

82210M

FUSIBLE LINK

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82644

COMPUTER, SEMICONDUCTOR POWER INTEGRATION

82660B

BLOCK ASSY, RELAY

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82741

BLOCK, ENGINE ROOM RELAY

84794A

RELAY, FR WIPER DEICER

85910E

RELAY, INJECTOR

85913F

RELAY, STEERING HEATER

85948

RELAY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

89730A

RELAY(FOR SECURITY WARNING)

9011906558

Крепеж

9011906A21

Крепеж

9011906A21

Крепеж

9415180600

Крепеж

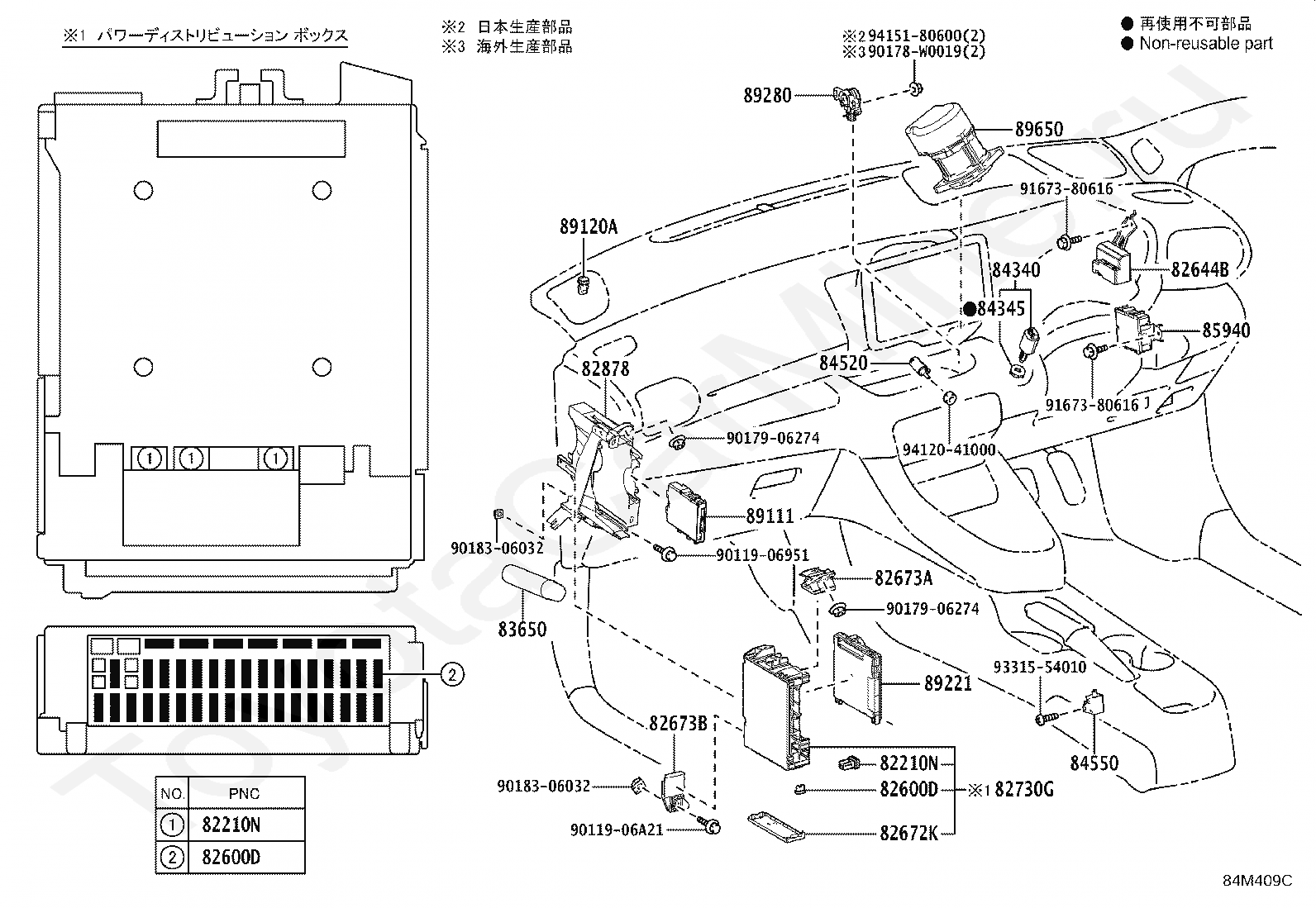

Код

Описание

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82644B

COMPUTER, SEMICONDUCTOR POWER INTEGRATION, NO.2

82672K

COVER, POWER DISTRIBUTION BOX

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82730G

BOX ASSY, POWER DISTRIBUTION

82878

BOX, COMPUTER INTEGRATION, LH

83650

FUSEE

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

85940

RELAY ASSY, WINDSHIELD WIPER

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89280

SENSOR ASSY, CLUTCH PEDAL STROKE

89650

COMPUTER ASSY, POWER STEERING

9011906951

Крепеж

9011906A21

Крепеж

90178W0019

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9018306032

Крепеж

9018306032

Крепеж

9167380616

Крепеж

9167380616

Крепеж

9331554010

Крепеж

9412041000

Крепеж

9415180600

Крепеж

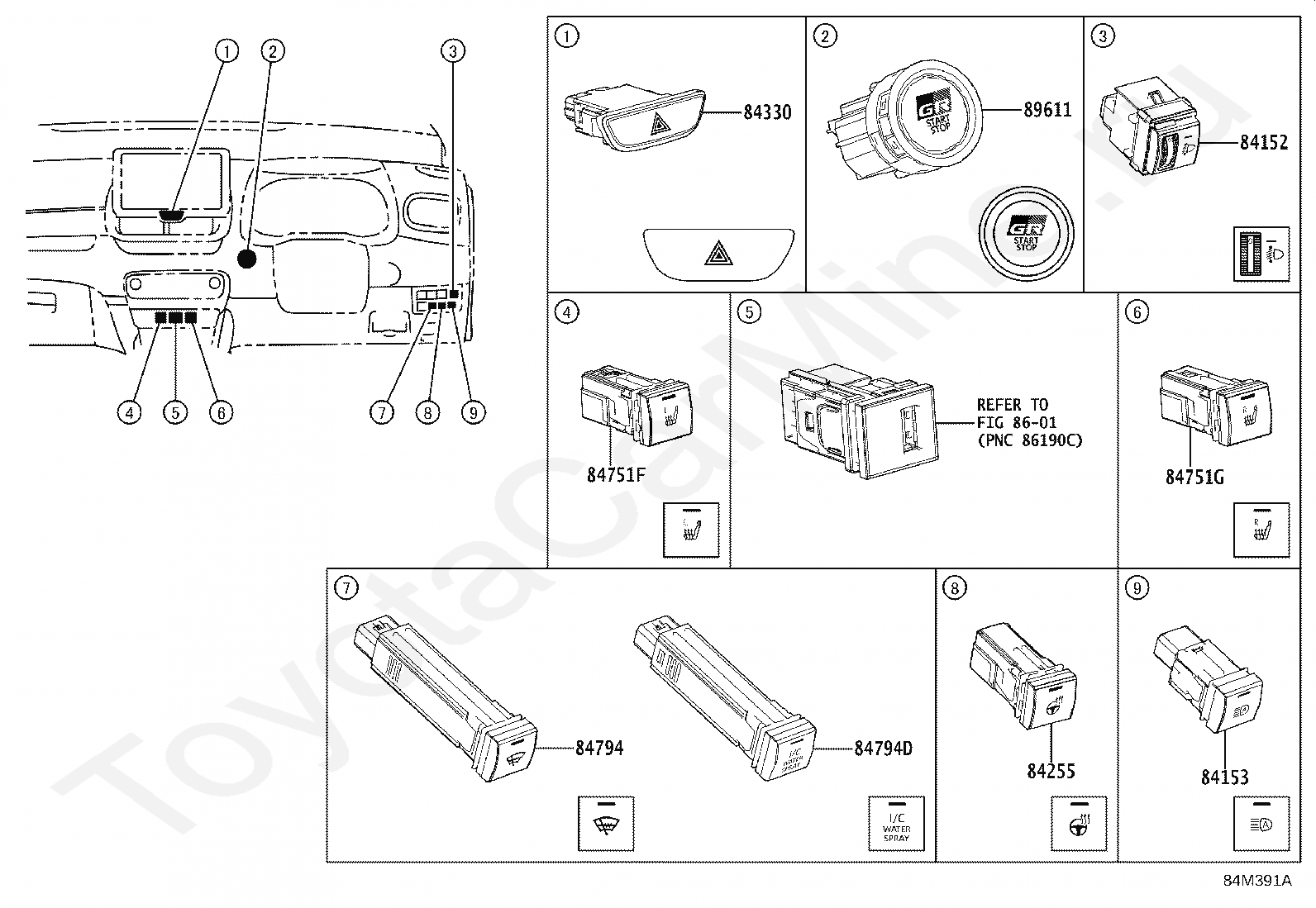

Код

Описание

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84255

SWITCH, STEERING HEATER

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84751F

SWITCH, SEAT HEATER

84751G

SWITCH, SEAT HEATER

84794

SWITCH, FR WIPER DEICER

84794D

SWITCH, WATER SPRAY

8601

переход к группе запчастей

89611

SWITCH, PUSH START

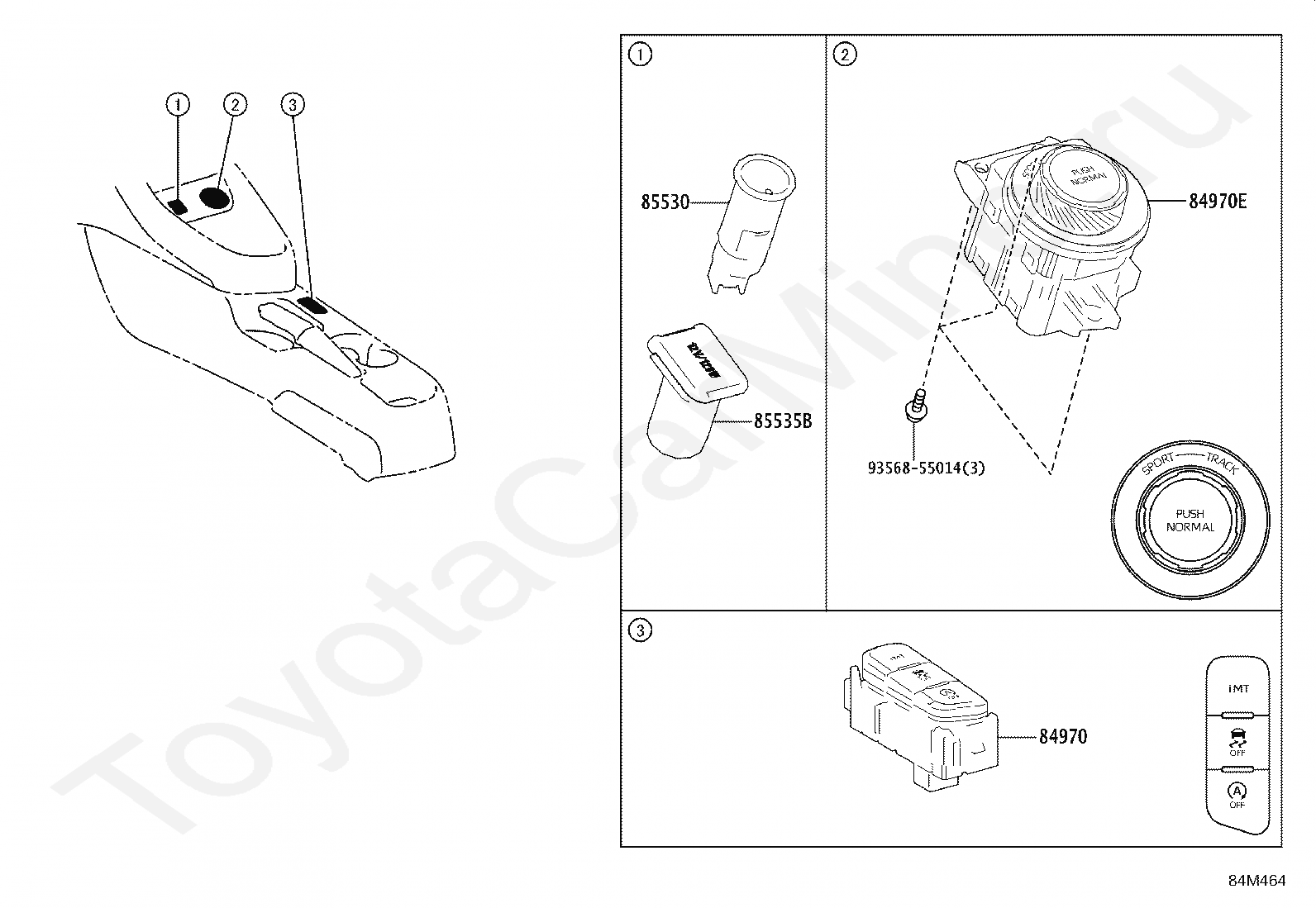

Код

Описание

84970

SWITCH ASSY, COMBINATION

84970E

SWITCH ASSY, COMBINATION NO.2

85530

SOCKET ASSY, POWER OUTLET, NO.1

85535B

COVER, POWER OUTLET SOCKET, NO.1

9356855014

Крепеж

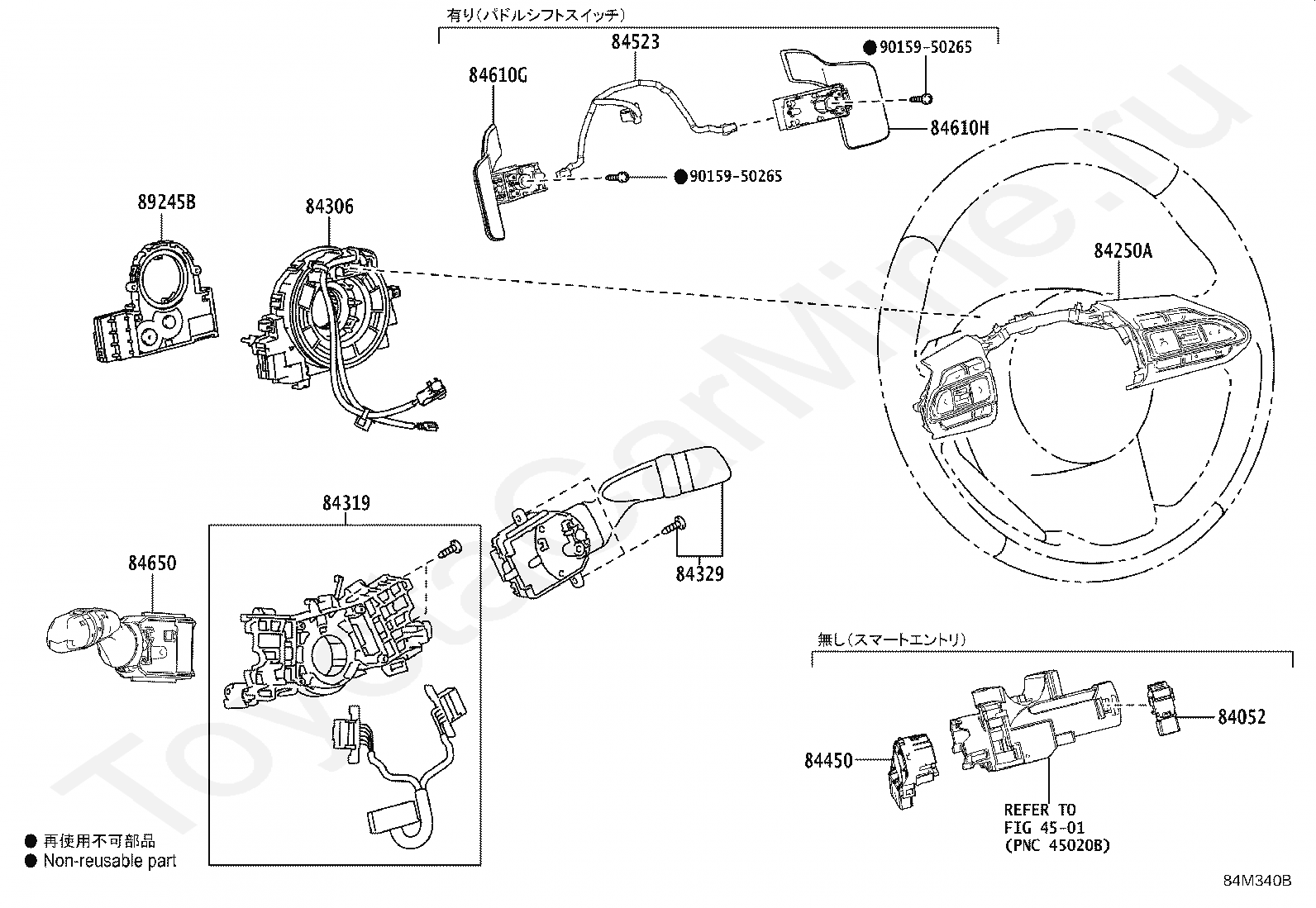

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84523

WIRE, SWITCH NO.1

84610G

SWITCH ASSY, TRANSMISSION SHIFT, NO.1

84610H

SWITCH ASSY, TRANSMISSION SHIFT, NO.2

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950265

Крепеж

9015950265

Крепеж

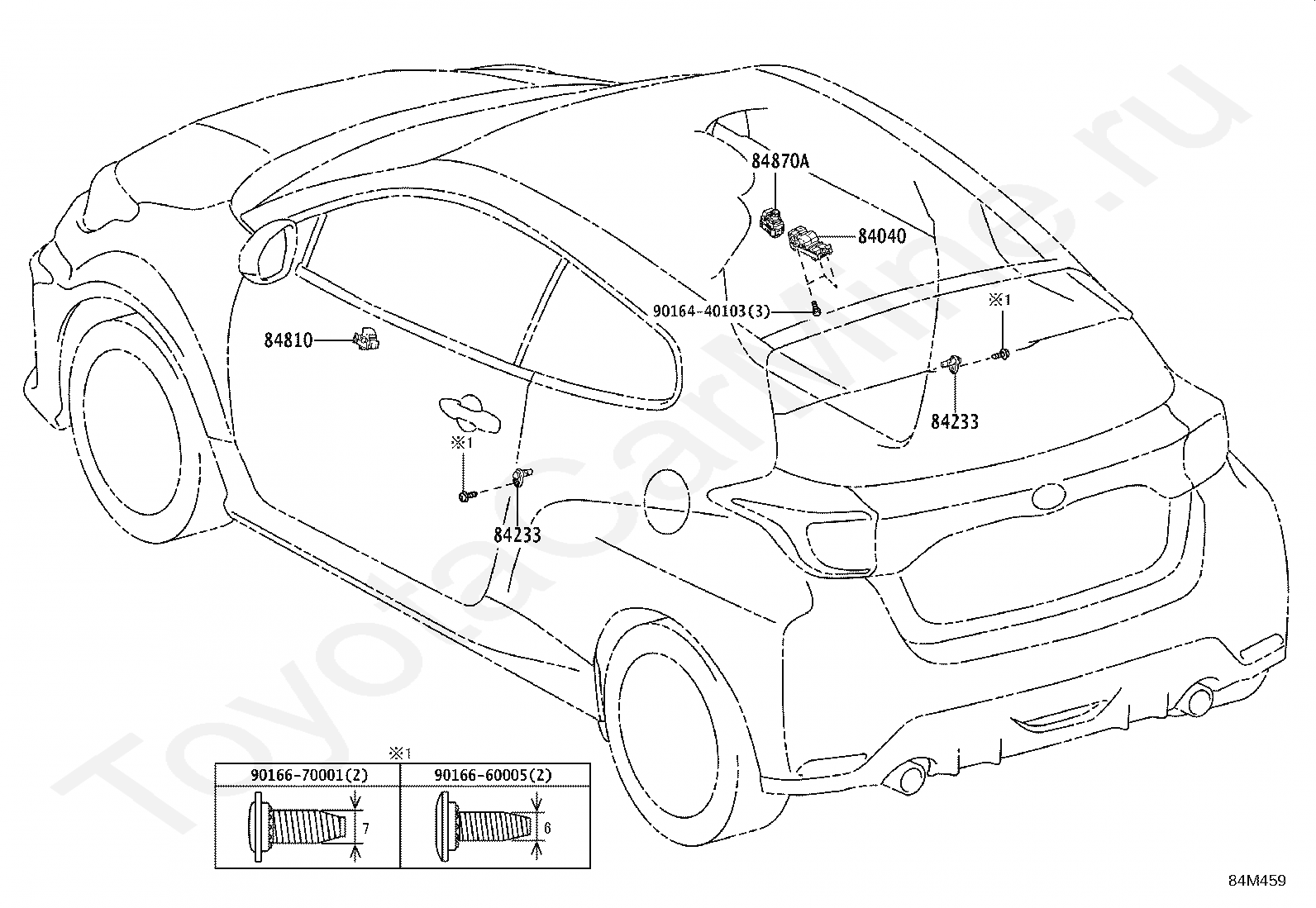

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84870A

SWITCH ASSY, OUTER MIRROR

9016440103

Крепеж

9016660005

Крепеж

9016670001

Крепеж

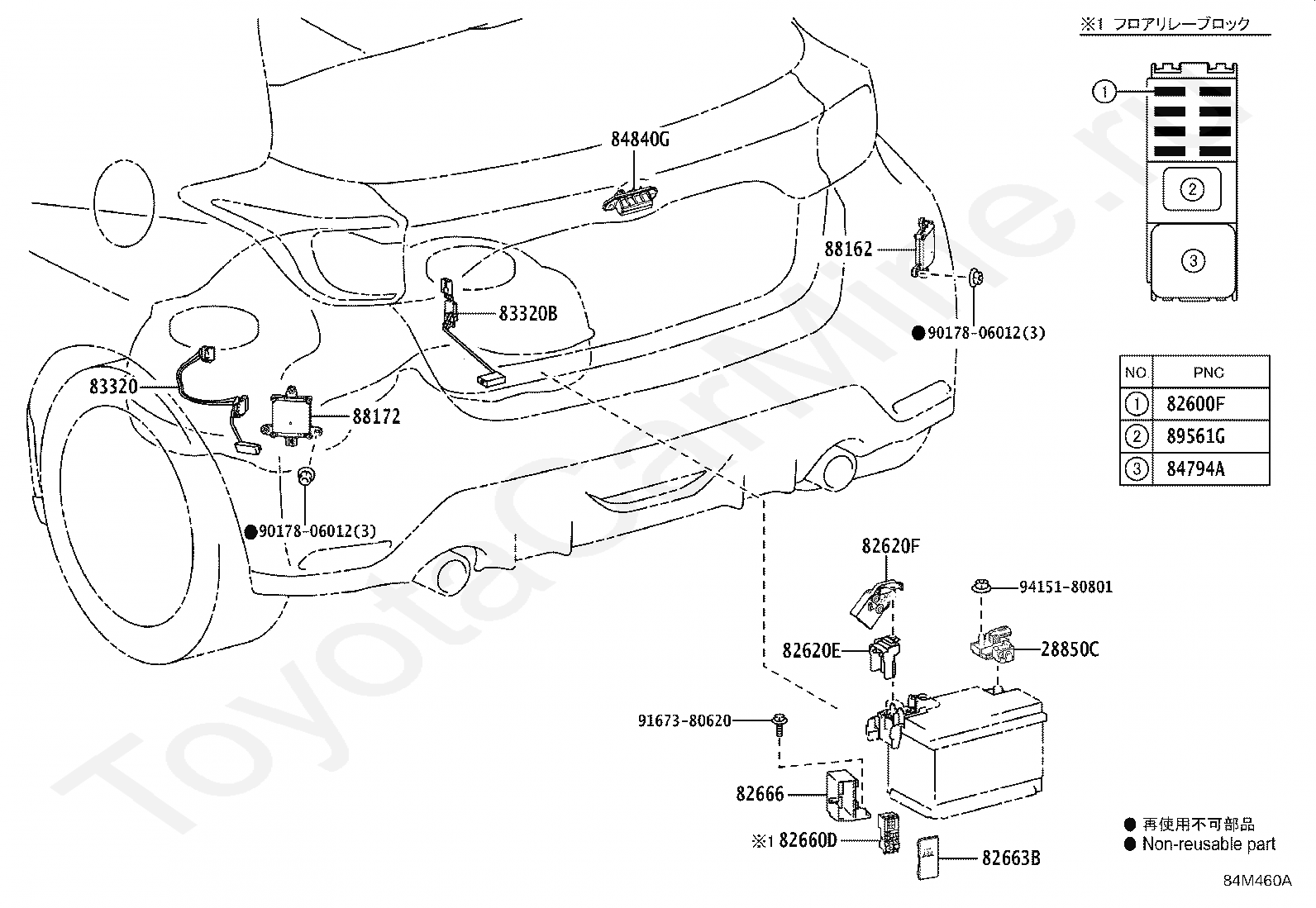

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

82600F

FUSE, FUSE BLOCK

82620E

BLOCK ASSY, FUSIBLE LINK

82620F

BLOCK ASSY, FUSIBLE LINK

82660D

BLOCK ASSY, RELAY

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82666

HOLDER, CONNECTOR

83320

GAGE ASSY, FUEL SENDER

83320B

GAGE ASSY, FUEL SENDER, NO.2

84794A

RELAY, FR WIPER DEICER

84840G

SWITCH ASSY, BACK DOOR OPENER

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

9017806012

Крепеж

9017806012

Крепеж

9167380620

Крепеж

9415180801

Крепеж
