Каталог

Япония

Модель

YARIS GR

VIN

Дата

2020/08

Двигатель

1600CC TURBO

Класс

RZ TYPE

Фрейм

GXPA16

КПП

механика МКПП, 6 скоростей

Опции

3 двери 801W

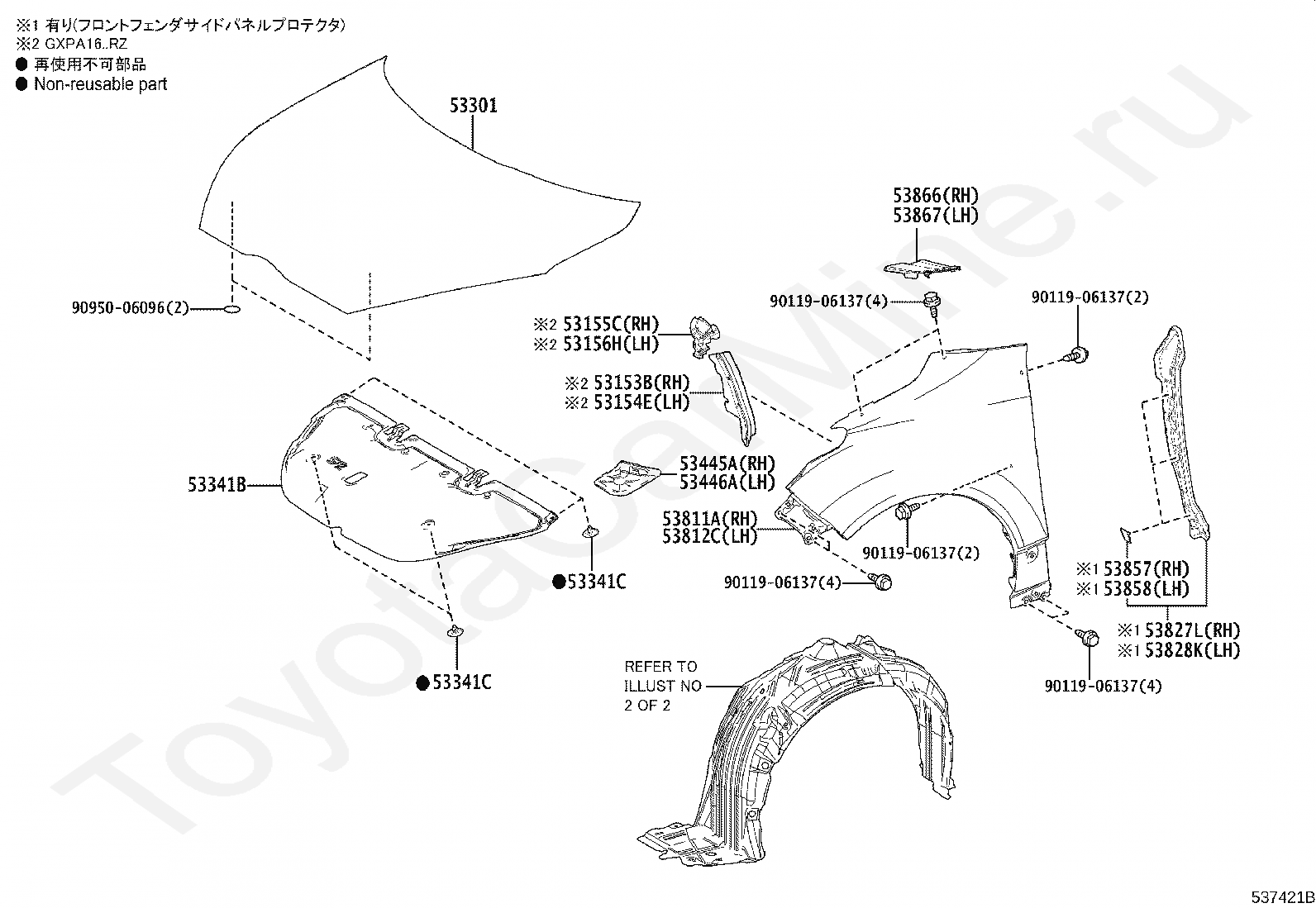

Капот и передние крылья TOYOTA YARIS GR

Код

Описание

53153B

GUIDE, FRONT SIDE AIR

53154E

GUIDE, FRONT SIDE AIR, NO.2

53155C

SEAL, RADIATOR GRILLE, NO.1

53156H

SEAL, RADIATOR GRILLE, NO.2

53301

HOOD SUB-ASSY

53341B

INSULATOR, HOOD

53341C

CLIP(FOR HOOD INSULATOR)

53341C

CLIP(FOR HOOD INSULATOR)

53445A

COVER, HOOD HINGE, RH

53446A

COVER, HOOD HINGE, LH

53811A

PANEL, FRONT FENDER, RH

53812C

PANEL, FRONT FENDER, LH

53827L

PROTECTOR, FRONT FENDER SIDE PANEL, RH

53828K

PROTECTOR, FRONT FENDER SIDE PANEL, LH

53857

RETAINER, FRONT WHEEL OPENING EXTENSION, RH

53858

RETAINER, FRONT WHEEL OPENING EXTENSION, LH

53866

SEAL, FRONT FENDER TO COWL SIDE, RH

53867

SEAL, FRONT FENDER TO COWL SIDE, LH

9011906137

Крепеж

9011906137

Крепеж

9011906137

Крепеж

9011906137

Крепеж

9011906137

Крепеж

9095006096

Крепеж

Код

Описание

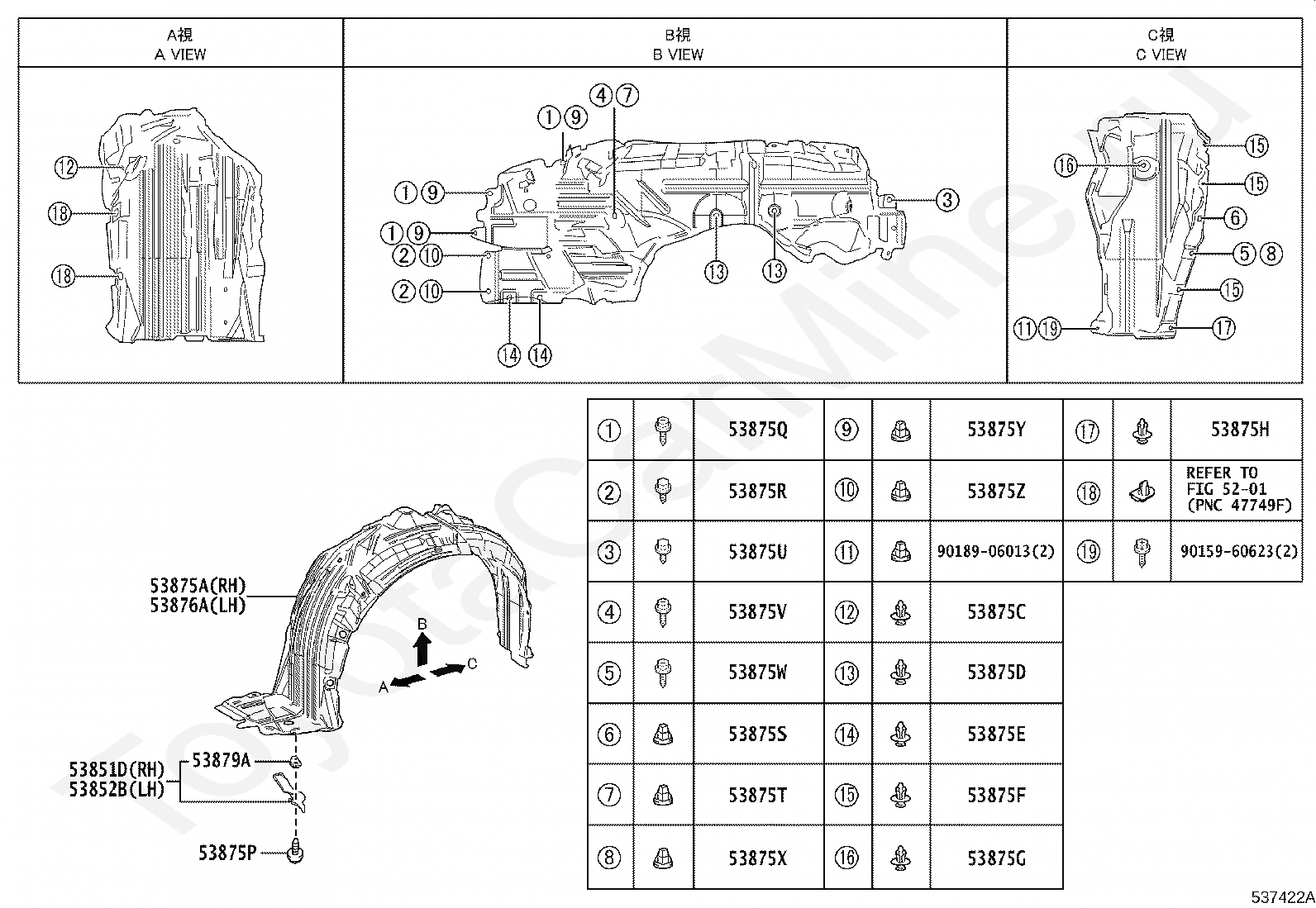

5201

переход к группе запчастей

53851D

PAD, FRONT WHEEL OPENING EXTENSION, RH

53852B

PAD, FRONT WHEEL OPENING EXTENSION, LH

53875A

LINER, FRONT FENDER, RH

53875C

CLIP, FRONT FENDER LINER

53875D

CLIP, FRONT FENDER LINER, NO.2

53875E

CLIP, FRONT FENDER LINER, NO.3

53875F

CLIP, FRONT FENDER LINER, NO.4

53875G

CLIP, FRONT FENDER LINER, NO.5

53875H

CLIP, FRONT FENDER LINER, NO.6

53875P

SCREW, NO.1

53875Q

SCREW, NO.2

53875R

SCREW, NO.3

53875S

GROMMET, NO.1

53875T

GROMMET, NO.2

53875U

SCREW, NO.4

53875V

SCREW, NO.5

53875W

SCREW, NO.6

53875X

GROMMET, NO.3

53875Y

GROMMET, NO.4

53875Z

GROMMET, NO.5

53876A

LINER, FRONT FENDER, LH

53879A

RETAINER, FRONT FENDER LINER

9015960623

Крепеж

9018906013

Крепеж
