Каталог

Япония

Модель

YARIS GR

VIN

Дата

2020/08

Двигатель

1600CC TURBO

Класс

RZ TYPE

Фрейм

GXPA16

КПП

механика МКПП, 6 скоростей

Опции

3 двери 801W

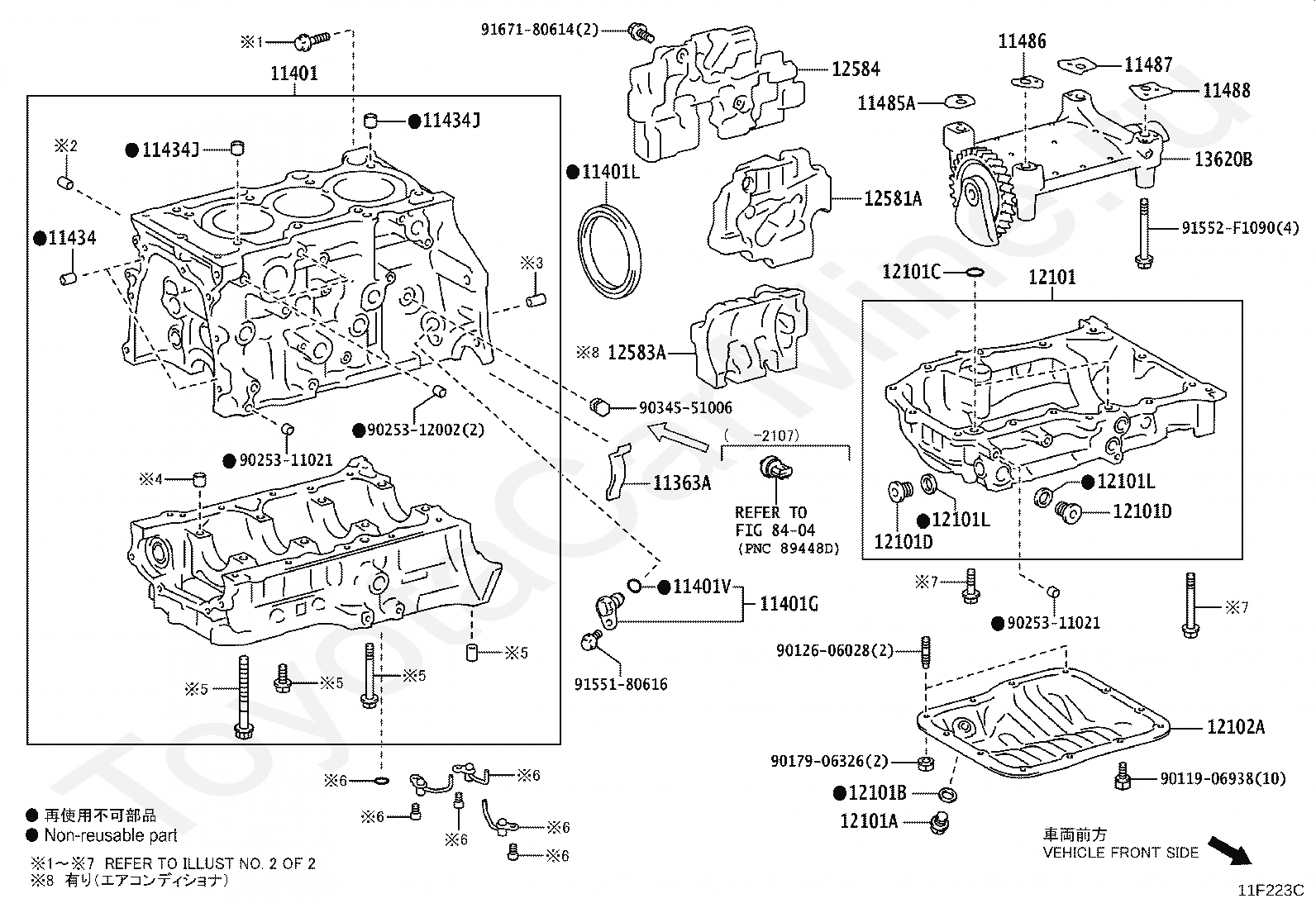

Блок цилиндров TOYOTA YARIS GR

Код

Описание

11363A

COVER, FLYWHEEL HOUSING SIDE

11401

BLOCK SUB-ASSY, CYLINDER

11401G

SENSOR, CRANK POSITION

11401L

SEAL, ENGINE REAR OIL

11401V

O-RING, CRANK POSITION SENSOR

11434

PIN, STRAIGHT(FOR TIMING CHAIN COVER)

11434J

PIN, RING (FOR CYLINDER HEAD SET)

11434J

PIN, RING (FOR CYLINDER HEAD SET)

11485A

SPACER, BALANCESHAFT HOUSING

11486

SPACER, BALANCESHAFT HOUSING, NO.2

11487

SPACER, BALANCESHAFT HOUSING, NO.3

11488

SPACER, BALANCESHAFT HOUSING, NO.4

12101

PAN SUB-ASSY, OIL

12101A

PLUG(FOR OIL PAN DRAIN)

12101B

GASKET(FOR OIL PAN DRAIN PLUG)

12101C

RING, O(FOR OIL PAN)

12101D

PLUG NO.1(FOR OIL PAN)

12101D

PLUG NO.1(FOR OIL PAN)

12101L

GASKET NO.1(FOR OIL PAN)

12101L

GASKET NO.1(FOR OIL PAN)

12102A

PAN SUB-ASSY, OIL, NO.2

12581A

INSULATOR, CYLINDER BLOCK, NO.1

12583A

INSULATOR, CYLINDER BLOCK, NO.3

12584

INSULATOR, CYLINDER BROCK, NO.4

13620B

BALANCER ASSY, ENGINE

8404

переход к группе запчастей

9011906938

Крепеж

9012606028

Крепеж

9017906326

Крепеж

9025311021

Крепеж

9025311021

Крепеж

9025312002

Крепеж

9034551006

Крепеж

9155180616

Крепеж

91552F1090

Крепеж

9167180614

Крепеж

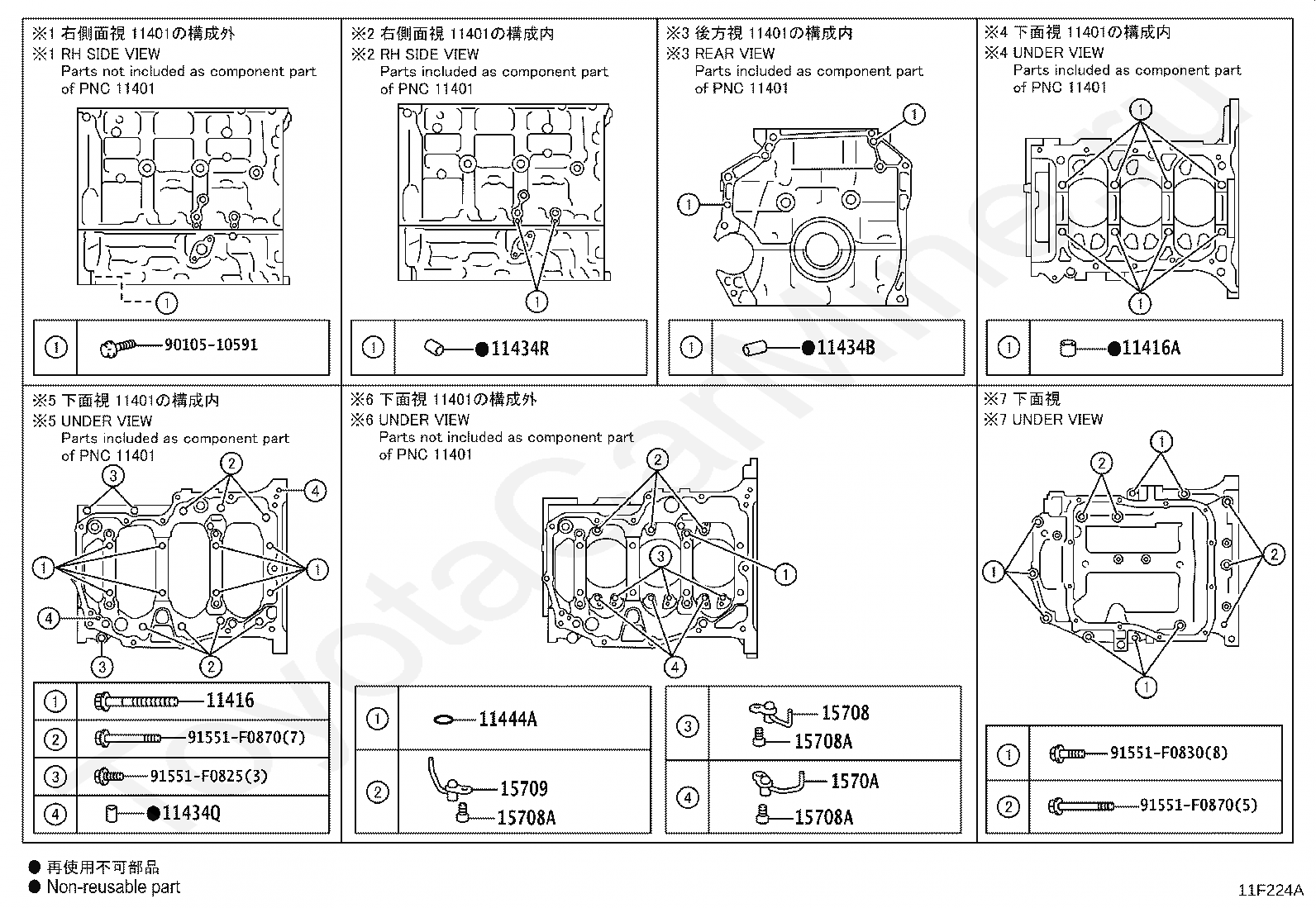

Код

Описание

11416

BOLT(FOR CRANKSHAFT BEARING CAP SET)

11416A

PIN, RING(FOR CRANKSHAFT BEARING CAP SET)

11434B

PIN, STRAIGHT(FOR CLUTCH HOUSING SET)

11434Q

PIN, STRAIGHT(FOR CRANKCASE)

11434R

PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)

11444A

RING, O

15708

NOZZLE SUB-ASSY, OIL, NO.1

15708A

BOLT, OIL NOZZLE

15708A

BOLT, OIL NOZZLE

15708A

BOLT, OIL NOZZLE

15709

NOZZLE SUB-ASSY, OIL, NO.2

1570A

NOZZLE SUB-ASSY, OIL, NO.3

9010510591

Крепеж

91551F0825

Крепеж

91551F0830

Крепеж

91551F0870

Крепеж

91551F0870

Крепеж
