Ближний Восток

Модель

YARIS/ECHO (3D,5D)

VIN

Дата

1999/08

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Фрейм

NCP10

КПП

автомат

Опции

правый руль 5 дверей Австралия

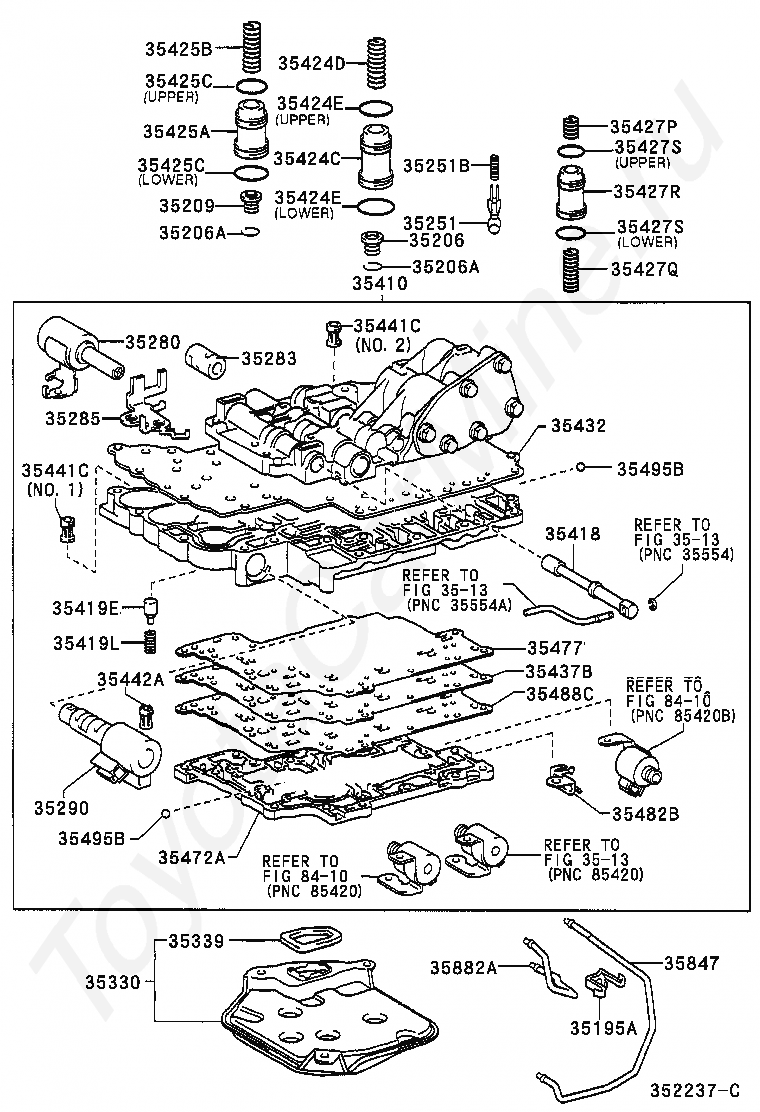

VALVE BODY & OIL STRAINER (ATM) TOYOTA YARIS/ECHO (3D,5D)







Код

Описание

3513

переход к группе запчастей

3513

переход к группе запчастей

3513

переход к группе запчастей

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35206

SPRING SUB-ASSY, C-1 ACCUMULATOR

35206A

RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

35206A

RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35251

BODY, CHECK BALL

35251B

SPRING, COMPRESSION(FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35283

SLEEVE, LOCK UP CONTROL SOLENOID

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35418

VALVE, MANUAL

35419E

VALVE, CHECK, NO.3

35419L

SPRING, COMPRESSION (FOR CHECK VALVE NO.3)

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35427P

SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)

35427Q

SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)

35427R

PISTON B-1 ACCUMULATOR

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35432

PLATE, VALVE BODY, NO.1

35437B

PLATE, VALVE BODY COVER

35441C

STRAINER, SOLENOID OIL

35441C

STRAINER, SOLENOID OIL

35442A

STRAINER, SOLENOID OIL, NO.2

35472A

COVER, LOWER VALVE BODY

35477

GASKET, VALVE BODY COVER

35482B

CLAMP, TEMPERATURE SENSOR

35488C

GASKET, VALVE BODY COVER, NO.2

35495B

BALL, CHECK, NO.1

35495B

BALL, CHECK, NO.1

35847

TUBE, TRANSMISSION LUBE APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

8410

переход к группе запчастей

8410

переход к группе запчастей

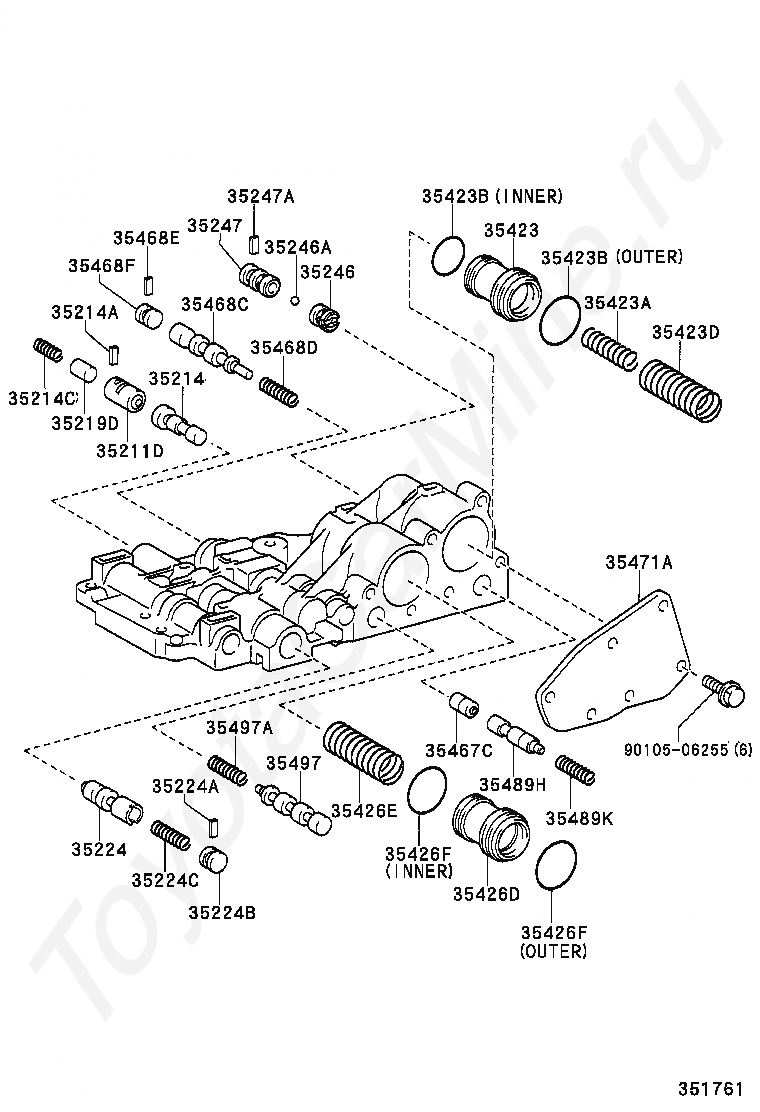

Код

Описание

35211D

SLEEVE, LOCK UP CONTROL VALVE

35214

VALVE, LOCK UP CONTROL

35214A

KEY, STRAIGHT (FOR LOCK UP CONTROL VALVE)

35214C

SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE)

35219D

PLUNGER, LOCK UP CONTROL VALVE

35224

VALVE, REVERSE CONTROL

35224A

KEY, STRAIGHT (FOR REVERSE CONTROL VALVE)

35224B

PLUG (FOR REVERSE CONTROL VALVE)

35224C

SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE)

35246

VALVE, CHECK, NO.1

35246A

BALL, REVERSE SHIFT RESTRICT (FOR CHECK VALVE NO.1)

35247

VALVE, CHECK, NO.2

35247A

KEY, STRAIGHT(FOR CHECK VALVE NO.2)

35423

PISTON, B-2 ACCUMULATOR

35423A

SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423B

RING, O (FOR B-2 ACCUMULATOR PISTON)

35423D

SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON)

35426D

PISTON, C-3 ACCUMULATOR

35426E

SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35426F

RING, O (FOR C-3 ACCUMULATOR PISTON)

35467C

PLUNGER, ORIFICE CONTROL VALVE

35468C

VALVE, SECONDARY REGULATOR

35468D

SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE)

35468E

KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE)

35468F

PLUG (FOR SECONDARY REGULATOR VALVE)

35471A

COVER, UPPER VALVE BODY

35489H

VALVE, C-1 ORIFICE CONTROL

35489K

SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE)

35497

VALVE, 3-4 SHIFT

35497A

SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE)

9010506255

Крепеж

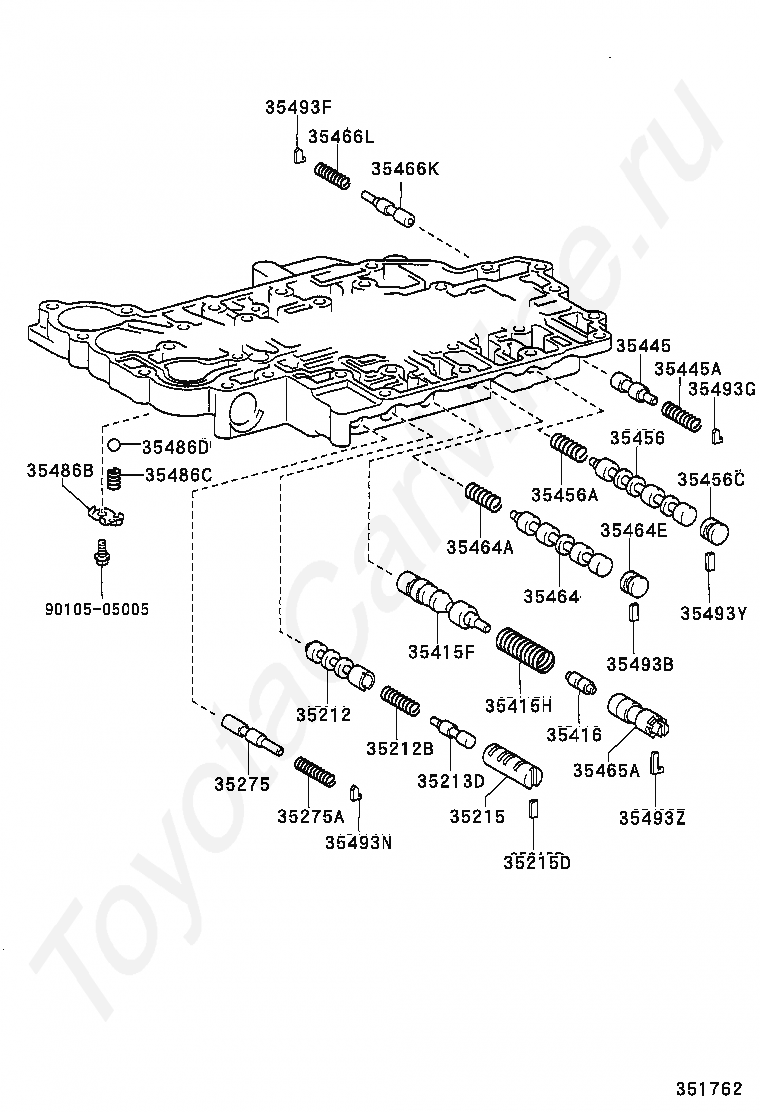

Код

Описание

35212

VALVE, LOCK UP RELAY

35212B

SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE)

35213D

PLUNGER, LOCK UP RELAY VALVE

35215

SLEEVE, LOCK UP RELAY VALVE

35215D

KEY, STRAIGHT(FOR LOCK UP RELAY VALVE SLEEVE)

35275

VALVE, SOLENOID MODULATOR

35275A

SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE)

35415F

VALVE, PRIMARY REGULATOR

35415H

SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE)

35416

PLUNGER, PRIMARY REGULATOR VALVE, NO.1

35445

VALVE, LOW MODULATOR

35445A

SPRING, COMPRESSION (FOR LOW MODULATOR VALVE)

35456

VALVE, 2-3 SHIFT

35456A

SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE)

35456C

PLUG (FOR 2-3 SHIFT VALVE)

35464

VALVE, 1-2 SHIFT

35464A

SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE)

35464E

PLUG (FOR 1-2 SHIFT VALVE)

35465A

SLEEVE, PRIMARY REGULATOR VALVE PLUNGER

35466K

VALVE, CLUTCH APPLY CONTROL

35466L

SPRING, COMPRESSION (FOR CLUTCH APPLY CONTROL VALVE)

35486B

SEAT, PRESSURE RELIEF VALVE SPRING

35486C

SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE)

35486D

BALL (FOR PRESSURE RELIFE VALVE)

35493B

SEAT, 1-2 SHIFT VALVE PLUG

35493F

SEAT, SHIFT VALVE PLUG

35493G

SEAT, LOW COAST MODULATOR VALVE PLUG

35493N

SEAT, SOLENOID MODULATOR VALVE PLUG

35493Y

SEAT, 2-3 SHIFT VALVE PLUG

35493Z

SEAT, SHIFT VALVE PLUG, NO.1

9010505005

Крепеж

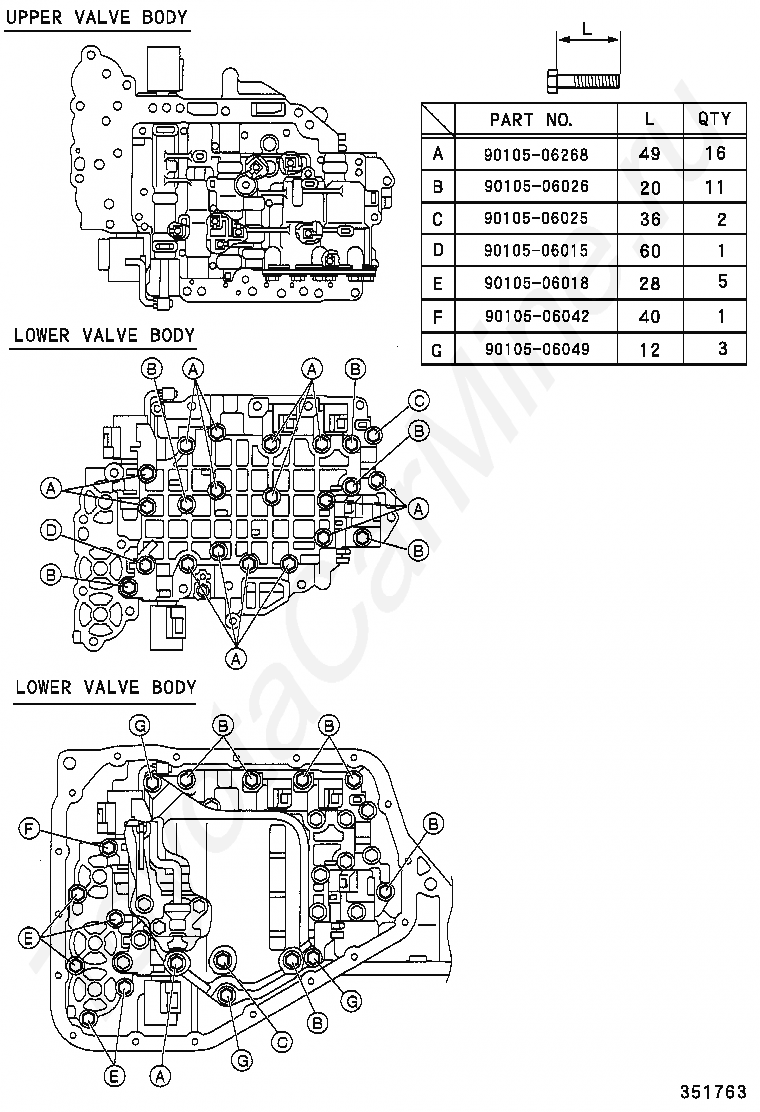

Код

Описание

9010506015

Крепеж

9010506018

Крепеж

9010506025

Крепеж

9010506026

Крепеж

9010506042

Крепеж

9010506049

Крепеж

9010506268

Крепеж

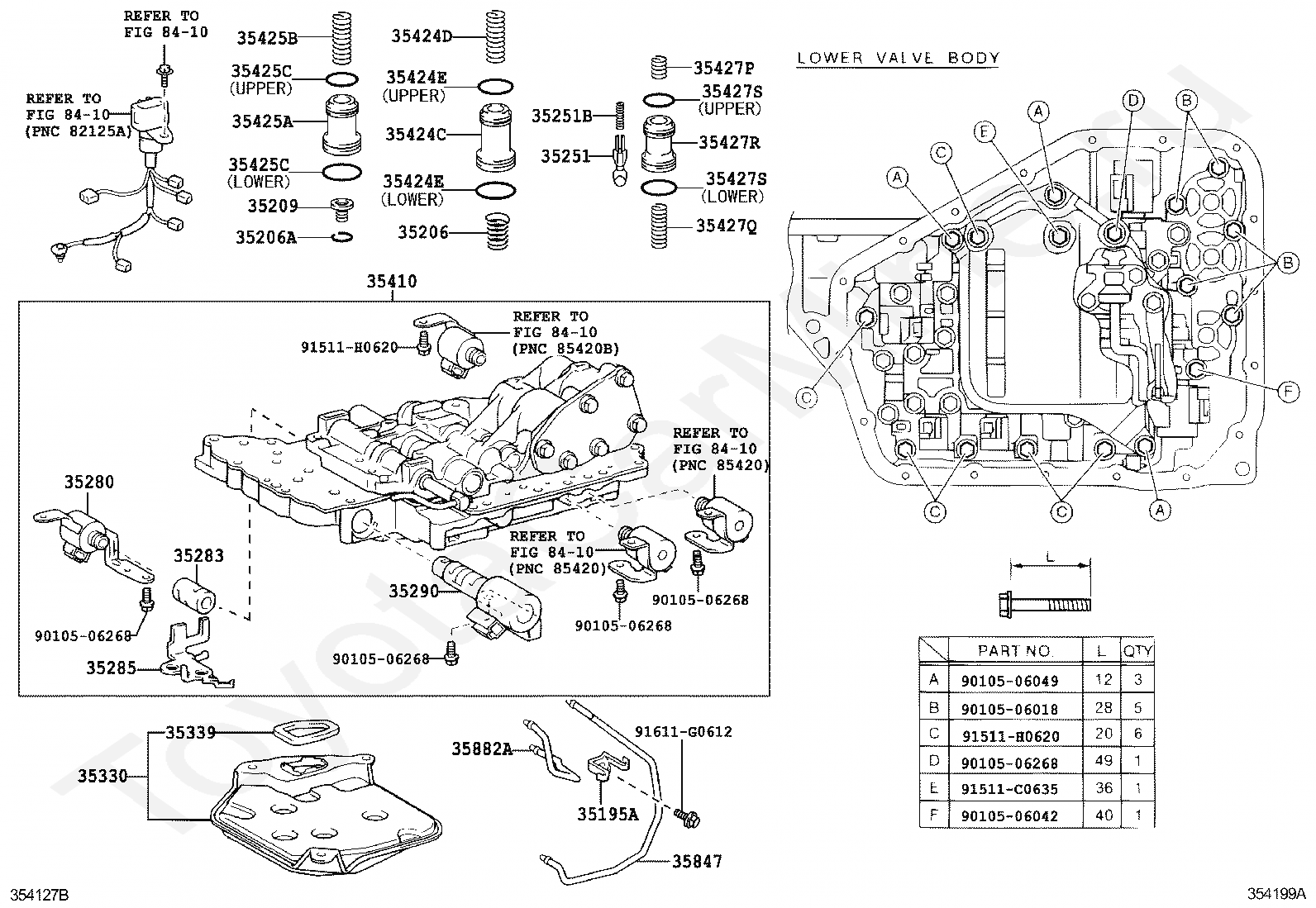

Код

Описание

35195A

CLAMP, TRANSAXLE APPLY TUBE, NO.1

35206

SPRING SUB-ASSY, C-1 ACCUMULATOR

35206A

RING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

35209

SPRING SUB-ASSY, C-2 ACCUMULATOR

35251

BODY, CHECK BALL

35251B

SPRING, COMPRESSION(FOR CHECK BALL BODY)

35280

SOLENOID ASSY, LOCK UP CONTROL

35283

SLEEVE, LOCK UP CONTROL SOLENOID

35285

PLATE, SOLENOID LOCK

35290

SOLENOID ASSY, LINE PRESSURE CONTROL

35330

STRAINER ASSY, VALVE BODY OIL

35339

GASKET, OIL STRAINER

35410

BODY ASSY, TRANSMISSION VALVE

35424C

PISTON, C-1 ACCUMULATOR

35424D

SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35424E

RING, O (FOR C-1 ACCUMULATOR PISTON)

35425A

PISTON, C-2 ACCUMULATOR

35425B

SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35425C

RING, O (FOR C-2 ACCUMULATOR PISTON)

35427P

SPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)

35427Q

SPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)

35427R

PISTON B-1 ACCUMULATOR

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35427S

RING, O(FOR B-1 ACCUMULATOR PISTON)

35847

TUBE, TRANSMISSION LUBE APPLY

35882A

TUBE, DIFFERENTIAL GEAR LUBE APPLY

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

8410

переход к группе запчастей

9010506018

Крепеж

9010506042

Крепеж

9010506049

Крепеж

9010506268

Крепеж

9010506268

Крепеж

9010506268

Крепеж

9010506268

Крепеж

9010506268

Крепеж

91511C0635

Крепеж

91511H0620

Крепеж

91511H0620

Крепеж

91611G0612

Крепеж
