Ближний Восток

Модель

YARIS CROSS

VIN

Дата

2020/08

Двигатель

1500CC 12-VALVE DOHC

Фрейм

MXPB10

КПП

вариатор

Опции

5 дверей N(MODEL MARK) 751W

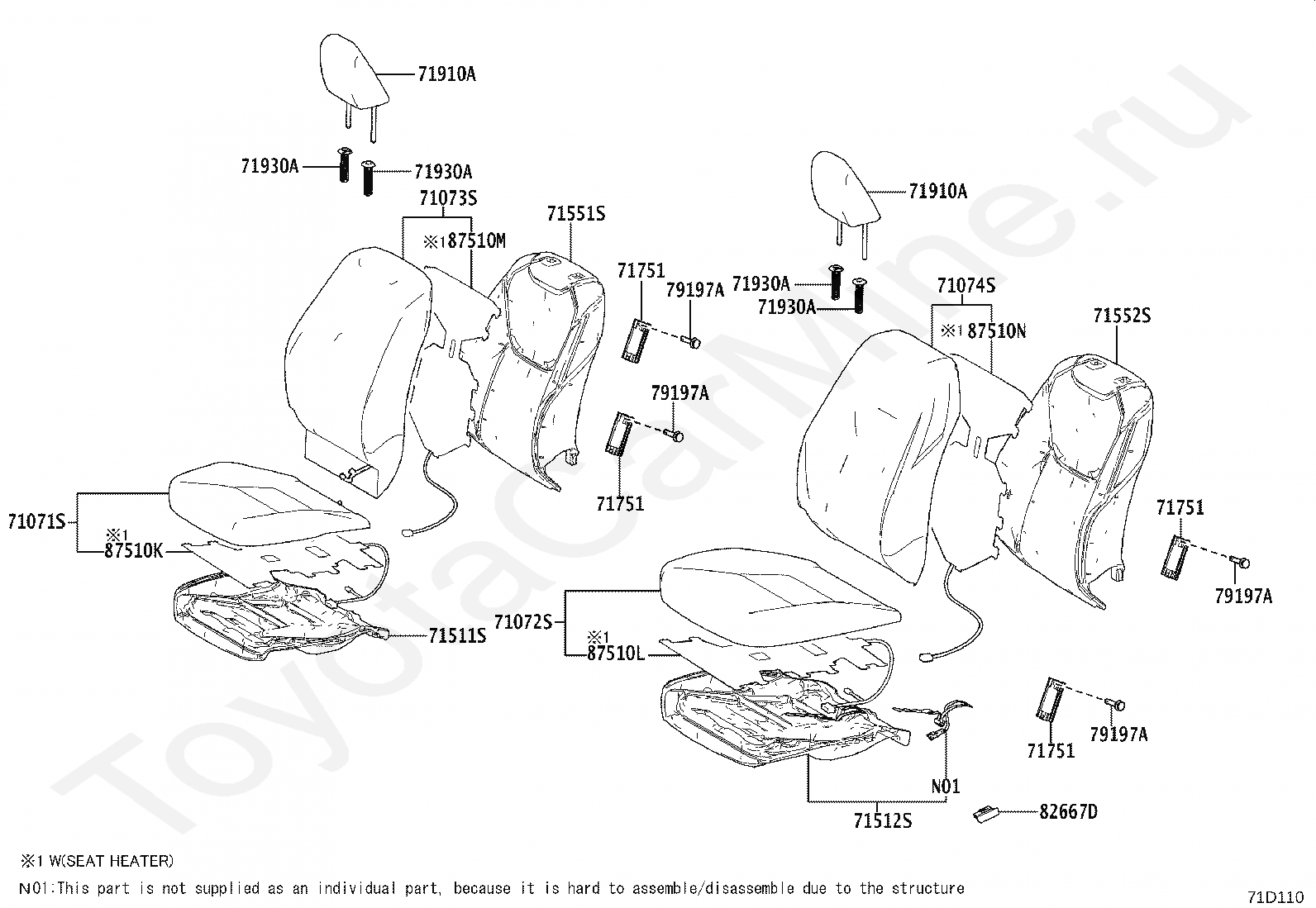

Передние кресла TOYOTA YARIS CROSS







Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71751

HANGER, SEAT COVER

71751

HANGER, SEAT COVER

71751

HANGER, SEAT COVER

71751

HANGER, SEAT COVER

71910A

HEADREST ASSY, FRONT SEAT

71910A

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

79197A

RIVET

79197A

RIVET

79197A

RIVET

79197A

RIVET

82667D

HOLDER, CONNECTOR

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

Код

Описание

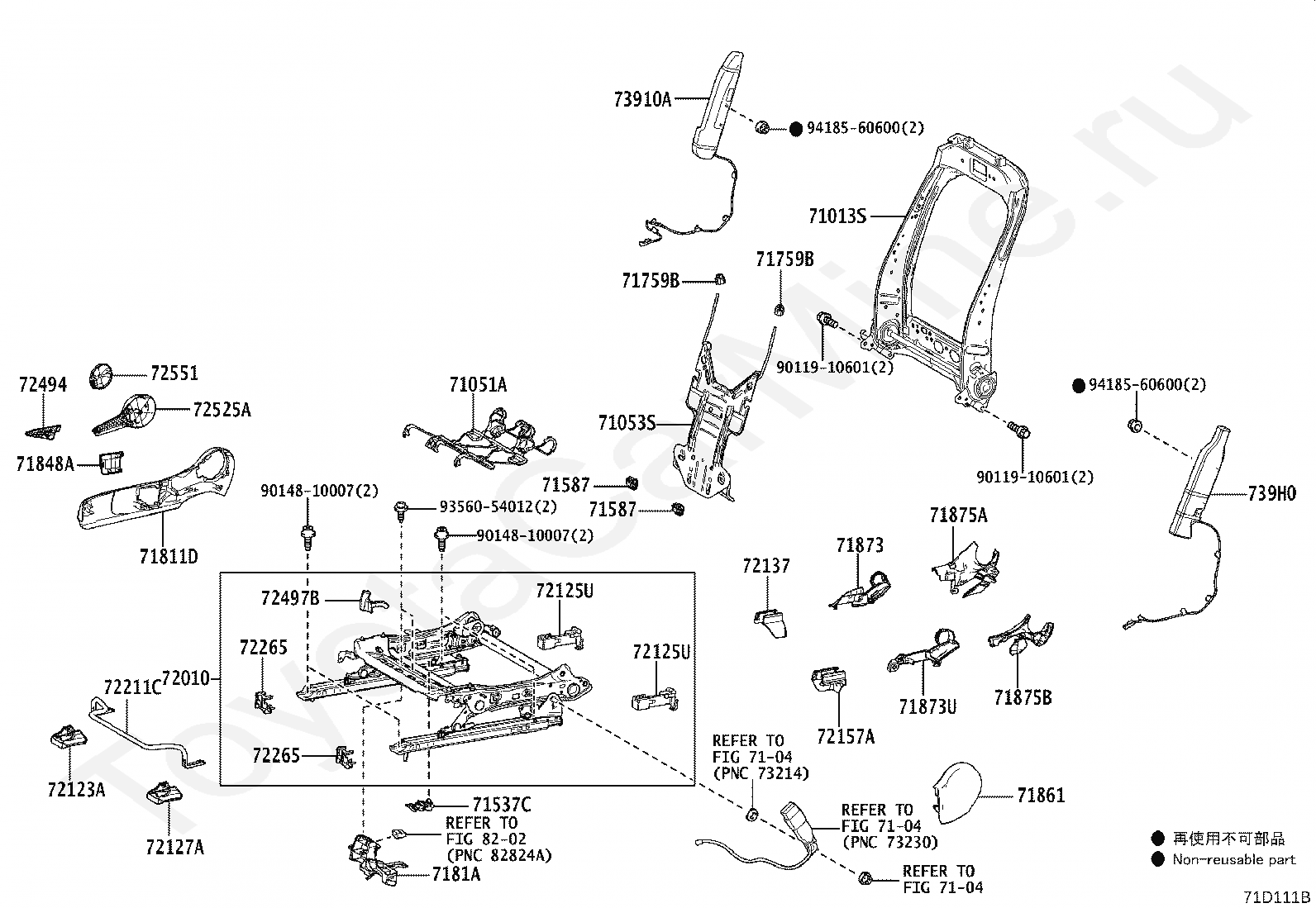

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

7114152020

Крепеж

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72136

SPACER, SEAT TRACK, LOWER NO.1

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72553B

PROTECTOR, RECLINING COVER, RH

72713

BRACKET, SEAT ADJUSTER SHIELD CLAMP, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

84921E

KNOB, POWER SEAT SWITCH

84921F

KNOB, POWER SEAT SWITCH

84921G

KNOB, POWER SEAT SWITCH

9011910601

Крепеж

9011910601

Крепеж

9356054012

Крепеж

9356054012

Крепеж

9418560600

Крепеж

Код

Описание

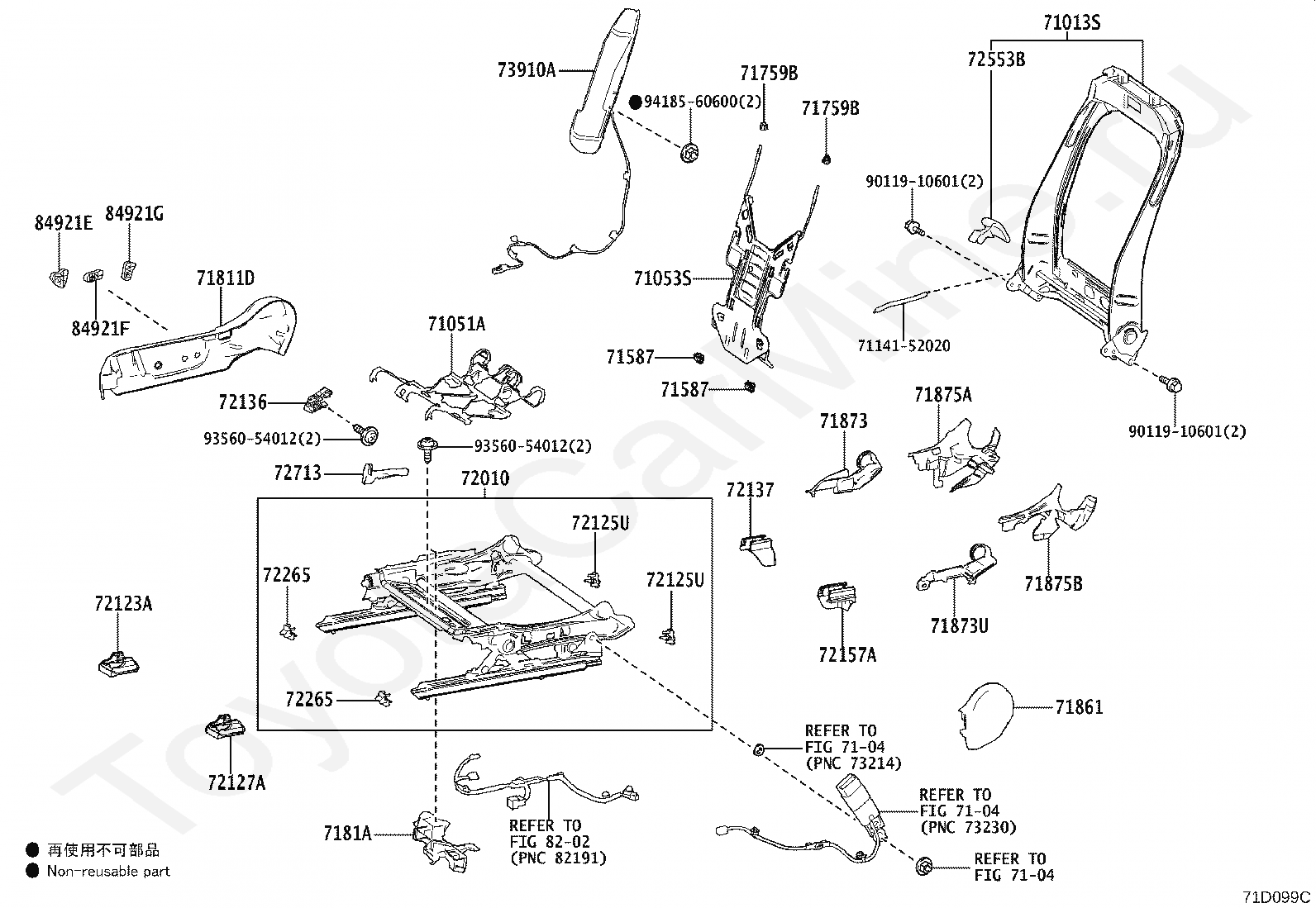

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71051A

SPRING SUB-ASSY, FRONT SEAT CUSHION, RH

71053S

SPRING SUB-ASSY, FRONT SEAT BACK, RH

71537C

PROTECTOR, FRONT SEAT CUSHION EDGE, RH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

7181A

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71873U

SHIELD, FRONT SEAT CUSHION, LOWER RH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

72010

ADJUSTER ASSY, FRONT SEAT, RH

72123A

COVER, SEAT TRACK BRACKET, OUTER FRONT RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72125U

COVER, SEAT TRACK, UPPER REAR RH

72127A

COVER, SEAT TRACK BRACKET, INNER FRONT RH

72137

COVER, SEAT TRACK, OUTER RH

72157A

COVER, SEAT TRACK BRACKET, INNER RH

72211C

HANDLE, SEAT TRACK ADJUSTING

72265

COVER, SEAT TRACK UPPER RAIL, RH

72265

COVER, SEAT TRACK UPPER RAIL, RH

72494

HANDLE, VERTICAL ADJUSTING, RH

72497B

COVER, VERTICAL ADJUSTER BRACKET, RH

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72551

COVER, RECLINING HINGE, NO.1

73910A

AIR BAG ASSY, FRONT SEAT, RH

739H0

AIR BAG ASSY, FRONT SEAT CENTER, RH

8202

переход к группе запчастей

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9014810007

Крепеж

9356054012

Крепеж

9418560600

Крепеж

9418560600

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

7104

переход к группе запчастей

7104

переход к группе запчастей

7104

переход к группе запчастей

71052A

SPRING SUB-ASSY, FRONT SEAT CUSHION, LH

71054S

SPRING SUB-ASSY, FRONT SEAT BACK, LH

71537D

PROTECTOR, FRONT SEAT CUSHION EDGE, LH

71587

PROTECTOR, FRONT SEAT BACK EDGE

71587

PROTECTOR, FRONT SEAT BACK EDGE

71753

TRAY, FRONT SEAT UNDER

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

7181B

HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

72020

ADJUSTER ASSY, FRONT SEAT, LH

72124

COVER, SEAT TRACK BRACKET, OUTER FRONT LH

72125V

COVER, SEAT TRACK, UPPER REAR LH

72125V

COVER, SEAT TRACK, UPPER REAR LH

72128A

COVER, SEAT TRACK BRACKET, INNER FRONT LH

72138

COVER, SEAT TRACK, OUTER LH

72158

COVER, SEAT TRACK BRACKET, INNER LH

72211C

HANDLE, SEAT TRACK ADJUSTING

72266

COVER, SEAT TRACK UPPER RAIL, LH

72266

COVER, SEAT TRACK UPPER RAIL, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72551

COVER, RECLINING HINGE, NO.1

72925

COVER, FRONT SEAT CUSHION

73508A

RAIL SUB-ASSY, FRONT SEAT UNDER TRAY, NO.2

73920A

AIR BAG ASSY, FRONT SEAT, LH

739J0

AIR BAG ASSY, FRONT SEAT CENTER, LH

8202

переход к группе запчастей

9011910601

Крепеж

9011910601

Крепеж

9014810007

Крепеж

9014810007

Крепеж

9016740044

Крепеж

9356054012

Крепеж

9418560600

Крепеж

9418560600

Крепеж
