Каталог

Европа

Модель

YARIS (JPP)

VIN

Дата

1999/11

Двигатель

1 литр, 16 клапанов DOHC, EFI

Класс

TOYOTA STOP & GO SYSTEM

Фрейм

SCP10

КПП

механика МКПП, 5 скоростей

Опции

JAPAN PRODUCT левый руль 3 двери

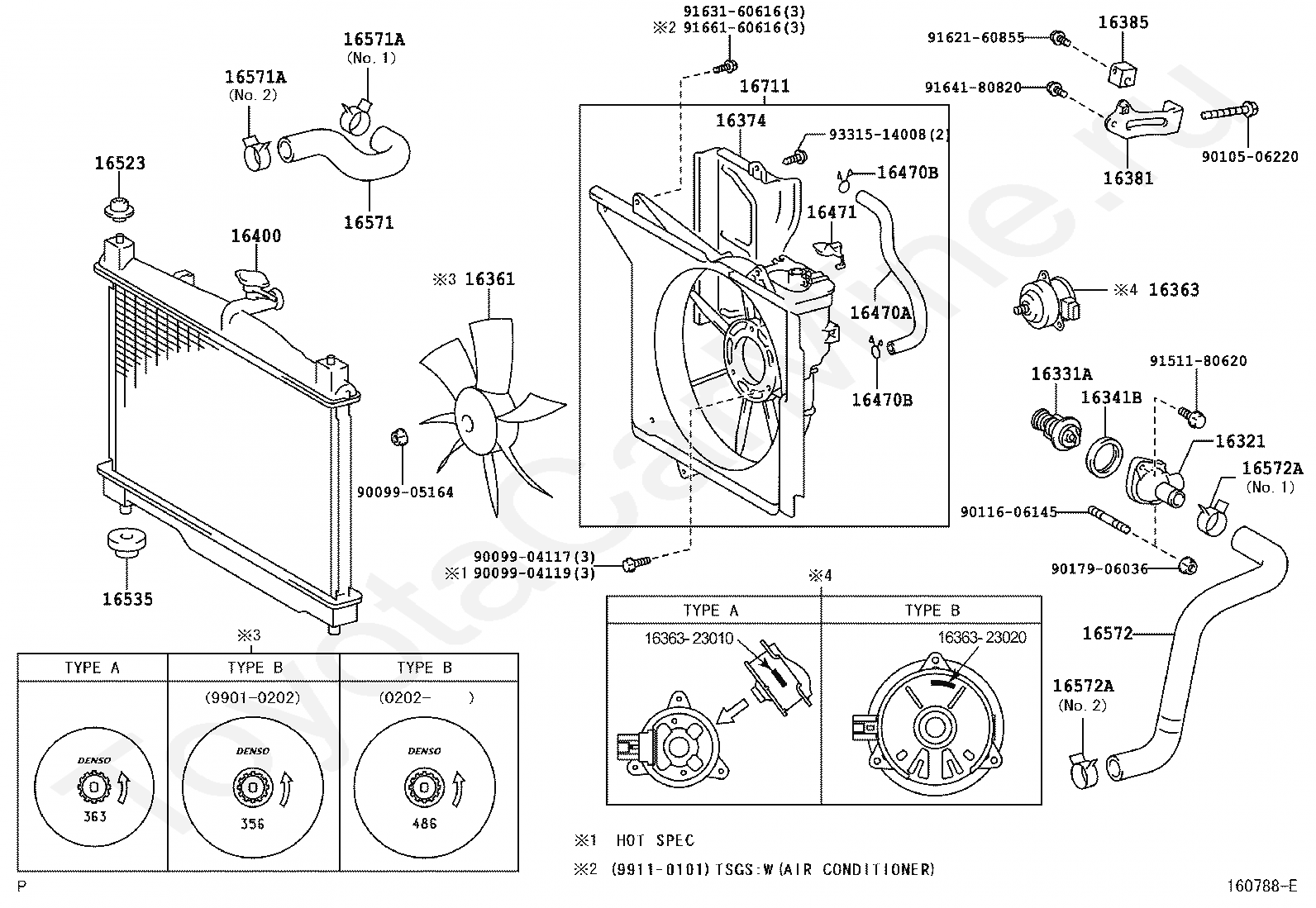

Радиатор и шланги TOYOTA YARIS (JPP)

Код

Описание

16321

INLET, WATER

16331A

THERMOSTAT

16341B

GASKET, WATER INLET

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

16400

RADIATOR ASSY

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523

CUSHION, SUB-RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571

HOSE, RADIATOR, INLET

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16572

HOSE, RADIATOR, OUTLET

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16711

SHROUD, FAN

9009904117

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9010506220

Крепеж

9011606145

Крепеж

9017906036

Крепеж

9151180620

Крепеж

9162160855

Крепеж

9163160616

Крепеж

9164180820

Крепеж

9166160616

Крепеж

9331514008

Крепеж

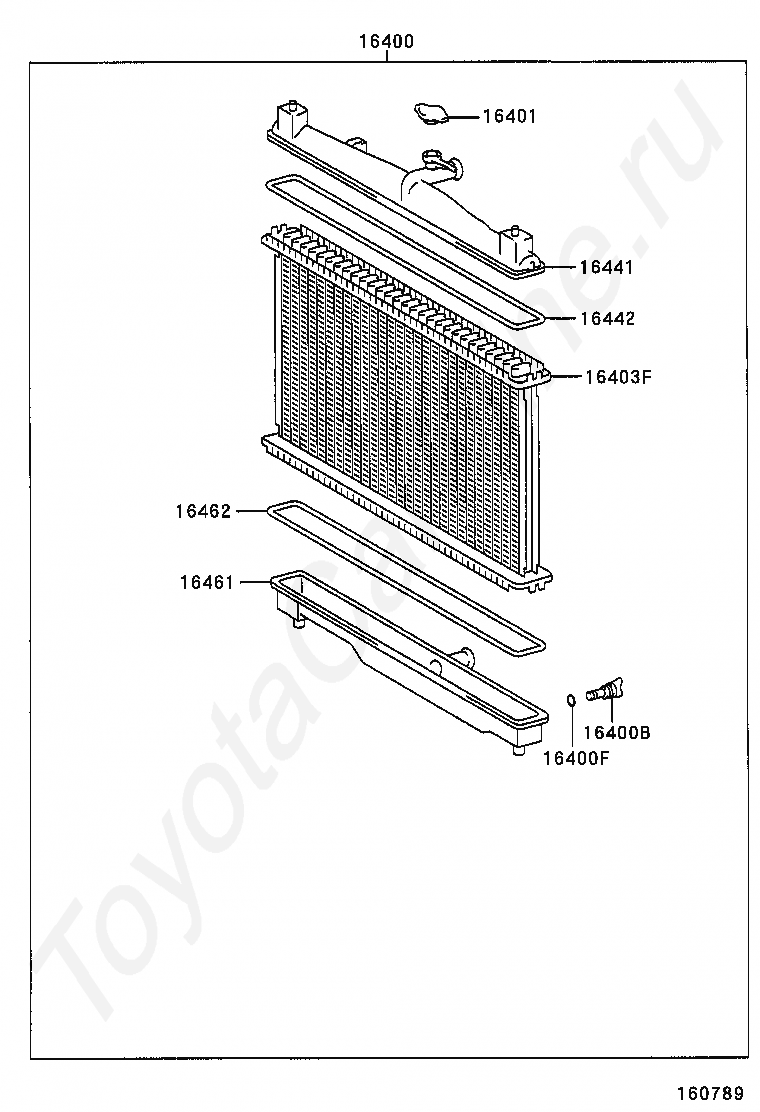

Код

Описание

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16403F

CORE SUB-ASSY, RADIATOR

16441

TANK, RADIATOR, UPPER

16442

RING, O(FOR RADIATOR UPPER TANK)

16461

TANK, RADIATOR, LOWER

16462

RING, O(FOR RADIATOR LOWER TANK)
