Каталог

Европа

Модель

YARIS (JPP)

VIN

Дата

2005/08

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

STANDARD TYPE

Фрейм

KSP90

КПП

механика МКПП, 5 скоростей

Опции

JAPAN PRODUCT правый руль 3 двери 315W

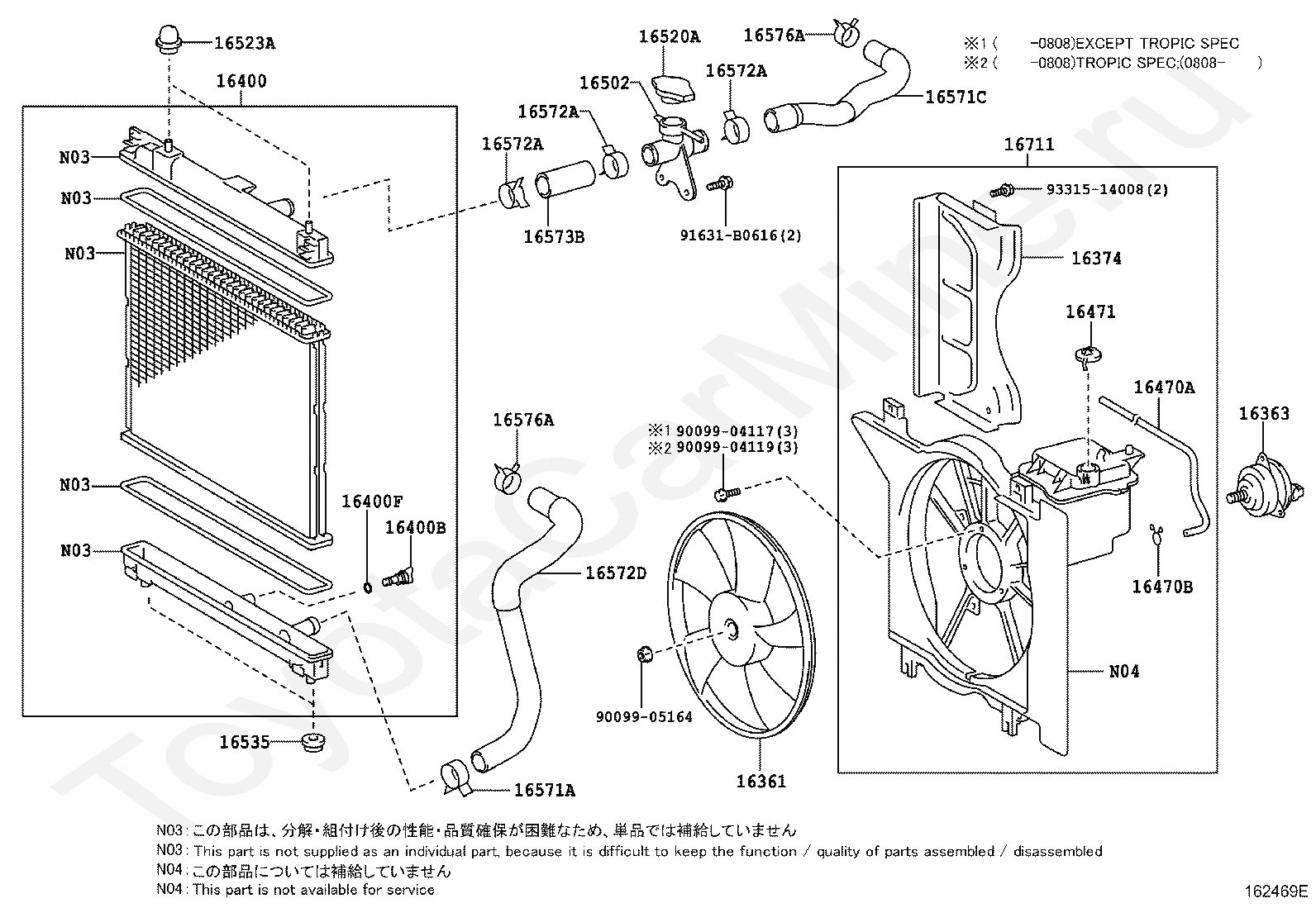

Радиатор и шланги TOYOTA YARIS (JPP)

Код

Описание

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16502

FILLER SUB-ASSY, WATER

16520A

CAP SUB-ASSY, WATER FILLER

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571A

CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

16571C

HOSE, RADIATOR, NO.1

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572A

CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

16572D

HOSE, RADIATOR, NO.2

16573B

HOSE, RADIATOR, NO.3

16576A

CLIP, RADIATOR HOSE, NO.6

16576A

CLIP, RADIATOR HOSE, NO.6

16711

SHROUD, FAN

9009904117

Крепеж

9009904119

Крепеж

9009905164

Крепеж

91631B0616

Крепеж

9331514008

Крепеж

Код

Описание

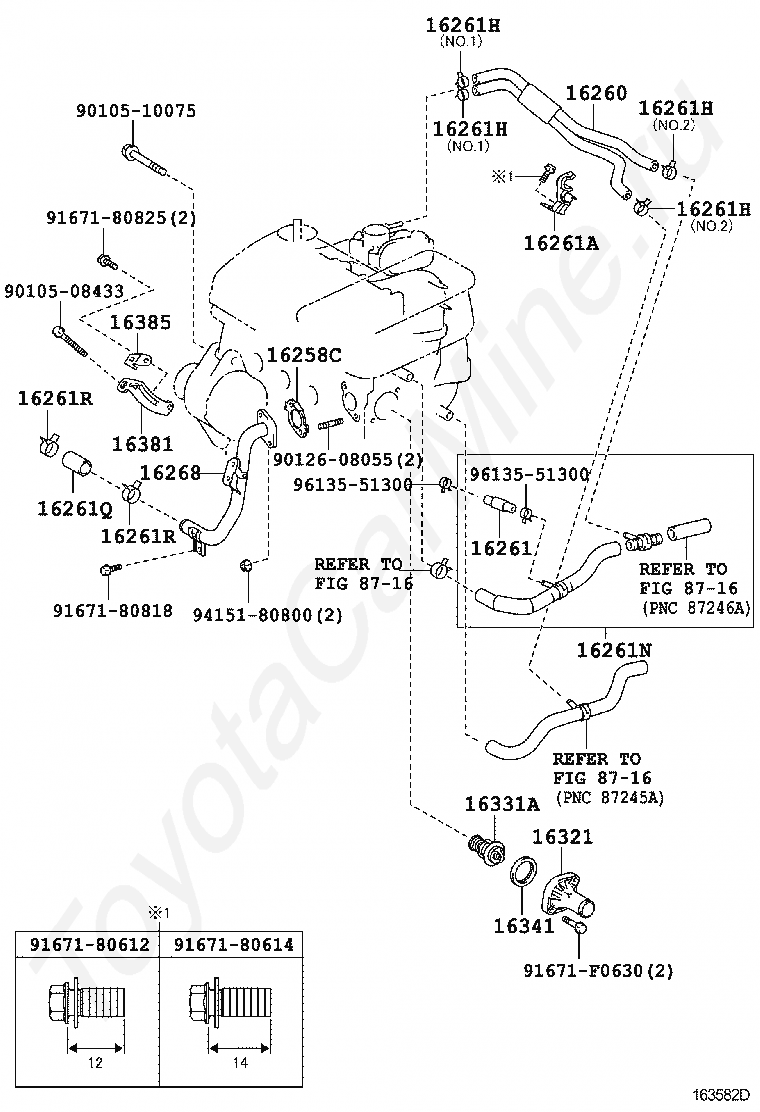

16258C

GASKET(FOR WATER BY-PASS PIPE)

16260

HOSE ASSY, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261Q

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

8716

переход к группе запчастей

8716

переход к группе запчастей

9010508433

Крепеж

9010510075

Крепеж

9012608055

Крепеж

9167180612

Крепеж

9167180614

Крепеж

9167180818

Крепеж

9167180825

Крепеж

91671F0630

Крепеж

9415180800

Крепеж

Код

Описание

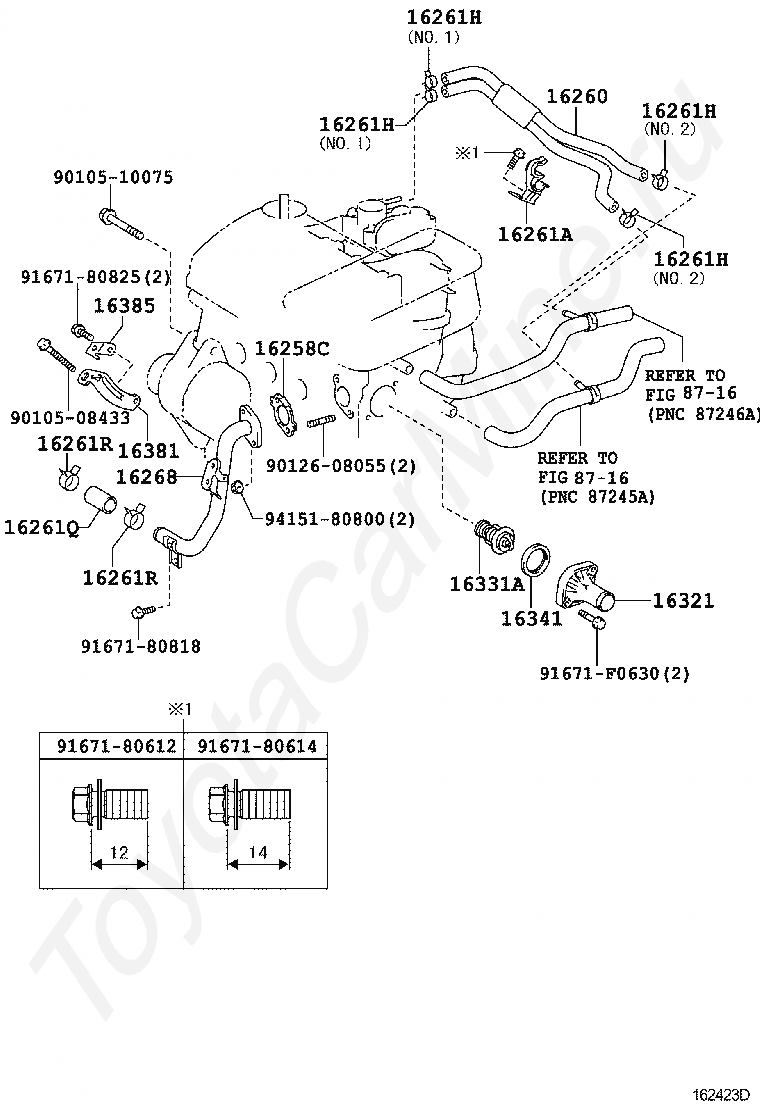

16258C

GASKET(FOR WATER BY-PASS PIPE)

16260

HOSE ASSY, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16261Q

HOSE, WATER BY-PASS

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16331A

THERMOSTAT

16341

GASKET, WATER OUTLET

16381

BAR, FAN BELT ADJUSTING

16385

SLIDER, FAN BELT ADJUSTING

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9010508433

Крепеж

9010510075

Крепеж

9012608055

Крепеж

9167180612

Крепеж

9167180614

Крепеж

9167180818

Крепеж

9167180825

Крепеж

91671F0630

Крепеж

9415180800

Крепеж

9613551300

Крепеж

9613551300

Крепеж
