Каталог

Америка

Модель

YARIS (FRP)

VIN

Дата

2014/07

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Фрейм

NCP131

КПП

автомат АКПП, 4 ступени

Опции

5 дверей США RATIO 595W

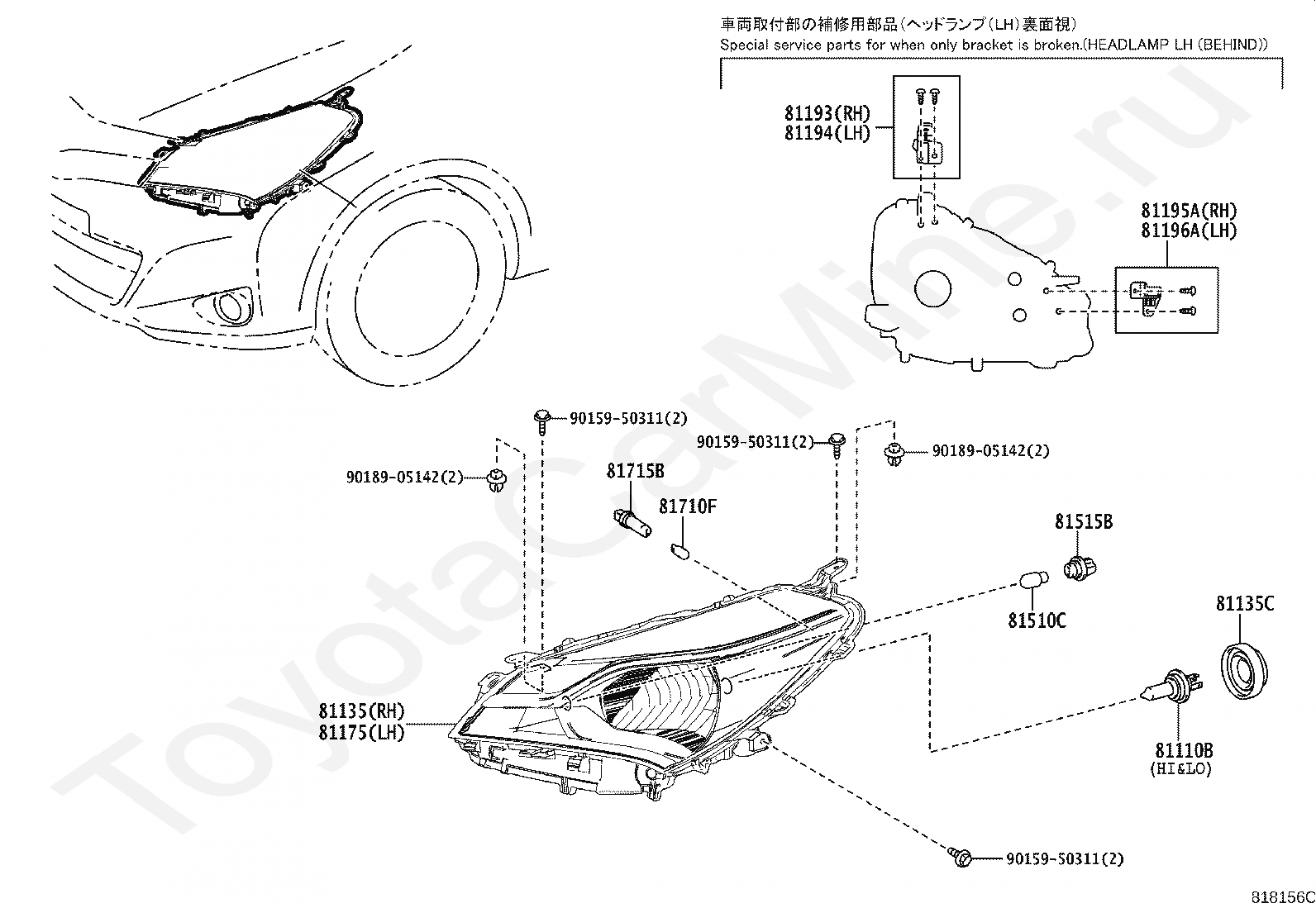

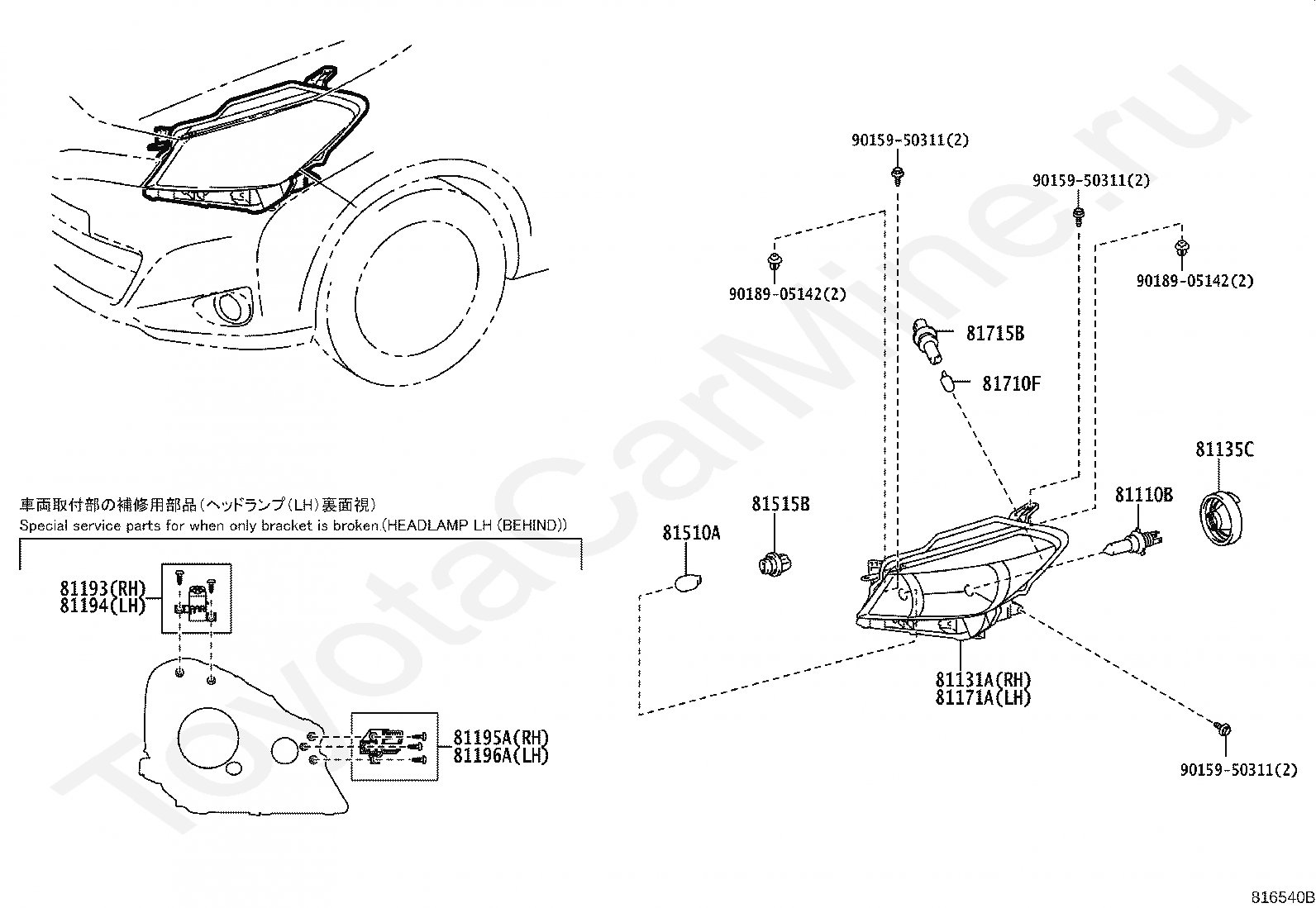

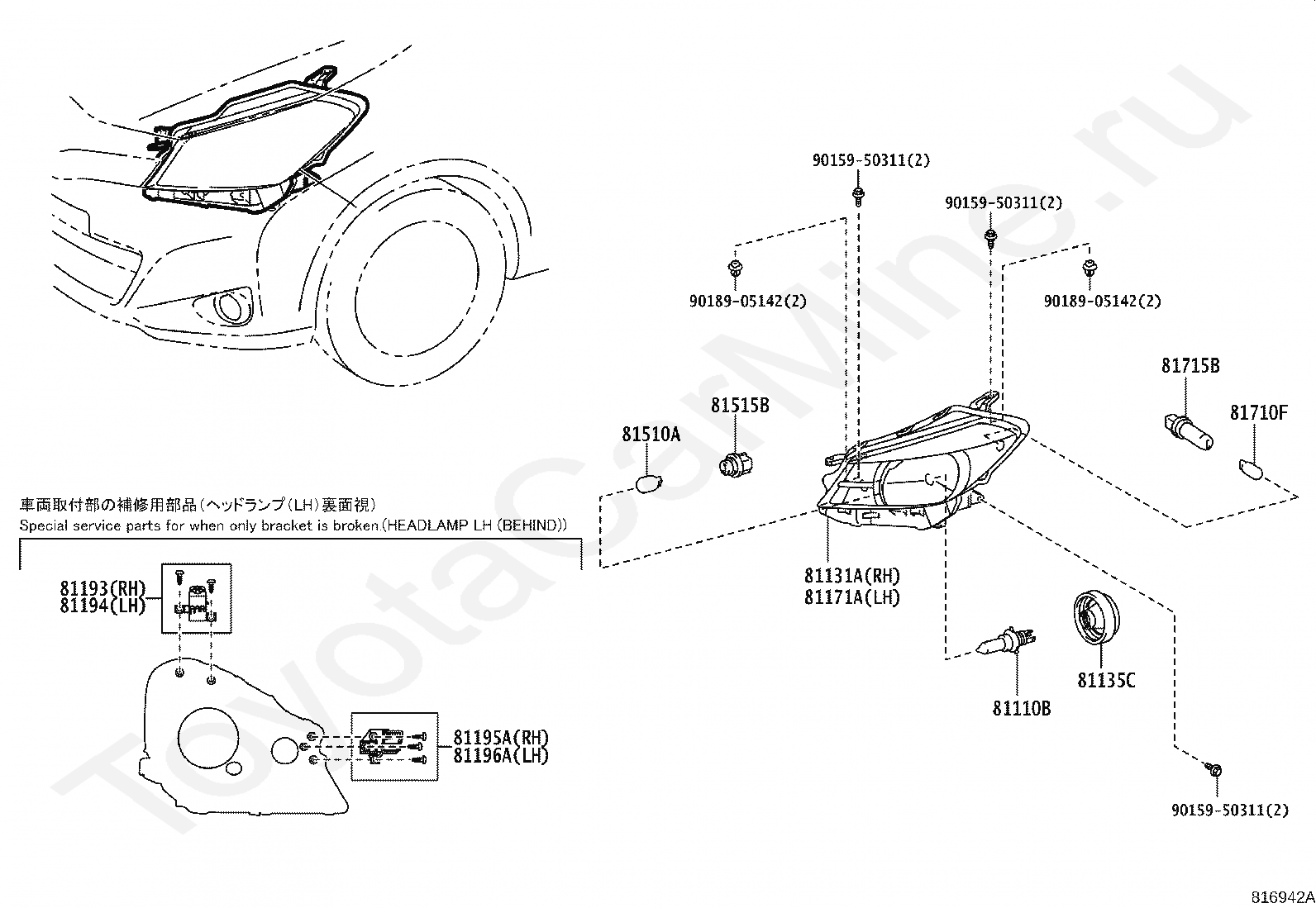

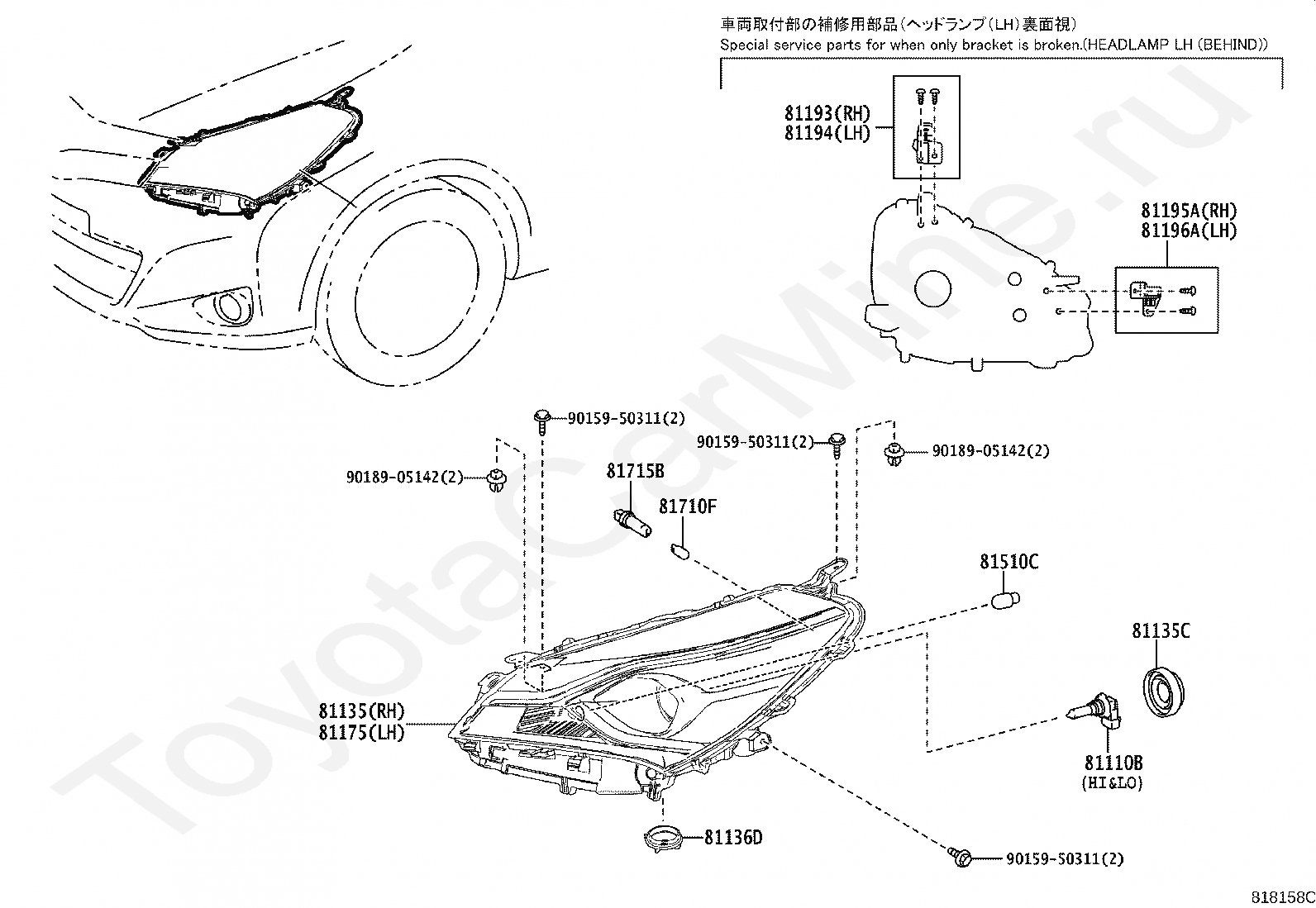

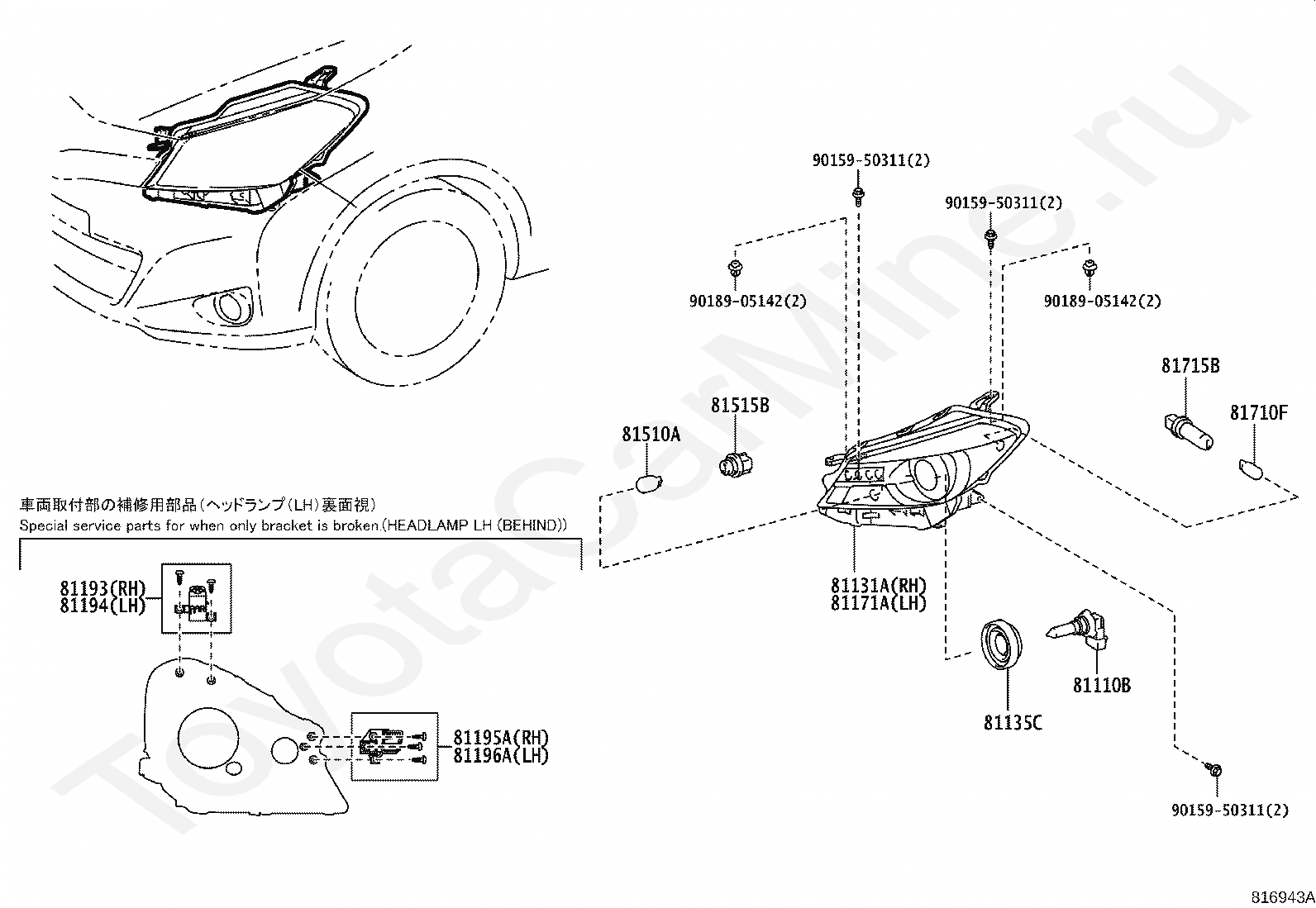

Фары TOYOTA YARIS (FRP)

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510A

BULB, FRONT TURN SIGNAL & PARKING LAMP

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510A

BULB, FRONT TURN SIGNAL & PARKING LAMP

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510A

BULB, FRONT TURN SIGNAL & PARKING LAMP

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81135

UNIT ASSY, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81136D

COVER, HEADLAMP

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81710F

BULB, FRONT SIDE MAKER LAMP

81715B

SOCKET & WIRE, FRONT SIDE MARKER LAMP

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж
