Каталог

Ближний Восток

Модель

YARIS (ASIA)

VIN

Дата

2009/03

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

GRAMS

Фрейм

NCP91

КПП

автомат

Опции

правый руль 5 дверей Малайзия 457W

Задние фонари TOYOTA YARIS (ASIA)

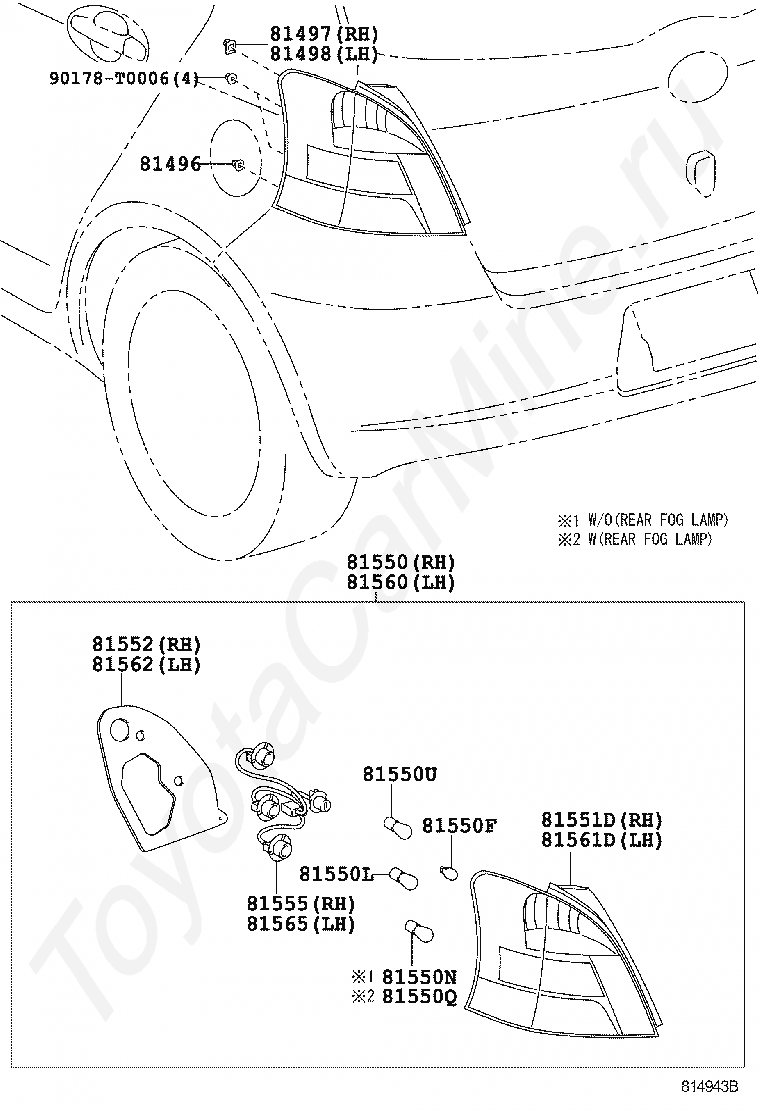

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81497

COVER, REAR COMBINATION LAMP, RH

81498

COVER, REAR COMBINATION LAMP, LH

81550

LAMP ASSY, REAR COMBINATION, RH

81550F

BULB, TAIL LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81552

GASKET, REAR COMBINATION LAMP LENS, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81562

GASKET, REAR COMBINATION LAMP LENS, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

90178T0006

Крепеж

9017906115

Крепеж

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81497

COVER, REAR COMBINATION LAMP, RH

81498

COVER, REAR COMBINATION LAMP, LH

81550

LAMP ASSY, REAR COMBINATION, RH

81550F

BULB, TAIL LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81550Q

BULB, REAR FOG LAMP, NO.1

81550U

BULB, STOP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81552

GASKET, REAR COMBINATION LAMP LENS, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81562

GASKET, REAR COMBINATION LAMP LENS, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

90178T0006

Крепеж

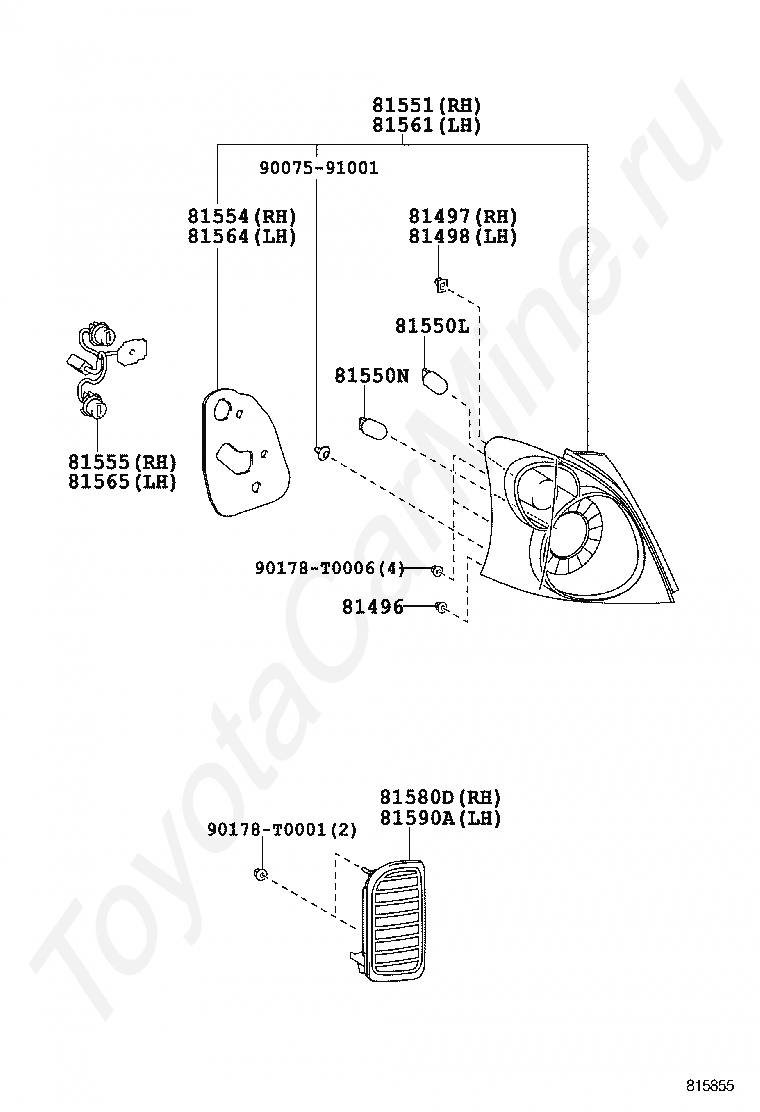

Код

Описание

81496

GUIDE, REAR COMBINATION LAMP

81497

COVER, REAR COMBINATION LAMP, RH

81498

COVER, REAR COMBINATION LAMP, LH

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551

LENS, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81561

LENS, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

81580D

LAMP ASSY, REAR, RH

81590A

LAMP ASSY, REAR, LH

9007591001

Крепеж

90178T0001

Крепеж

90178T0006

Крепеж
