Реле и кнопки Тойота YARIS, Ближний восток, 2008/08 - 2011/08, 1,3 литра, 16 клапанов, DOHC, EFI, NCP90, автомат, АКПП, 4 ступени, левый руль, 3 двери, GENERAL COUNTRIES, 428W

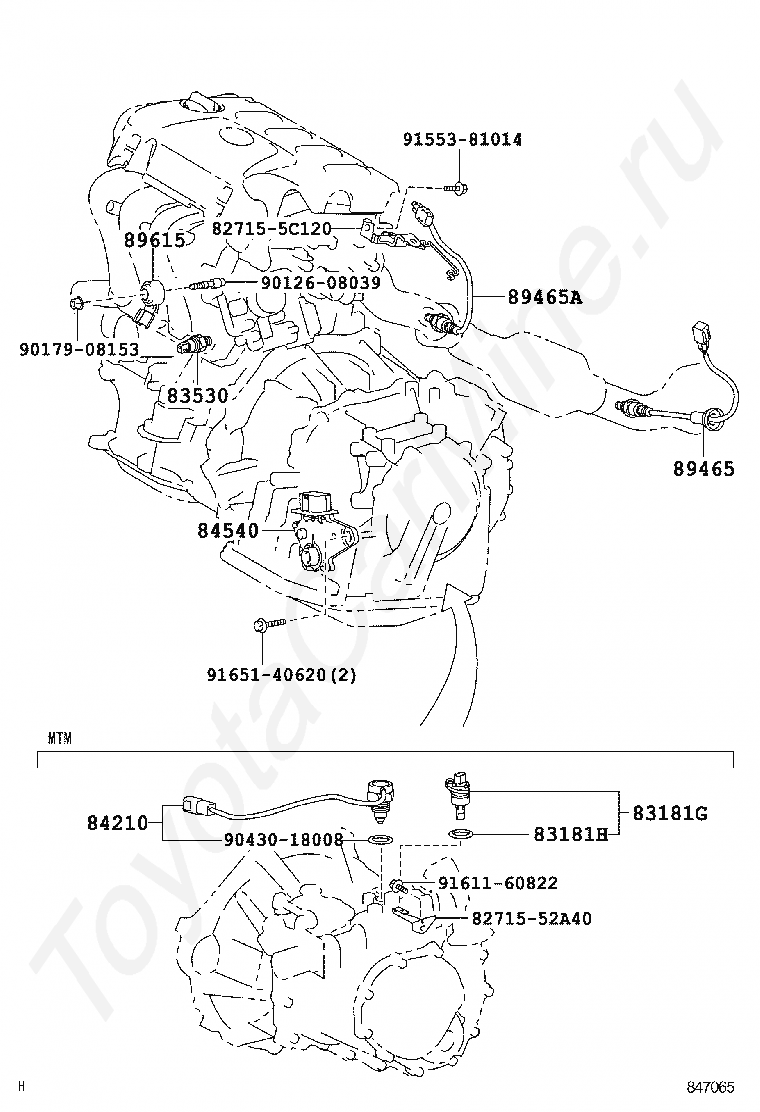

Код

Описание

8271552A40

Крепеж

827155C120

Крепеж

83181G

SENSOR, SPEEDOMETER

83181H

RING, O (FOR SPEEDOMETER SENSOR)

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89465A

SENSOR, OXYGEN NO.2

89615

SENSOR, KNOCK CONTROL

9012608039

Крепеж

9017908153

Крепеж

9043018008

Крепеж

9155381014

Крепеж

9161160822

Крепеж

9165140620

Крепеж

Код

Описание

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

85928B

RESISTOR, COOLING FAN

91631J0612

Крепеж

Код

Описание

28300

RELAY ASSY, STARTER

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82741

BLOCK, ENGINE ROOM RELAY

85927A

RELAY, COOLING FAN, NO.2

9167180620

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

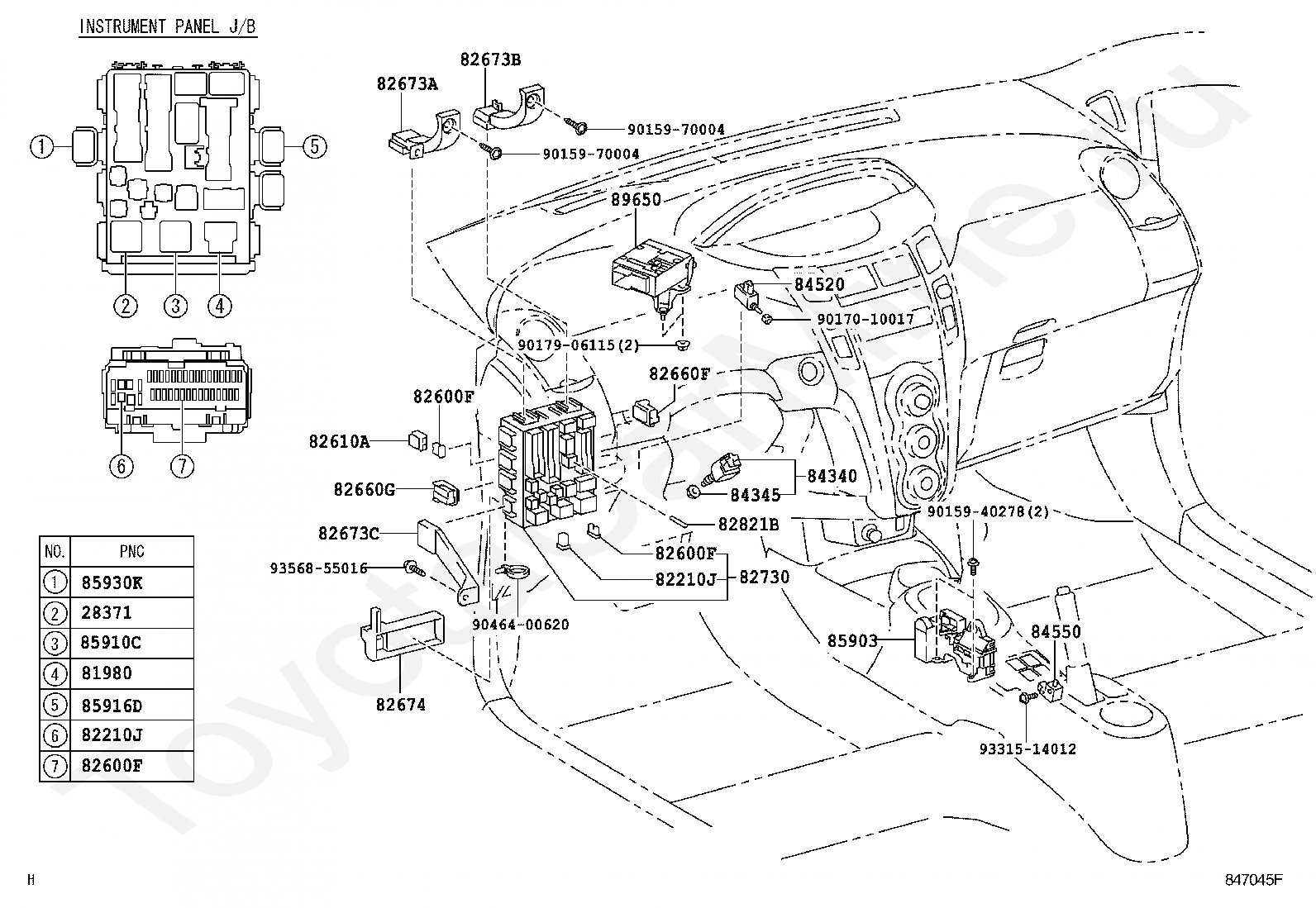

28371

RELAY, IGNITION, NO.1

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82610A

BLOCK ASSY, FUSE

82660F

BLOCK ASSY, RELAY

82660G

BLOCK ASSY, RELAY

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

82674

COVER, JUNCTION BLOCK LOWER

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82821B

COVER, CONNECTOR

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84550

SWITCH ASSY, PARKING BRAKE

85903

COMPUTER SUB-ASSY, SHIFT LOCK CONTROL

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916D

RELAY, FOG LAMP

85930K

RELAY, ACC, NO.2

89650

COMPUTER ASSY, POWER STEERING

9015940278

Крепеж

9015970004

Крепеж

9015970004

Крепеж

9017010017

Крепеж

9017906115

Крепеж

9046400620

Крепеж

9331514012

Крепеж

9356855016

Крепеж

Код

Описание

8302

переход к группе запчастей

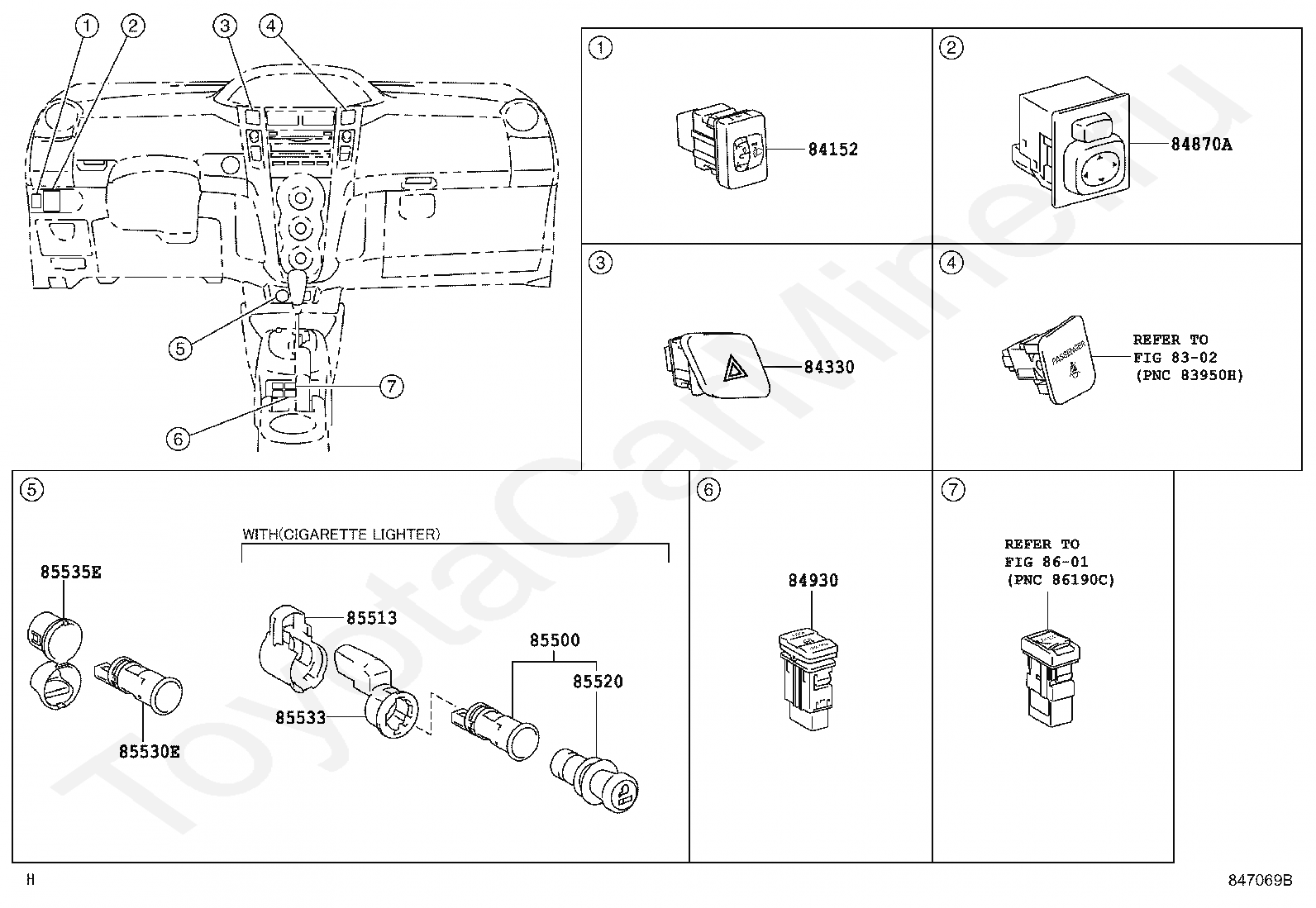

84152

SWITCH, HEADLAMP LEVELING

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84870A

SWITCH ASSY, OUTER MIRROR

84930

SWITCH ASSY, DOOR CONTROL

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85533

LENS, CIGARETTE LIGHTER INDICATOR

85535E

COVER, POWER OUTLET SOCKET, NO.2

8601

переход к группе запчастей

Код

Описание

4501

переход к группе запчастей

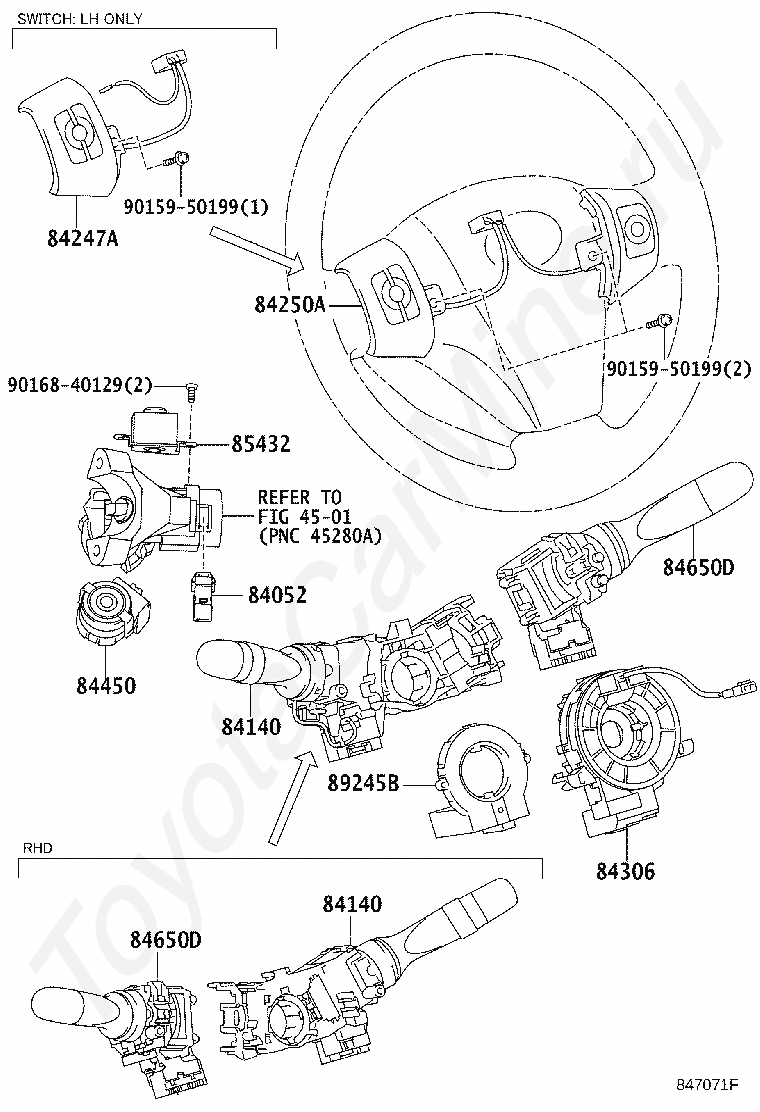

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650D

SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)

84650D

SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL)

85432

SOLENOID, KEY INTER LOCK

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950199

Крепеж

9016840129

Крепеж

Код

Описание

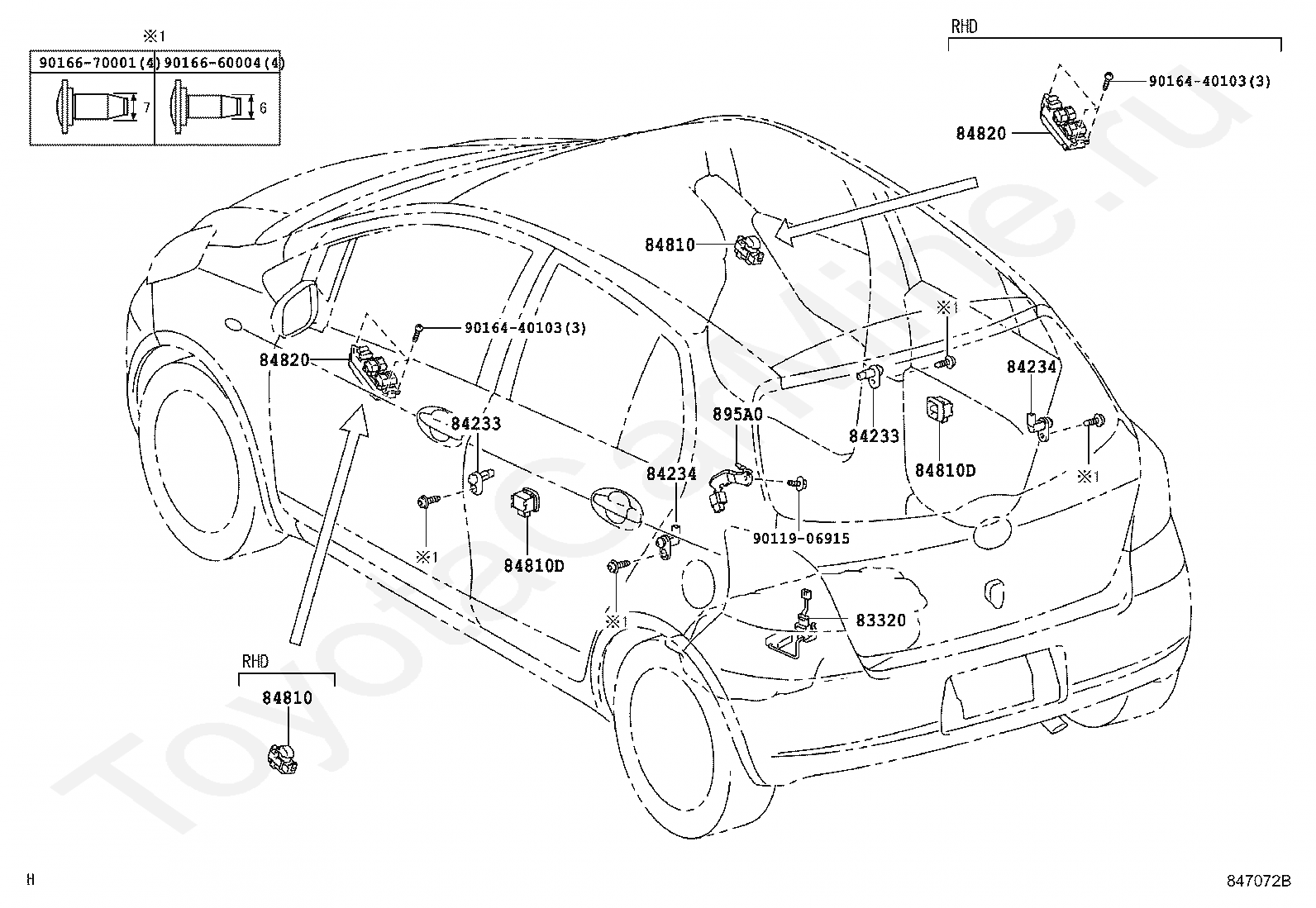

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

895A0

RELAY ASSY, STOP LAMP CONTROL

9011906915

Крепеж

9016440103

Крепеж

9016440103

Крепеж

9016660004

Крепеж

9016670001

Крепеж
