Ходовые запчасти

Каталог

Ближний Восток

Модель

YARIS

VIN

Дата

2019/11

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Фрейм

NSP151

КПП

вариатор

Опции

левый руль 4 двери Бразилия RATIO CUT HOSE TO LENGTH AS SPECIFIED IN REMARKS 833W

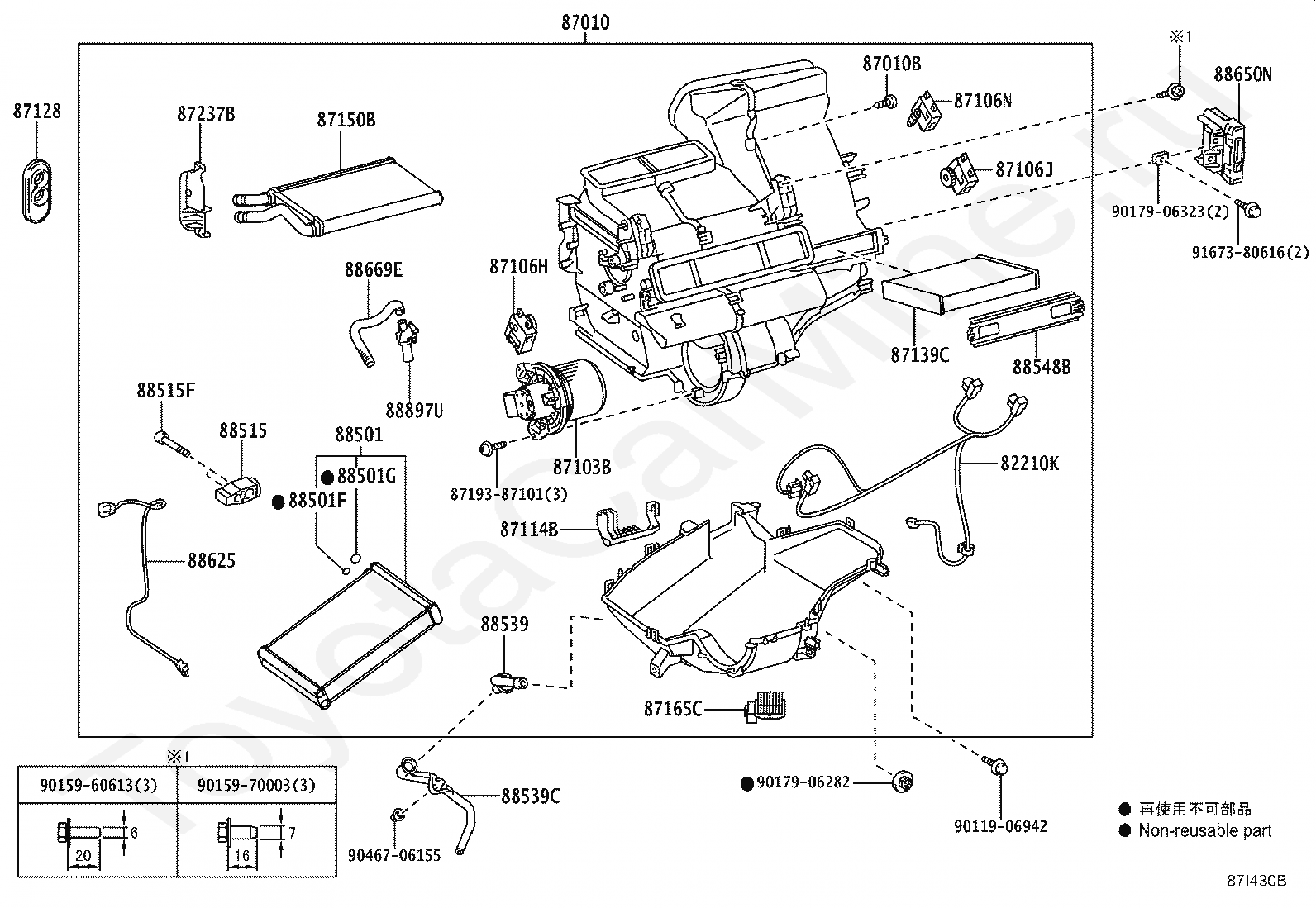

Кондиционер: охлаждающая система TOYOTA YARIS

Код

Описание

87010

UNIT ASSY, AIR CONDITIONER

87010B

SCREW(FOR AIR CONDITIONER UNIT)

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106N

SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

87114B

COVER, HEATER

87124B

CLAMP, HEATER

87128

GROMMET, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

8719387101

Крепеж

87237B

COVER, HEATER PIPING

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539

HOSE, COOLER UNIT DRAIN, NO.1

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

9011906942

Крепеж

9015960613

Крепеж

9015970003

Крепеж

9017906282

Крепеж

9017906323

Крепеж

9046706155

Крепеж

9167380616

Крепеж

Код

Описание

82210K

HARNESS ASSY, AIR CONDITIONER

87010

UNIT ASSY, AIR CONDITIONER

87010B

SCREW(FOR AIR CONDITIONER UNIT)

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106H

SERVO SUB-ASSY, DAMPER(FOR AIRMIX)

87106J

SERVO SUB-ASSY, DAMPER(FOR MODE)

87106N

SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

87114B

COVER, HEATER

87128

GROMMET, HEATER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

87165C

CONTROL, BLOWER MOTOR

8719387101

Крепеж

87237B

COVER, HEATER PIPING

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88501F

O-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

88501G

O-RING, COOLER EVAPORATOR NO.1(SUCTION)

88515

VALVE, COOLER EXPANSION

88515F

BOLT(FOR COOLER EXPANSION VALVE)

88539

HOSE, COOLER UNIT DRAIN, NO.1

88539C

HOSE, COOLER UNIT DRAIN, NO.2

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88650N

AMPLIFIER ASSY, AIR CONDITIONER

88669E

HOSE, AIR

88897U

PIPE, ASPIRATOR

9011906942

Крепеж

9015960613

Крепеж

9015970003

Крепеж

9017906282

Крепеж

9017906323

Крепеж

9046706155

Крепеж

9167380616

Крепеж
