Ходовые запчасти

Каталог

Ближний Восток

Модель

YARIS

VIN

Дата

2017/09

Двигатель

1,2 литра, 16 клапанов, DOHC, EFI

Фрейм

NSP152

КПП

вариатор

Опции

правый руль 5 дверей FOR THAILAND R A 681W

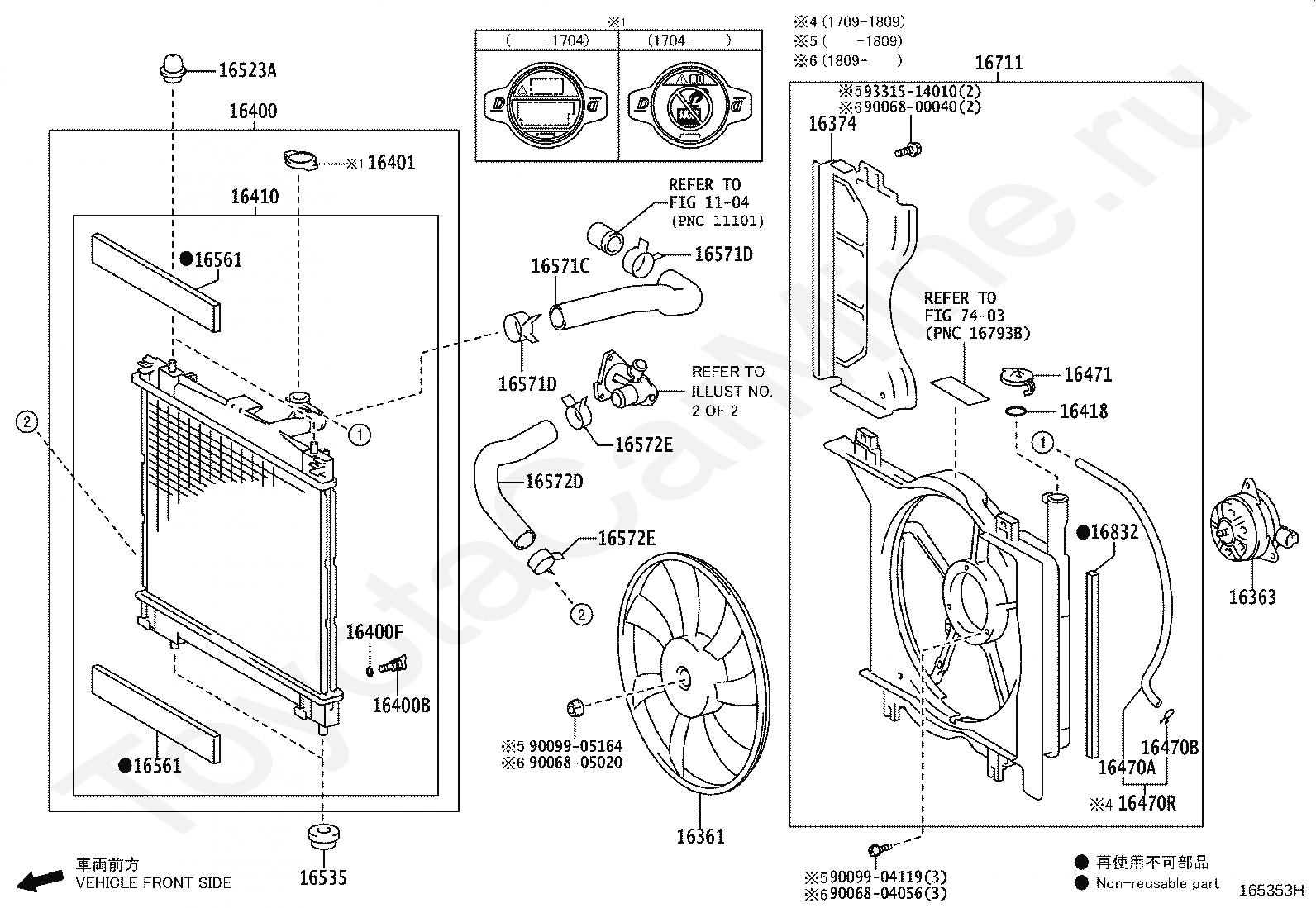

Радиатор и шланги TOYOTA YARIS

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16410

RADIATOR ASSY, W/O CAP

16418

PACKING

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

16832

SEAL, FAN SHROUD

7403

переход к группе запчастей

9006800040

Крепеж

9006804056

Крепеж

9006805020

Крепеж

9009904119

Крепеж

9009905164

Крепеж

9331514010

Крепеж

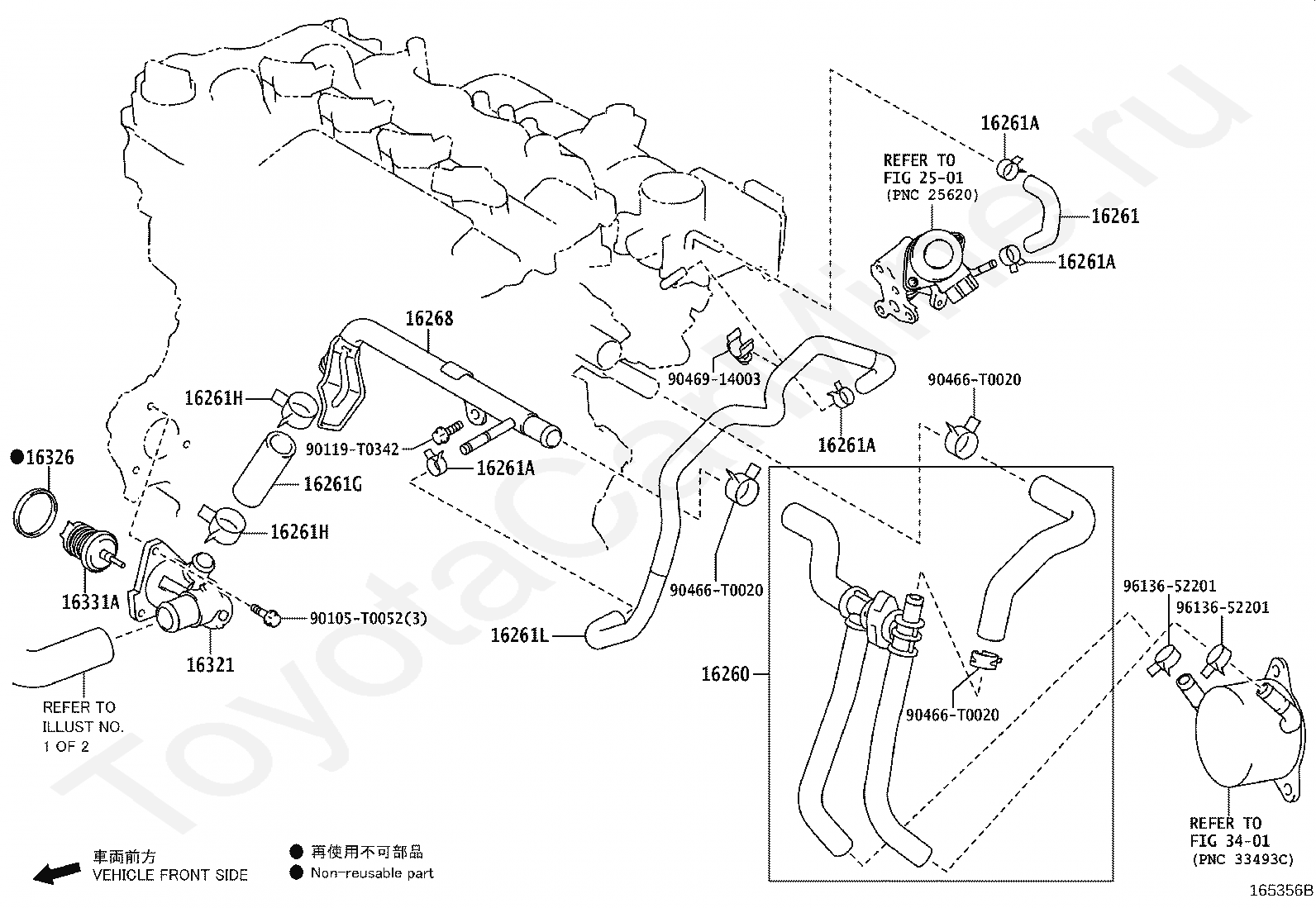

Код

Описание

16260

HOSE ASSY, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

2501

переход к группе запчастей

3401

переход к группе запчастей

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

9046914003

Крепеж

9613652201

Крепеж

9613652201

Крепеж

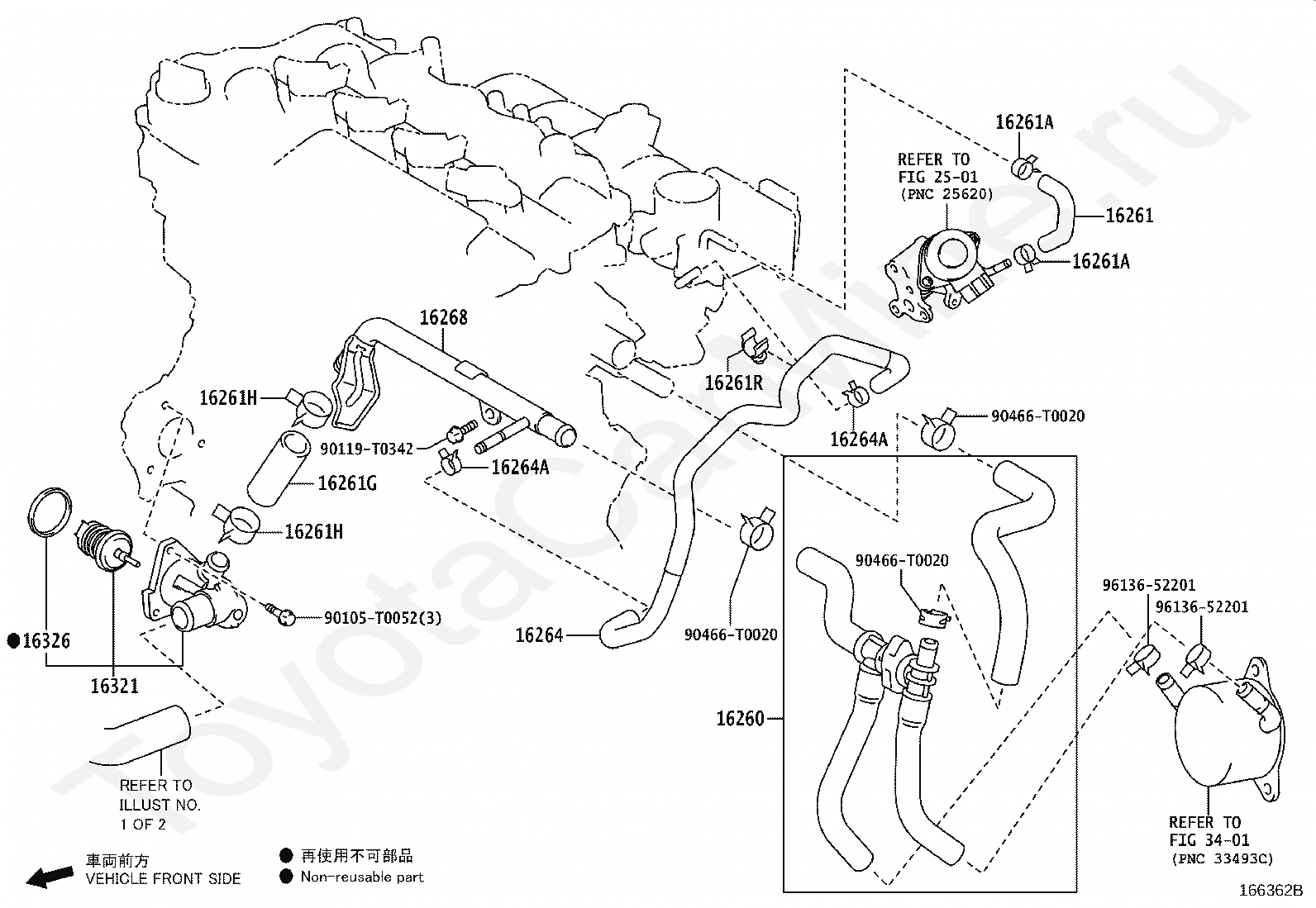

Код

Описание

16260

HOSE ASSY, WATER BY-PASS

16261

HOSE, WATER BY-PASS

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16326

GASKET, WATER INLET HOUSING, NO.2

2501

переход к группе запчастей

3401

переход к группе запчастей

90105T0052

Крепеж

90119T0342

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

90466T0020

Крепеж

9613652201

Крепеж

9613652201

Крепеж
