Реле и кнопки Тойота WILDLANDER, Ближний восток, 2020/04 - 2025/, 2000CC 16-VALVE DOHC, MXAA52, вариатор, левый руль, X TYPE, 724W

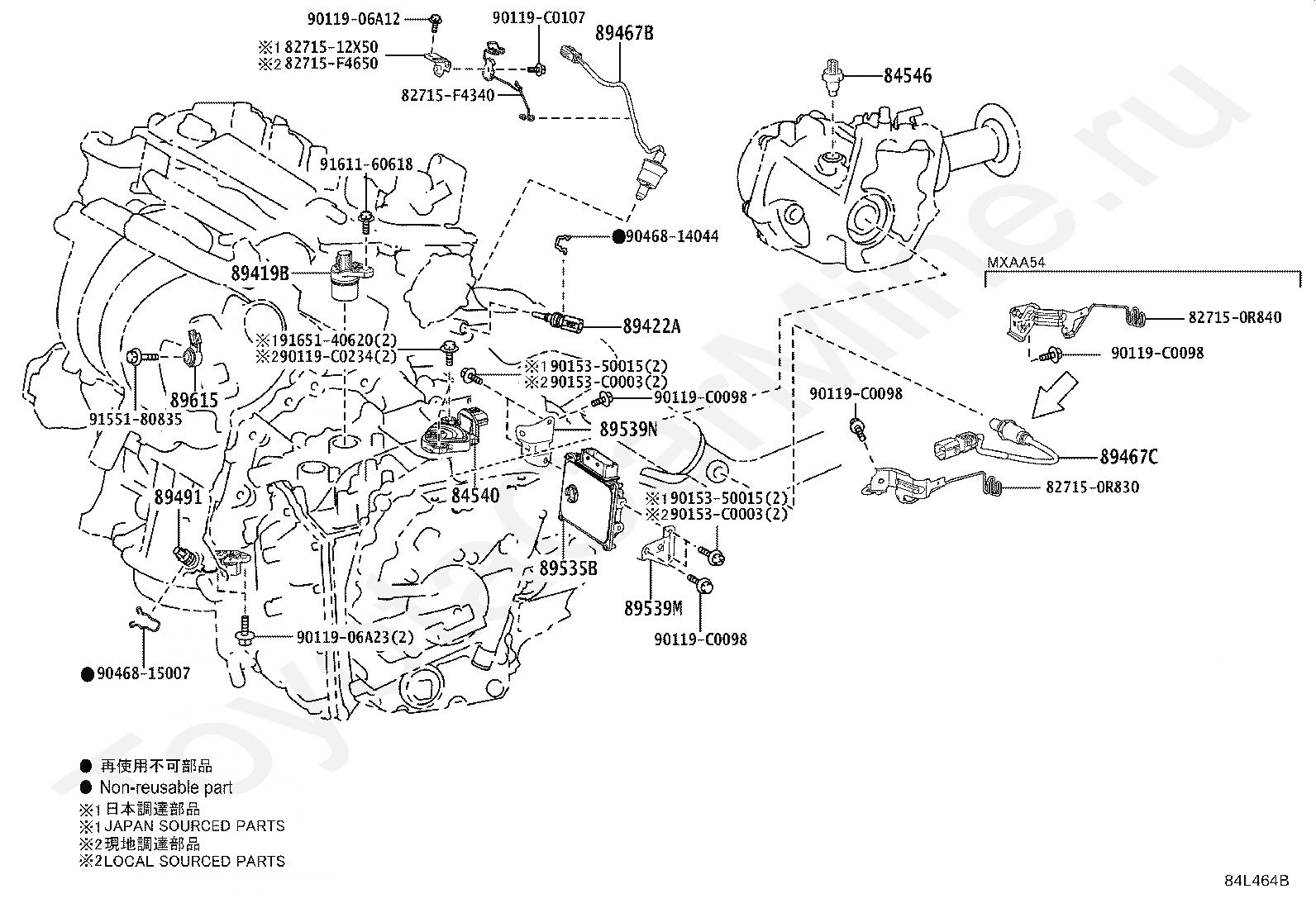

Код

Описание

827150R830

Крепеж

827150R840

Крепеж

8271512X50

Крепеж

82715F4340

Крепеж

82715F4650

Крепеж

84540

SWITCH ASSY, NEUTRAL START

84546

SWITCH, 4 WHEEL DRIVE POSITION, NO.1

89419B

SENSOR, SHIFT STROKE

89422A

SENSOR, WATER TEMPERATURE

89467B

SENSOR, AIR FUEL RATIO

89467C

SENSOR, AIR FUEL RATIO, NO.2

89491

SENSOR, ENGINE OIL LEVEL

89535B

COMPUTER, TRANSMISSION CONTROL

89539M

BRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

89539N

BRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

89615

SENSOR, KNOCK CONTROL

9011906A12

Крепеж

9011906A23

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

90119C0098

Крепеж

90119C0107

Крепеж

90119C0234

Крепеж

9015350015

Крепеж

9015350015

Крепеж

90153C0003

Крепеж

90153C0003

Крепеж

9046814044

Крепеж

9046815007

Крепеж

9155180835

Крепеж

9161160618

Крепеж

9165140620

Крепеж

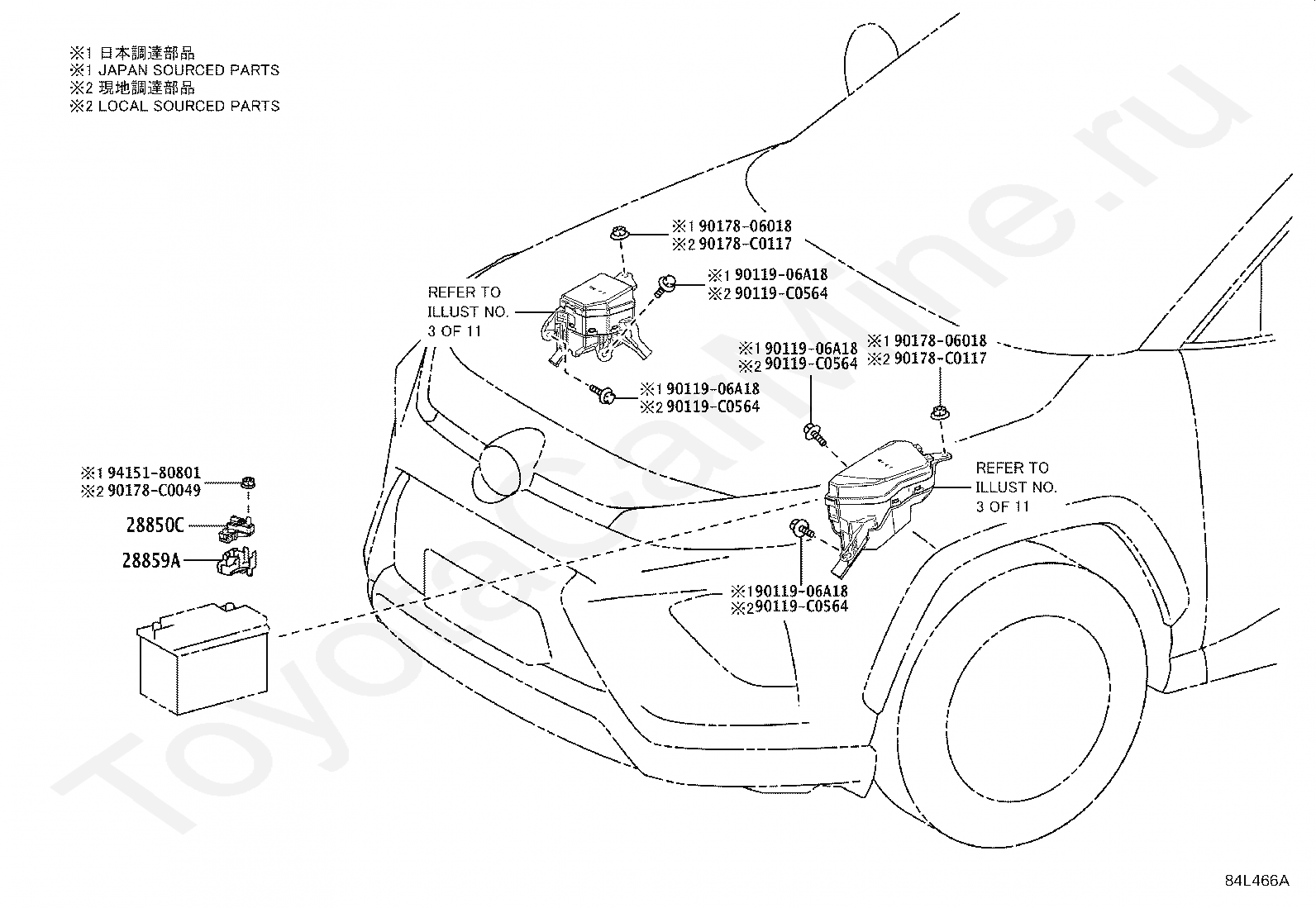

Код

Описание

28850C

SENSOR ASSY, BATTERY STATE

28859A

HOLDER, BATTERY CURRENT SENSOR

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

9011906A18

Крепеж

90119C0564

Крепеж

90119C0564

Крепеж

90119C0564

Крепеж

90119C0564

Крепеж

9017806018

Крепеж

9017806018

Крепеж

90178C0049

Крепеж

90178C0117

Крепеж

90178C0117

Крепеж

9415180801

Крепеж

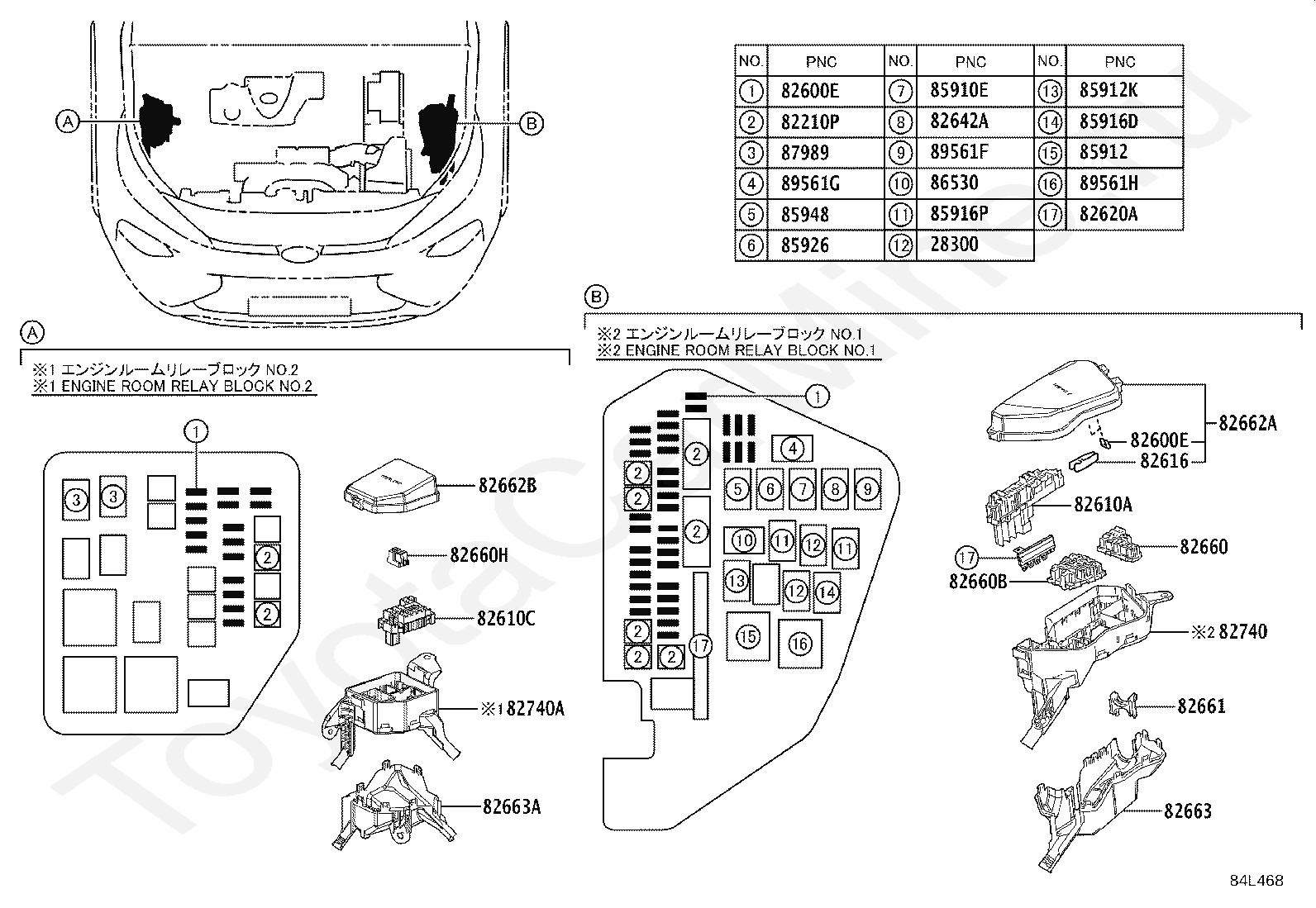

Код

Описание

28300

RELAY ASSY, STARTER

82210P

ENGINE ROOM FUSIBLE LINK

82600E

ENGINE ROOM FUSE

82600E

ENGINE ROOM FUSE

82610A

BLOCK ASSY, FUSE

82610C

BLOCK ASSY, FUSE

82616

PULLER, FUSE

82620A

BLOCK ASSY, FUSIBLE LINK

82642A

RELAY, RUNNING LIGHT

82660

BLOCK ASSY, RELAY, ENGINE ROOM

82660B

BLOCK ASSY, RELAY

82660H

BLOCK ASSY, RELAY

82661

COVER, RELAY BLOCK, NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82662B

COVER, RELAY BLOCK, UPPER, NO.2

82663

COVER, RELAY BLOCK, LOWER

82663A

COVER, RELAY BLOCK, LOWER, NO.2

82740

BLOCK ASSY, ENGINE ROOM RELAY

82740A

BLOCK ASSY, ENGINE ROOM RELAY, NO.2

85910E

RELAY, INJECTOR

85912

RELAY, DEFOGGER

85912K

RELAY, VVT

85916D

RELAY, FOG LAMP

85916P

RELAY, HEADLAMP

85926

RELAY, HEADLAMP DIMMER

85948

RELAY, WINDSHIELD WIPER

86530

RELAY ASSY, HORN

87989

RELAY, MIRROR CONTROL

89561F

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1

89561G

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2

89561H

RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3

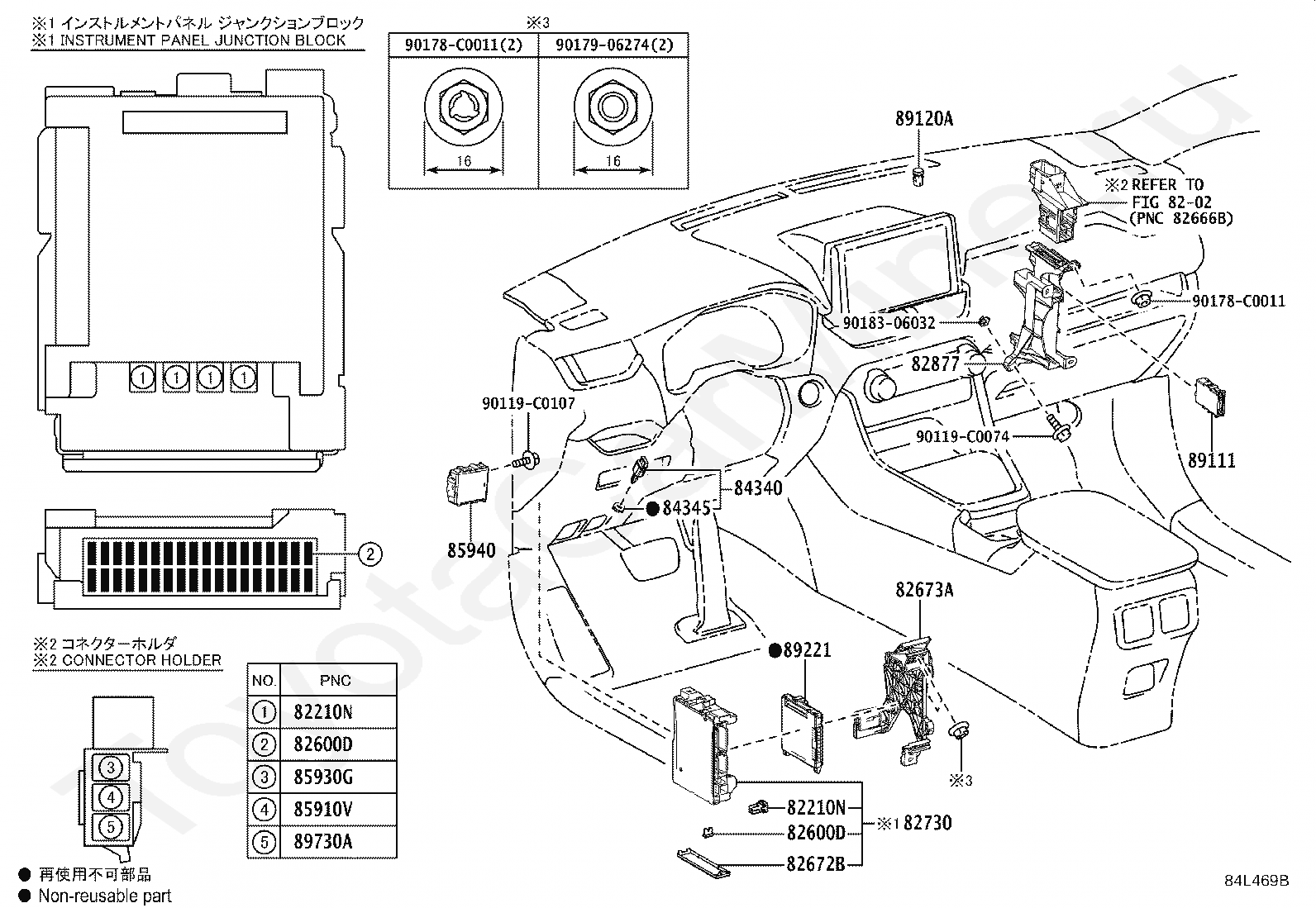

Код

Описание

8202

переход к группе запчастей

82210N

INSTRUMENT PANEL FUSIBLE LINK

82210N

INSTRUMENT PANEL FUSIBLE LINK

82600D

INSTRUMENT PANEL FUSE

82600D

INSTRUMENT PANEL FUSE

82672B

COVER, JUNCTION BLOCK

82673A

BRACKET, JUNCTION BLOCK

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82877

BOX, COMPUTER INTEGRATION, RH

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

85910V

RELAY, SEAT HEATER

85930G

RELAY, ACC

85940

RELAY ASSY, WINDSHIELD WIPER

89111

COMPUTER, NETWORK GATEWAY

89120A

SENSOR, AUTOMATIC LIGHT CONTROL

89221

COMPUTER, MULTIPLEX NETWORK BODY

89730A

RELAY(FOR SECURITY WARNING)

90119C0074

Крепеж

90119C0107

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9017906274

Крепеж

9018306032

Крепеж

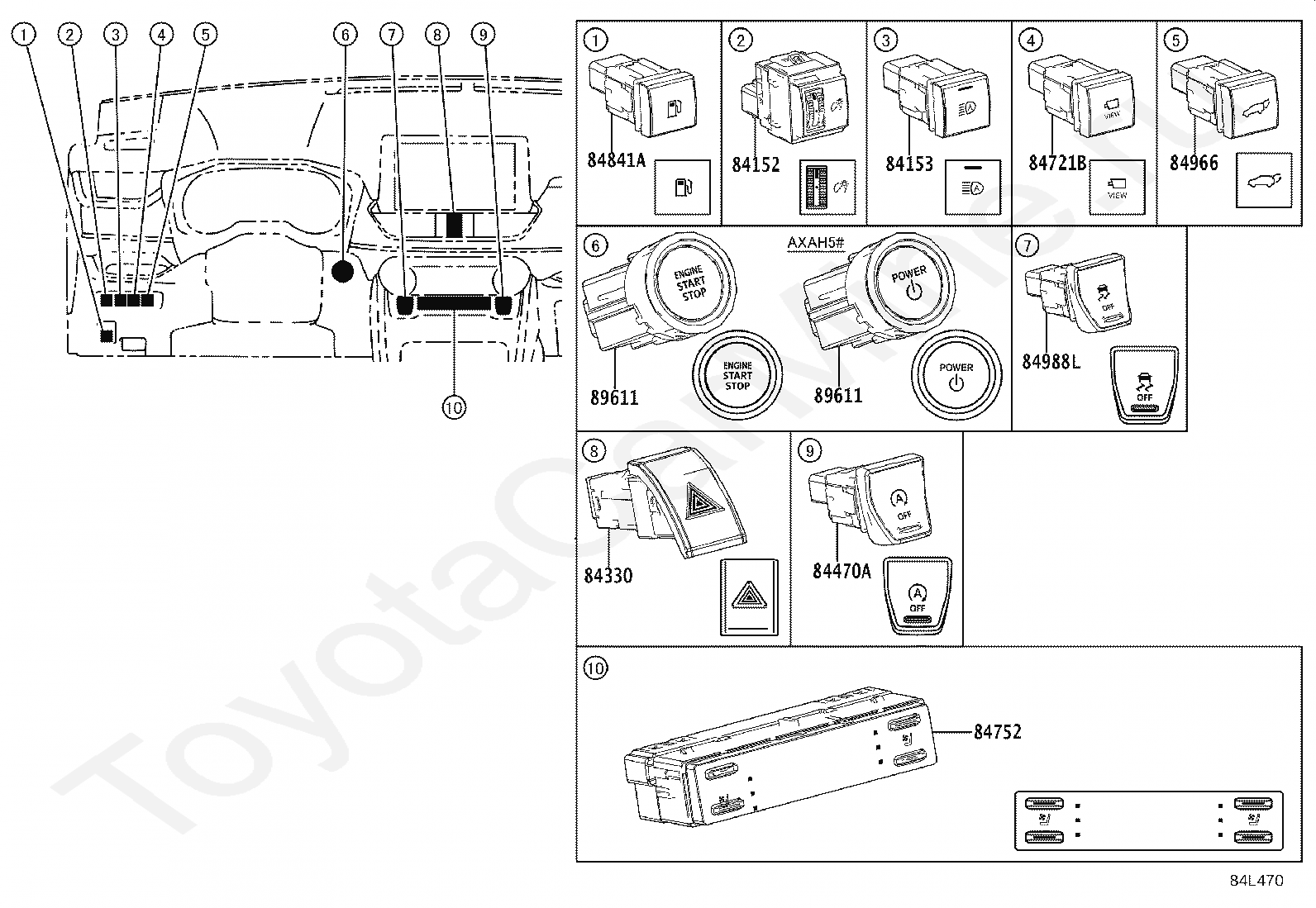

Код

Описание

84152

SWITCH, HEADLAMP LEVELING

84153

SWITCH, AUTO HIGH BEAM

84330

SWITCH ASSY, HAZARD WARNING SIGNAL

84470A

SWITCH ASSY, ECORUN CANCEL

84721B

SWITCH, PANORAMIC VIEW MONITOR

84752

SWITCH, REFRESHING SEAT

84841A

SWITCH, FUEL LID OPENER

84966

SWITCH, POWER BACK DOOR CONTROL

84988L

SWITCH, VSC OFF

89611

SWITCH, PUSH START

89611

SWITCH, PUSH START

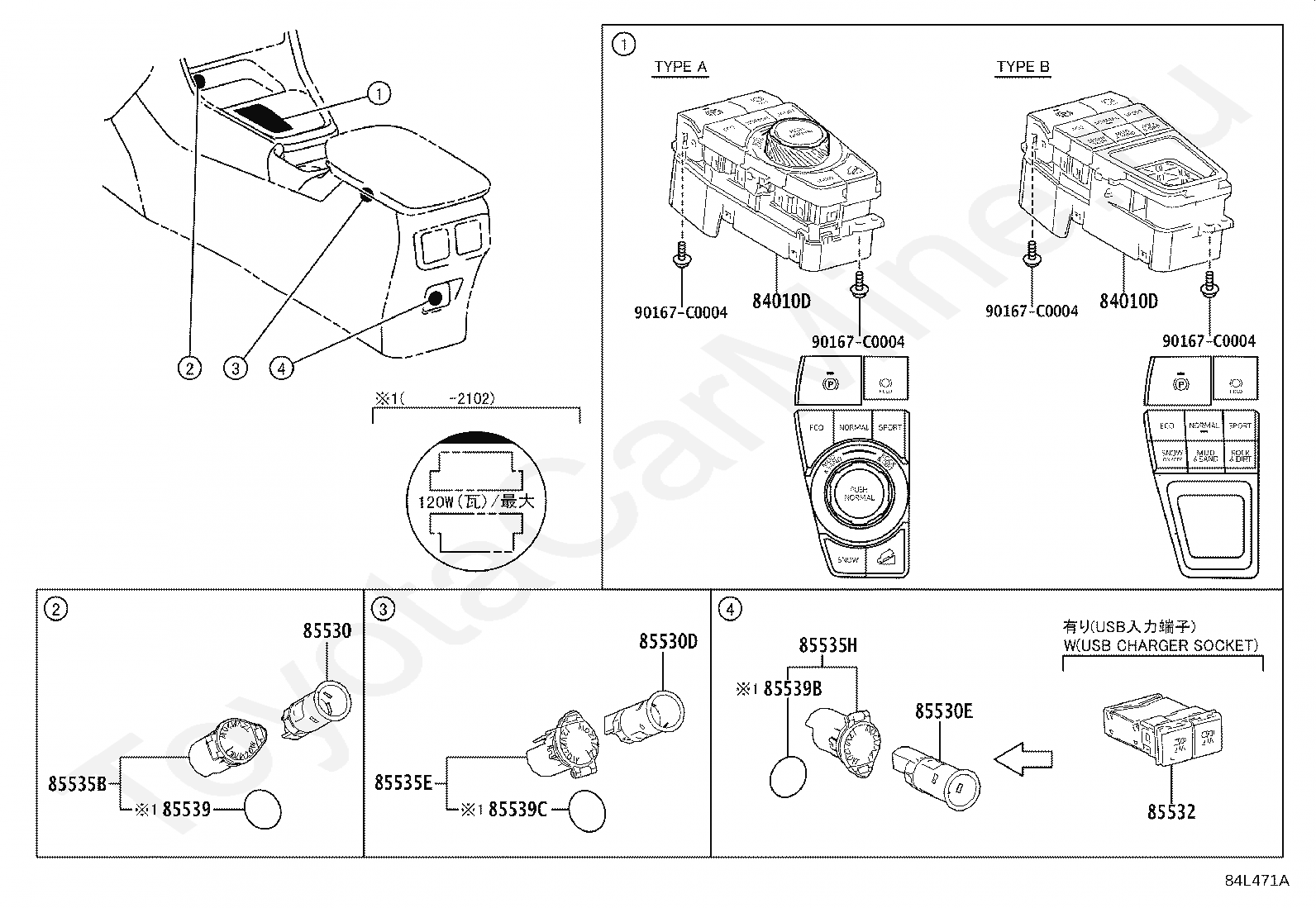

Код

Описание

84010D

CONTROL & PANEL ASSY, INTEGRATION

84010D

CONTROL & PANEL ASSY, INTEGRATION

85530

SOCKET ASSY, POWER OUTLET, NO.1

85530D

SOCKET ASSY, POWER OUTLET, NO.2

85530E

SOCKET ASSY, POWER OUTLET, NO.3

85532

SOCKET, USB CHARGER

85535B

COVER, POWER OUTLET SOCKET, NO.1

85535E

COVER, POWER OUTLET SOCKET, NO.2

85535H

COVER, POWER OUTLET SOCKET, NO.3

85539

LABEL, POWER OUTLET NOTICE

85539B

LABEL, POWER OUTLET NOTICE, CENTER

85539C

LABEL, POWER OUTLET NOTICE

90167C0004

Крепеж

90167C0004

Крепеж

90167C0004

Крепеж

90167C0004

Крепеж

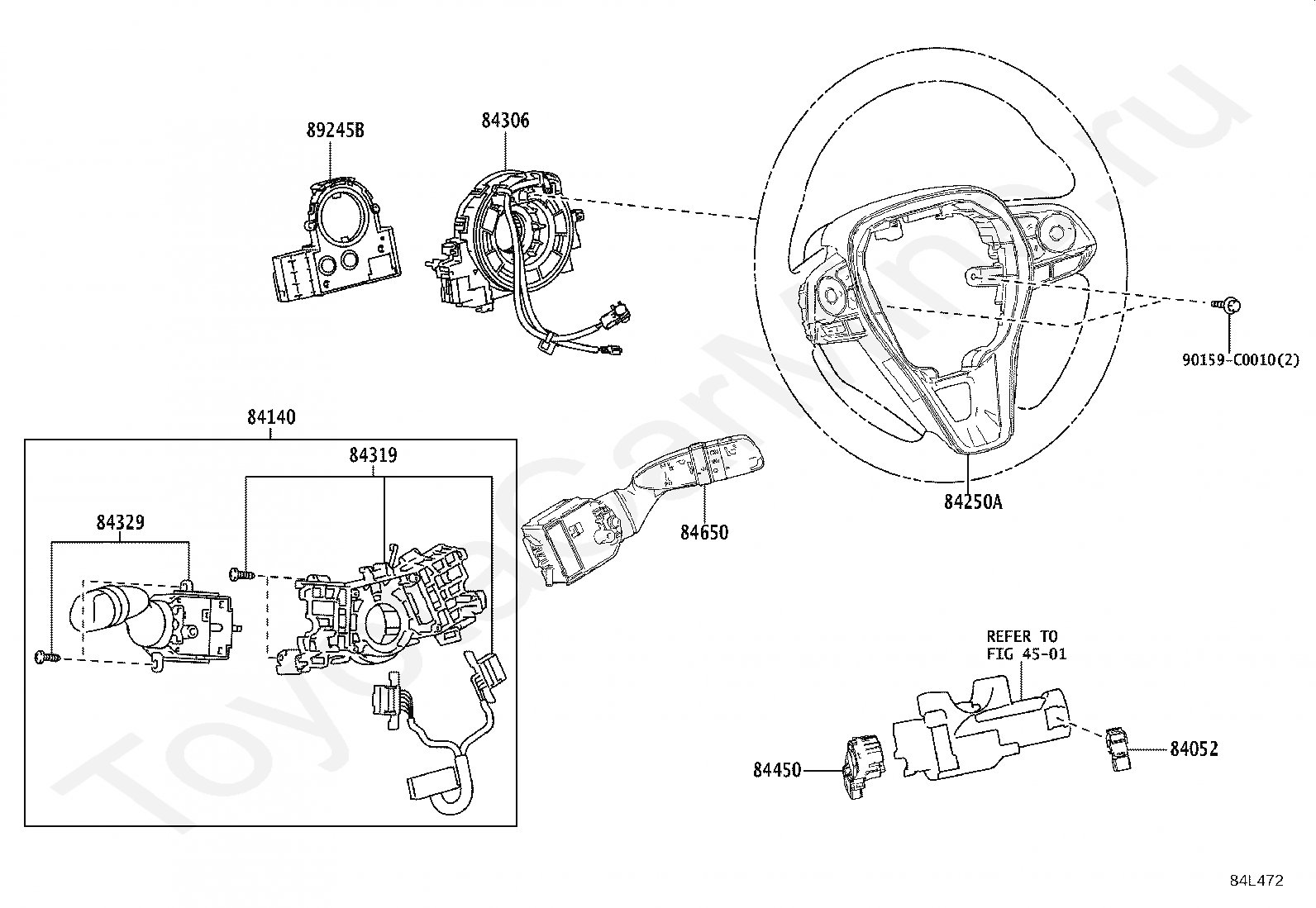

Код

Описание

4501

переход к группе запчастей

84052

SWITCH ASSY, UN-LOCK WARNING

84140

SWITCH ASSY, HEADLAMP DIMMER

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84319

HOUSING, STEERING WHEEL SWITCH

84329

SWITCH, TURN SIGNAL

84450

SWITCH ASSY, IGNITION OR STARTER

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

90159C0010

Крепеж

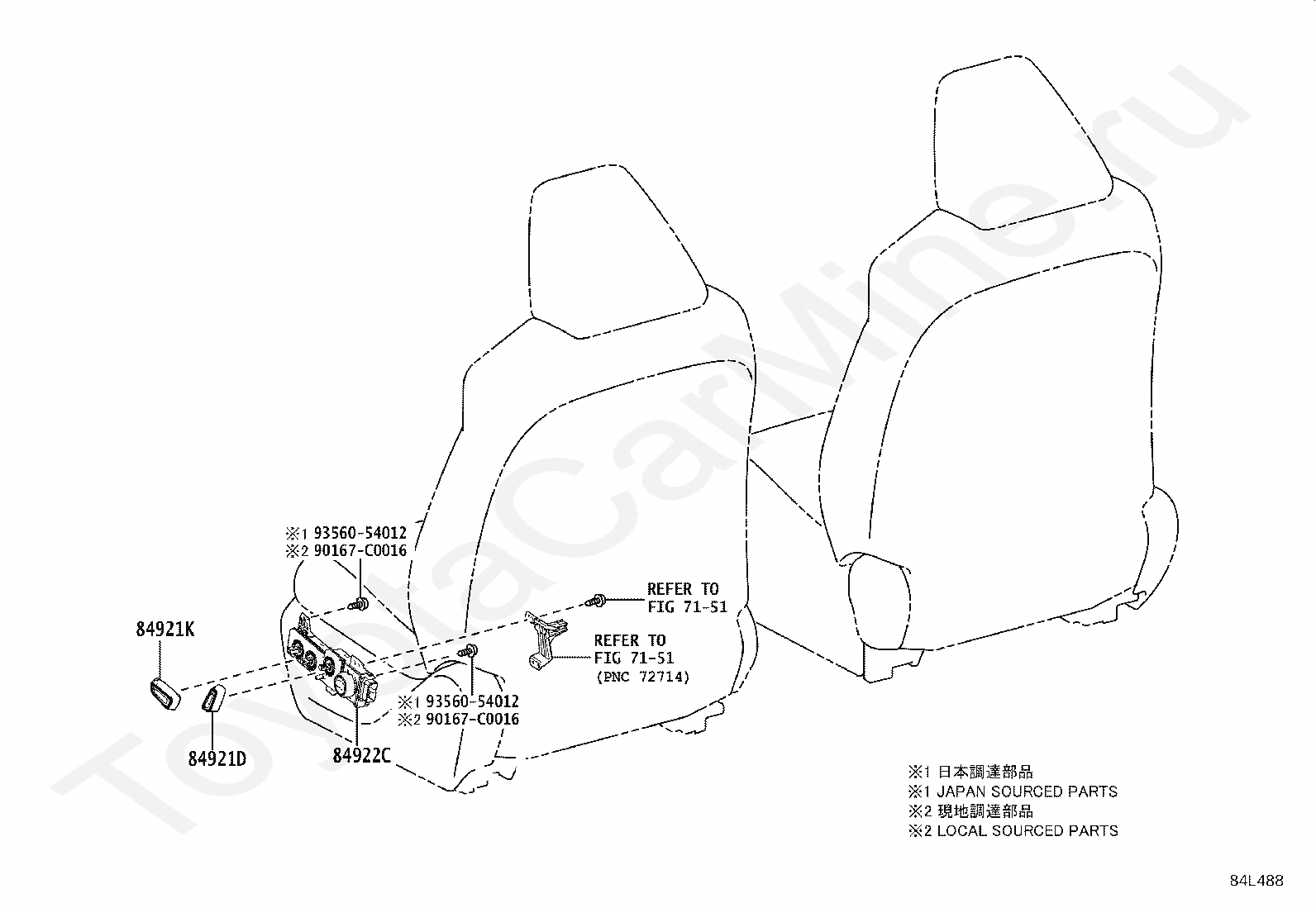

Код

Описание

7151

переход к группе запчастей

7151

переход к группе запчастей

84921D

KNOB, POWER SEAT SWITCH, LH

84921K

KNOB, POWER SEAT SWITCH, LH

84922C

SWITCH, FRONT POWER SEAT, LH

90167C0016

Крепеж

90167C0016

Крепеж

9356054012

Крепеж

9356054012

Крепеж

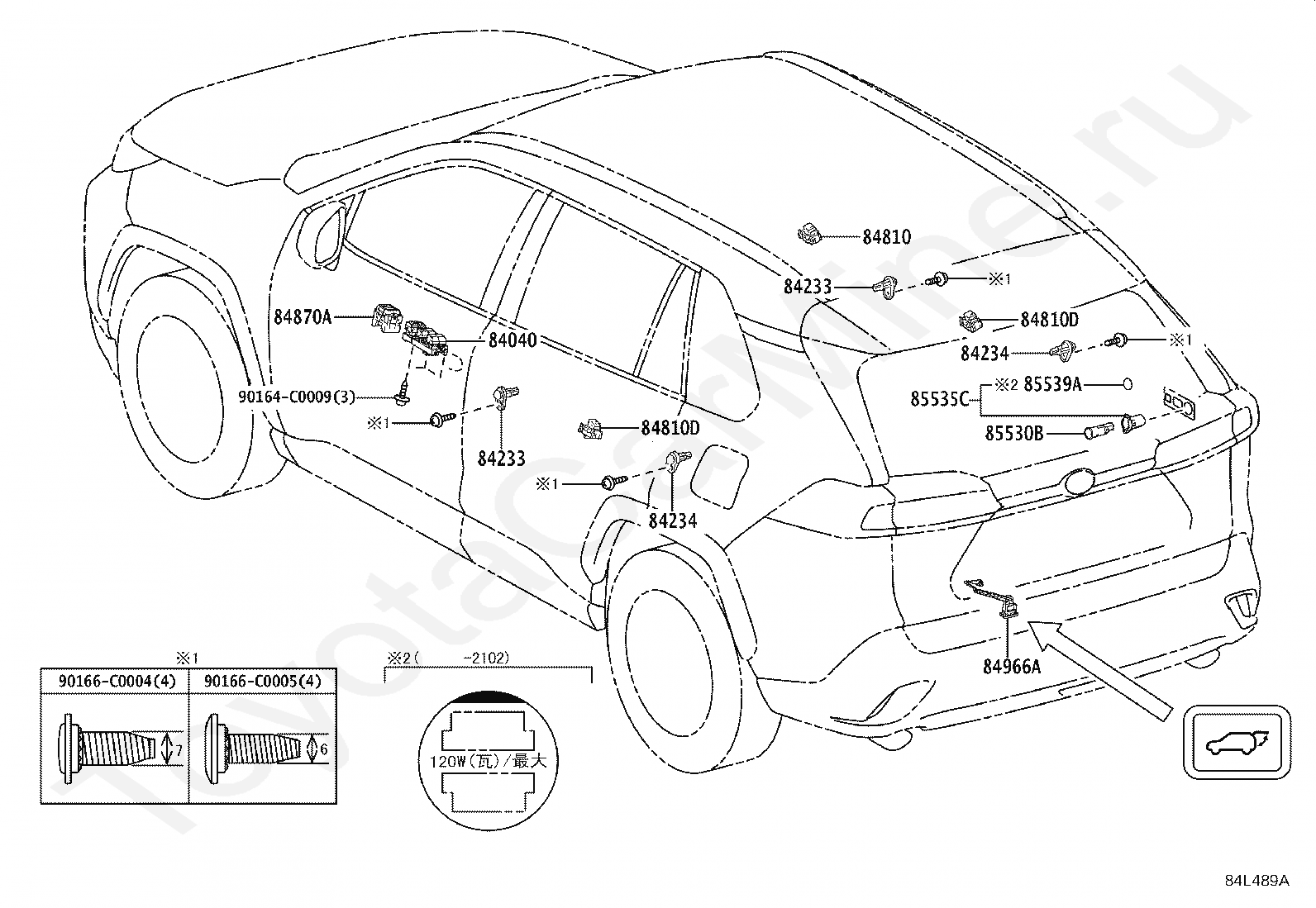

Код

Описание

84040

MASTER SWITCH ASSY,MULTIPLEX NETWORK

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84870A

SWITCH ASSY, OUTER MIRROR

84966A

SWITCH, POWER BACK DOOR CONTROL, NO.1

85530B

SOCKET ASSY, POWER OUTLET, REAR NO.1

85535C

COVER, POWER OUTLET SOCKET, REAR

85539A

LABEL, POWER OUTLET NOTICE, REAR

90164C0009

Крепеж

90166C0004

Крепеж

90166C0005

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320B

GAGE ASSY, FUEL SENDER, NO.2

84546A

SWITCH, 4 WHEEL DRIVE POSITION, NO.2

84840G

SWITCH ASSY, BACK DOOR OPENER

88162

SENSOR, BLIND SPOT MONITOR, RH

88172

SENSOR, BLIND SPOT MONITOR, LH

891B1

BRACKET, KICK DOOR CONTROL

891B2

SENSOR, KICK DOOR CONTROL

89222A

COMPUTER, MULTIPLEX NETWORK DOOR

89413A

SENSOR, TRANSMISSION REVOLUTION

89429F

SENSOR, TEMPERATURE

89747E

BUZZER, POWER BACK DOOR WARNING

89747F

BUZZER, BLIND SPOT MONITOR

9010506348

Крепеж

90119C0107

Крепеж

9016750063

Крепеж

90178C0076

Крепеж

90178C0076

Крепеж

9030111008

Крепеж

9043014011

Крепеж

9046707215

Крепеж

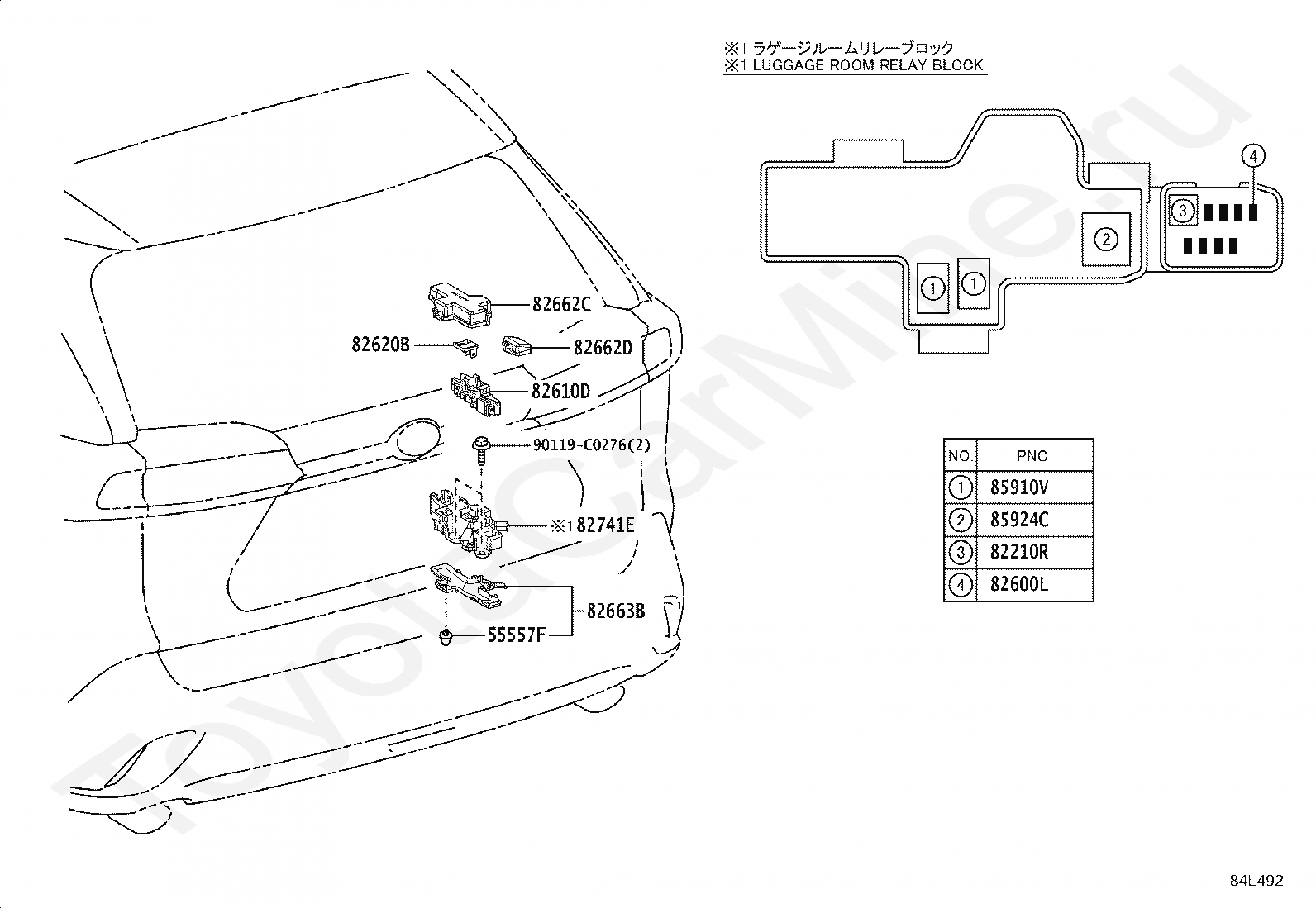

Код

Описание

55557F

CUSHION, RELAY BLOCK

82210R

LUGGAGE ROOM FUSIBLE LINK

82600L

LUGGAGE ROOM FUSE

82610D

BLOCK ASSY, FUSE

82620B

BLOCK ASSY, FUSIBLE LINK

82662C

COVER, RELAY BLOCK, UPPER, NO.3

82662D

COVER, RELAY BLOCK, UPPER, NO.4

82663B

COVER, RELAY BLOCK, LOWER, NO.3

82741E

BLOCK, LUGGAGE ROOM RELAY, NO.1

85910V

RELAY, SEAT HEATER

85924C

RELAY, IGCT

90119C0276

Крепеж
