Ходовые запчасти

Каталог

Япония

Модель

VITZ

VIN

Дата

2010/12

Двигатель

1,5 литра, 16 клапанов DOHC, EFI

Класс

задний спойлер

Фрейм

NCP131

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

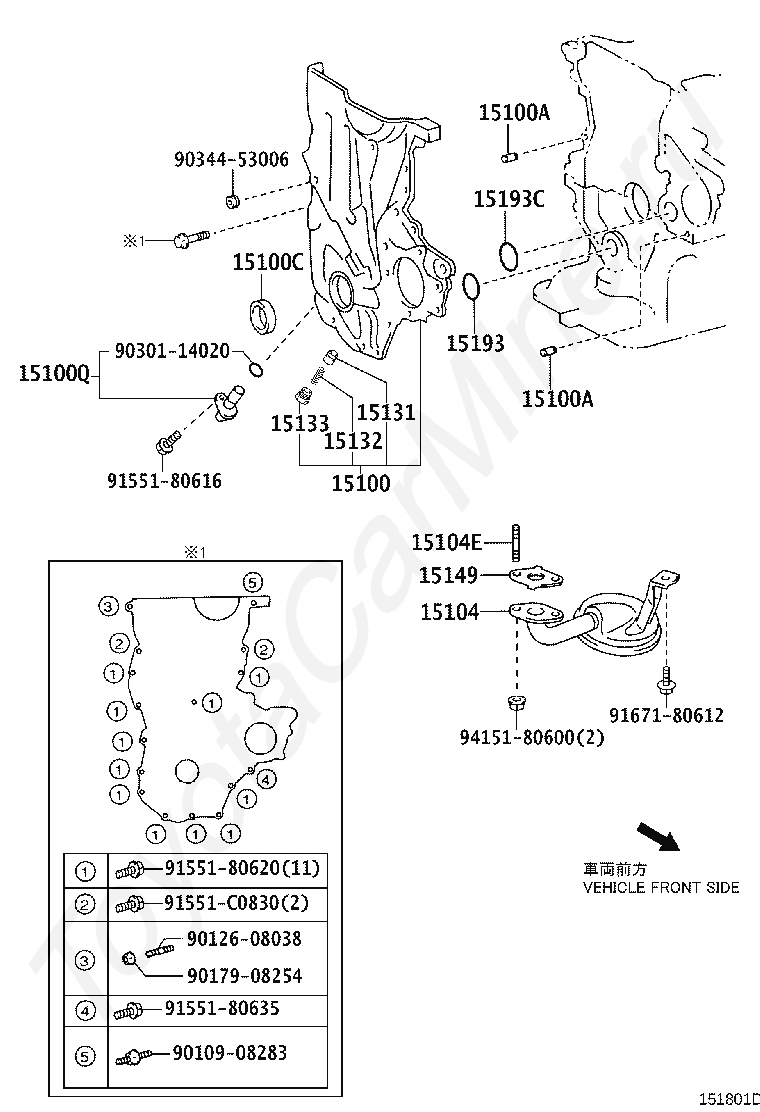

Масляный насос TOYOTA VITZ

Код

Описание

15100

PUMP ASSY, OIL

15100A

PIN, RING(FOR OIL PUMP SET)

15100A

PIN, RING(FOR OIL PUMP SET)

15100C

SEAL(FOR OIL PUMP)

15100Q

SENSOR, CRANK POSITION

15104

STRAINER SUB-ASSY, OIL

15104E

BOLT, STUD(FOR OIL STRAINER)

15131

VALVE, OIL PUMP RELIEF

15132

SPRING, OIL PUMP RELIEF VALVE

15133

PLUG, OIL PUMP RELIEF VALVE

15149

GASKET, OIL STRAINER FLANGE

15193

GASKET, OIL PUMP

15193C

GASKET, OIL PUMP NO.2

9010908283

Крепеж

9012608038

Крепеж

9017908254

Крепеж

9030114020

Крепеж

9034453006

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180635

Крепеж

91551C0830

Крепеж

9167180612

Крепеж

9415180600

Крепеж

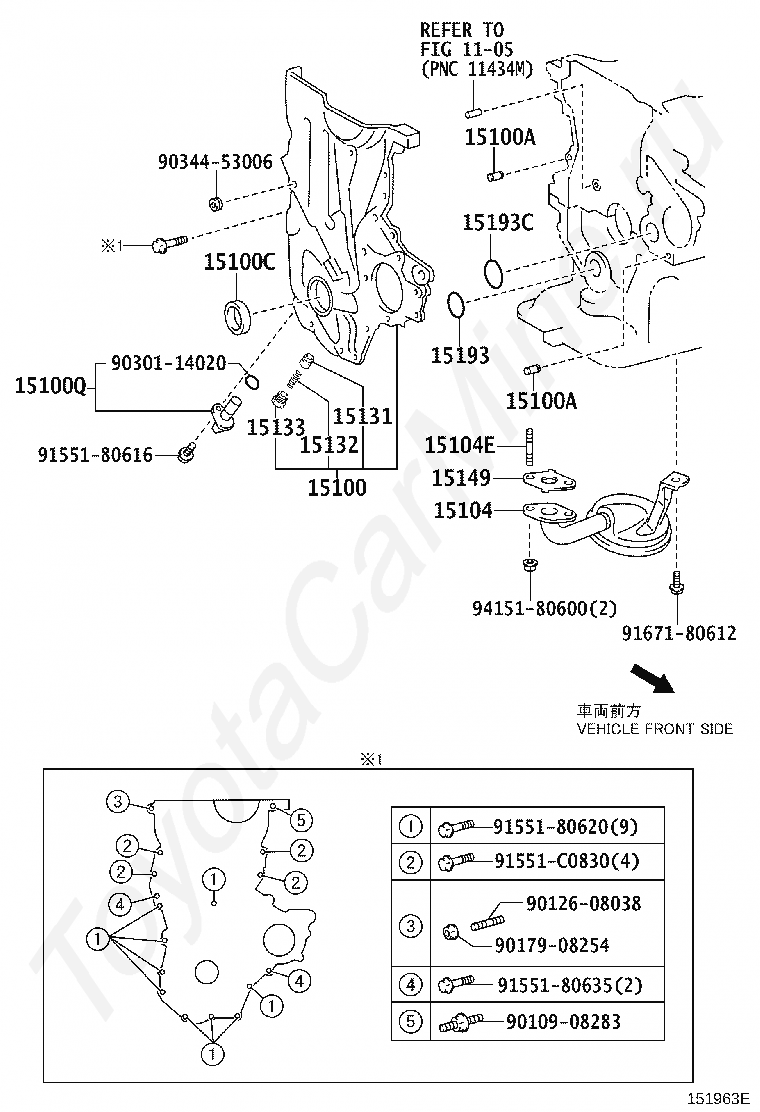

Код

Описание

1105

переход к группе запчастей

15100

PUMP ASSY, OIL

15100A

PIN, RING(FOR OIL PUMP SET)

15100A

PIN, RING(FOR OIL PUMP SET)

15100C

SEAL(FOR OIL PUMP)

15100Q

SENSOR, CRANK POSITION

15104

STRAINER SUB-ASSY, OIL

15104E

BOLT, STUD(FOR OIL STRAINER)

15131

VALVE, OIL PUMP RELIEF

15132

SPRING, OIL PUMP RELIEF VALVE

15133

PLUG, OIL PUMP RELIEF VALVE

15149

GASKET, OIL STRAINER FLANGE

15193

GASKET, OIL PUMP

15193C

GASKET, OIL PUMP NO.2

9010908283

Крепеж

9012608038

Крепеж

9017908254

Крепеж

9030114020

Крепеж

9034453006

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180635

Крепеж

91551C0830

Крепеж

9167180612

Крепеж

9415180600

Крепеж

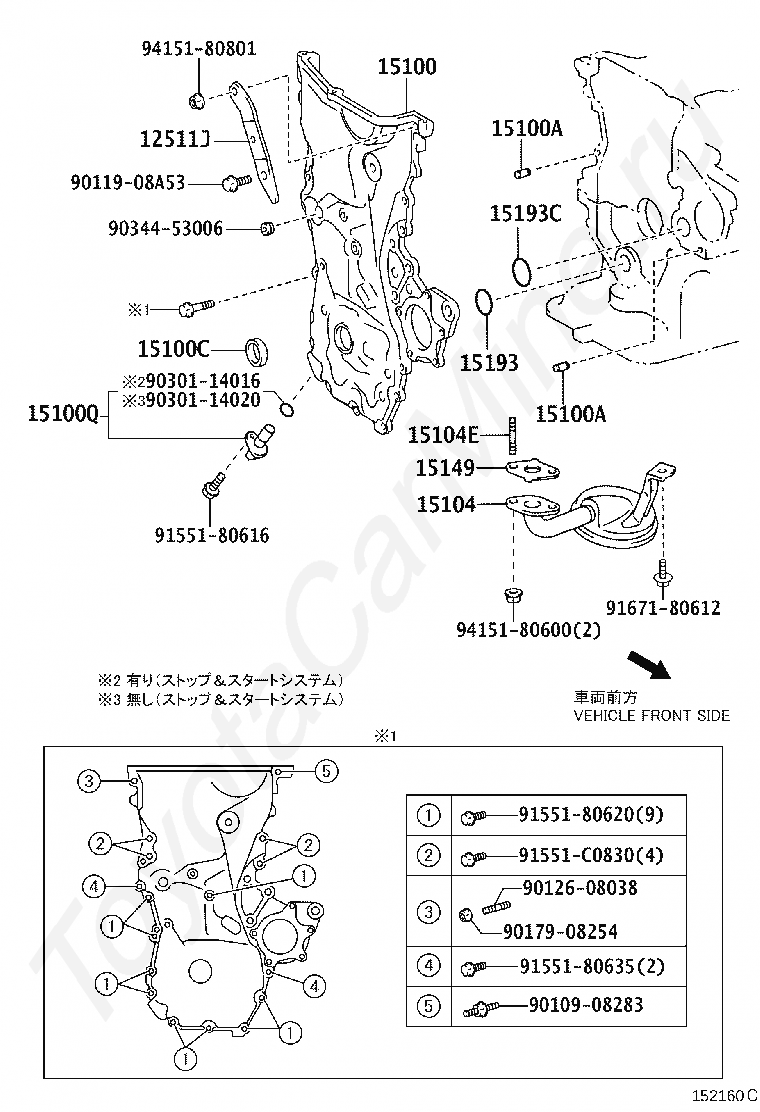

Код

Описание

12511J

BRACKET, ALTERNATOR

15100

PUMP ASSY, OIL

15100A

PIN, RING(FOR OIL PUMP SET)

15100A

PIN, RING(FOR OIL PUMP SET)

15100C

SEAL(FOR OIL PUMP)

15100Q

SENSOR, CRANK POSITION

15104

STRAINER SUB-ASSY, OIL

15104E

BOLT, STUD(FOR OIL STRAINER)

15149

GASKET, OIL STRAINER FLANGE

15193

GASKET, OIL PUMP

15193C

GASKET, OIL PUMP NO.2

9010908283

Крепеж

9011908A53

Крепеж

9012608038

Крепеж

9017908254

Крепеж

9030114016

Крепеж

9030114020

Крепеж

9034453006

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180635

Крепеж

91551C0830

Крепеж

9167180612

Крепеж

9415180600

Крепеж

9415180801

Крепеж

Код

Описание

12511J

BRACKET, ALTERNATOR

15100

PUMP ASSY, OIL

15100A

PIN, RING(FOR OIL PUMP SET)

15100A

PIN, RING(FOR OIL PUMP SET)

15100C

SEAL(FOR OIL PUMP)

15100Q

SENSOR, CRANK POSITION

15104

STRAINER SUB-ASSY, OIL

15104E

BOLT, STUD(FOR OIL STRAINER)

15149

GASKET, OIL STRAINER FLANGE

15193

GASKET, OIL PUMP

15193C

GASKET, OIL PUMP NO.2

9010908283

Крепеж

9011908A53

Крепеж

9012608038

Крепеж

9017908254

Крепеж

9030114016

Крепеж

9030114020

Крепеж

9034453006

Крепеж

9155180616

Крепеж

9155180620

Крепеж

9155180635

Крепеж

91551C0830

Крепеж

9167180612

Крепеж

9415180600

Крепеж

9415180801

Крепеж
