Япония

Модель

VITZ

VIN

Дата

2010/12

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

JEWL

Фрейм

KSP130

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

Кондиционер: управление и воздуховод TOYOTA VITZ

Код

Описание

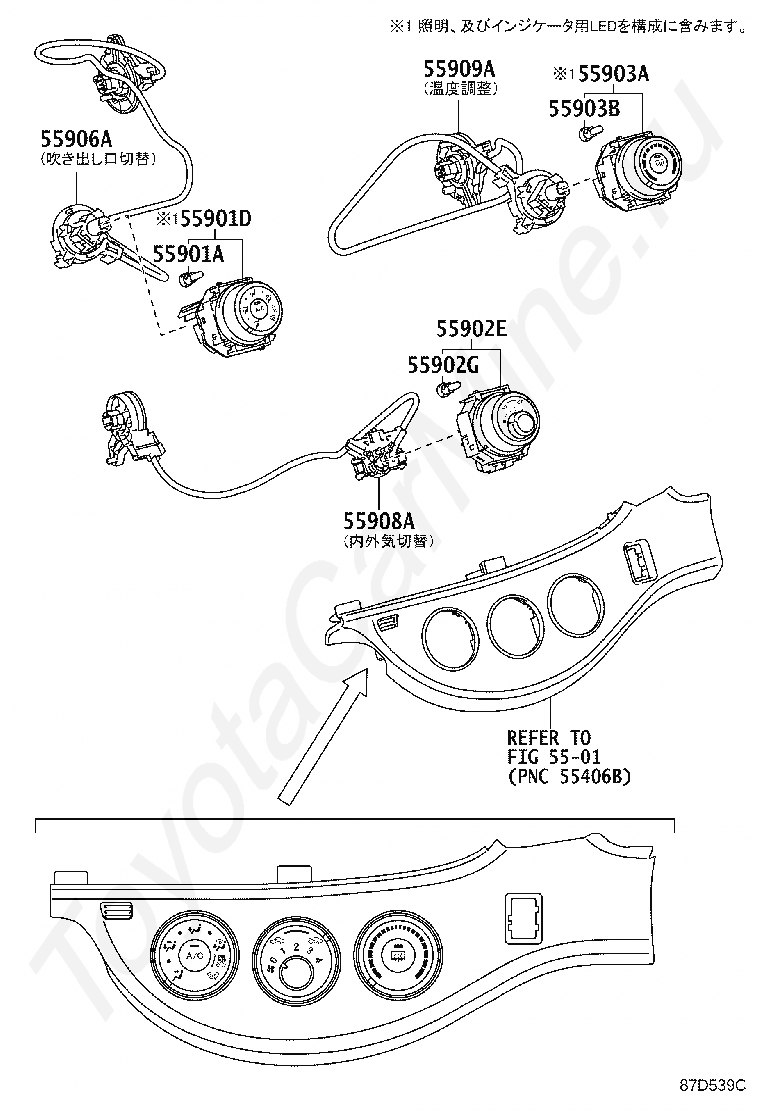

5501

переход к группе запчастей

55901A

BULB, HEATER CONTROL SUB-ASSY, NO.1

55901D

CONTROL SUB-ASSY, HEATER, NO.1

55902E

CONTROL SUB-ASSY, HEATER, NO.2

55902G

BULB, HEATER CONTROL SUB-ASSY, NO.2

55903A

CONTROL SUB-ASSY, HEATER, NO.3

55903B

BULB, HEATER CONTROL SUB-ASSY, NO.3

55906A

CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

55908A

CABLE SUB-ASSY, AIR INLET DAMPER CONTROL

55909A

CABLE SUB-ASSY, AIRMIX DAMPER CONTROL

Код

Описание

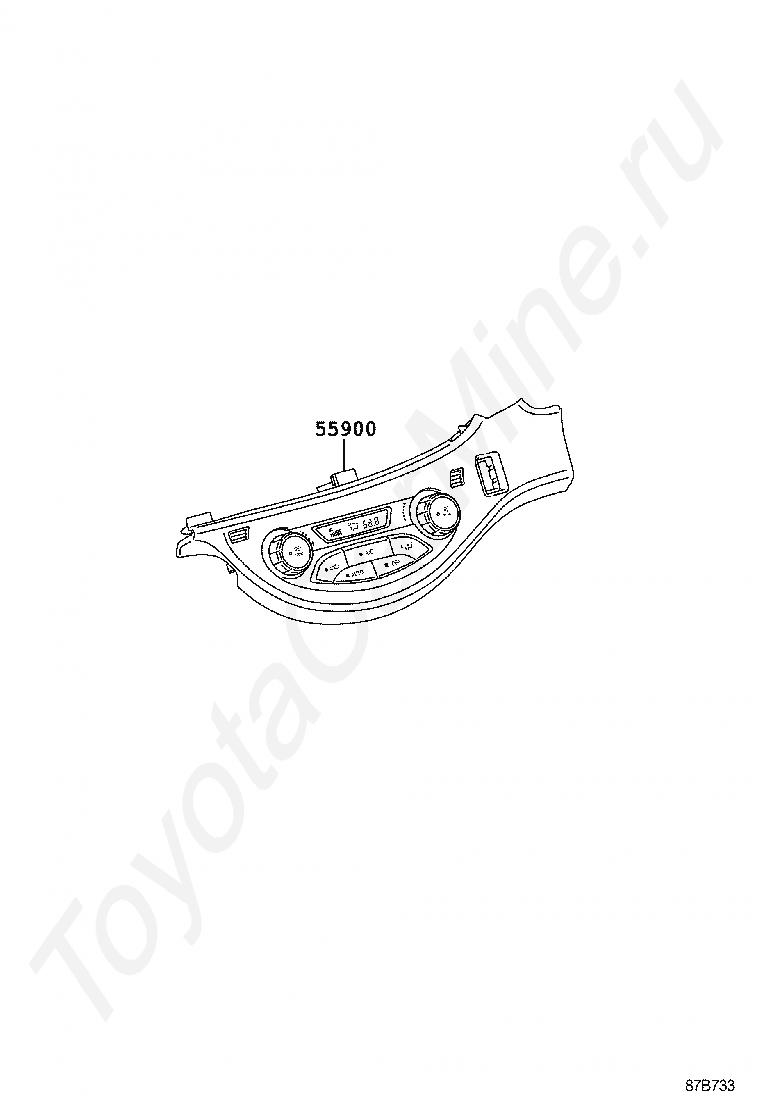

55900

CONTROL ASSY, AIR CONDITIONER

Код

Описание

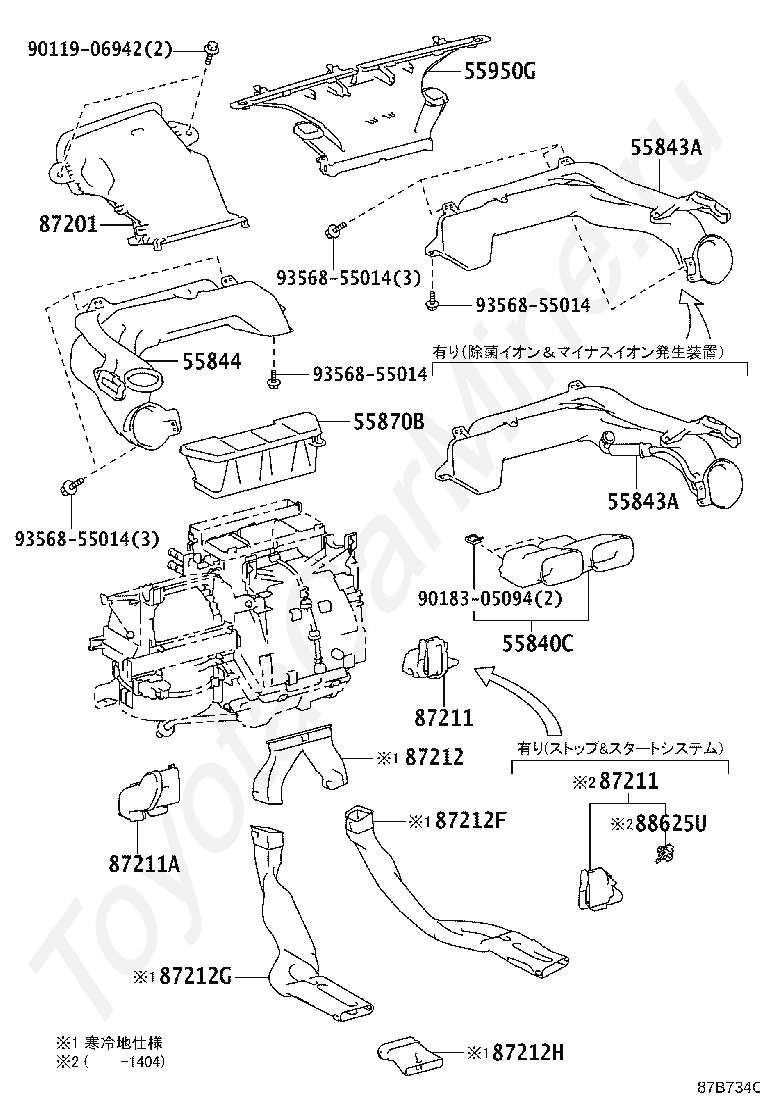

55840C

DUCT ASSY, HEATER TO REGISTER, NO.6

55843A

DUCT, HEATER TO REGISTER, NO.1

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55870B

DUCT ASSY, HEATER TO REGISTER

55950G

NOZZLE ASSY, DEFROSTER

87201

DUCT SUB-ASSY, AIR, NO.1

87211

DUCT, AIR, NO.1

87211

DUCT, AIR, NO.1

87211A

DUCT, AIR, NO.2

87212

DUCT, AIR, REAR NO.1

87212F

DUCT, AIR, REAR NO.2

87212G

DUCT, AIR, REAR NO.3

87212H

DUCT, AIR, REAR NO.4

88625U

THERMISTOR, COOLER (DUCT SENSOR)

9011906942

Крепеж

9018305094

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

55840C

DUCT ASSY, HEATER TO REGISTER, NO.6

55843A

DUCT, HEATER TO REGISTER, NO.1

55843A

DUCT, HEATER TO REGISTER, NO.1

55844

DUCT, HEATER TO REGISTER, NO.2

55870B

DUCT ASSY, HEATER TO REGISTER

55950G

NOZZLE ASSY, DEFROSTER

87201

DUCT SUB-ASSY, AIR, NO.1

87211

DUCT, AIR, NO.1

87211A

DUCT, AIR, NO.2

87211B

DUCT, AIR, NO.3

87212

DUCT, AIR, REAR NO.1

87212F

DUCT, AIR, REAR NO.2

87212G

DUCT, AIR, REAR NO.3

87212H

DUCT, AIR, REAR NO.4

9011906942

Крепеж

9015970004

Крепеж

9018305094

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

9356855014

Крепеж

Код

Описание

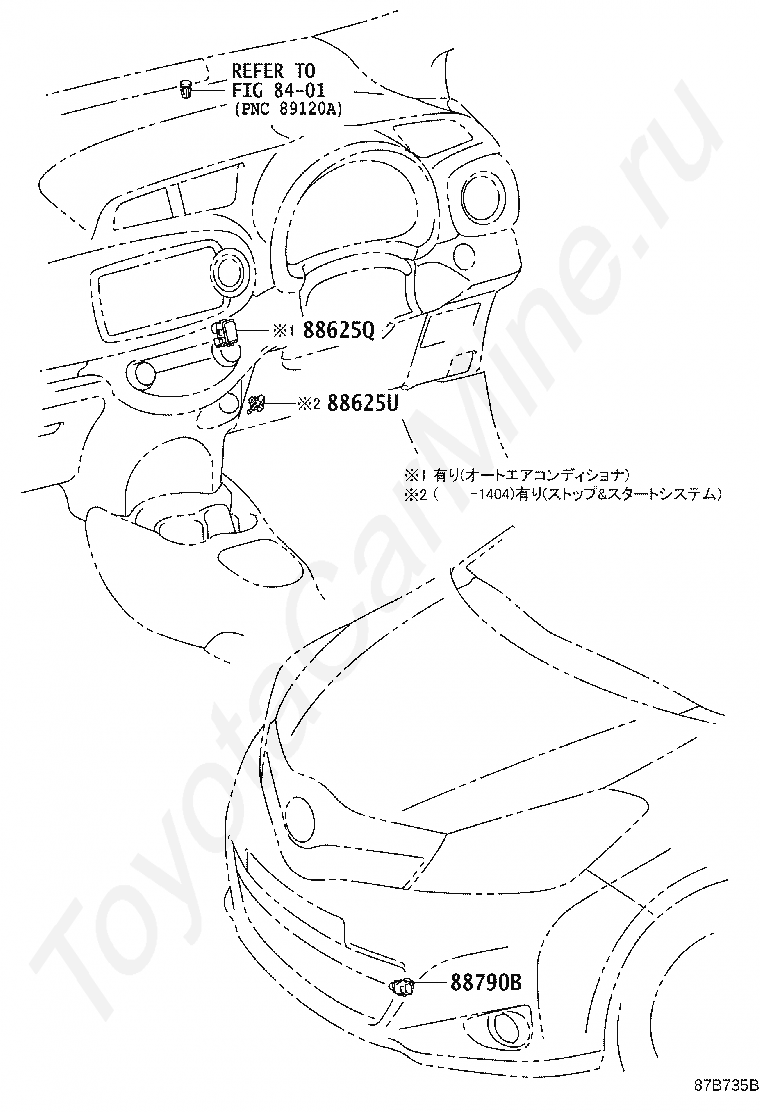

8401

переход к группе запчастей

88625Q

THERMISTOR, COOLER (ROOM TEMP. SENSOR)

88625U

THERMISTOR, COOLER (DUCT SENSOR)

88790B

THERMISTOR ASSY
