Япония

Модель

VITZ

VIN

Дата

2010/12

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

JEWL

Фрейм

KSP130

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

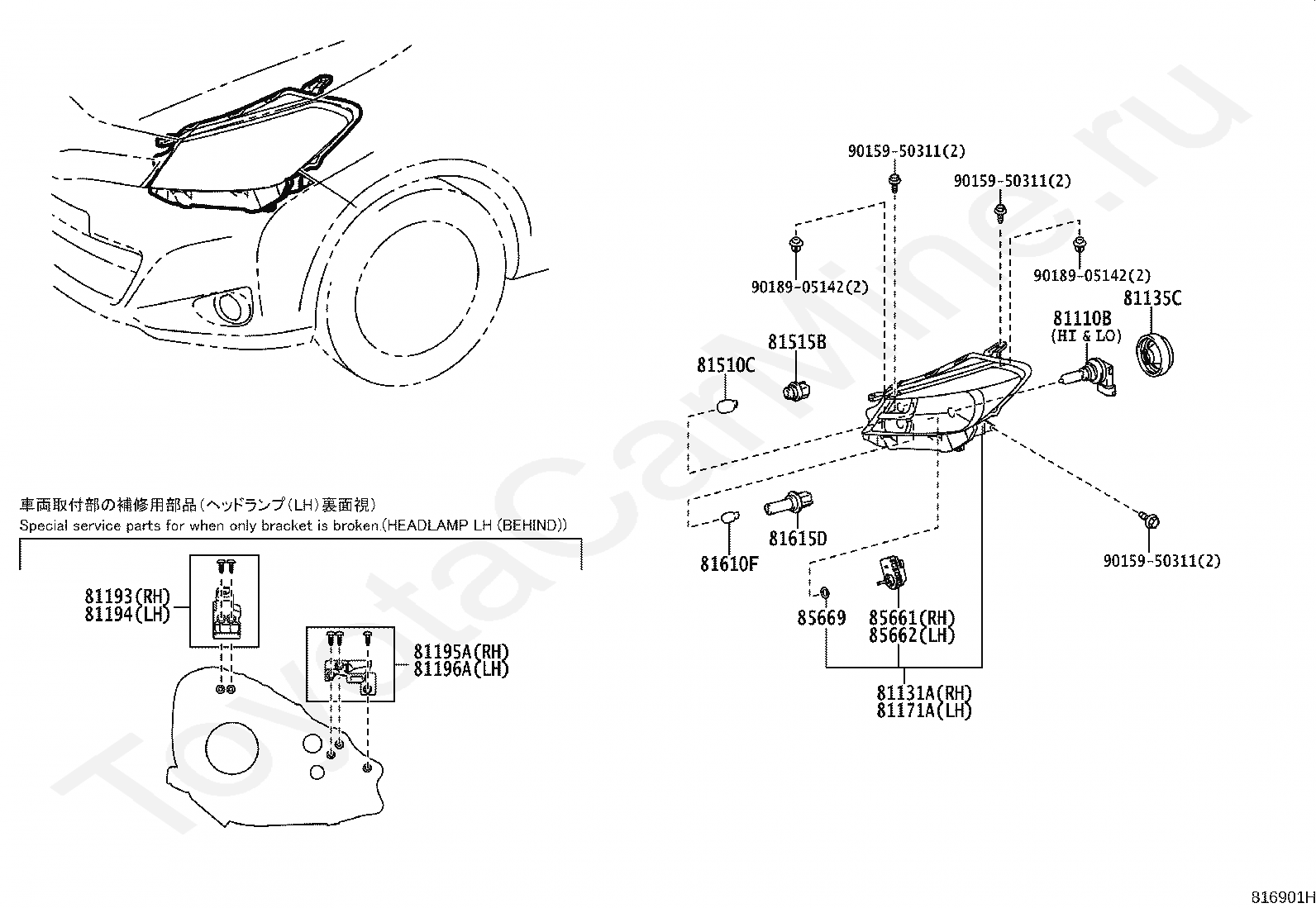

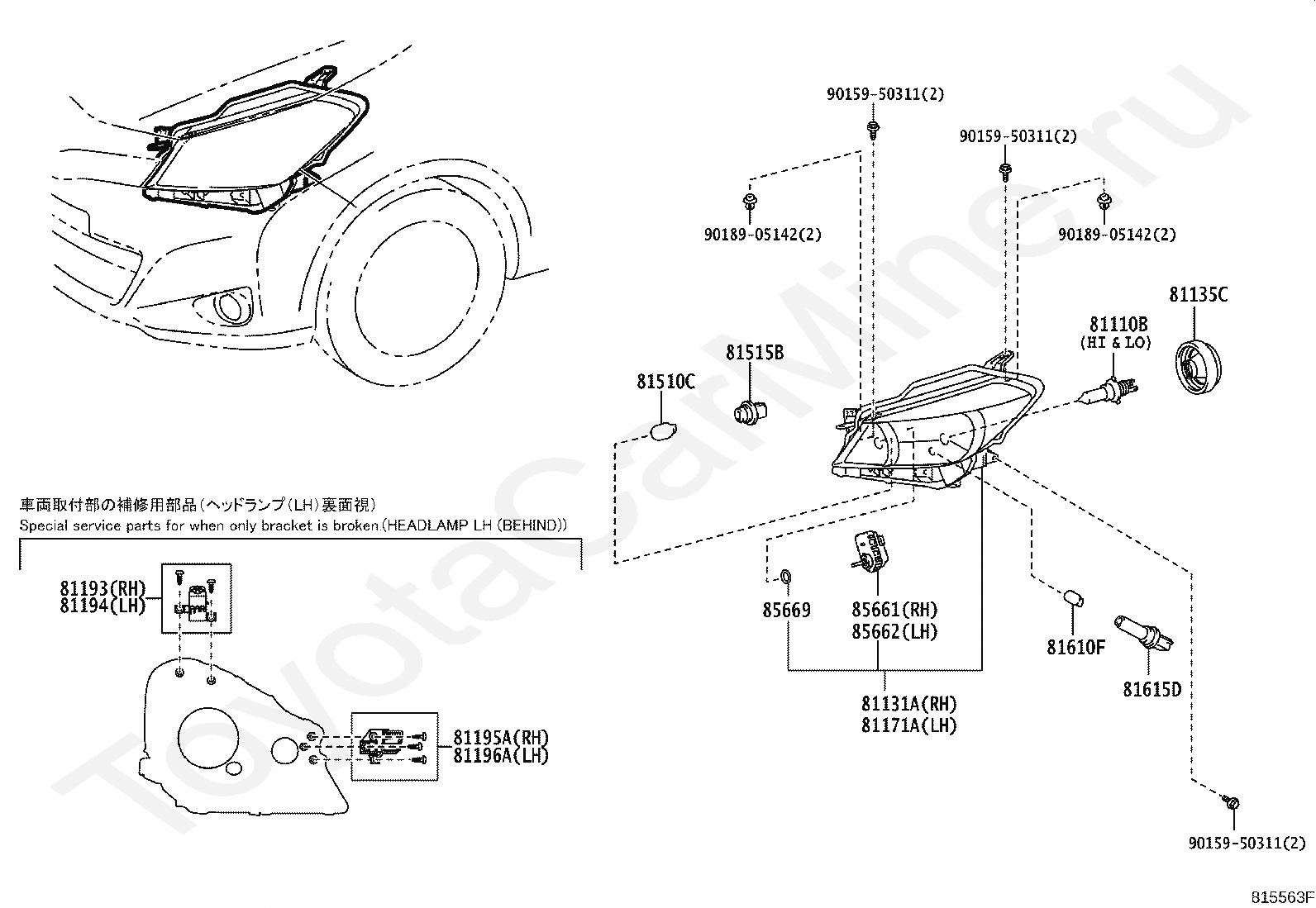

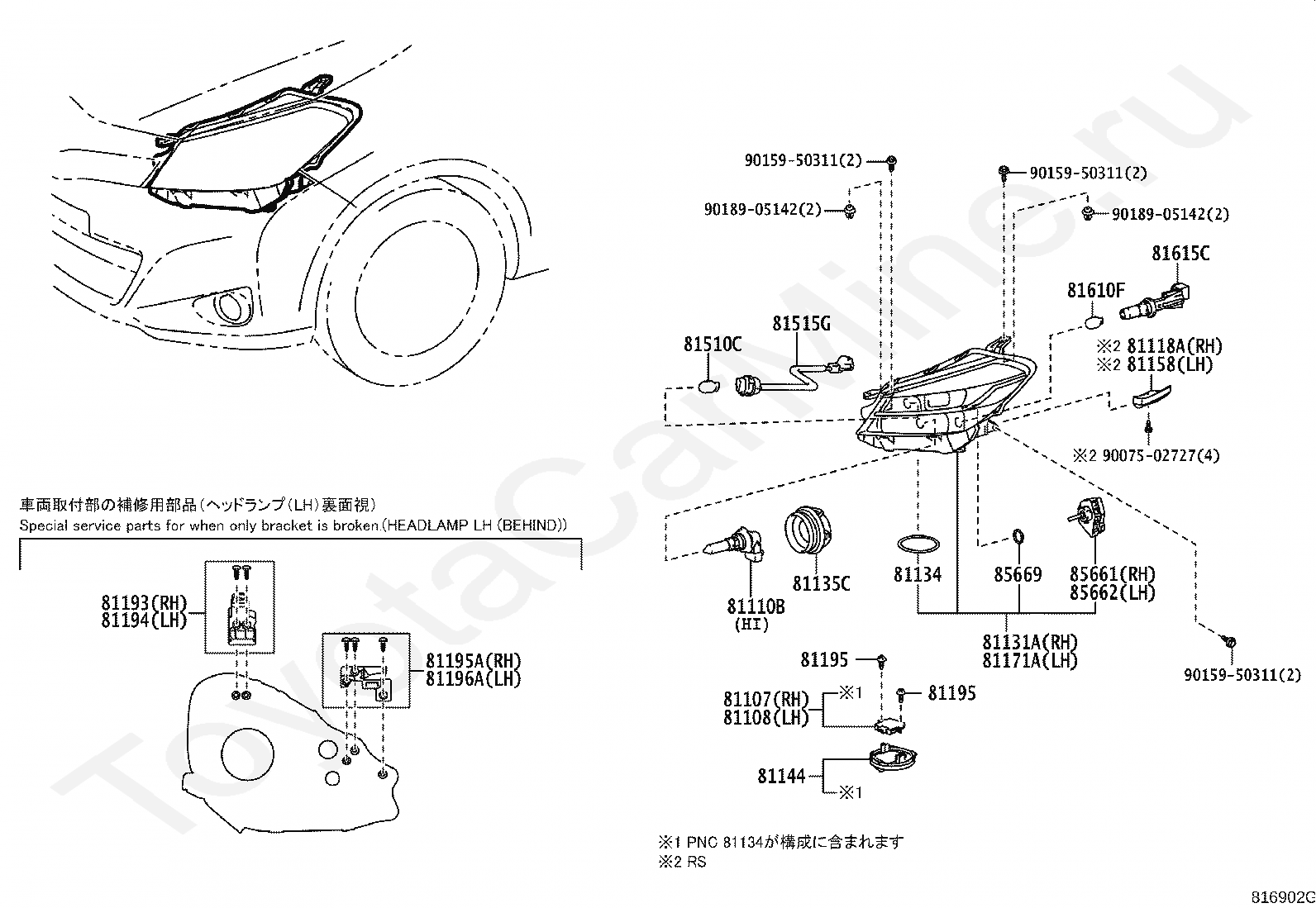

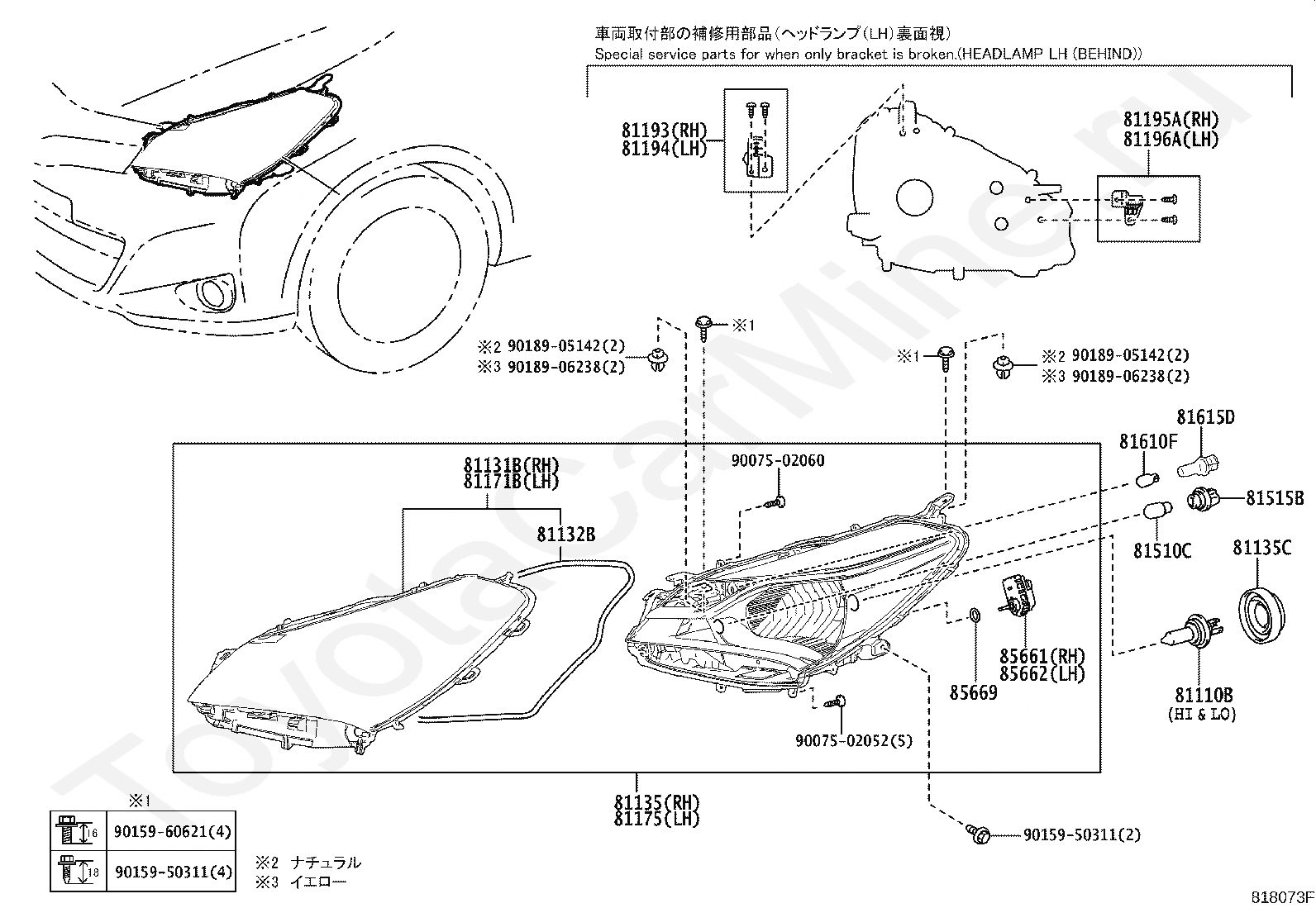

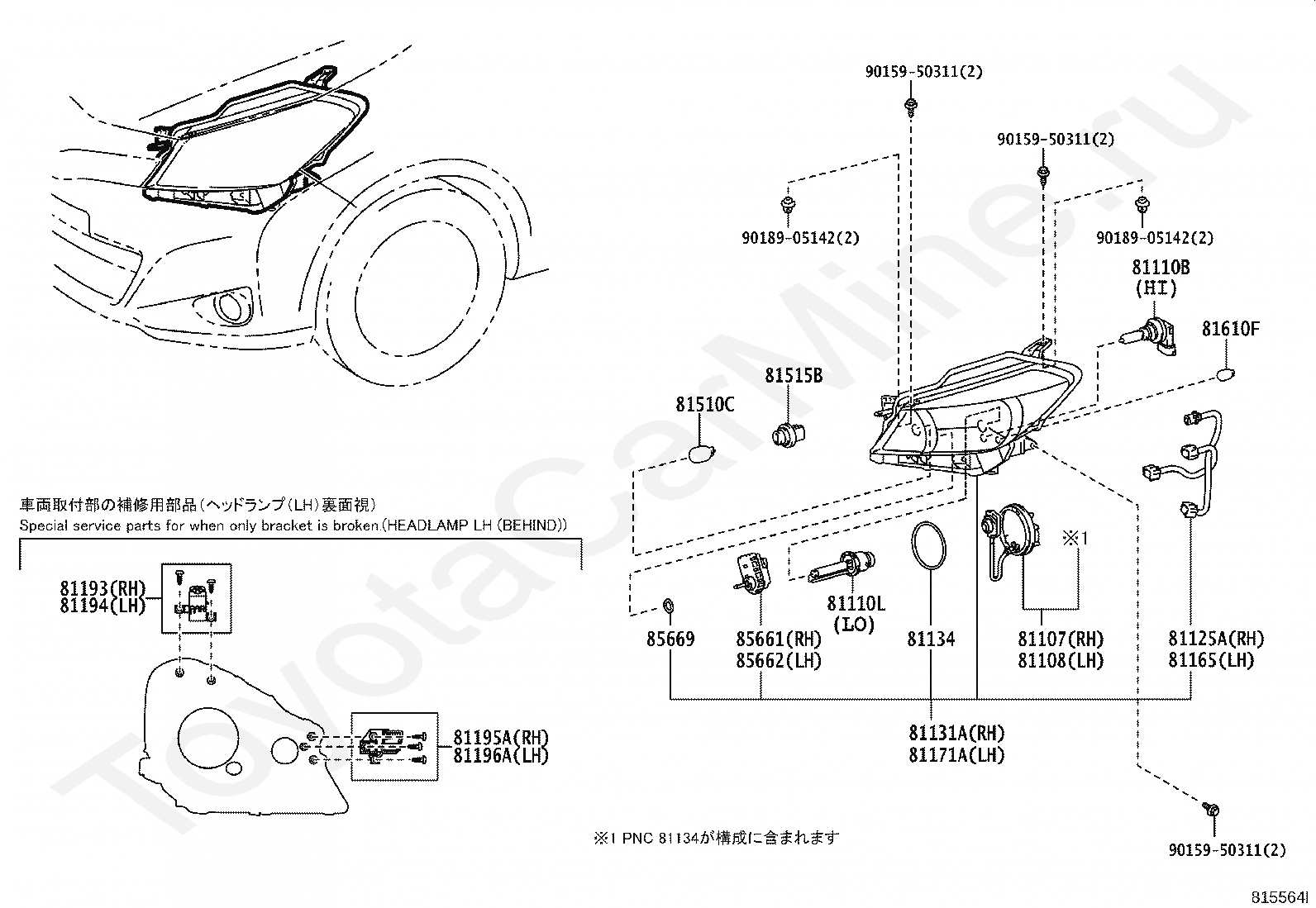

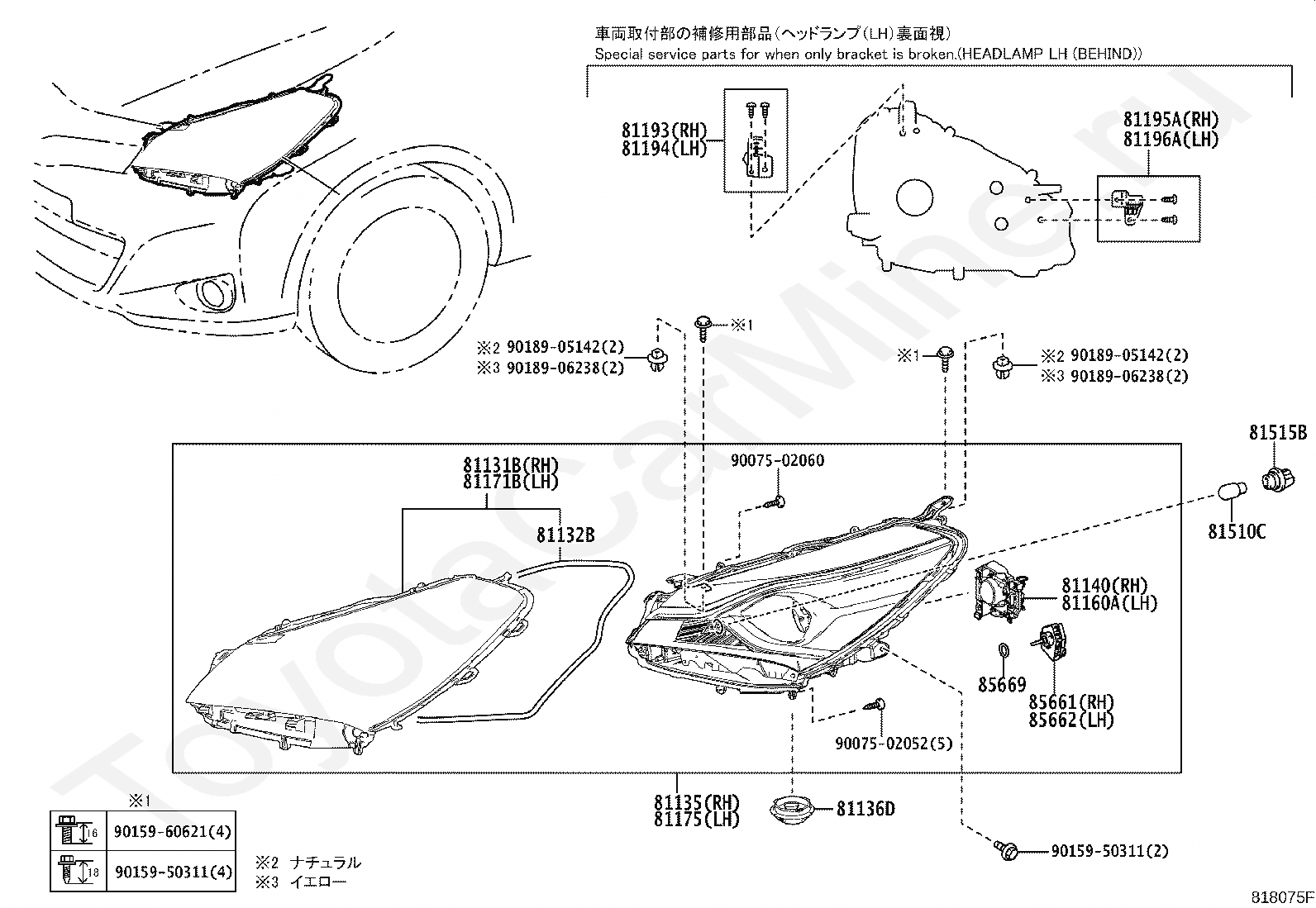

Фары TOYOTA VITZ







Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81110L

BULB, DISCHARGE HEADLAMP

81125A

CORD, HEADLAMP, RH

81131A

UNIT, HEADLAMP, RH

81134

GASKET, HEADLAMP

81165

CORD, HEADLAMP, LH

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131A

UNIT, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81107

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

81108

COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

81110B

BULB(FOR HEADLAMP, NO.1)

81118A

BRACKET, HEADLAMP, RH

81131A

UNIT, HEADLAMP, RH

81134

GASKET, HEADLAMP

81135C

COVER, HEADLAMP BACK, NO.1

81144

COVER, HEADLAMP, NO.1

81158

BRACKET, HEADLAMP, LH

81171A

UNIT, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195

SCREW, HEADLAMP

81195

SCREW, HEADLAMP

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515G

SOCKET & WIRE, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615C

SOCKET & WIRE, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502727

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9018905142

Крепеж

9018905142

Крепеж

Код

Описание

81110B

BULB(FOR HEADLAMP, NO.1)

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81135C

COVER, HEADLAMP BACK, NO.1

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

81610F

BULB(FOR CLEARANCE LAMP)

81615D

SOCKET, CLEARANCE LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502052

Крепеж

9007502060

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015960621

Крепеж

9018905142

Крепеж

9018905142

Крепеж

9018906238

Крепеж

9018906238

Крепеж

Код

Описание

81131B

HEAD LAMP LENS, RH

81132B

GASKET, HEADLAMP LENS

81135

UNIT ASSY, HEADLAMP, RH

81136D

COVER, HEADLAMP

81140

UNIT ASSY, HEADLAMP LED, RH

81160A

UNIT ASSY, HEADLAMP LED, LH

81171B

HEAD LAMP LENS, LH

81175

UNIT ASSY, HEADLAMP, LH

81193

RETAINER, HEADLAMP PROTECTOR, UPPER RH

81194

RETAINER, HEADLAMP PROTECTOR, UPPER LH

81195A

RETAINER, HEADLAMP PROTECTOR, LOWER RH

81196A

RETAINER, HEADLAMP PROTECTOR, LOWER LH

81510C

BULB (FOR FRONT TURN SIGNAL LAMP)

81515B

SOCKET, FRONT TURN SIGNAL LAMP

85661

MOTOR, HEADLAMP LEVELING, RH

85662

MOTOR, HEADLAMP LEVELING, LH

85669

PACKING, HEADLAMP LEVELING MOTOR BASE

9007502052

Крепеж

9007502060

Крепеж

9015950311

Крепеж

9015950311

Крепеж

9015960621

Крепеж

9018905142

Крепеж

9018905142

Крепеж

9018906238

Крепеж

9018906238

Крепеж
