Ходовые запчасти

Каталог

Япония

Модель

VITZ

VIN

Дата

2010/12

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

JEWL

Фрейм

KSP130

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

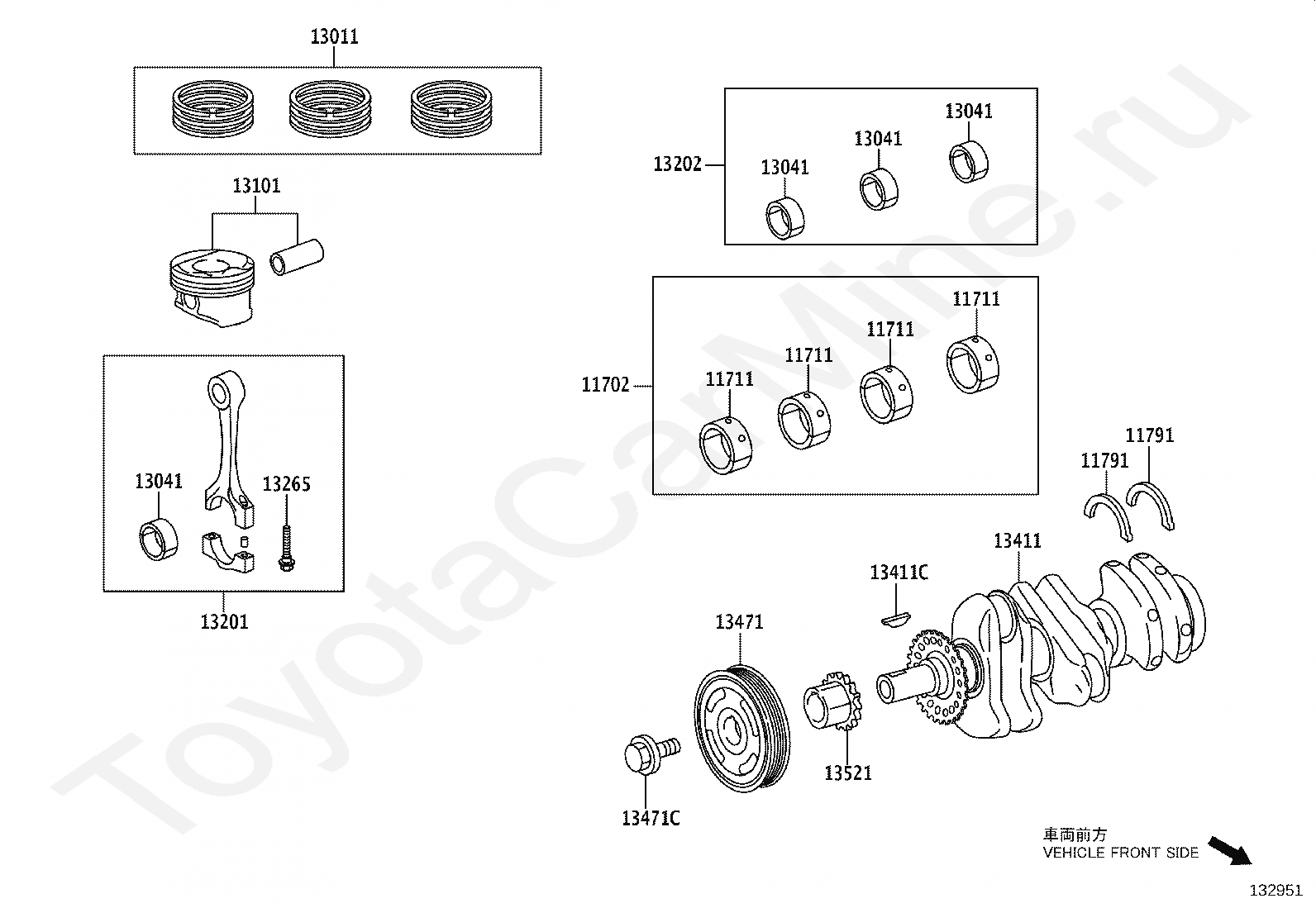

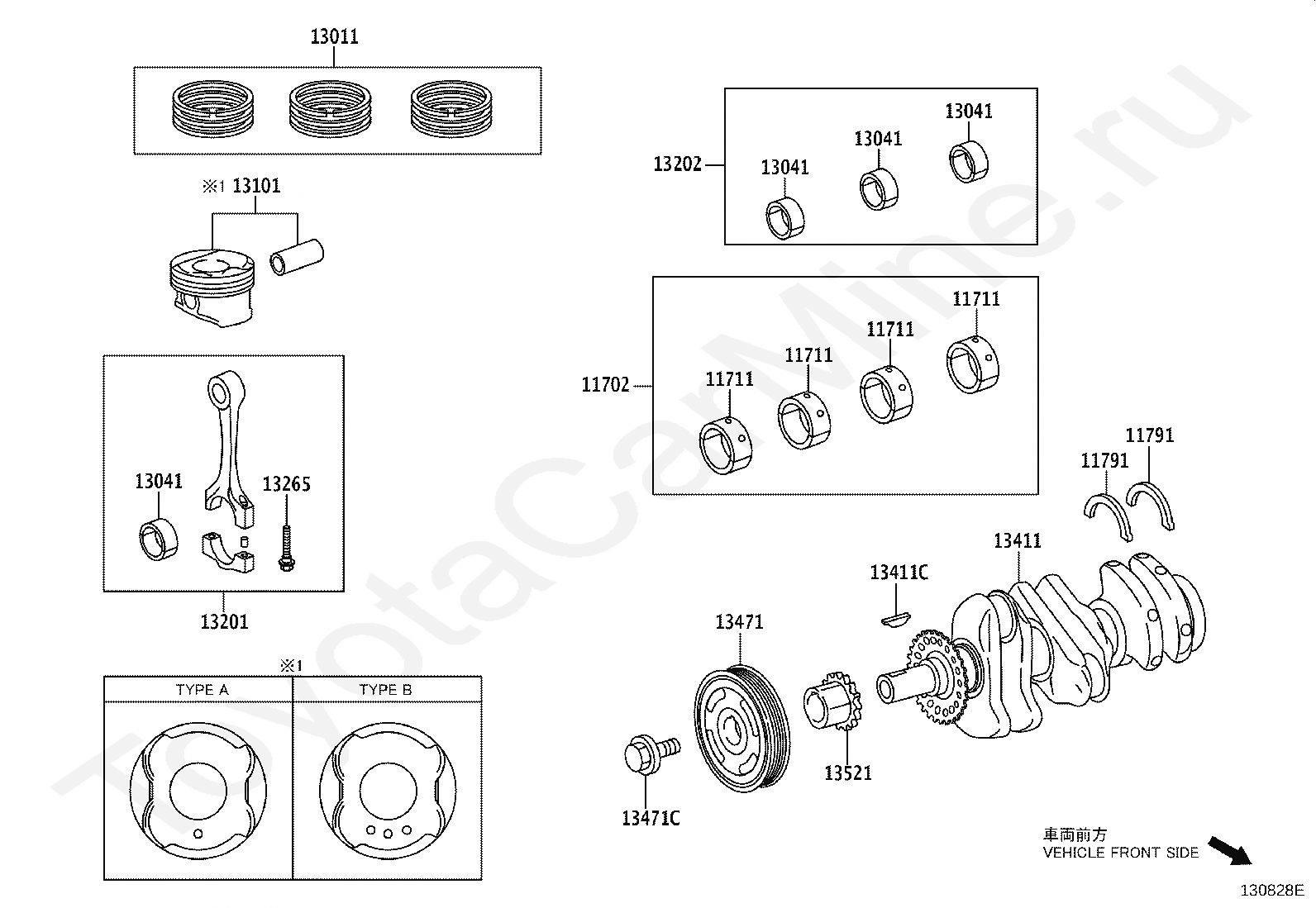

Коленвал и поршни TOYOTA VITZ

Код

Описание

11702

BEARING SET, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11791

WASHER, CRANKSHAFT THRUST, UPPER

11791

WASHER, CRANKSHAFT THRUST, UPPER

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13101

PISTON SUB-ASSY, W/PIN

13201

ROD SUB-ASSY, CONNECTING

13202

BEARING SET, CONNECTING ROD

13265

BOLT, CONNECTING ROD

13411

CRANKSHAFT

13411C

PIN, STRAIGHT(FOR CRANKSHAFT)

13471

PULLEY, CRANKSHAFT

13471C

BOLT(FOR CRANKSHAFT PULLEY SET)

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING

Код

Описание

11702

BEARING SET, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11711

BEARING, CRANKSHAFT

11791

WASHER, CRANKSHAFT THRUST, UPPER

11791

WASHER, CRANKSHAFT THRUST, UPPER

13011

RING SET, PISTON

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13041

BEARING, CONNECTING ROD

13101

PISTON SUB-ASSY, W/PIN

13201

ROD SUB-ASSY, CONNECTING

13202

BEARING SET, CONNECTING ROD

13265

BOLT, CONNECTING ROD

13411

CRANKSHAFT

13411C

PIN, STRAIGHT(FOR CRANKSHAFT)

13471

PULLEY, CRANKSHAFT

13471C

BOLT(FOR CRANKSHAFT PULLEY SET)

13521

GEAR OR SPROCKET, CRANKSHAFT TIMING
