Ходовые запчасти

Каталог

Япония

Модель

VITZ

VIN

Дата

2010/12

Двигатель

1 литр, 12 клапанов DOHC, EFI

Класс

JEWL

Фрейм

KSP130

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 508W

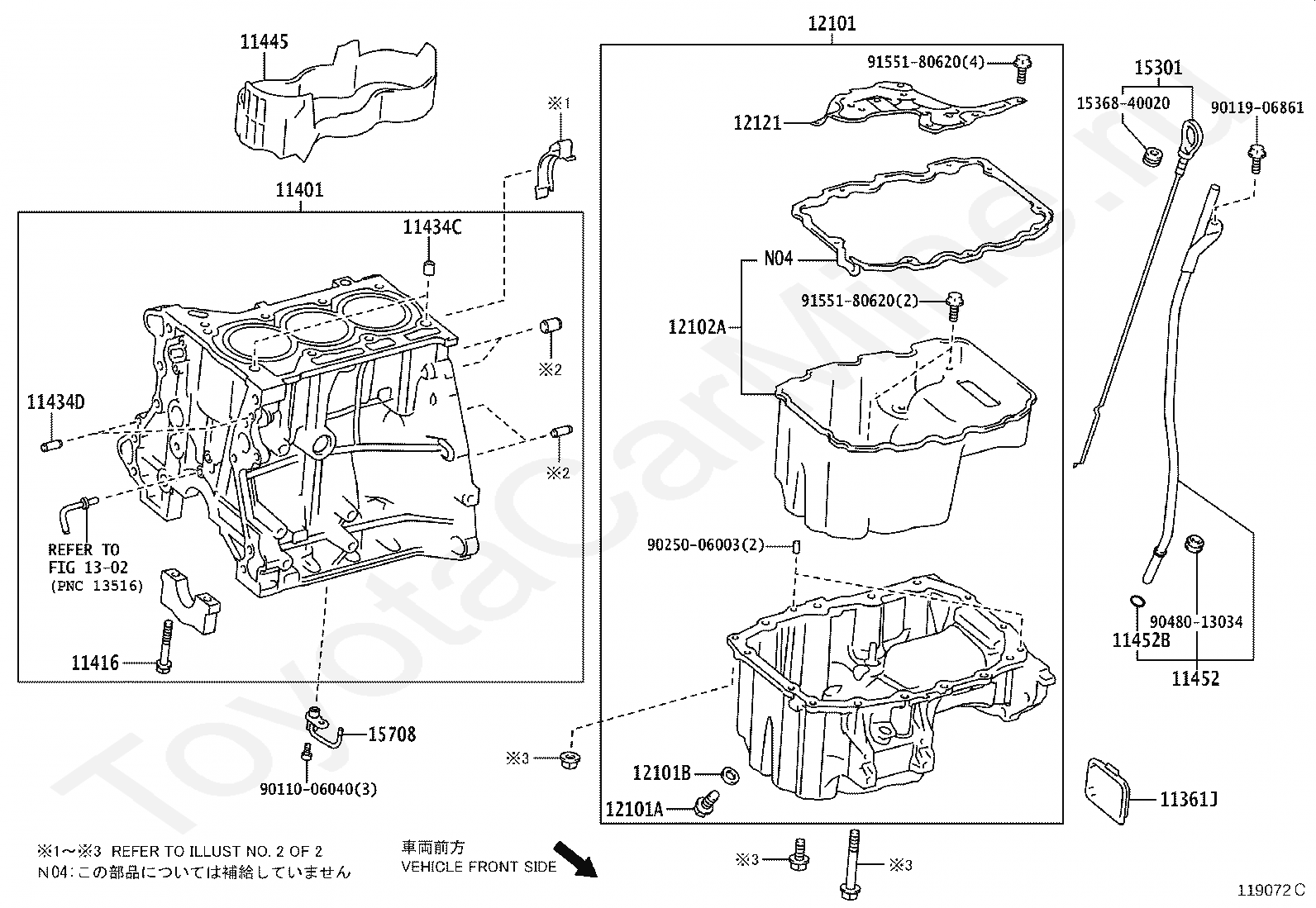

Блок цилиндров TOYOTA VITZ

Код

Описание

11361J

COVER, FLYWHEEL HOUSING UNDER

11401

BLOCK SUB-ASSY, CYLINDER

11416

BOLT(FOR CRANKSHAFT BEARING CAP SET)

11434C

PIN, STRAIGHT (FOR CYLINDER HEAD SET)

11434C

PIN, STRAIGHT (FOR CYLINDER HEAD SET)

11434D

PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

11434D

PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

11445

SPACER, CYLINDER BLOCK WATER JACKET

11452

GUIDE, OIL LEVEL GAGE

11452B

RING, O(FOR OIL LEVEL GAGE GUIDE)

12101

PAN SUB-ASSY, OIL

12101A

PLUG(FOR OIL PAN DRAIN)

12101B

GASKET(FOR OIL PAN DRAIN PLUG)

12216F

PLATE, VENTILATION BAFFLE

1302

переход к группе запчастей

15301

GAGE SUB-ASSY, OIL LEVEL

9011906861

Крепеж

9011908C71

Крепеж

9025006003

Крепеж

9212280814

Крепеж

9415180800

Крепеж

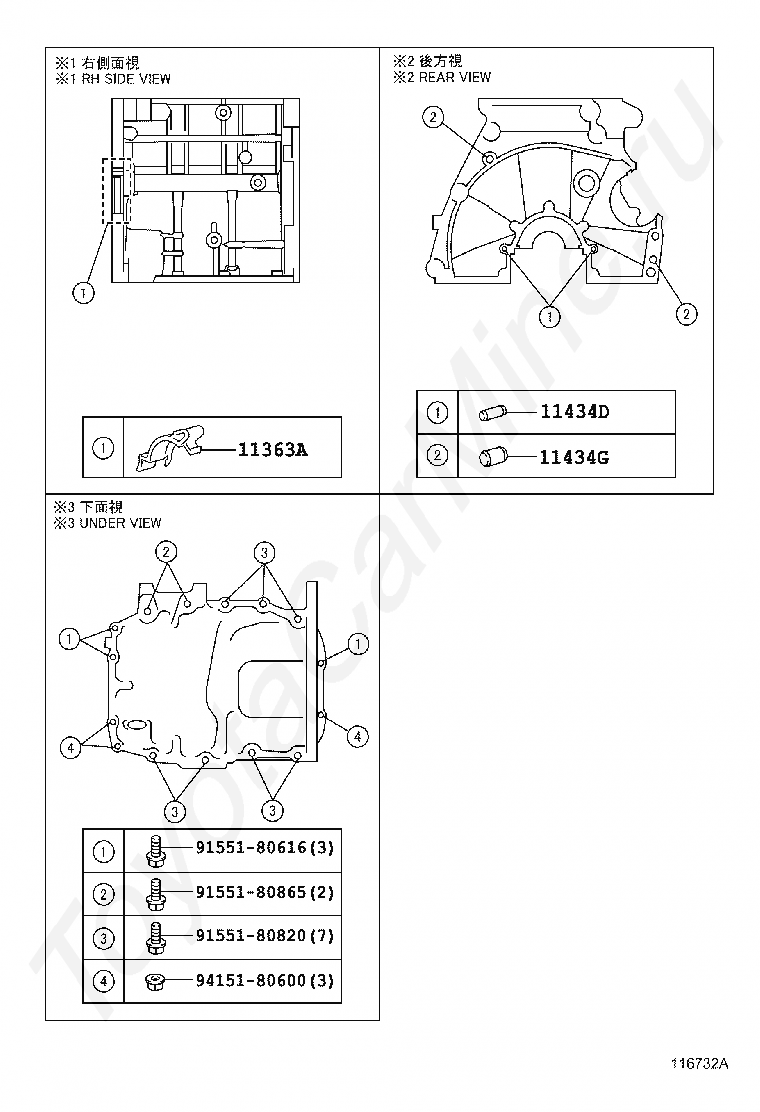

Код

Описание

11363A

COVER, FLYWHEEL HOUSING SIDE

11434D

PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

11434G

PIN, STRAIGHT(FOR END PLATE)

9155180616

Крепеж

9155180820

Крепеж

9155180865

Крепеж

9415180600

Крепеж

Код

Описание

11361J

COVER, FLYWHEEL HOUSING UNDER

11401

BLOCK SUB-ASSY, CYLINDER

11416

BOLT(FOR CRANKSHAFT BEARING CAP SET)

11434C

PIN, STRAIGHT (FOR CYLINDER HEAD SET)

11434D

PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

11445

SPACER, CYLINDER BLOCK WATER JACKET

11452

GUIDE, OIL LEVEL GAGE

11452B

RING, O(FOR OIL LEVEL GAGE GUIDE)

12101

PAN SUB-ASSY, OIL

12101A

PLUG(FOR OIL PAN DRAIN)

12101B

GASKET(FOR OIL PAN DRAIN PLUG)

12102A

PAN SUB-ASSY, OIL, NO.2

12121

PLATE, OIL PAN BAFFLE, NO.1

1302

переход к группе запчастей

15301

GAGE SUB-ASSY, OIL LEVEL

1536840020

Крепеж

15708

NOZZLE SUB-ASSY, OIL, NO.1

9011006040

Крепеж

9011906861

Крепеж

9025006003

Крепеж

9048013034

Крепеж

9155180620

Крепеж

9155180620

Крепеж

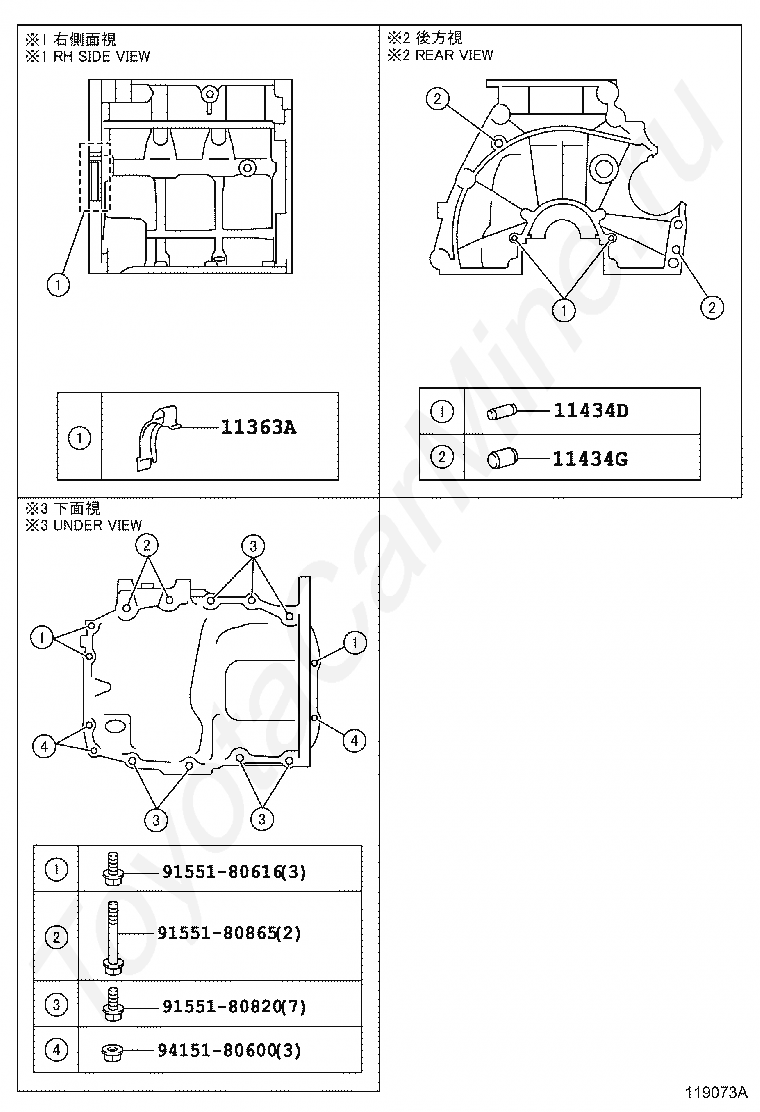

Код

Описание

11363A

COVER, FLYWHEEL HOUSING SIDE

11434D

PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

11434G

PIN, STRAIGHT(FOR END PLATE)

9155180616

Крепеж

9155180820

Крепеж

9155180865

Крепеж

9415180600

Крепеж
