Япония

Модель

VITZ

VIN

Дата

2017/01

Двигатель

1,3 литра, 16 клапанов DOHC, цикл Аткинсона

Класс

JEWL

Фрейм

NSP130

КПП

вариатор

Опции

5 дверей HIGH EFFICIENCY TWIN CAM COMPLETED VEHICLE 678W

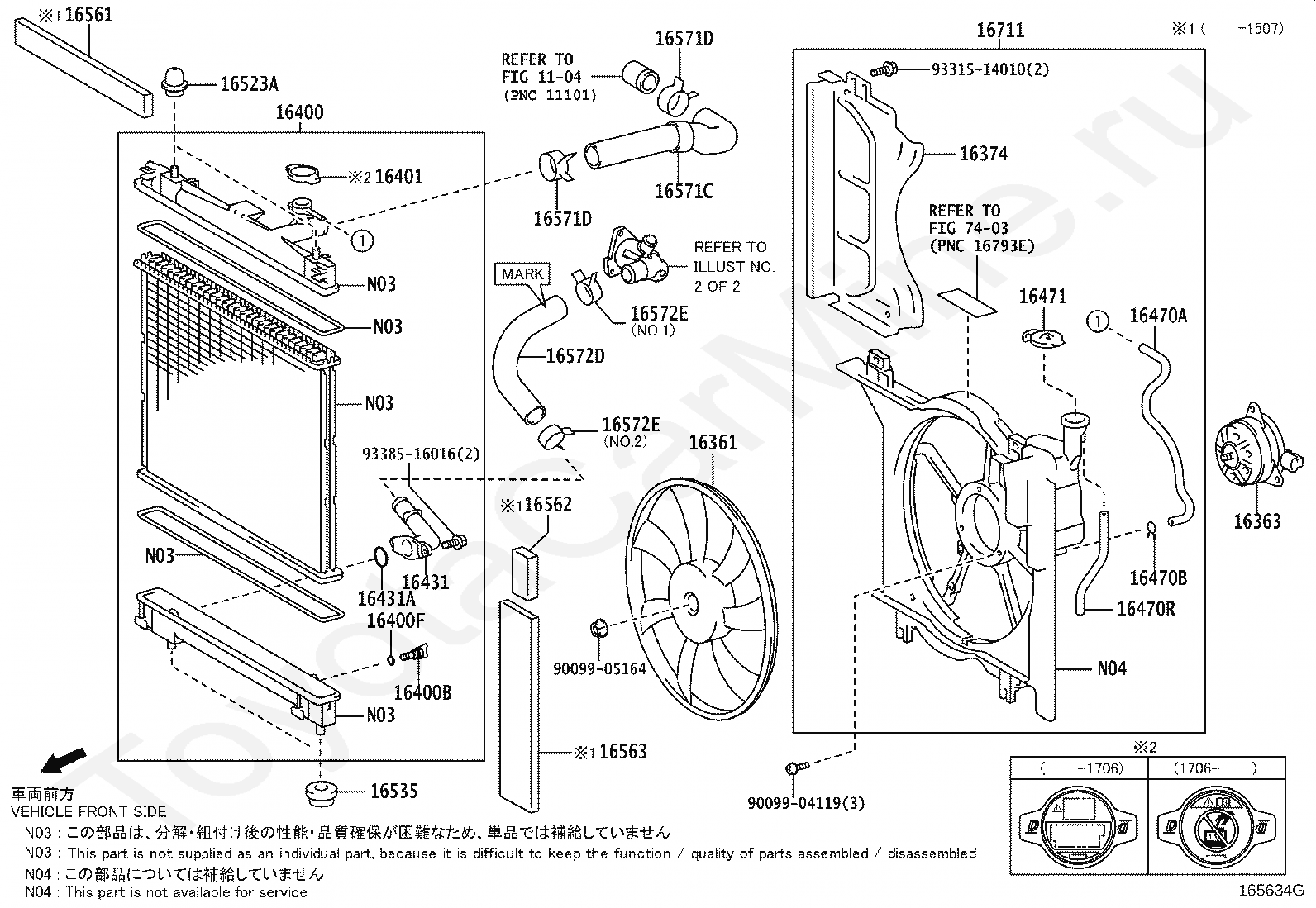

Радиатор и шланги TOYOTA VITZ

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16431

INLET, RADIATOR WATER

16431A

RING, O(FOR RADIATOR WATER INLET)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16470R

HOSE, NO.2(FOR RADIATOR RESERVE TANK)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16561

SEAL, RADIATOR TO SUPPORT, NO.1

16562

SEAL, RADIATOR TO SUPPORT, NO.2

16563

SEAL, RADIATOR TO SUPPORT, NO.3

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

7403

переход к группе запчастей

9009904119

Крепеж

9009905164

Крепеж

9331514010

Крепеж

9338516016

Крепеж

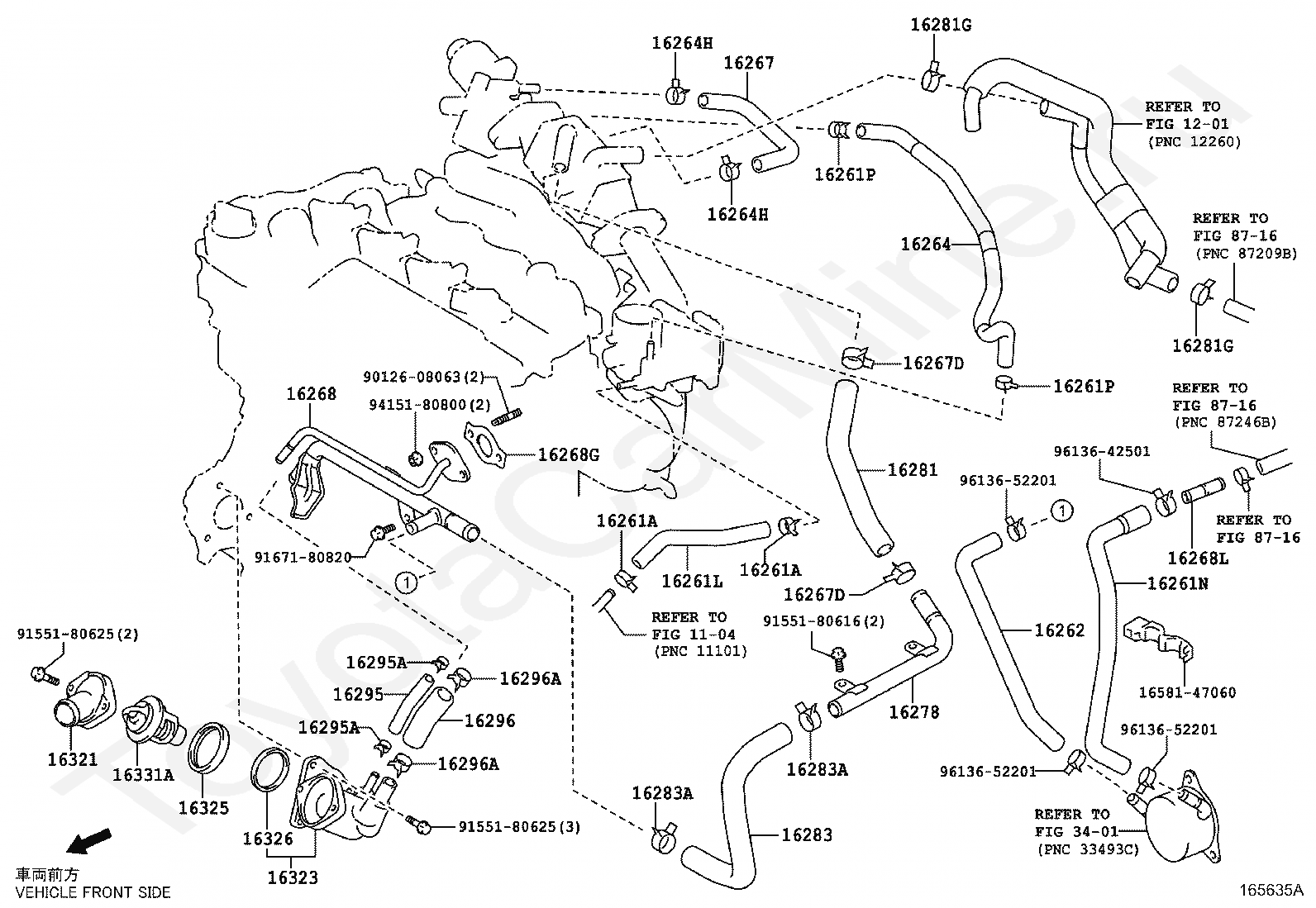

Код

Описание

1104

переход к группе запчастей

1201

переход к группе запчастей

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261L

HOSE, WATER BY-PASS

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16262

HOSE, WATER INLET

16264

HOSE, WATER BY-PASS, NO.2

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16268

PIPE, WATER BY-PASS, NO.1

16268G

GASKET(FOR WATER BY-PASS PIPE)

16268L

PIPE, WATER BY-PASS

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16295

HOSE, WATER BY-PASS, NO.7

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16295A

CLIP(FOR WATER BY-PASS HOSE NO.7)

16296

HOSE, WATER BY-PASS, NO.8

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16296A

CLIP(FOR WATER BY-PASS HOSE NO.8)

16321

INLET, WATER

16323

HOUSING, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

1658147060

Крепеж

3401

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9012608063

Крепеж

9155180616

Крепеж

9155180625

Крепеж

9155180625

Крепеж

9167180820

Крепеж

9415180800

Крепеж

9613642501

Крепеж

9613652201

Крепеж

9613652201

Крепеж

9613652201

Крепеж

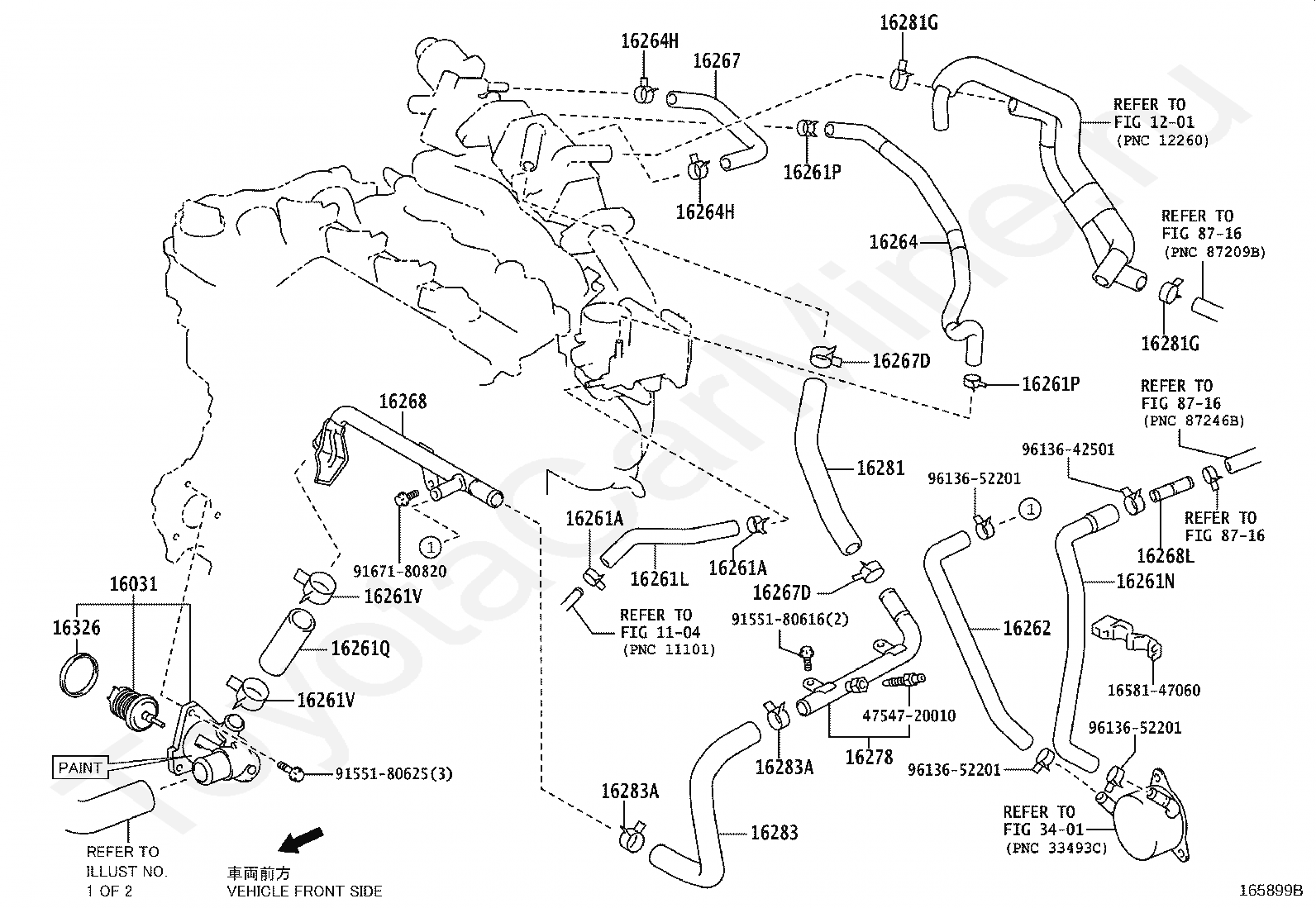

Код

Описание

1104

переход к группе запчастей

1201

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261L

HOSE, WATER BY-PASS

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261Q

HOSE, WATER BY-PASS

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261V

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16262

HOSE, WATER INLET

16264

HOSE, WATER BY-PASS, NO.2

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16267D

CLIP(FOR WATER BY-PASS HOSE NO.4)

16268

PIPE, WATER BY-PASS, NO.1

16268L

PIPE, WATER BY-PASS

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16281G

CLIP(FOR WATER BY-PASS HOSE NO.5)

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16326

GASKET, WATER INLET HOUSING, NO.2

1658147060

Крепеж

3401

переход к группе запчастей

4754720010

Крепеж

8716

переход к группе запчастей

8716

переход к группе запчастей

8716

переход к группе запчастей

9155180616

Крепеж

9155180625

Крепеж

9167180820

Крепеж

9613642501

Крепеж

9613652201

Крепеж

9613652201

Крепеж

9613652201

Крепеж

Радиатор и шланги TOYOTA VITZ
