Каталог

Япония

Модель

VISTA/VISTA ARDEO

VIN

Дата

2000/04

Двигатель

2 литра, 16 клапанов, DOHC, EFI

Кузов

фургон

Класс

ARDEO 200 G TYPE

Фрейм

SV50

Опции

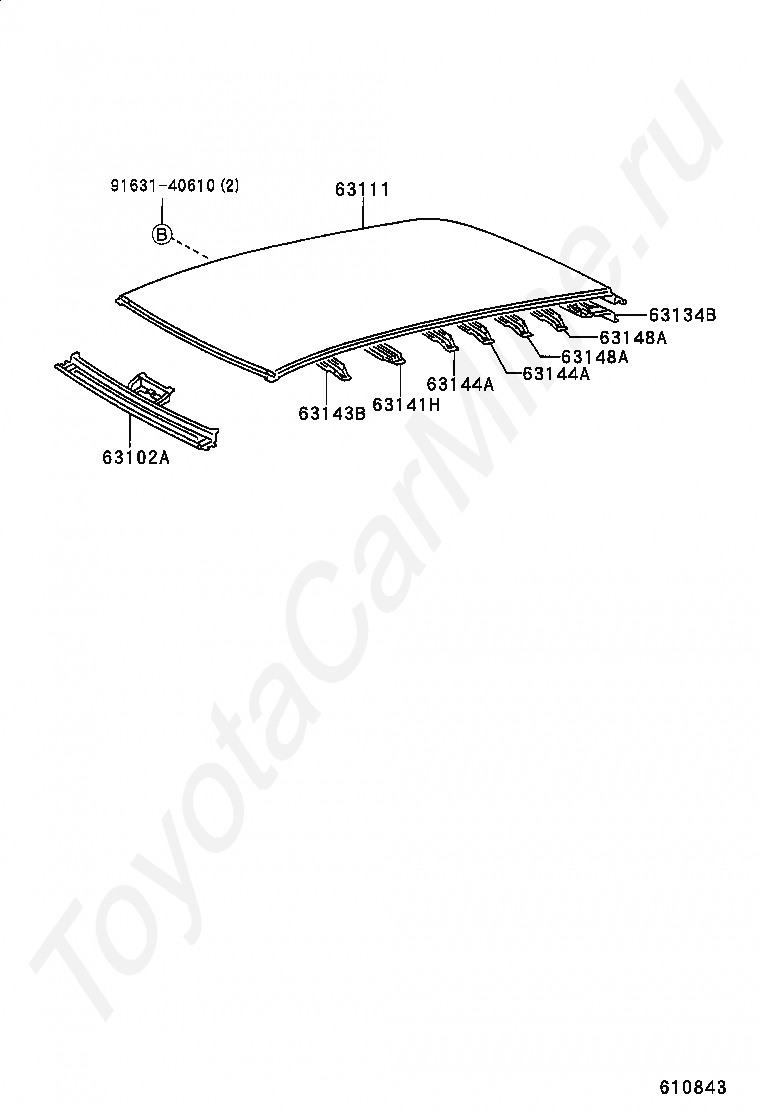

Крыша и заднее стекло TOYOTA VISTA/VISTA ARDEO

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63111

PANEL, ROOF

63134B

PANEL, BACK WINDOW, UPR OUTER

63141H

REINFORCEMENT, ROOF PANEL, CENTER

63143B

REINFORCEMENT, ROOF PANEL, NO.3

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63148A

REINFORCEMENT, ROOF PANEL, NO.7

63148A

REINFORCEMENT, ROOF PANEL, NO.7

9163140610

Крепеж

Код

Описание

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63104E

REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

63111

PANEL, ROOF

63118

SUPPORT, ROOF PANEL, RH

63119

SUPPORT, ROOF PANEL, LH

63122A

REINFORCEMENT, ROOF PANEL, FRONT

63134B

PANEL, BACK WINDOW, UPR OUTER

63144A

REINFORCEMENT, ROOF PANEL, NO.4

75055F

GARNISH SUB-ASSY, ROOF SIDE, REAR RH

75056E

GARNISH SUB-ASSY, ROOF SIDE, REAR LH

75505C

GARNISH SUB-ASSY, ROOF SIDE, FRONT RH

75506C

GARNISH SUB-ASSY, ROOF SIDE, FRONT LH

75565E

RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO. 3

75631J

LID, ROOF SIDE GARNISH, NO.1 RH

75819B

CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

75819B

CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

9015950185

Крепеж

9018905166

Крепеж

9151160610

Крепеж

9163140610

Крепеж

Код

Описание

63025B

LINK SUB-ASSY, TILT ROOF, RH

63026B

LINK SUB-ASSY, TILT ROOF, LH

63203C

HOUSING SUB-ASSY, TILT ROOF

63210D

MOULDING ASSY, ROOF WINDOW, UPPER

63239B

PAD, TILT ROOF GLASS

63239B

PAD, TILT ROOF GLASS

63245G

HOSE, REMOVABLE ROOF DRAIN, FRONT RH

63246E

HOSE, SLIDE ROOF RAIN CHANNEL, NO.2

63250A

SPACER, REMOVABLE ROOF LOCK BASE

63251K

WEATHERSTRIP, TILT ROOF

63256C

SEAL, TILT ROOF GLASS

63257J

SEAL, TILT ROOF HOUSING

63257J

SEAL, TILT ROOF HOUSING

63260C

HANDLE ASSY, TILT ROOF LOCK

63282B

STRIKER, TILT ROOF LOCK

63329B

STOPPER, SUNSHADE LOCK, NO.1

63605

HINGE SUB-ASSY, TILT ROOF, RH

63606

HINGE SUB-ASSY, TILT ROOF, LH

63619

COVER, TILT ROOF PANEL

63619

COVER, TILT ROOF PANEL

63641

RAIL, SUNSHADE, NO.1 FRONT RH

63642B

RAIL, SUNSHADE, NO.1 FRONT LH

6402

переход к группе запчастей

6402

переход к группе запчастей

827113A540

Крепеж

827113H640

Крепеж

9011906588

Крепеж

9016450008

Крепеж

9017906218

Крепеж

9017906218

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9017906306

Крепеж

9017906306

Крепеж

9046713020

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9090154002

Крепеж

9095901580

Крепеж

9354044012

Крепеж

9354044012

Крепеж

Код

Описание

63204G

PANEL SUB-ASSY, SLIDING ROOF, INNER

63207G

RAIL SUB-ASSY, SLIDING ROOF GUIDE

63209

PANEL SUB-ASSY, ROOF WIND DEFLECTOR

63214F

CHANNEL, ROOF DRIP, REAR

63220A

HOSE ASSY, SLIDING ROOF DRAIN, RH

63221

CASING, SLIDING ROOF CABLE GUIDE

63223

CABLE, SLIDING ROOF DRIVE, RH

63224

CABLE, SLIDING ROOF DRIVE, LH

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63239

STOPPER, SLIDING ROOF PANEL

63240A

HOSE ASSY, SLIDING ROOF DRAIN, LH

63241B

BRACKET, SLIDING ROOF HOUSING, NO.1

63243B

BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH

63244B

BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH

63252D

WEATHERSTRIP, SLIDING ROOF HOUSING

63260A

GEAR SUB-ASSY, SLIDING ROOF DRIVE

63279D

STOPPER, SLIDING ROOF GUIDE RAIL

63298H

REINFORCEMENT, SLIDING ROOF HOUSING, NO.1

63298J

REINFORCEMENT, SLIDING ROOF HOUSING, NO.1

63299D

REINFORCEMENT, SLIDING ROOF HOUSING, NO.2

63329A

STOPPER, SUNSHADE LOCK

63625

BLOCK, SLIDING ROOF GUIDE, RH

63626

BLOCK, SLIDING ROOF GUIDE, LH

63813

WEATHERSTRIP, REAR SLIDE ROOF

6402

переход к группе запчастей

6402

переход к группе запчастей

9011906357

Крепеж

9011906917

Крепеж

9014940031

Крепеж

9015140024

Крепеж

9015540001

Крепеж

9015950336

Крепеж

9017906274

Крепеж

9017906274

Крепеж

9046714001

Крепеж

9046714001

Крепеж

9048026020

Крепеж

9324944006

Крепеж

9354044012

Крепеж

Крыша и заднее стекло TOYOTA VISTA/VISTA ARDEO
