Каталог

Ближний Восток

Модель

VIOS/VIOS FS (CHINA)

VIN

Дата

2016/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

LO TYPE

Фрейм

NSP151

КПП

механика МКПП, 5 скоростей

Опции

4 двери HIGH EFFICIENCY TWIN CAM 669W

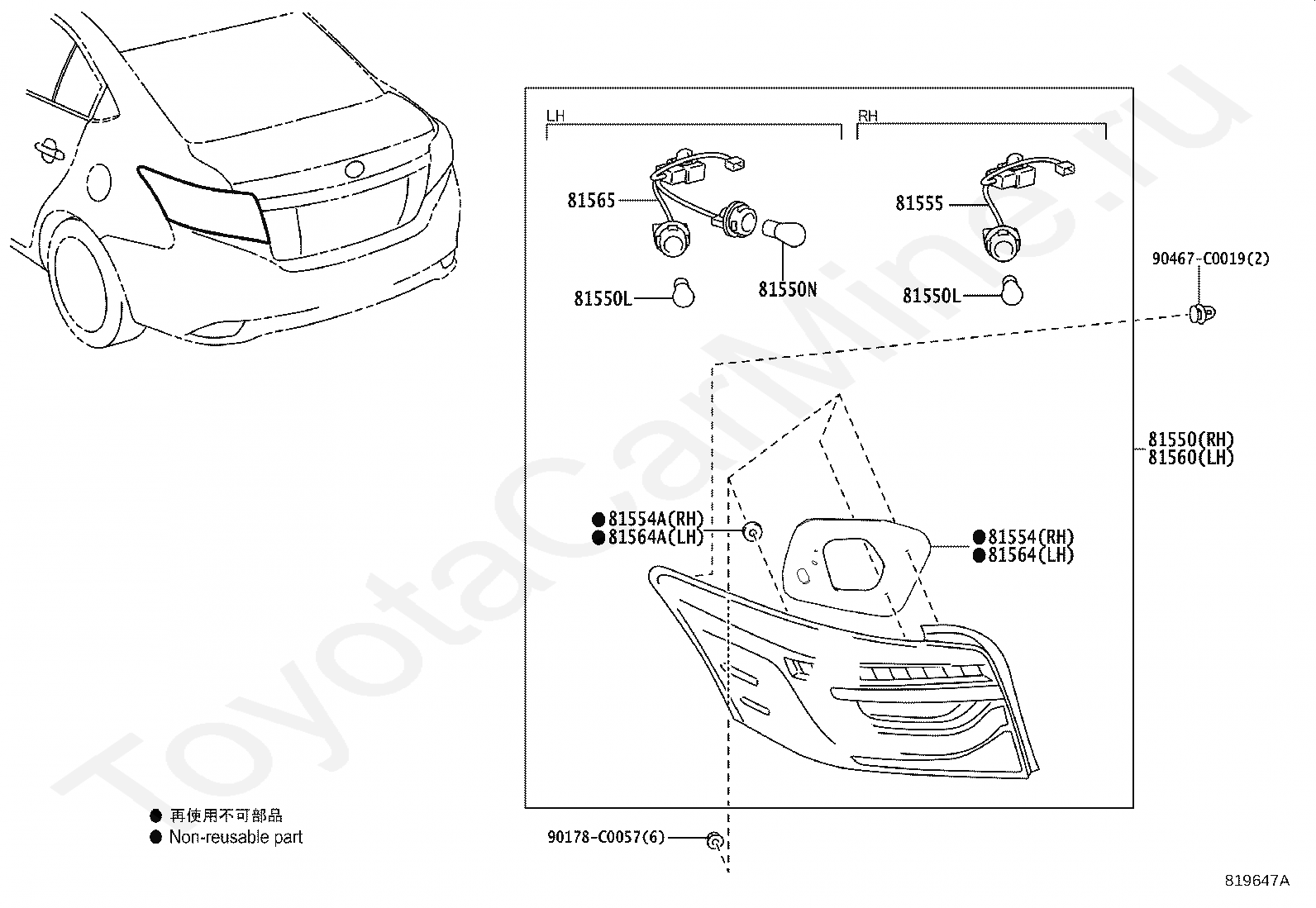

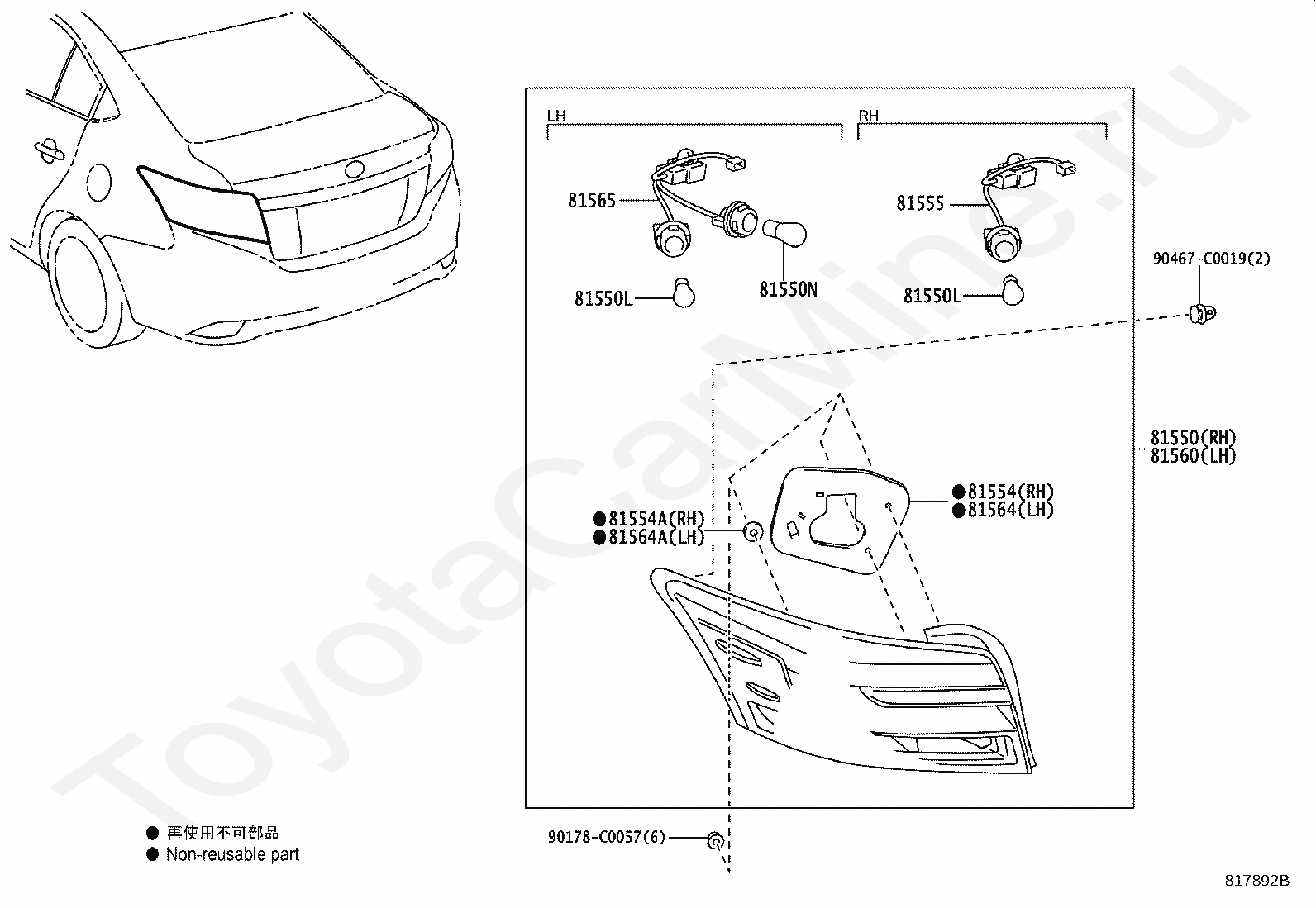

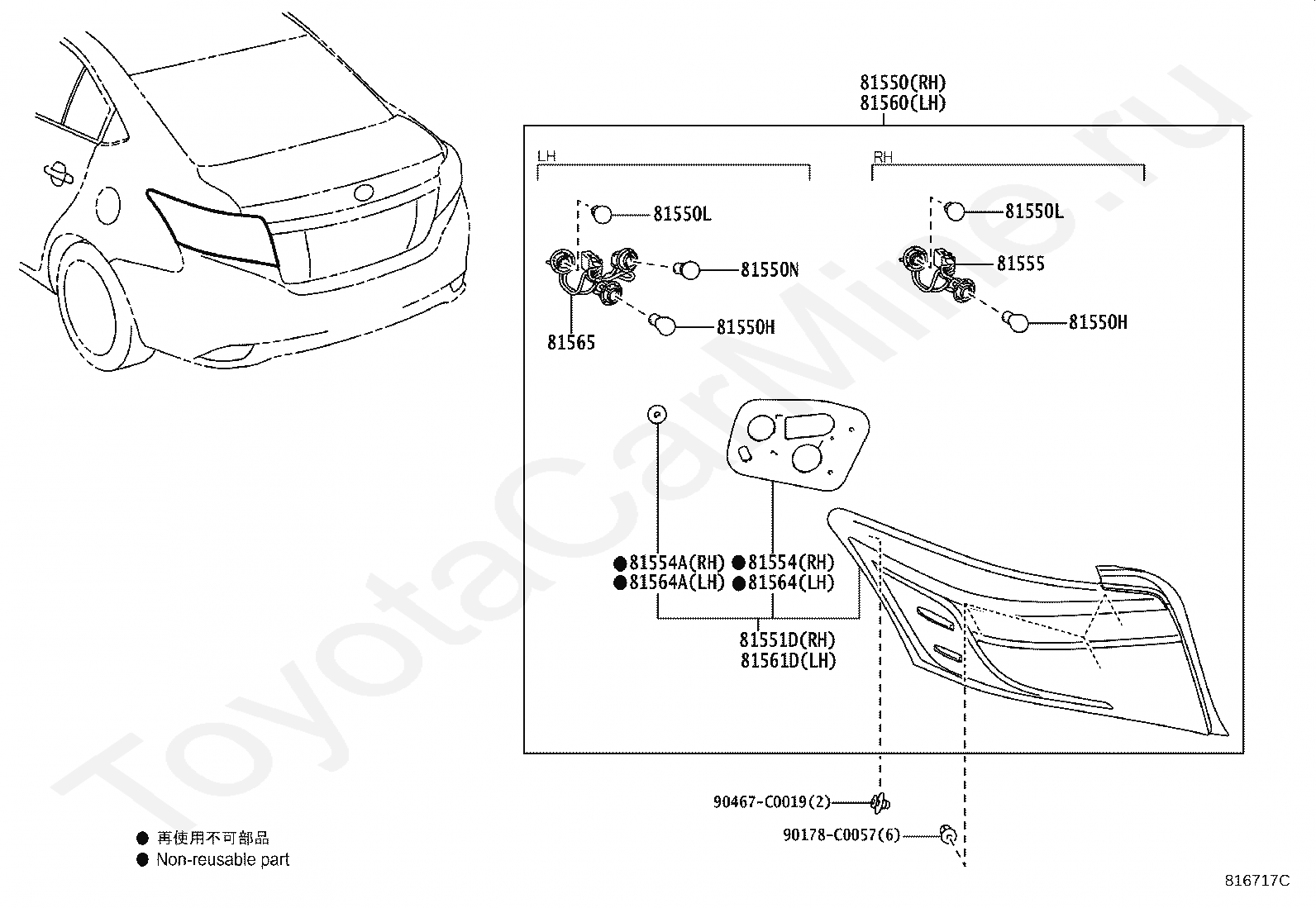

Задние фонари TOYOTA VIOS/VIOS FS (CHINA)

Код

Описание

81550

LAMP ASSY, REAR COMBINATION, RH

81550H

BULB, TAIL & STOP LAMP

81550H

BULB, TAIL & STOP LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81551D

LENS & BODY, REAR COMBINATION LAMP, RH

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554A

GASKET, REAR COMBINATION LAMP BODY, NO.1 RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81561D

LENS & BODY, REAR COMBINATION LAMP, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564A

GASKET, REAR COMBINATION LAMP BODY, NO.1 LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

90178C0057

Крепеж

90467C0019

Крепеж

Код

Описание

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554A

GASKET, REAR COMBINATION LAMP BODY, NO.1 RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564A

GASKET, REAR COMBINATION LAMP BODY, NO.1 LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

90178C0057

Крепеж

90467C0019

Крепеж

Код

Описание

81550

LAMP ASSY, REAR COMBINATION, RH

81550L

BULB, REAR TURN SIGNAL LAMP

81550L

BULB, REAR TURN SIGNAL LAMP

81550N

BULB, BACK UP LAMP

81554

GASKET, REAR COMBINATION LAMP BODY, RH

81554A

GASKET, REAR COMBINATION LAMP BODY, NO.1 RH

81555

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

81560

LAMP ASSY, REAR COMBINATION, LH

81564

GASKET, REAR COMBINATION LAMP BODY, LH

81564A

GASKET, REAR COMBINATION LAMP BODY, NO.1 LH

81565

SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

90178C0057

Крепеж

90467C0019

Крепеж
