Каталог

Ближний Восток

Модель

VIOS/VIOS FS (CHINA)

VIN

Дата

2016/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

LO TYPE

Фрейм

NSP151

КПП

механика МКПП, 5 скоростей

Опции

4 двери HIGH EFFICIENCY TWIN CAM 669W

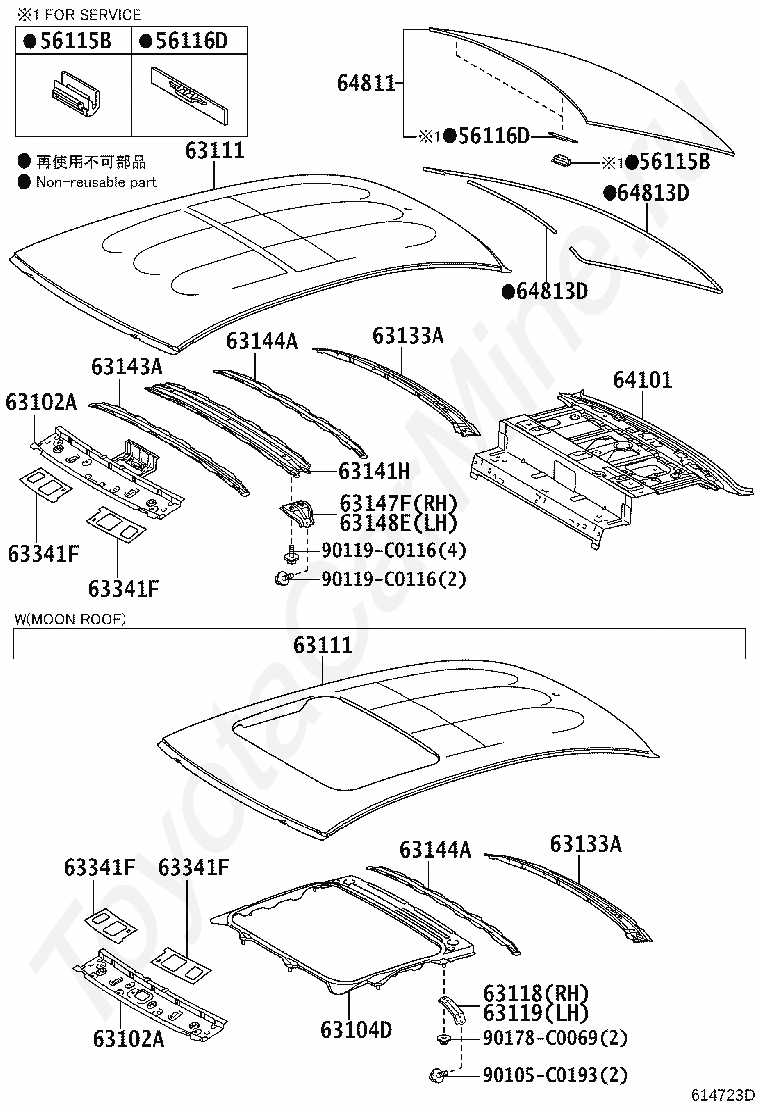

Крыша и заднее стекло TOYOTA VIOS/VIOS FS (CHINA)

Код

Описание

56115B

STOPPER, BACK WINDOW GLASS, NO.1

56115B

STOPPER, BACK WINDOW GLASS, NO.1

56116D

STOPPER, BACK WINDOW GLASS, NO.2

56116D

STOPPER, BACK WINDOW GLASS, NO.2

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63104D

REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

63111

PANEL, ROOF

63111

PANEL, ROOF

63118

SUPPORT, ROOF PANEL, RH

63119

SUPPORT, ROOF PANEL, LH

63133A

FRAME, BACK WINDOW, UPPER

63133A

FRAME, BACK WINDOW, UPPER

63141H

REINFORCEMENT, ROOF PANEL, CENTER

63143A

REINFORCEMENT, ROOF PANEL

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63144A

REINFORCEMENT, ROOF PANEL, NO.4

63147F

BRACKET, ROOF PANEL REINFORCEMENT, RH

63148E

BRACKET, ROOF PANEL REINFORCEMENT, LH

63341F

PAD, ROOF SILENCER, NO.1

63341F

PAD, ROOF SILENCER, NO.1

63341F

PAD, ROOF SILENCER, NO.1

63341F

PAD, ROOF SILENCER, NO.1

64101

PANEL SUB-ASSY, UPPER BACK

64811

GLASS, BACK WINDOW

64813D

DAM, BACK WINDOW GLASS ADHESIVE

64813D

DAM, BACK WINDOW GLASS ADHESIVE

90105C0193

Крепеж

90119C0116

Крепеж

90119C0116

Крепеж

90178C0069

Крепеж

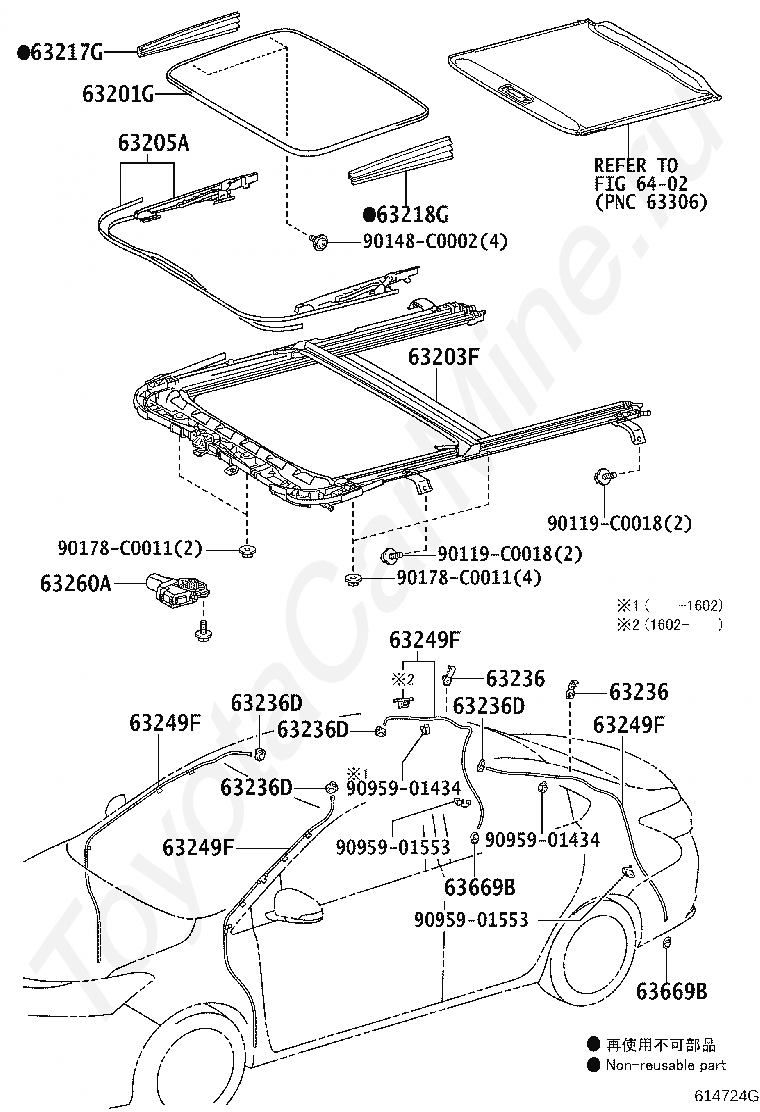

Код

Описание

63201G

GLASS SUB-ASSY, SLIDING ROOF

63203F

HOUSING SUB-ASSY, SLIDING ROOF

63205A

CABLE SUB-ASSY, SLIDING ROOF DRIVE

63217G

GARNISH, SLIDING ROOF SIDE, RH

63218G

GARNISH, SLIDING ROOF SIDE, LH

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236

CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63236D

CLAMP, SLIDING ROOF DRAIN HOSE

63249F

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63249F

HOSE, SLIDING ROOF DRAIN

63260A

GEAR SUB-ASSY, SLIDING ROOF DRIVE

63669B

GROMMET, SLIDING ROOF DRAIN

63669B

GROMMET, SLIDING ROOF DRAIN

6402

переход к группе запчастей

90119C0018

Крепеж

90119C0018

Крепеж

90148C0002

Крепеж

90178C0011

Крепеж

90178C0011

Крепеж

9095901434

Крепеж

9095901434

Крепеж

9095901553

Крепеж

9095901553

Крепеж
