Каталог

Ближний Восток

Модель

VIOS/VIOS FS (CHINA)

VIN

Дата

2016/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

LO TYPE

Фрейм

NSP151

КПП

механика МКПП, 5 скоростей

Опции

4 двери HIGH EFFICIENCY TWIN CAM 669W

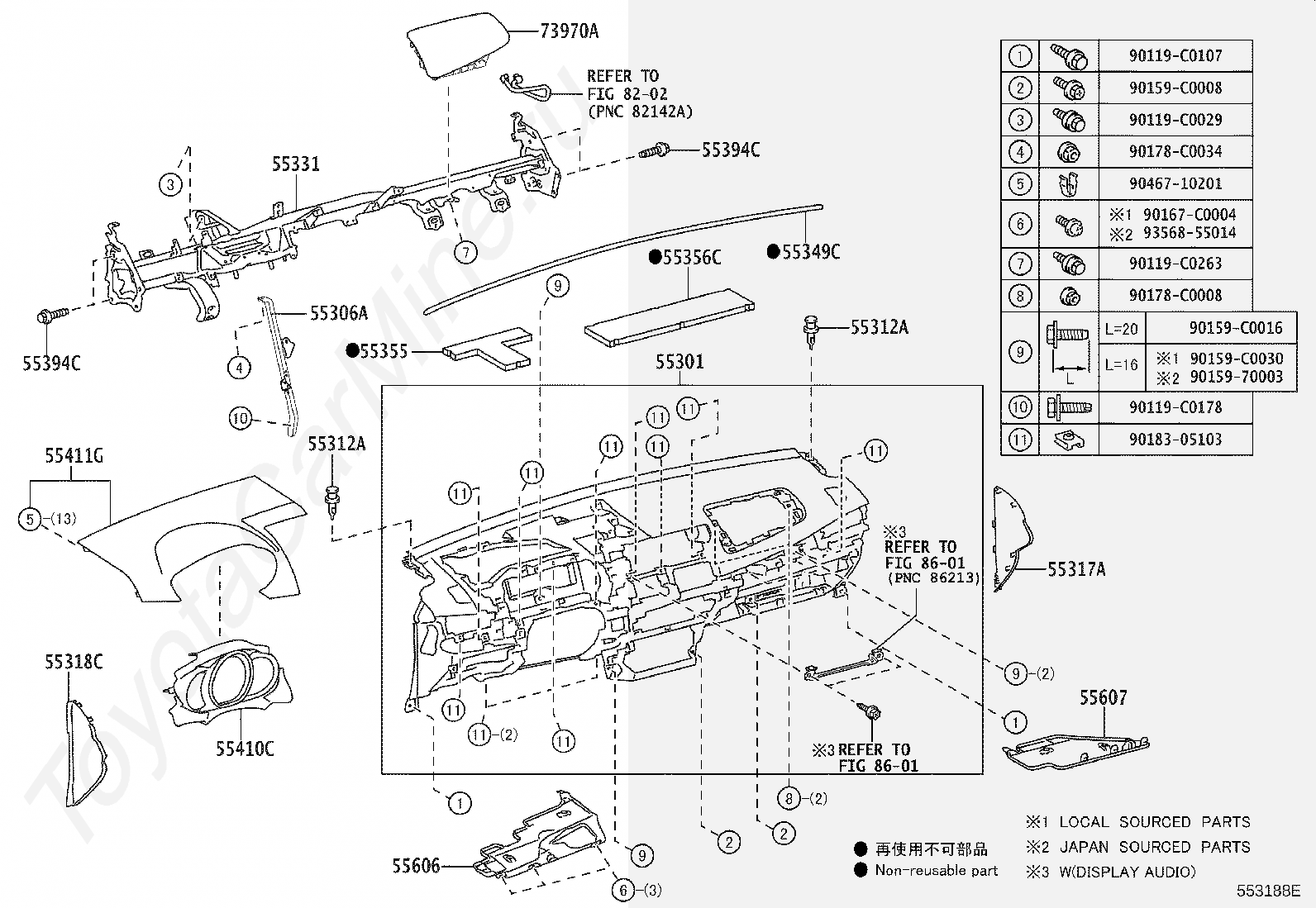

Торпеда с бардачком TOYOTA VIOS/VIOS FS (CHINA)

Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55306A

BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

55312A

CLIP, INSTRUMENT PANEL

55312A

CLIP, INSTRUMENT PANEL

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55331

REINFORCEMENT, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55355

CUSHION, INSTRUMENT PANEL, NO.1

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55394C

BOLT, INSTRUMENT PANEL

55394C

BOLT, INSTRUMENT PANEL

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55606

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

73970A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER

8202

переход к группе запчастей

8601

переход к группе запчастей

8601

переход к группе запчастей

90119C0029

Крепеж

90119C0107

Крепеж

90119C0178

Крепеж

90119C0263

Крепеж

9015970003

Крепеж

90159C0008

Крепеж

90159C0016

Крепеж

90159C0030

Крепеж

90167C0004

Крепеж

90178C0008

Крепеж

90178C0034

Крепеж

9018305103

Крепеж

9046710201

Крепеж

9356855014

Крепеж

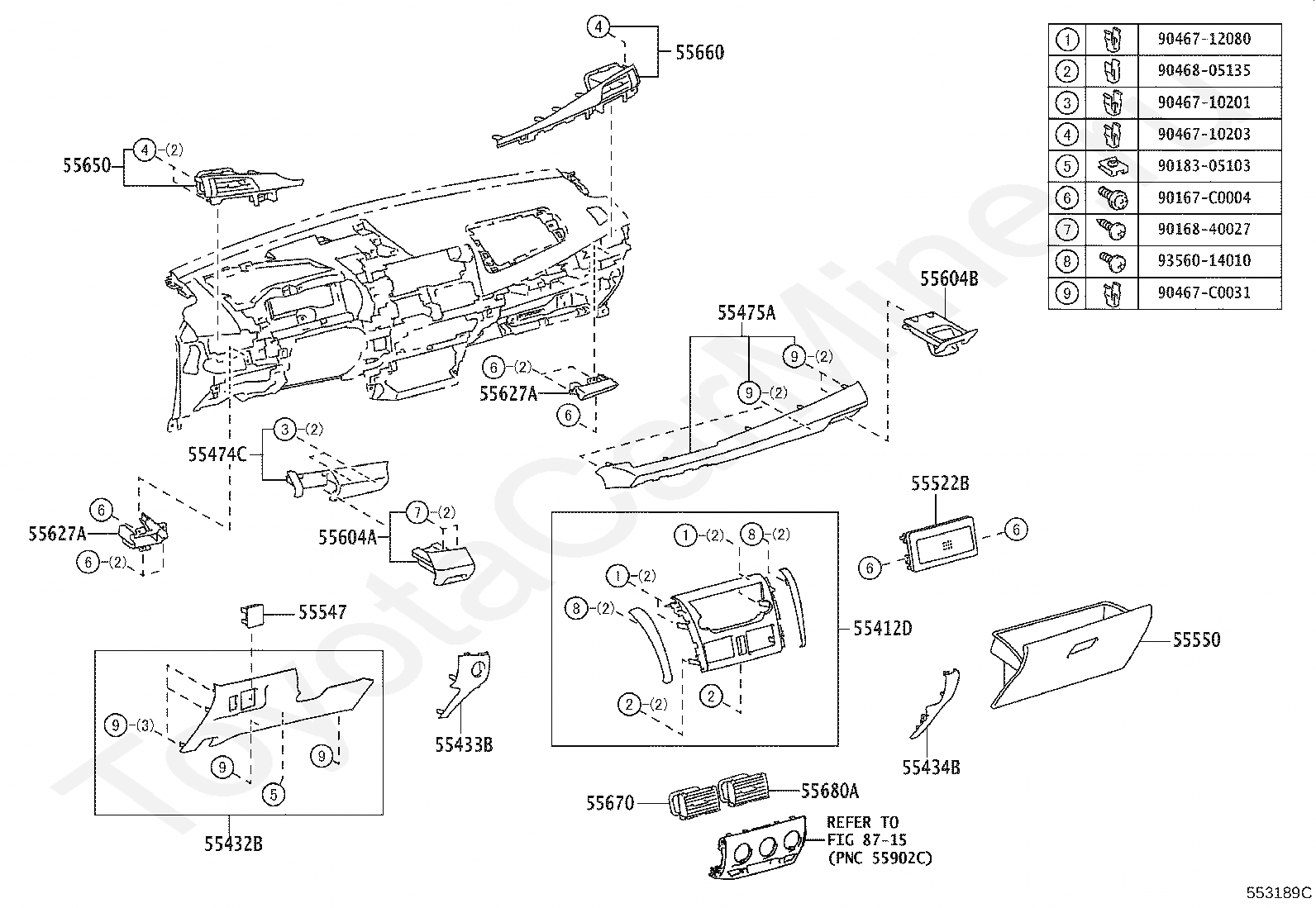

Код

Описание

55412D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55433B

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55474C

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55475A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

55522B

COVER, RADIO TUNER OPENING

55547

COVER, REMOTE CONTROL MIRROR HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55604A

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55604B

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55627A

RAIL, INSTRUMENT PANEL CUP HOLDER

55627A

RAIL, INSTRUMENT PANEL CUP HOLDER

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

8715

переход к группе запчастей

90167C0004

Крепеж

9016840027

Крепеж

9018305103

Крепеж

9046710201

Крепеж

9046710203

Крепеж

9046712080

Крепеж

90467C0031

Крепеж

9046805135

Крепеж

9356014010

Крепеж

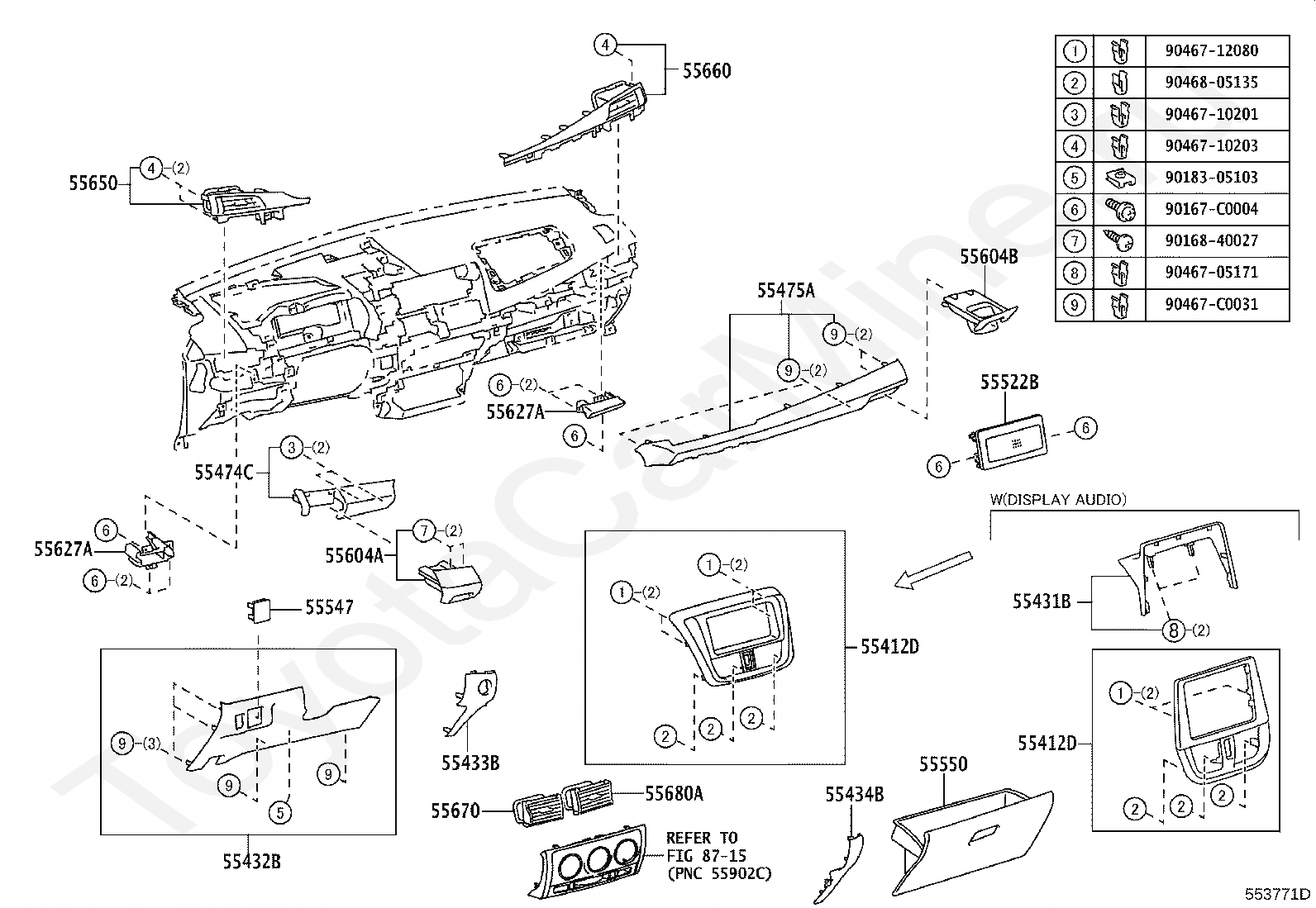

Код

Описание

55412D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER

55412D

PANEL, INSTRUMENT CLUSTER FINISH, CENTER

55431B

PANEL, INSTRUMENT PANEL FINISH, UPPER

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55433B

PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55474C

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55475A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

55522B

COVER, RADIO TUNER OPENING

55547

COVER, REMOTE CONTROL MIRROR HOLE

55550

DOOR ASSY, GLOVE COMPARTMENT

55604A

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55604B

HOLDER SUB-ASSY, INSTRUMENT PANEL CUP

55627A

RAIL, INSTRUMENT PANEL CUP HOLDER

55627A

RAIL, INSTRUMENT PANEL CUP HOLDER

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

8715

переход к группе запчастей

90167C0004

Крепеж

9016840027

Крепеж

9018305103

Крепеж

9046705171

Крепеж

9046710201

Крепеж

9046710203

Крепеж

9046712080

Крепеж

90467C0031

Крепеж

9046805135

Крепеж
