Каталог

Ближний Восток

Модель

VIOS/VIOS FS (CHINA)

VIN

Дата

2016/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

LO TYPE

Фрейм

NSP151

КПП

механика МКПП, 5 скоростей

Опции

4 двери HIGH EFFICIENCY TWIN CAM 669W

Радиатор и шланги TOYOTA VIOS/VIOS FS (CHINA)

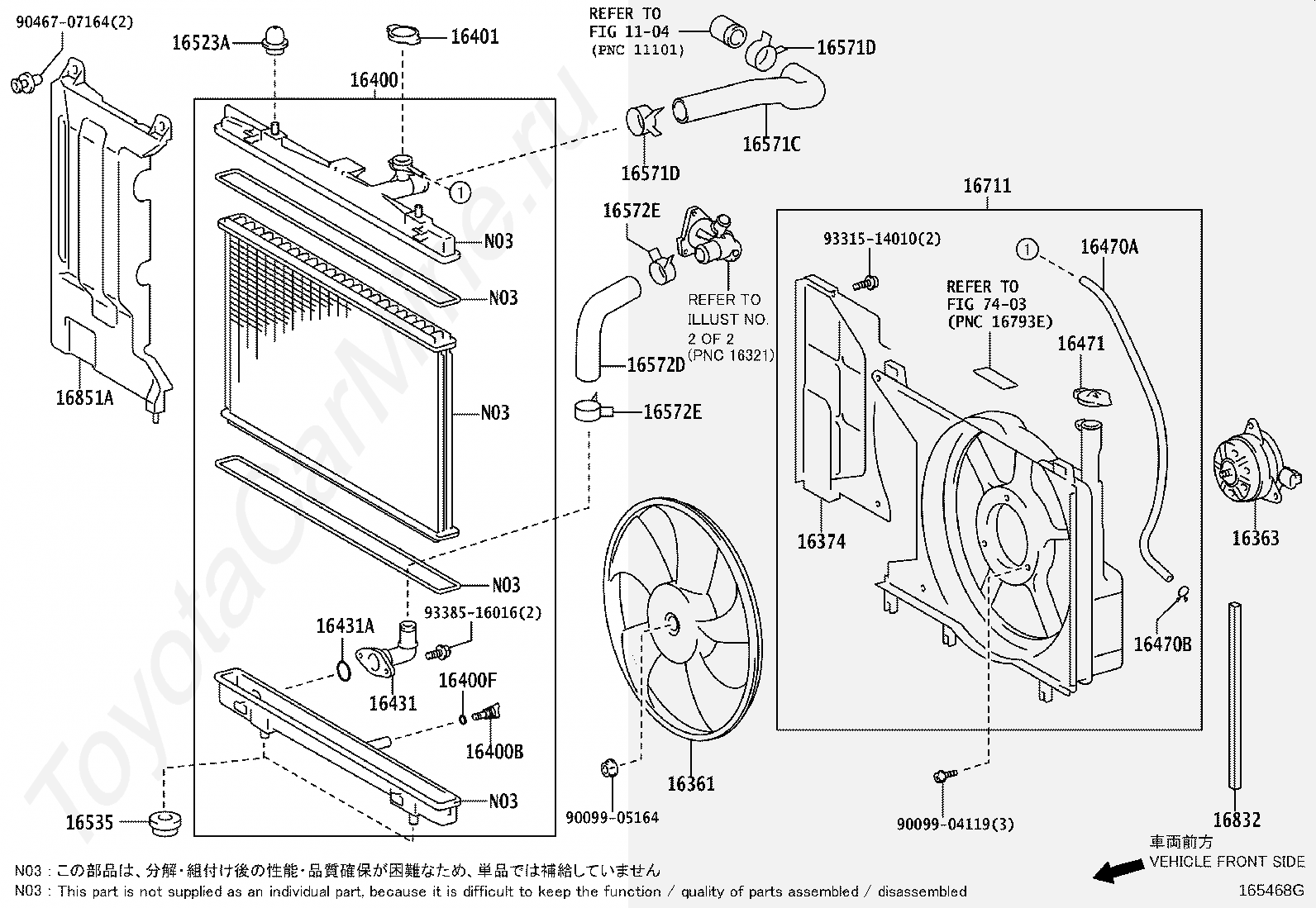

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16431

INLET, RADIATOR WATER

16431A

RING, O(FOR RADIATOR WATER INLET)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

16832

SEAL, FAN SHROUD

16851A

COVER, SHROUD SIDE

7403

переход к группе запчастей

9009904119

Крепеж

9009905164

Крепеж

9046707164

Крепеж

9331514010

Крепеж

9338516016

Крепеж

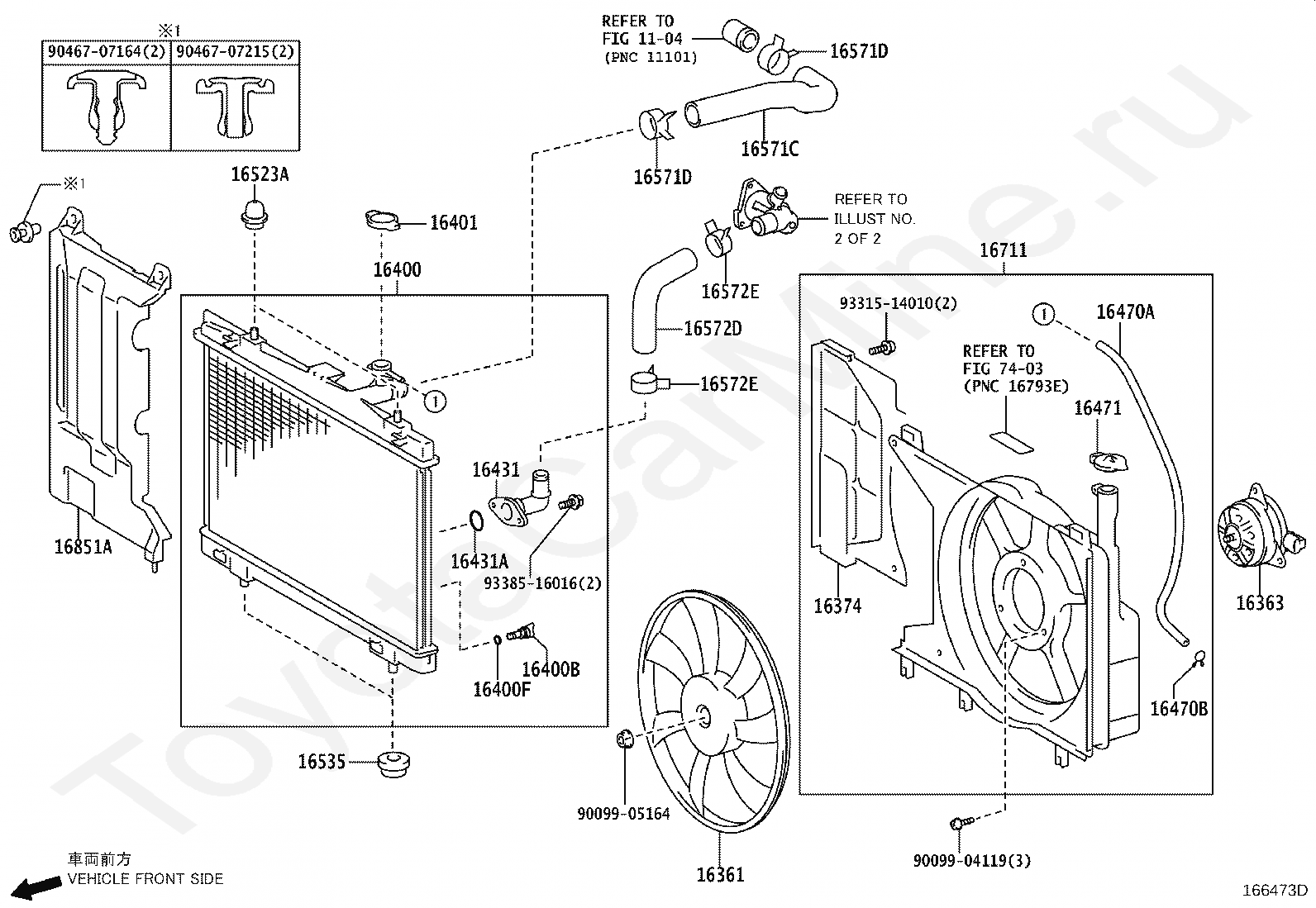

Код

Описание

1104

переход к группе запчастей

16361

FAN

16363

MOTOR, COOLING FAN

16374

INSULATOR, COOLING FAN MOTOR

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16400F

PACKING(FOR RADIATOR DRAIN COCK)

16401

CAP SUB-ASSY, RADIATOR

16431

INLET, RADIATOR WATER

16431A

RING, O(FOR RADIATOR WATER INLET)

16470A

HOSE OR PIPE(FOR RADIATOR RESERVE TANK)

16470B

CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

16471

CAP SUB-ASSY, RESERVE TANK

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16711

SHROUD, FAN

16851A

COVER, SHROUD SIDE

7403

переход к группе запчастей

9009904119

Крепеж

9009905164

Крепеж

9046707164

Крепеж

9046707215

Крепеж

9331514010

Крепеж

9338516016

Крепеж

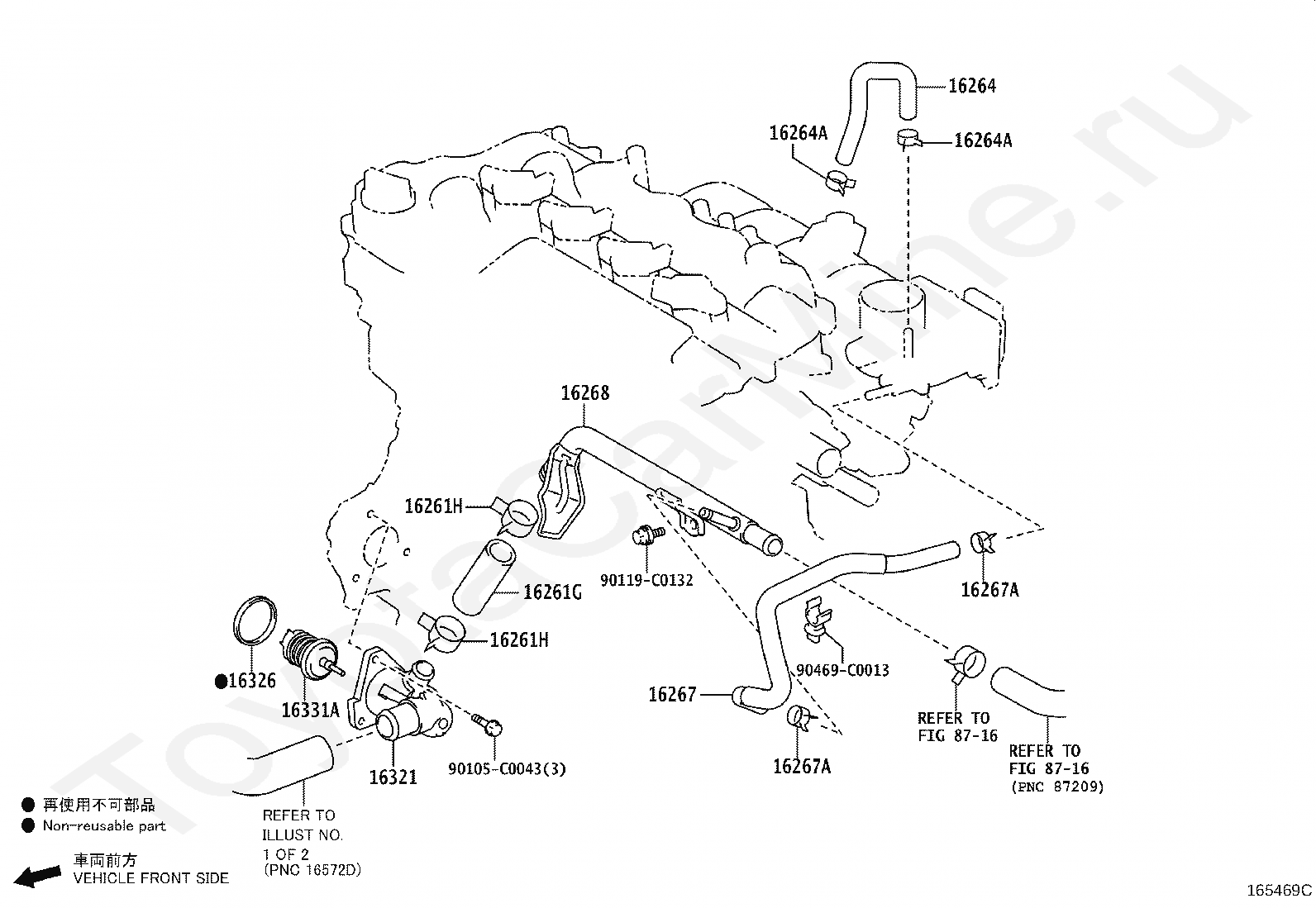

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16264

HOSE, WATER BY-PASS, NO.2

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16264A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

16267

HOSE, WATER BY-PASS, NO.3

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16267A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

16268

PIPE, WATER BY-PASS, NO.1

16321

INLET, WATER

16326

GASKET, WATER INLET HOUSING, NO.2

16331A

THERMOSTAT

8716

переход к группе запчастей

8716

переход к группе запчастей

90105C0043

Крепеж

90119C0132

Крепеж

90469C0013

Крепеж

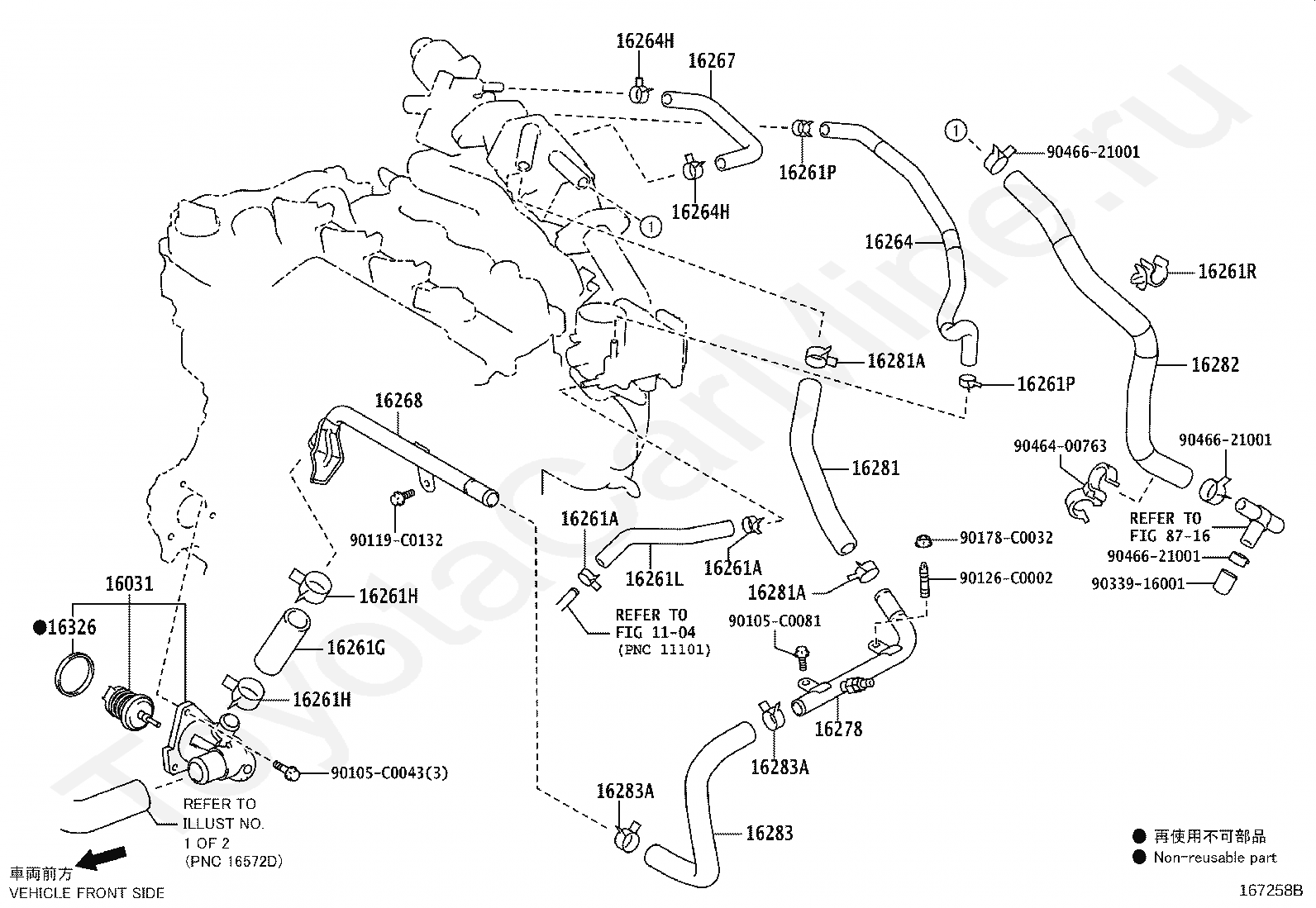

Код

Описание

1104

переход к группе запчастей

16031

WATER INLET SUB-ASSY, W/THERMOSTAT

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261A

CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261L

HOSE, WATER BY-PASS

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16264

HOSE, WATER BY-PASS, NO.2

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16264H

CLIP(FOR WATER BY-PASS HOSE NO.3)

16267

HOSE, WATER BY-PASS, NO.3

16268

PIPE, WATER BY-PASS, NO.1

16278

PIPE, WATER BY-PASS, NO.2

16281

HOSE, WATER BY-PASS, NO.4

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16281A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)

16282

HOSE, WATER BY-PASS, NO.5

16283

HOSE, WATER BY-PASS, NO.6

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16283A

CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)

16326

GASKET, WATER INLET HOUSING, NO.2

8716

переход к группе запчастей

90105C0043

Крепеж

90105C0081

Крепеж

90119C0132

Крепеж

90126C0002

Крепеж

90178C0032

Крепеж

9033916001

Крепеж

9046400763

Крепеж

9046621001

Крепеж

9046621001

Крепеж

9046621001

Крепеж
