Каталог

Ближний Восток

Модель

VIOS/VIOS FS (CHINA)

VIN

Дата

2016/09

Двигатель

1,5 литра, 16 клапанов, DOHC, EFI

Кузов

седан

Класс

LO TYPE

Фрейм

NSP151

КПП

механика МКПП, 5 скоростей

Опции

4 двери HIGH EFFICIENCY TWIN CAM 669W

Распредвал, клапаны, ремень TOYOTA VIOS/VIOS FS (CHINA)

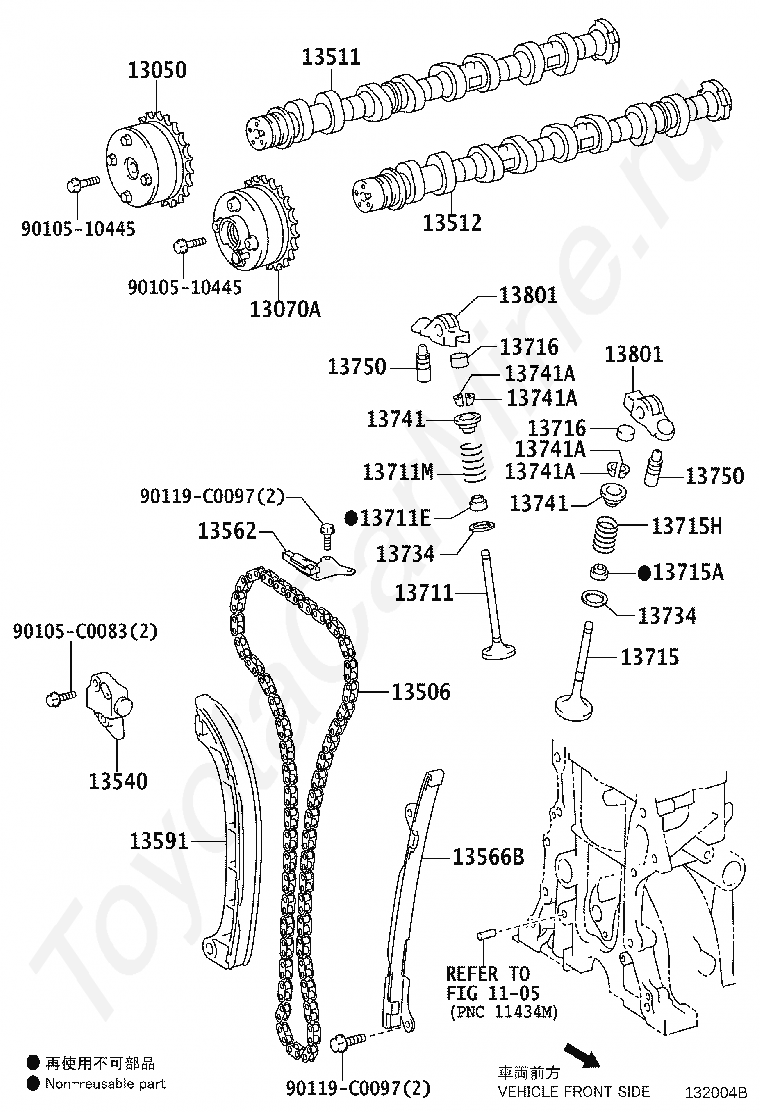

Код

Описание

1105

переход к группе запчастей

13050

GEAR ASSY, CAMSHAFT TIMING

13070A

GEAR ASSY, CAMSHAFT TIMING EXHAUST

13506

CHAIN SUB-ASSY

13511

CAMSHAFT

13512

CAMSHAFT, NO.2

13540

TENSIONER ASSY, CHAIN, NO.1

13562

DAMPER, CHAIN VIBRATION, NO.2

13566B

GUIDE, TIMING CHAIN

13591

ARM, TIMING CHAIN TENSION

13711

VALVE, INTAKE

13711E

SEAL, INTAKE VALVE STEM OIL

13711M

SPRING, COMPRESSION(FOR INTAKE VALVE)

13715

VALVE, EXHAUST

13715A

SEAL, EXHAUST VALVE STEM OIL

13715H

SPRING, COMPRESSION(FOR EXHAUST VALVE)

13716

CAP, VALVE STEM

13716

CAP, VALVE STEM

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13750

ADJUSTER ASSY, VALVE LASH

13750

ADJUSTER ASSY, VALVE LASH

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

9010510445

Крепеж

9010510445

Крепеж

90105C0083

Крепеж

90119C0097

Крепеж

90119C0097

Крепеж

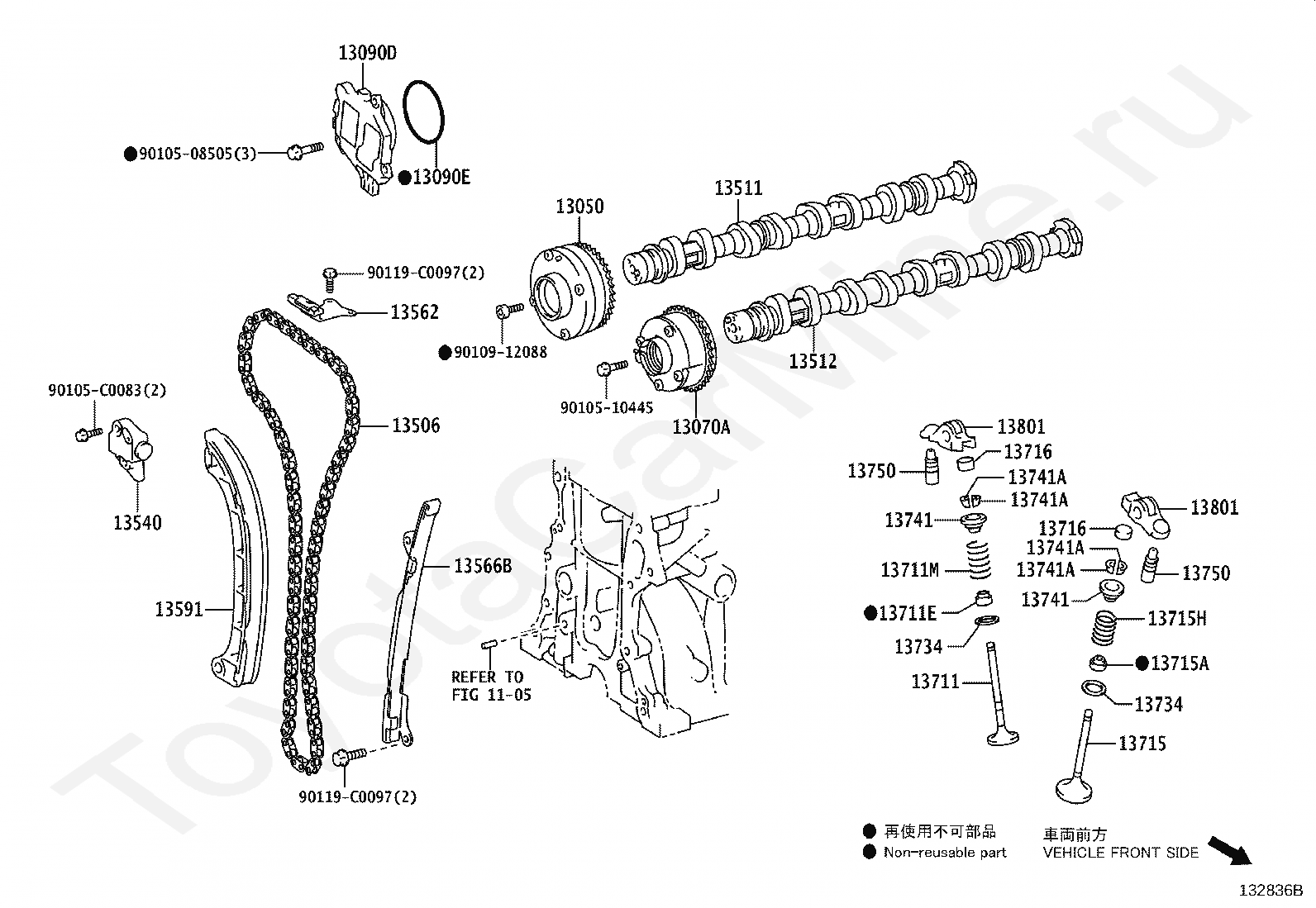

Код

Описание

1105

переход к группе запчастей

13050

GEAR ASSY, CAMSHAFT TIMING

13070A

GEAR ASSY, CAMSHAFT TIMING EXHAUST

13090D

MOTOR ASSY, CAM TIMING CONTROL W/EDU

13090E

RING, O(FOR CAM TIMING CONTROL MOTOR)

13506

CHAIN SUB-ASSY

13511

CAMSHAFT

13512

CAMSHAFT, NO.2

13540

TENSIONER ASSY, CHAIN, NO.1

13562

DAMPER, CHAIN VIBRATION, NO.2

13566B

GUIDE, TIMING CHAIN

13591

ARM, TIMING CHAIN TENSION

13711

VALVE, INTAKE

13711E

SEAL, INTAKE VALVE STEM OIL

13711M

SPRING, COMPRESSION(FOR INTAKE VALVE)

13715

VALVE, EXHAUST

13715A

SEAL, EXHAUST VALVE STEM OIL

13715H

SPRING, COMPRESSION(FOR EXHAUST VALVE)

13716

CAP, VALVE STEM

13716

CAP, VALVE STEM

13734

SEAT, VALVE SPRING

13734

SEAT, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741

RETAINER, VALVE SPRING

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13741A

LOCK, VALVE SPRING RETAINER

13750

ADJUSTER ASSY, VALVE LASH

13750

ADJUSTER ASSY, VALVE LASH

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

13801

ARM SUB-ASSY, VALVE ROCKER, NO.1

9010508505

Крепеж

9010510445

Крепеж

90105C0083

Крепеж

9010912088

Крепеж

90119C0097

Крепеж

90119C0097

Крепеж
