Европа

Модель

YARIS/ECHO VERSO

VIN

Дата

1999/08

Двигатель

1,3 литра, 16 клапанов, DOHC, EFI

Класс

SOL TYPE

Фрейм

NCP20

КПП

автомат АКПП, 4 ступени

Опции

левый руль

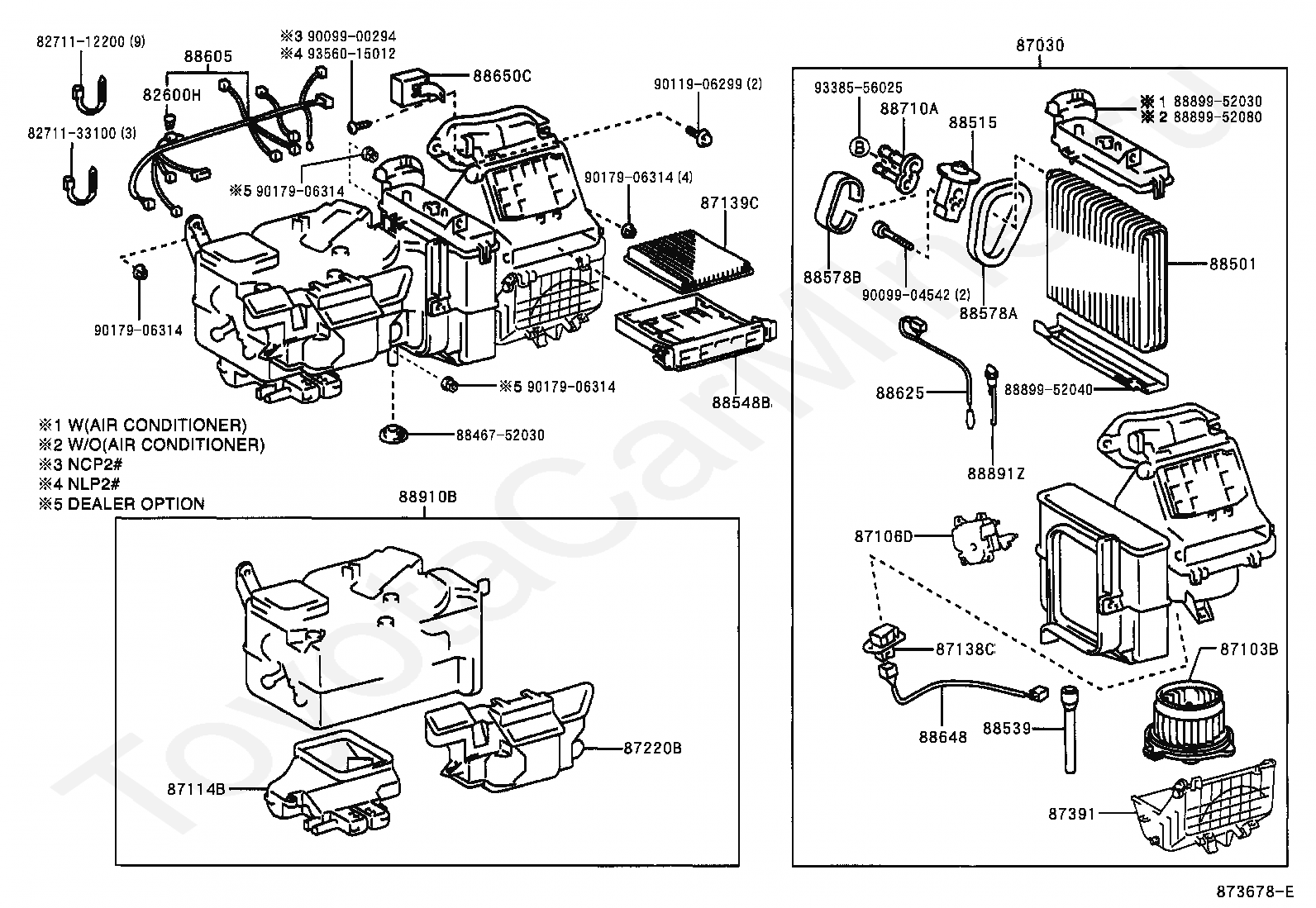

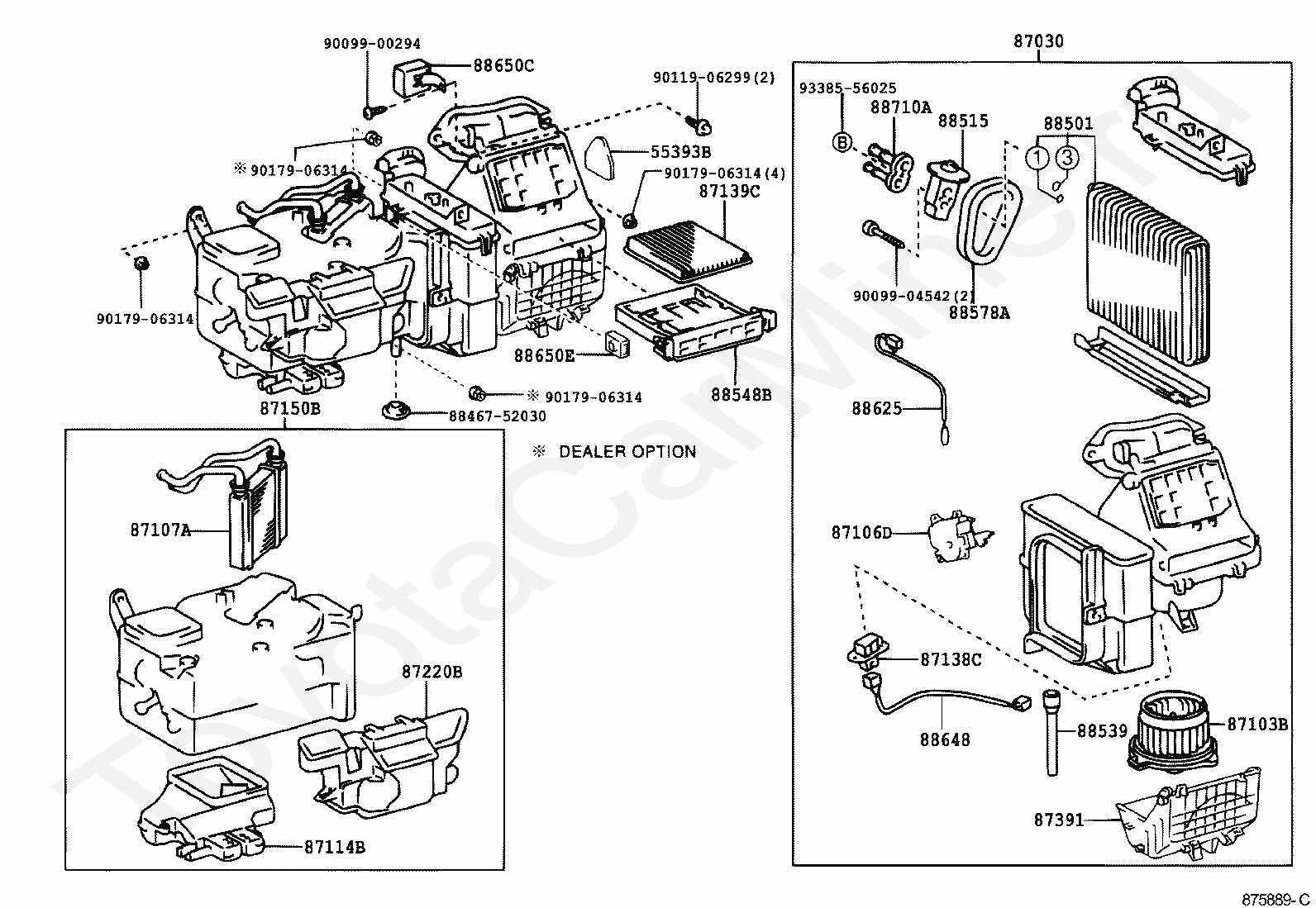

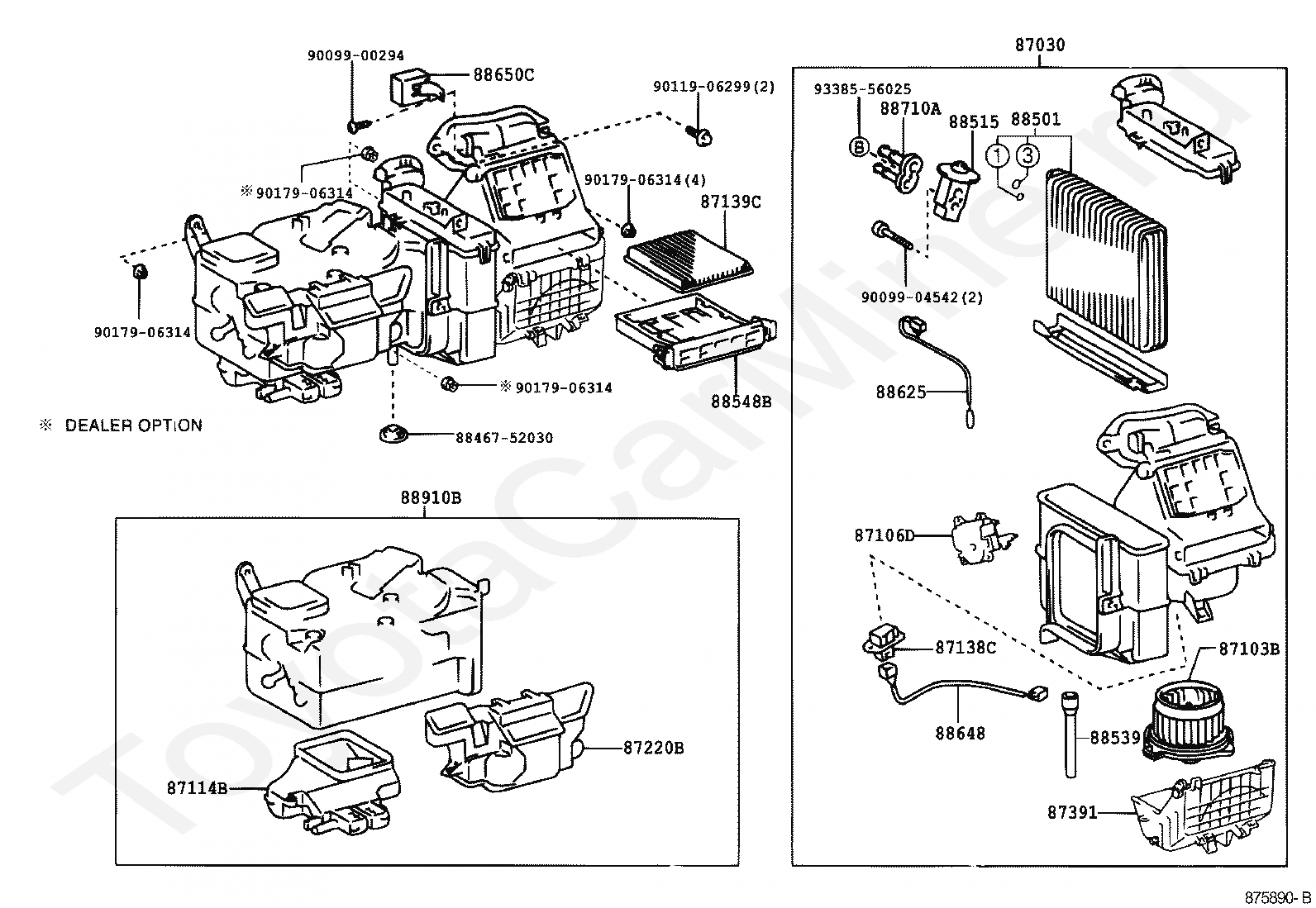

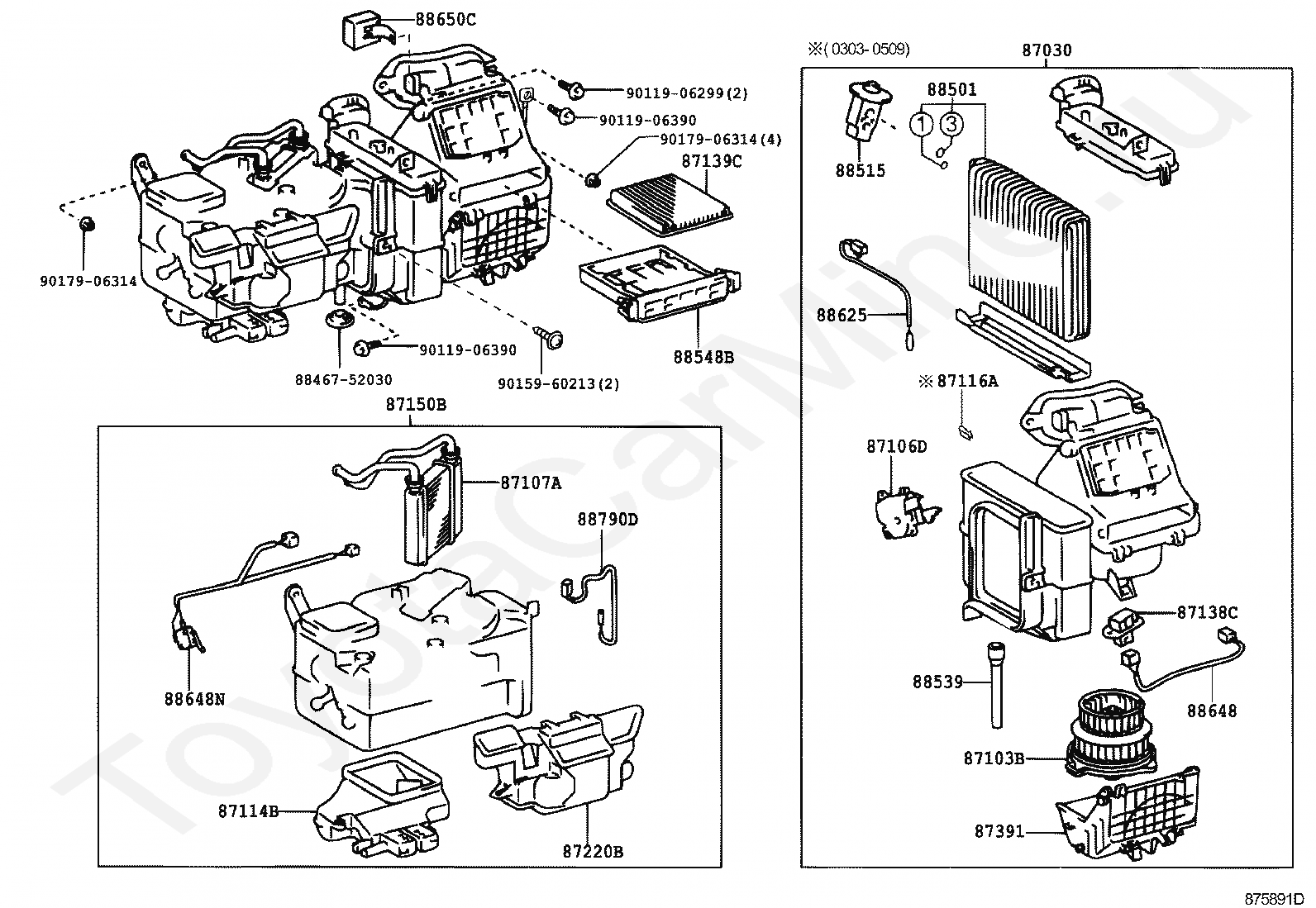

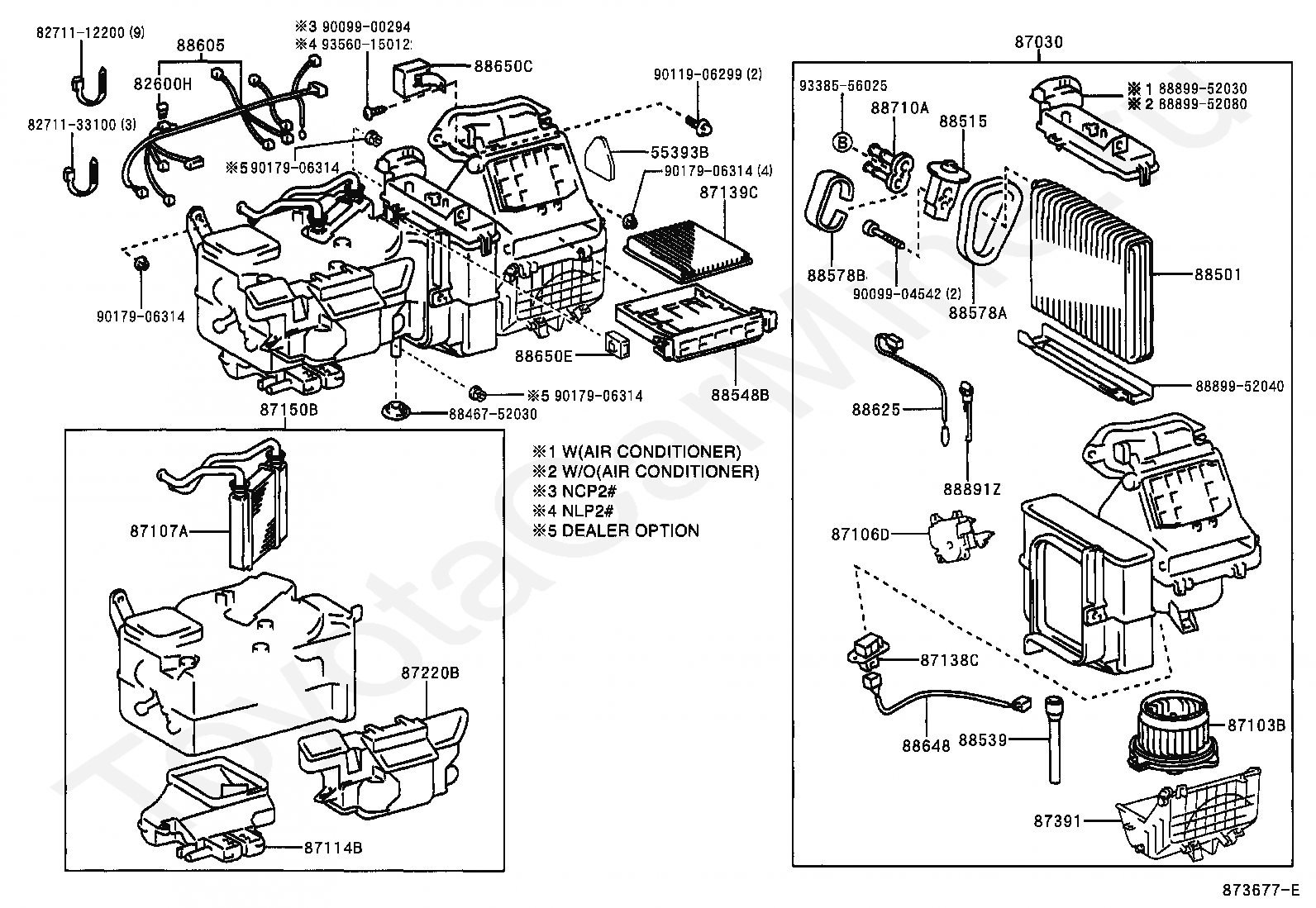

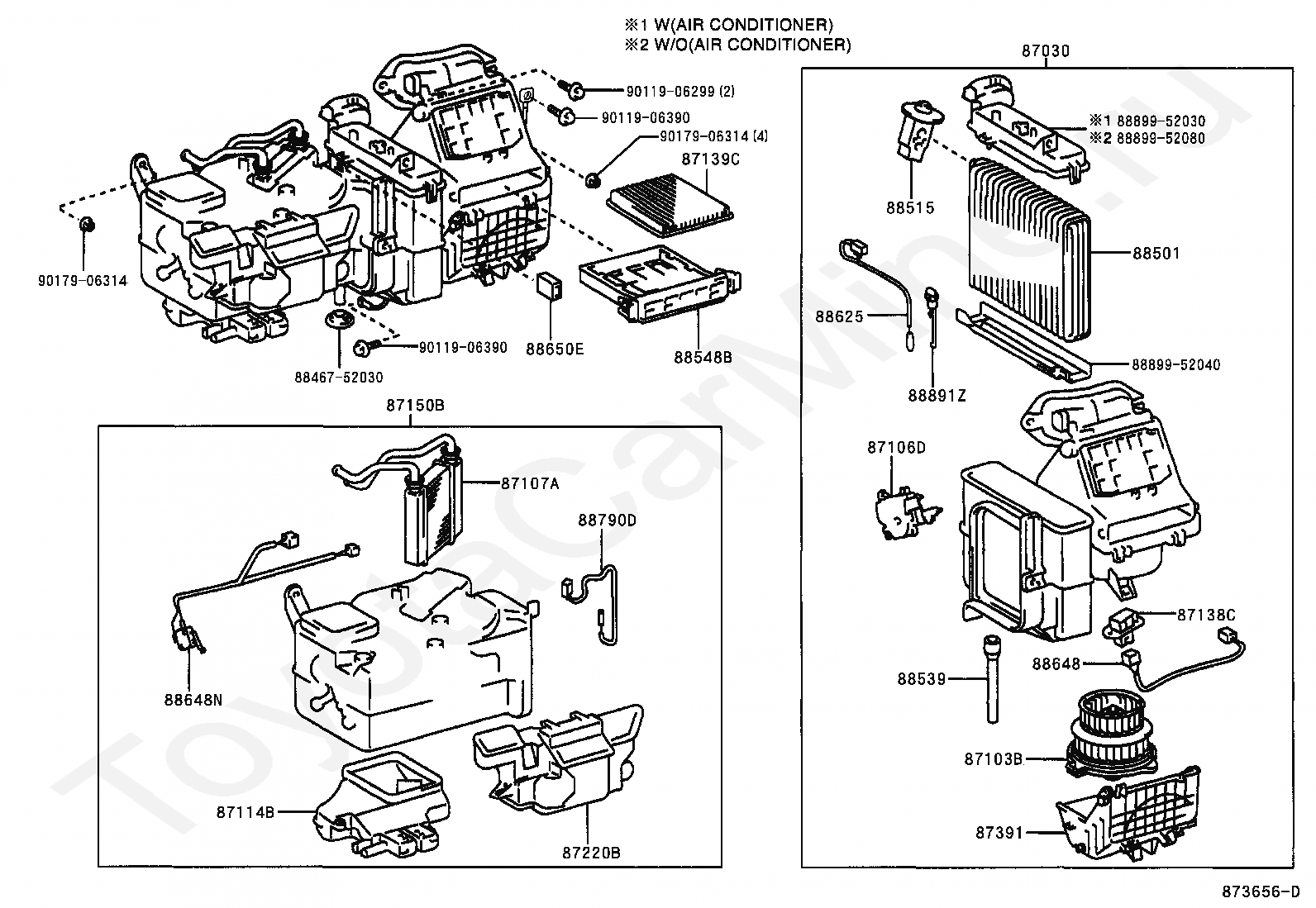

Кондиционер: охлаждающая система TOYOTA YARIS/ECHO VERSO

Код

Описание

55393B

CUSHION, AIR CONDITIONING COOLER UNIT

82600H

FUSE, FUSE BLOCK

8271112200

Крепеж

8271133100

Крепеж

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88578A

PACKING, COOLER STABILIZER AMPLIFIER

88578B

PACKING, COOLING UNIT, NO.1

88605

HARNESS SUB-ASSY, COOLER WIRING, NO.1

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88650E

AMPLIFIER ASSY, AIR CONDITIONER, NO.1

88710A

TUBE ASSY, AIR CONDITIONER

88891Z

BRACKET, COOLER THERMISTOR

8889952030

Крепеж

8889952040

Крепеж

8889952080

Крепеж

9009900294

Крепеж

9009904542

Крепеж

9011906299

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9338556025

Крепеж

9356015012

Крепеж

Код

Описание

82600H

FUSE, FUSE BLOCK

8271112200

Крепеж

8271133100

Крепеж

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87114B

COVER, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88578A

PACKING, COOLER STABILIZER AMPLIFIER

88578B

PACKING, COOLING UNIT, NO.1

88605

HARNESS SUB-ASSY, COOLER WIRING, NO.1

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88710A

TUBE ASSY, AIR CONDITIONER

88891Z

BRACKET, COOLER THERMISTOR

8889952030

Крепеж

8889952040

Крепеж

8889952080

Крепеж

88910B

VENTILATOR ASSY, BOOST

9009900294

Крепеж

9009904542

Крепеж

9011906299

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9338556025

Крепеж

9356015012

Крепеж

Код

Описание

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88648N

WIRING, COOLER, NO.2

88650E

AMPLIFIER ASSY, AIR CONDITIONER, NO.1

88790D

THERMISTOR ASSY

88891Z

BRACKET, COOLER THERMISTOR

8889952030

Крепеж

8889952040

Крепеж

8889952080

Крепеж

9011906299

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9017906314

Крепеж

9017906314

Крепеж

Код

Описание

55393B

CUSHION, AIR CONDITIONING COOLER UNIT

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88578A

PACKING, COOLER STABILIZER AMPLIFIER

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88650E

AMPLIFIER ASSY, AIR CONDITIONER, NO.1

88710A

TUBE ASSY, AIR CONDITIONER

9009900294

Крепеж

9009904542

Крепеж

9011906299

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9338556025

Крепеж

Код

Описание

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87114B

COVER, HEATER

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88710A

TUBE ASSY, AIR CONDITIONER

88910B

VENTILATOR ASSY, BOOST

9009900294

Крепеж

9009904542

Крепеж

9011906299

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9017906314

Крепеж

9338556025

Крепеж

Код

Описание

87030

BLOWER ASSY, AIR CONDITIONER

87103B

MOTOR SUB-ASSY, BLOWER W/FAN

87106D

SERVO SUB-ASSY, DAMPER, NO.1

87107A

UNIT SUB-ASSY, HEATER RADIATOR

87114B

COVER, HEATER

87116A

SPRING, HOLDING (FOR COOLER UNIT CASE)

87138C

RESISTOR, BLOWER

87139C

FILTER, CLEAN AIR

87150B

RADIATOR ASSY, HEATER

87220B

DUCT ASSY, AIR

87391

COVER, BLOWER MOTOR

8846752030

Крепеж

88501

EVAPORATOR SUB-ASSY, COOLER, NO.1

88515

VALVE, COOLER EXPANSION

88539

HOSE, COOLER UNIT DRAIN, NO.1

88548B

CASE, AIR FILTER

88625

THERMISTOR, COOLER, NO.1

88648

WIRING, COOLER, NO.1

88648N

WIRING, COOLER, NO.2

88650C

AMPLIFIER SUB-ASSY, AIRCONDITIONER

88790D

THERMISTOR ASSY

9011906299

Крепеж

9011906390

Крепеж

9011906390

Крепеж

9015960213

Крепеж

9017906314

Крепеж

9017906314

Крепеж

Код

Описание

9009914119

Крепеж

9009914120

Крепеж

9009914121

Крепеж

9009914122

Крепеж

Кондиционер: охлаждающая система TOYOTA YARIS/ECHO VERSO
