Каталог

Европа

Модель

VAN

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

автомат АКПП, 4 ступени

Опции

США

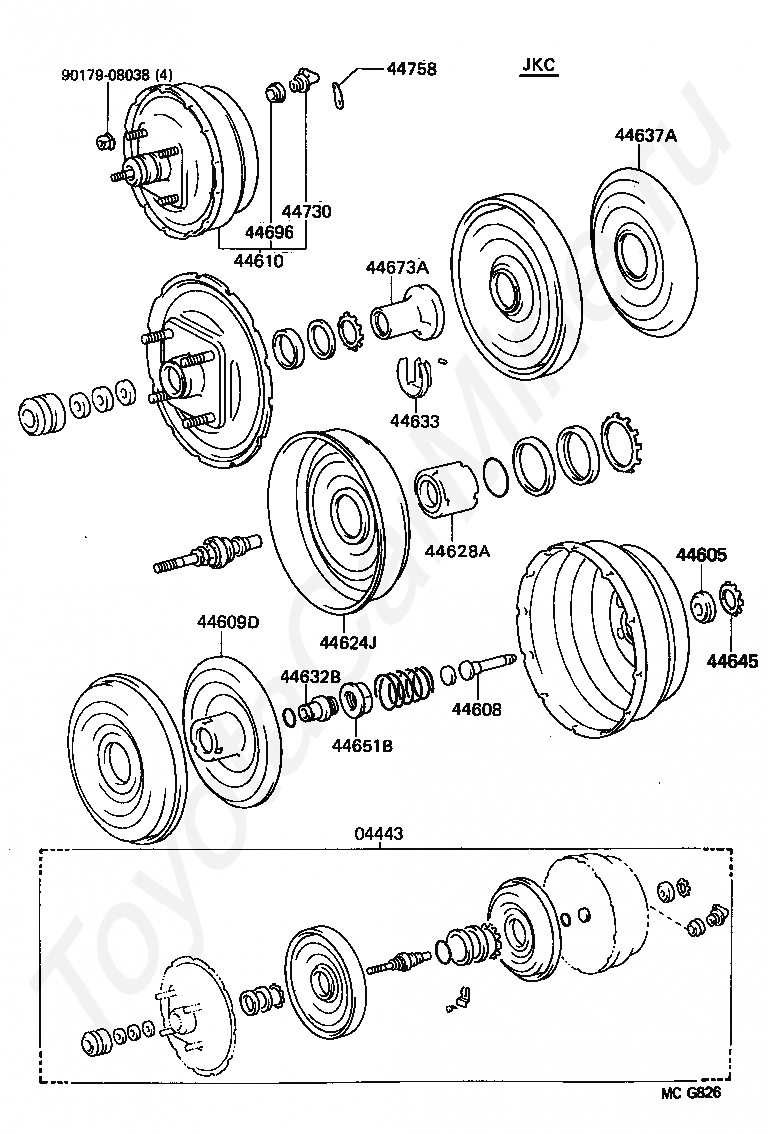

Вакуумный тормозной цилиндр TOYOTA VAN

Код

Описание

04443

BOOSTER KIT, BRAKE

44605

PLATE & SEAL SUB-ASSY, BOOSTER

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44628A

BODY, BOOSTER CENTER

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44645

RETAINER, BOOSTER PUSH ROD SEAL

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

Код

Описание

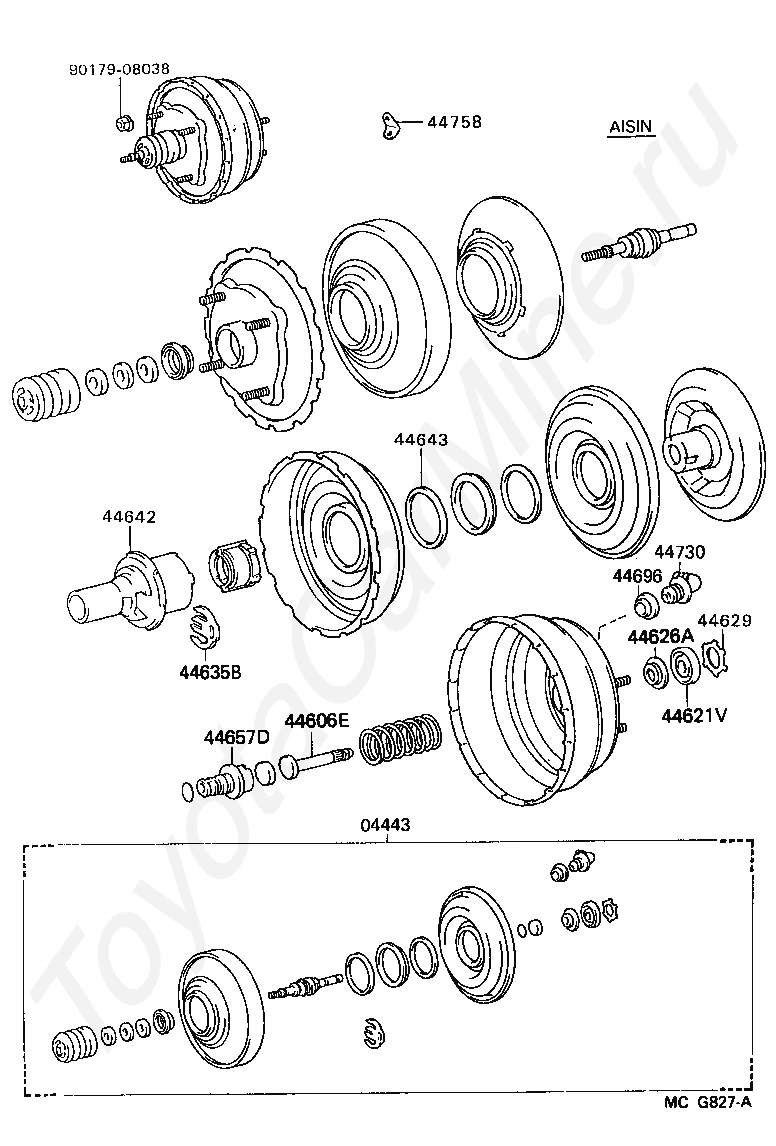

04443

BOOSTER KIT, BRAKE

44606E

ROD SUB-ASSY, BRAKE BOOSTER PISTON

44621V

SEAL, BOOSTER BODY

44626A

RETAINER, BOOSTER BODY SEAL

44629

RING, CIRCULAR INTERNAL

44635B

KEY, VALVE STOPPER

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44657D

CASE, REACTION DISC

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

Код

Описание

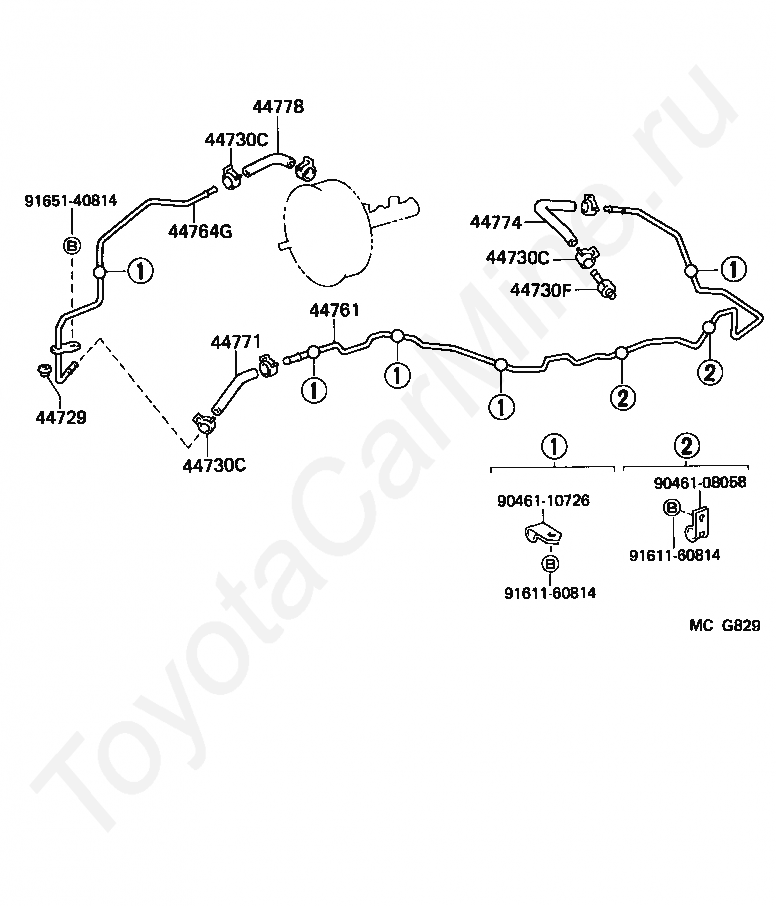

44729

GASKET, VACUUM TUBE

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730C

CLIP(FOR VACUUM HOSE)

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764G

TUBE, CONNECTOR TO BRAKE BOOSTER

44771

HOSE, VACUUM TUBE CONNECTOR

44774

HOSE, UNION TO CONNECTOR TUBE

44778

HOSE, CONNECTOR TO CHECK VALVE

9046108058

Крепеж

9046110726

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9165140814

Крепеж
