Каталог

Европа

Модель

VAN

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

автомат АКПП, 4 ступени

Опции

США

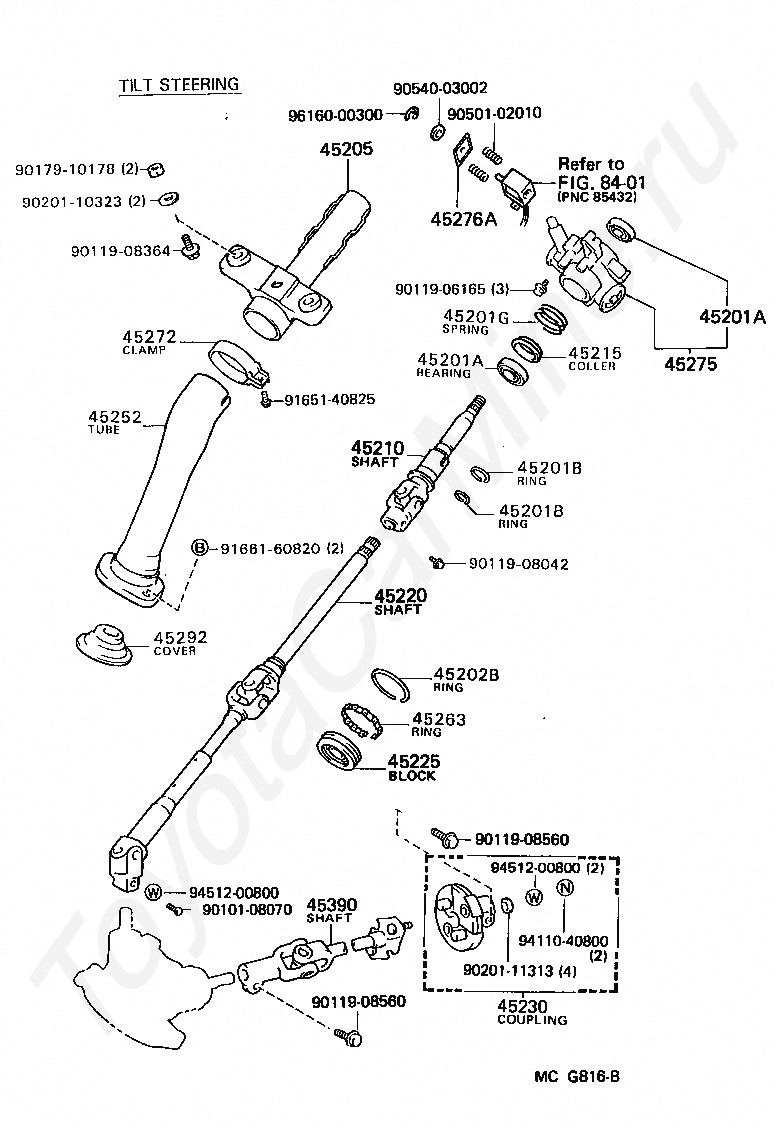

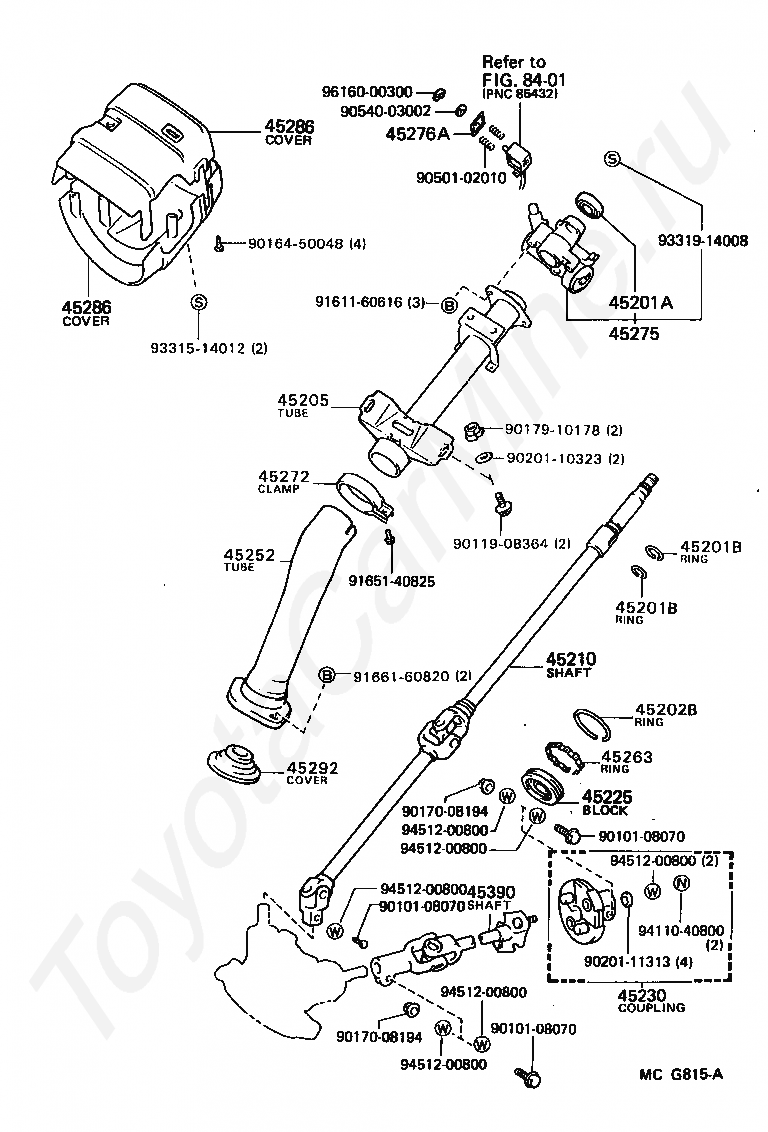

Рулевая колонка TOYOTA VAN

Код

Описание

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45202B

RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45225

BLOCK, BEARING

45230

COUPLING ASSY, FLEXIBLE

45252

TUBE, STEERING COLUMN, LOWER

45263

RING, STEERING COLUMN, NO.1

45272

CLAMP, STEERING COLUMN, LOWER

45275

BRACKET, STEERING COLUMN, UPPER

45276A

STOPPER, KEY INTER LOCK RELEASE BUTTON

45286

COVER, STEERING COLUMN

45286

COVER, STEERING COLUMN

45292

SEAL, MAIN SHAFT LOWER DUST

45390

SHAFT ASSY, STEERING TORQUE

8401

переход к группе запчастей

9010108070

Крепеж

9010108070

Крепеж

9010108070

Крепеж

9011908364

Крепеж

9016450048

Крепеж

9017008194

Крепеж

9017008194

Крепеж

9017910178

Крепеж

9020110323

Крепеж

9020111313

Крепеж

9050102010

Крепеж

9054003002

Крепеж

9161160616

Крепеж

9165140825

Крепеж

9166160820

Крепеж

9331514012

Крепеж

9331914008

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9616000300

Крепеж

Код

Описание

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201A

BEARING(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201B

RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

45201G

SPRING, COMPRESSION(FOR STEERING MAIN SHAFT)

45202B

RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)

45205

TUBE SUB-ASSY, STEERING COLUMN

45210

SHAFT ASSY, STEERING MAIN

45215

COLLAR, MAIN SHAFT BEARING THRUST

45220

SHAFT ASSY, STEERING INTERMEDIATE

45225

BLOCK, BEARING

45230

COUPLING ASSY, FLEXIBLE

45252

TUBE, STEERING COLUMN, LOWER

45263

RING, STEERING COLUMN, NO.1

45272

CLAMP, STEERING COLUMN, LOWER

45275

BRACKET, STEERING COLUMN, UPPER

45276A

STOPPER, KEY INTER LOCK RELEASE BUTTON

45292

SEAL, MAIN SHAFT LOWER DUST

45390

SHAFT ASSY, STEERING TORQUE

8401

переход к группе запчастей

9010108070

Крепеж

9011906165

Крепеж

9011908042

Крепеж

9011908364

Крепеж

9011908560

Крепеж

9011908560

Крепеж

9017910178

Крепеж

9020110323

Крепеж

9020111313

Крепеж

9050102010

Крепеж

9054003002

Крепеж

9165140825

Крепеж

9166160820

Крепеж

9411040800

Крепеж

9451200800

Крепеж

9451200800

Крепеж

9616000300

Крепеж

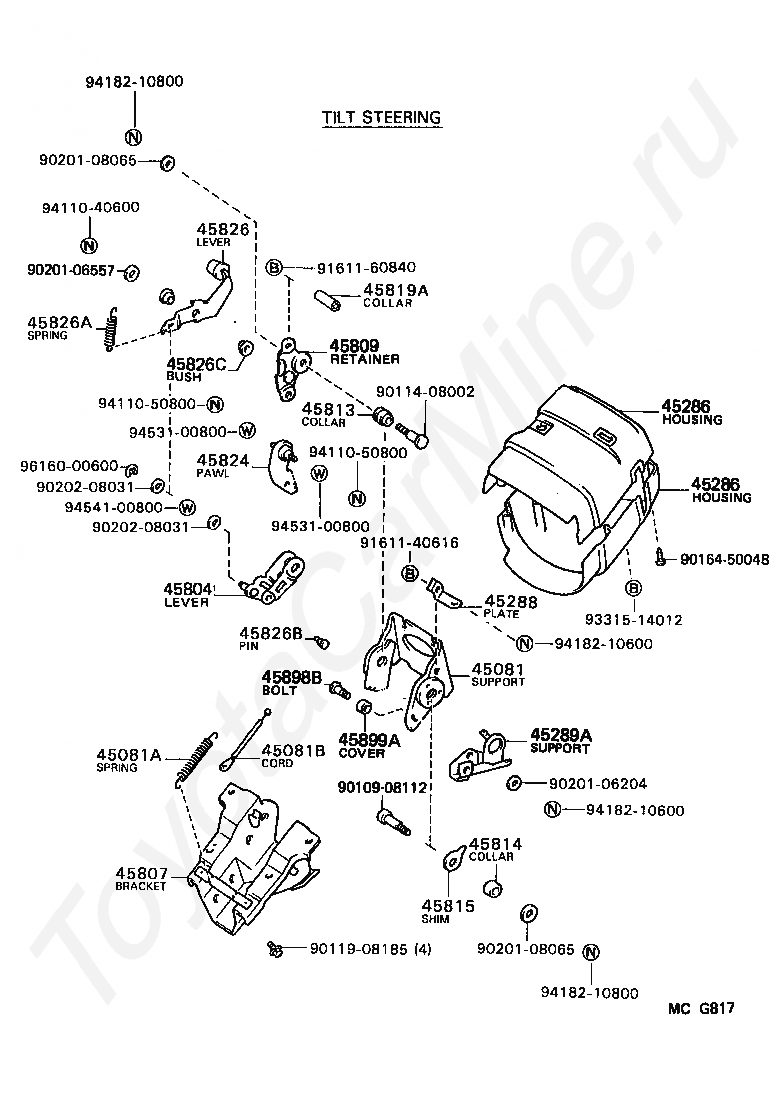

Код

Описание

45081

SUPPORT SUB-ASSY, TILT STEERING

45081A

SPRING, TENSION(FOR TILT STEERING)

45081B

CORD(FOR TILT STEERING)

45286

COVER, STEERING COLUMN

45286

COVER, STEERING COLUMN

45288

PLATE, STEERING COLUMN COVER

45289A

SUPPORT, STEERING COLUMN COVER

45804

LEVER SUB-ASSY, STEERING TILT

45807

BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT

45809

COVER SUB-ASSY, ADJUSTER MEMORY

45813

COLLAR, TILT STEERING SUPPORT, NO.1

45814

COLLAR, TILT STEERING SUPPORT, NO.2

45815

SHIM, TILT STEERING SUPPORT

45819A

COLLAR(FOR TILT LEVER RETAINER)

45824

PAWL, TILT STEERING

45826

LEVER, STEERING TILT

45826A

SPRING, TENSION(FOR STEERING TILT LEVER)

45826B

PIN(FOR STEERING TILT LEVER)

45826C

BUSH(FOR STEERING TILT LEVER)

45898B

BOLT, TILT STEERING SUPPORT STOPPER

45899A

COVER, TILT STEERING SUPPORT STOPPER

9010908112

Крепеж

9011408002

Крепеж

9011908185

Крепеж

9016450048

Крепеж

9020106204

Крепеж

9020106557

Крепеж

9020108065

Крепеж

9020108065

Крепеж

9020208031

Крепеж

9020208031

Крепеж

9161140616

Крепеж

9161160840

Крепеж

9331514012

Крепеж

9411040600

Крепеж

9411050800

Крепеж

9411050800

Крепеж

9418210600

Крепеж

9418210600

Крепеж

9418210800

Крепеж

9418210800

Крепеж

9453100800

Крепеж

9453100800

Крепеж

9454100800

Крепеж

9616000600

Крепеж

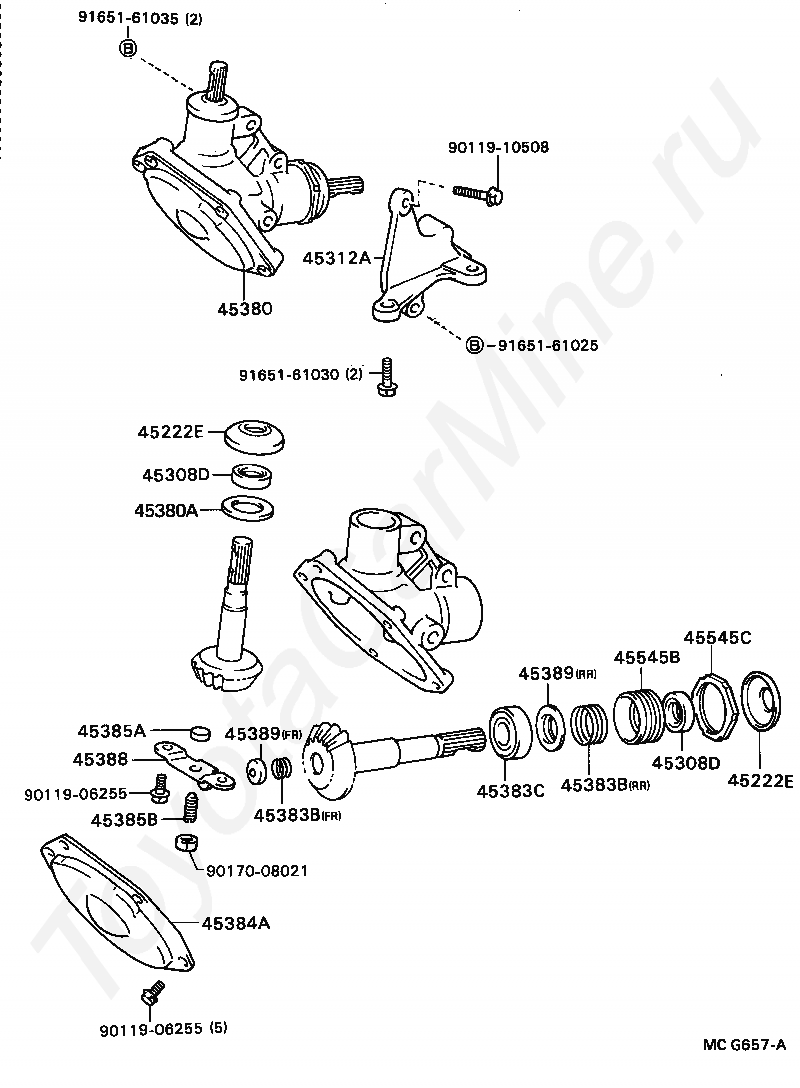

Код

Описание

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45222E

COVER, DUST(FOR STEERING BEVEL GEAR)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45308D

SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)

45312A

BRACKET, STEERING BEVEL GEAR HOUSING

45380

GEAR ASSY, STEERING BEVEL

45380A

WASHER(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383B

SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)

45383C

BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)

45384A

COVER, STEERING BEVEL GEAR

45385A

SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)

45385B

BOLT, SET(FOR LOCK BOLT SEAT)

45388

PLATE, STEERING BEVEL GEAR

45389

HOLDER, STEERING BEVEL GEAR SPRING

45389

HOLDER, STEERING BEVEL GEAR SPRING

45545B

SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR)

45545C

NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW)

9011906255

Крепеж

9011906255

Крепеж

9011910508

Крепеж

9017008021

Крепеж

9165161025

Крепеж

9165161030

Крепеж

9165161035

Крепеж

Рулевая колонка TOYOTA VAN
