Каталог

Европа

Модель

VAN

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

автомат АКПП, 4 ступени

Опции

США

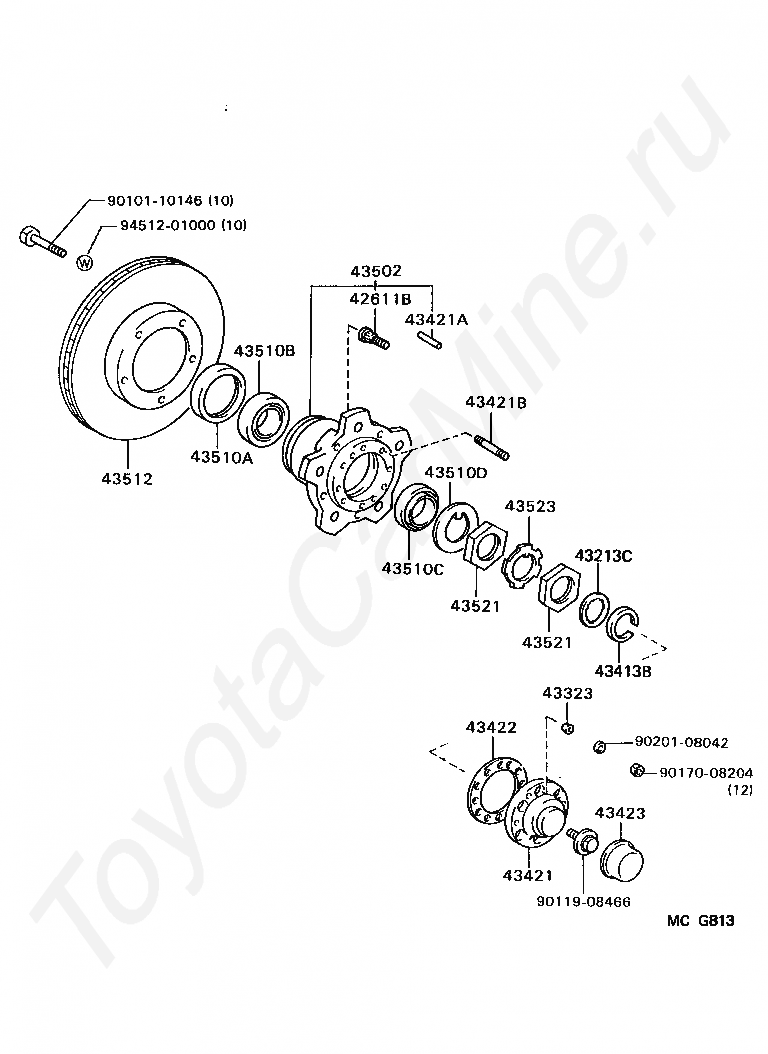

Передняя ступица и тормозной диск TOYOTA VAN

Код

Описание

42611B

BOLT, HUB (FOR FRONT AXLE)

43213C

SPACER (FOR DRIVE SHAFT)

43323

WASHER, CONE (FOR FRONT AXLE SHAFT)

43413B

RING, DRIVE SHAFT SNAP

43421

FLANGE, FRONT AXLE OUTER SHAFT

43421A

PIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE)

43421B

BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE)

43422

GASKET, FRONT AXLE OUTER SHAFT FLANGE

43423

CAP, FRONT AXLE OUTER SHAFT FLANGE

43502

HUB SUB-ASSY, FRONT AXLE

43510A

SEAL, OIL (FOR FRONT AXLE HUB)

43510B

BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

43510C

BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

43510D

WASHER, CLAW (FOR STEERING KNUCKLE WASHER)

43512

DISC, FRONT

43521

NUT, FRONT WHEEL ADJUSTING

43521

NUT, FRONT WHEEL ADJUSTING

43523

WASHER, FRONT WHEEL ADJUSTING LOCK

9010110146

Крепеж

9011908466

Крепеж

9017008204

Крепеж

9020108042

Крепеж

9451201000

Крепеж

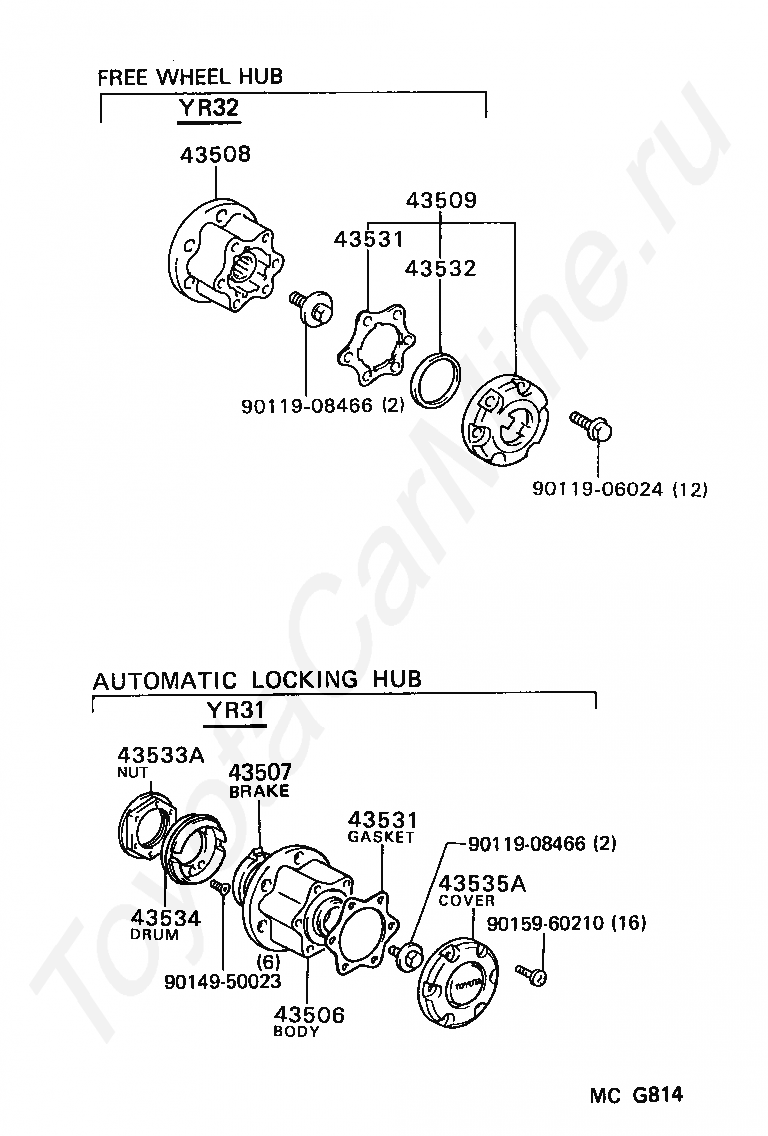

Код

Описание

43506

BODY & BRAKE SUB-ASSY, AUTO LOCKING HUB

43507

BRAKE SUB-ASSY, AUTO LOCKING HUB

43508

BODY SUB-ASSY, FREE WHEEL HUB

43509

COVER SUB-ASSY, FREE WHEEL HUB

43531

GASKET, FREE WHEEL HUB

43531

GASKET, FREE WHEEL HUB

43532

RING, FREE WHEEL HUB

43533A

NUT, AUTOMATIC LOCKING HUB LOCK

43534

DRUM, AUTOMATIC LOCKING HUB BRAKE

43535A

COVER, AUTOMATIC LOCKING HUB

9011906024

Крепеж

9011908466

Крепеж

9011908466

Крепеж

9014950023

Крепеж

9015960210

Крепеж

Передняя ступица и тормозной диск TOYOTA VAN
