Каталог

Европа

Модель

VAN

VIN

Дата

1988/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR31

КПП

автомат АКПП, 4 ступени

Опции

США

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA VAN

Код

Описание

35501

ROD SUB-ASSY, PARKING LOCK

35505

LEVER SUB-ASSY, MANUAL VALVE

35506

SHAFT SUB-ASSY, MANUAL VALVE LEVER

35506C

PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

35506F

SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

35506H

SPACER (FOR MANUAL VALVE LEVER SHAFT)

35556

SHAFT, PARKING LOCK PAWL

35556E

RING, E (FOR PARKING LOCK PAWL SHAFT)

35557

PAWL, PARKING LOCK

35557A

SPRING, TORSION (FOR PARKING LOCK PAWL)

35572

LEVER, TRANSMISSION CONTROL SHAFT, RH

35595

BRACKET, PARKING LOCK PAWL

9010106416

Крепеж

9411050800

Крепеж

9451200800

Крепеж

9454200600

Крепеж

Код

Описание

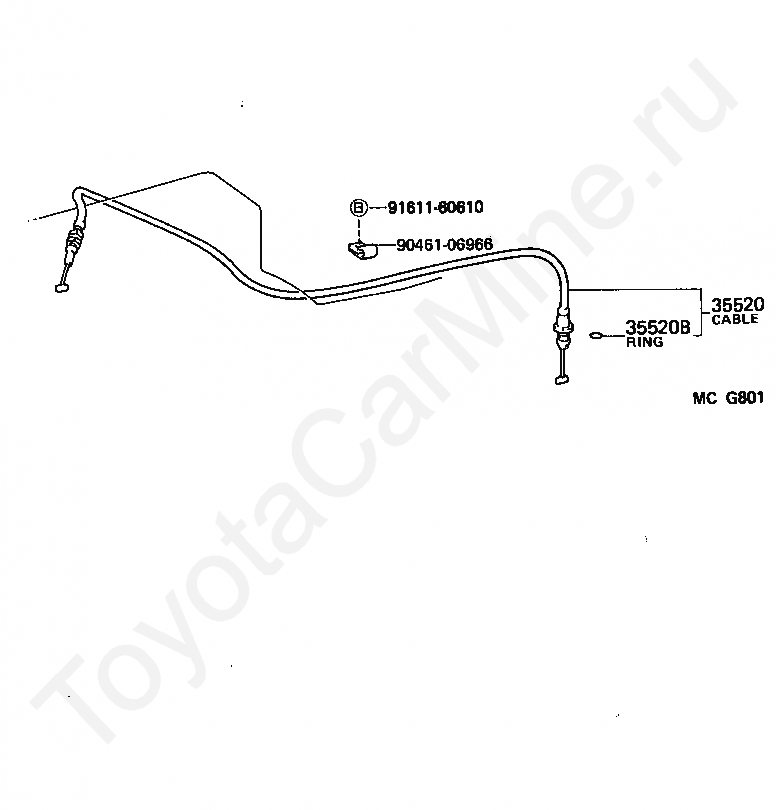

35520

CABLE ASSY, THROTTLE

35520B

RING, O(FOR THROTTLE CABLE)

9046106966

Крепеж

9161160610

Крепеж

THROTTLE LINK & VALVE LEVER (ATM) TOYOTA VAN
