1703
переход к группе запчастей

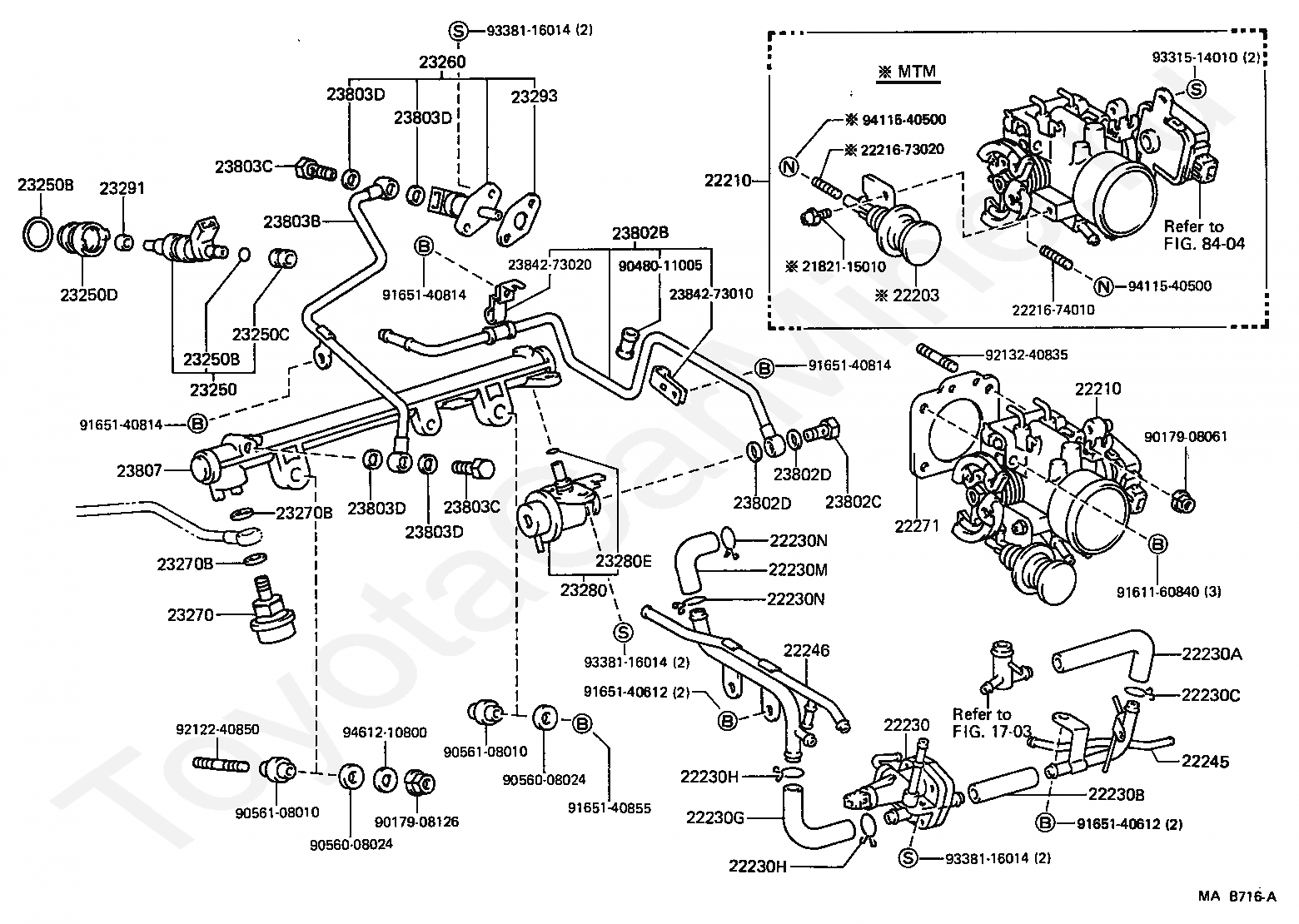

22203
DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210
BODY ASSY, THROTTLE
22210
BODY ASSY, THROTTLE
22230
VALVE ASSY, AUXILIARY AIR
22230A
HOSE, AUXILIARY AIR VALVE, NO.1
22230B
HOSE, AUXILIARY AIR VALVE, NO.2
22230C
CLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230G
HOSE, AUXILIARY AIR VALVE, NO.3
22230H
CLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230H
CLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230M
HOSE, AUXILIARY AIR VALVE, NO.4
22230N
CLIP, AUXILIARY AIR VALVE, NO.4
22230N
CLIP, AUXILIARY AIR VALVE, NO.4
22245
PIPE, AUXILIARY AIR, NO.2
22246
PIPE, AUXILIARY AIR, NO.3
22271
GASKET, THROTTLE BODY
23250
INJECTOR ASSY, FUEL
23250B
RING, O(FOR FUEL INJECTOR)
23250B
RING, O(FOR FUEL INJECTOR)
23250C
GROMMET(FOR FUEL INJECTOR)
23250D
SPACER(FOR FUEL INJECTOR)
23260
INJECTOR ASSY, COLD START FUEL
23270
DAMPER ASSY, FUEL PRESSURE PULSATION
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23270B
GASKET(FOR PULSATION DAMPER HOSE)
23280
REGULATOR ASSY, FUEL PRESSURE
23280E
RING, O(FOR FUEL PRESSURE REGULATOR)
23291
INSULATOR, INJECTOR VIBRATION
23293
GASKET, COLD START INJECTOR
23802B
PIPE SUB-ASSY, FUEL, NO.2
23802C
BOLT, UNION(FOR FUEL PIPE NO.2)
23802D
GASKET(FOR FUEL PIPE NO.2)
23802D
GASKET(FOR FUEL PIPE NO.2)
23803B
PIPE SUB-ASSY, FUEL, NO.3
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803C
GASKET(NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23803D
BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807
PIPE SUB-ASSY, FUEL DELIVERY
8404
переход к группе запчастей
