Каталог

Европа

Модель

VAN

VIN

Дата

1985/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR22

КПП

механика МКПП, 5 скоростей

Опции

США

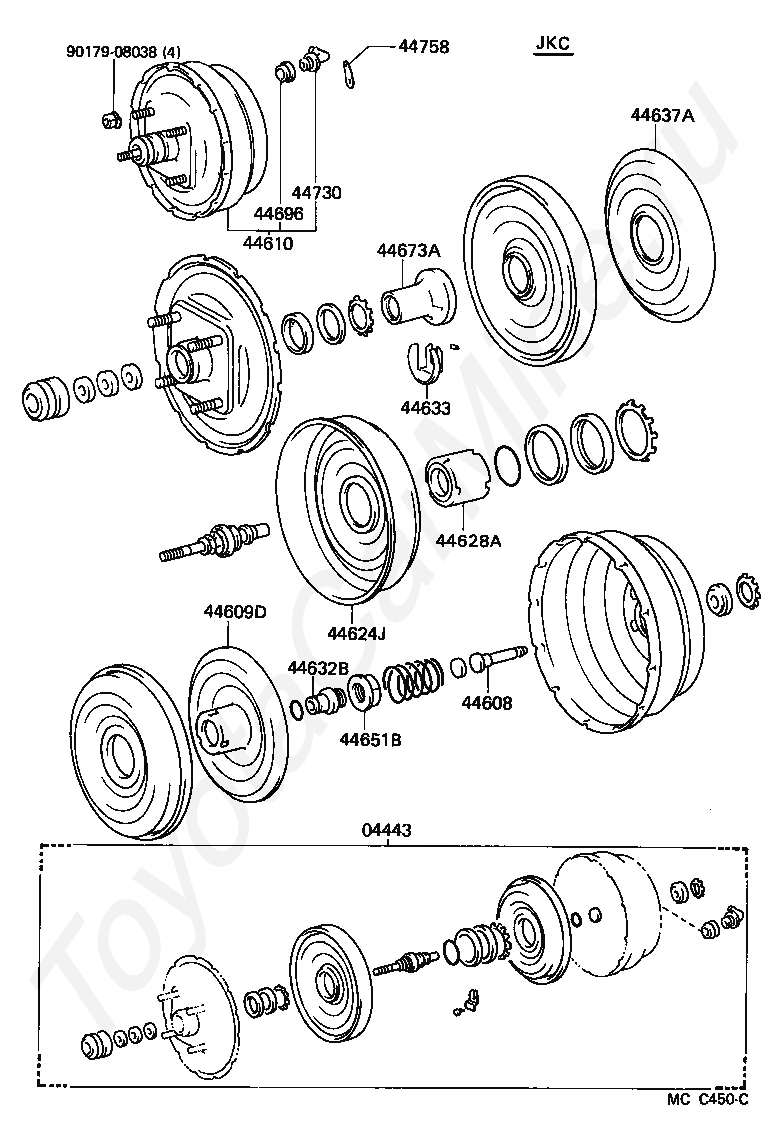

Вакуумный тормозной цилиндр TOYOTA VAN

Код

Описание

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44609D

PLATE & RETAINER SUB-ASSY, BOOSTER

44610

BOOSTER ASSY, BRAKE

44624J

PLATE, BOOSTER CENTER

44628A

BODY, BOOSTER CENTER

44632B

HUB, BOOSTER REACTION DISK

44633

KEY, BOOSTER VALVE PLUNGER

44637A

PLATE, BOOSTER DIAPHRAGM

44651B

NUT, BOOSTER

44673A

BODY, BOOSTER VALVE

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

Код

Описание

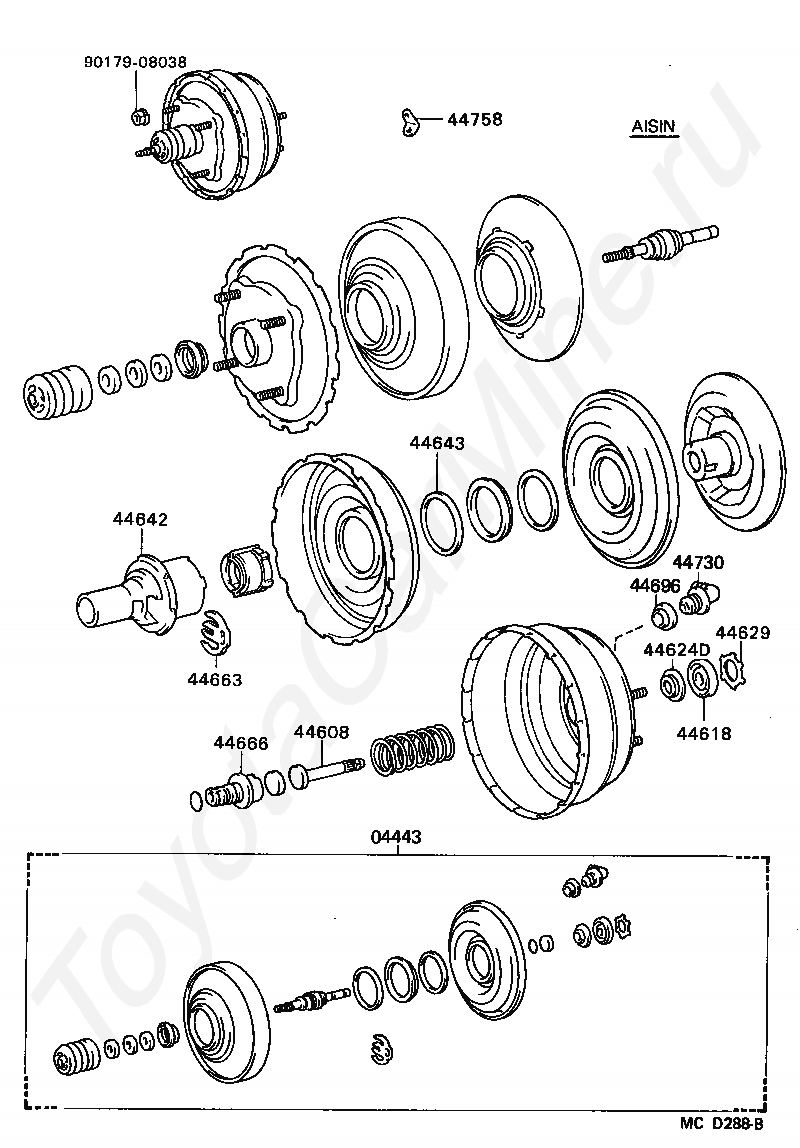

04443

BOOSTER KIT, BRAKE

44608

PUSH ROD SUB-ASSY, BOOSTER

44618

SEAL, BOOSTER BODY

44624D

RETAINER, BOOSTER SEAL

44629

RING, CIRCULAR INTERNAL

44642

PISTON, BRAKE BOOSTER

44643

RETAINER, DIAPHRAGM

44663

KEY, VALVE STOPPER

44666

CASE, REACTION DISC

44696

GROMMET, CHECK VALVE

44730

VALVE ASSY, VACUUM CHECK(FOR BRAKE)

44758

BRACKET, VACUUM CHECK VALVE

9017908038

Крепеж

Код

Описание

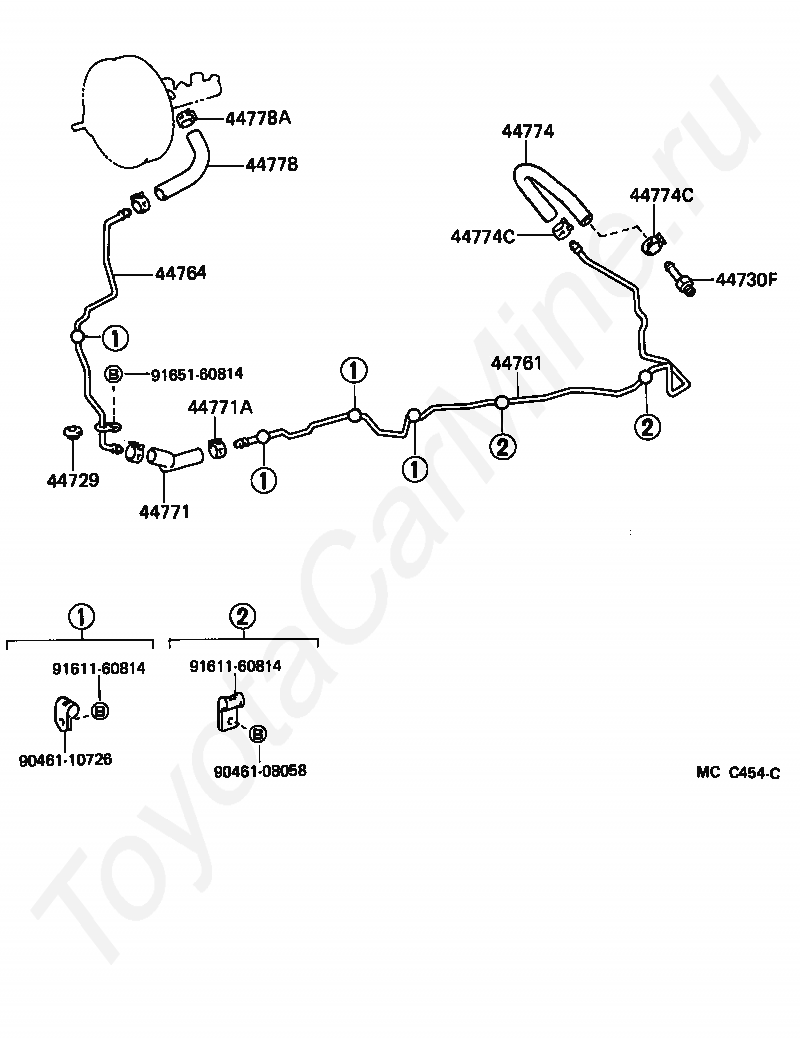

44729

GASKET, VACUUM TUBE

44730F

UNION, VACUUM HOSE(FOR MANIFOLD SIDE)

44761

TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

44764

TUBE, BOOSTER VACUUM

44771

HOSE, VACUUM TUBE CONNECTOR

44771A

CLIP(FOR VACUUM TUBE CONNECTOR HOSE)

44774

HOSE, UNION TO CONNECTOR TUBE

44774C

CLIP(FOR UNION TO CONNECTOR TUBE HOSE)

44774C

CLIP(FOR UNION TO CONNECTOR TUBE HOSE)

44778

HOSE, CONNECTOR TO CHECK VALVE

44778A

CLIP(FOR CONNECTOR TO CHECK VALVE HOSE)

9046108058

Крепеж

9046110726

Крепеж

9161160814

Крепеж

9161160814

Крепеж

9165160814

Крепеж
