Европа

Модель

VAN

VIN

Дата

1985/08

Двигатель

2,2 литра, EFI

Кузов

фургон

Класс

DELUX SPECIFICATION

Фрейм

YR22

КПП

механика МКПП, 5 скоростей

Опции

США

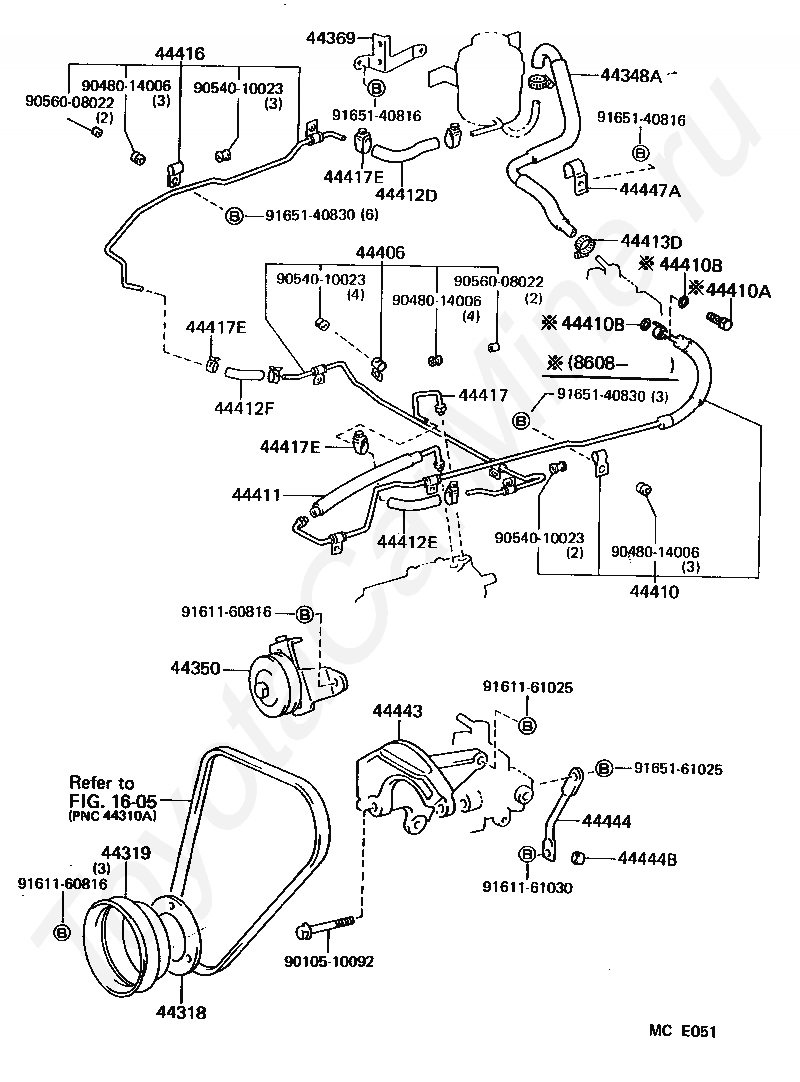

POWER STEERING TUBE TOYOTA VAN

Код

Описание

1605

переход к группе запчастей

44318

SPACER, VANE PUMP DRIVE PULLEY

44319

PULLEY, VANE PUMP DRIVE

44348A

HOSE, OIL RESERVOIR TO PUMP, NO.1

44350

PULLEY ASSY, POWER STEERING IDLE

44369

BRACKET, OIL RESERVOIR, NO.1

44406

TUBE SUB-ASSY, RETURN

44410

TUBE ASSY, PRESSURE FEED

44410A

BOLT, UNION(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44410B

GASKET(FOR PRESSURE FEED TUBE)

44411

HOSE, PRESSURE FEED

44412D

HOSE, RETURN, NO.1

44412E

HOSE, RETURN, NO.2

44412F

HOSE, RETURN, NO.3

44413D

CLAMP(FOR RESERVOIR TANK INLET HOSE)

44416

TUBE, RETURN(FOR STEERING GEAR OUTLET)

44417

TUBE, RETURN, NO.2

44417E

CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

44417E

CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

44417E

CLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)

44443

BRACKET, PUMP

44444

STAY, PUMP, REAR

44444B

COLLAR (FOR PUMP REAR STAY)

44447A

BRACKET, HOSE SUPPORT, NO.1

9010510092

Крепеж

9048014006

Крепеж

9048014006

Крепеж

9048014006

Крепеж

9054010023

Крепеж

9054010023

Крепеж

9054010023

Крепеж

9056008022

Крепеж

9056008022

Крепеж

9161160816

Крепеж

9161160816

Крепеж

9161161025

Крепеж

9161161030

Крепеж

9165140816

Крепеж

9165140816

Крепеж

9165140830

Крепеж

9165140830

Крепеж

9165161025

Крепеж
