Модель

URBAN CRUISER

VIN

Дата

2020/10

Двигатель

1500CC 16-VALVE DOHC

Фрейм

1500CC 16-VALVE DOHC

КПП

механика МКПП, 5 скоростей

Опции

правый руль CUT HOSE TO LENGTH AS SPECIFIED IN REMARKS Индия 883W

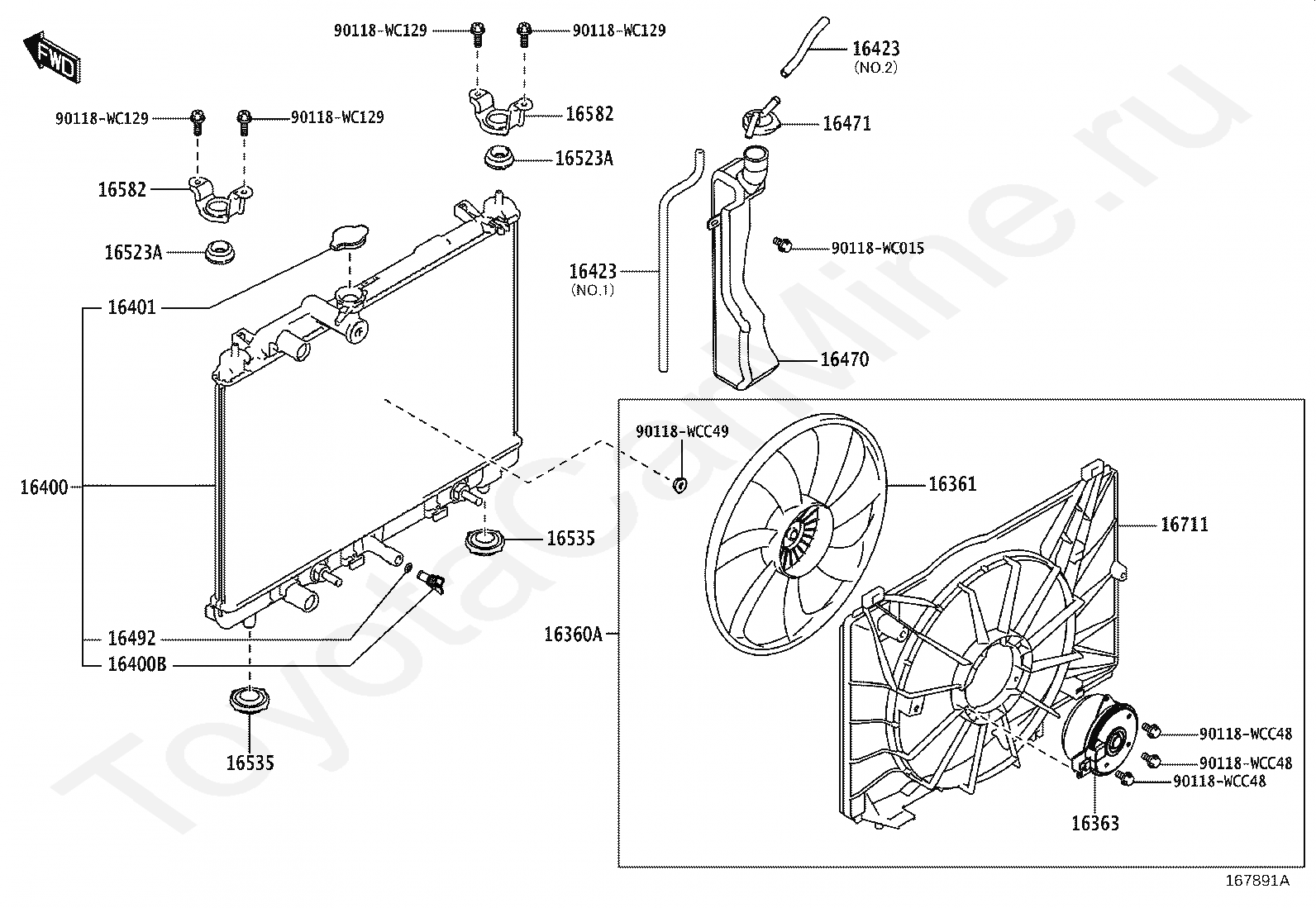

Радиатор и шланги TOYOTA URBAN CRUISER

Код

Описание

16360A

FAN ASSY, W/MOTOR

16361

FAN

16363

MOTOR, COOLING FAN

16400

RADIATOR ASSY

16400B

PLUG, RADIATOR DRAIN COCK

16401

CAP SUB-ASSY, RADIATOR

16423

HOSE, RADIATOR TANK

16423

HOSE, RADIATOR TANK

16470

TANK ASSY, RADIATOR RESERVE

16471

CAP SUB-ASSY, RESERVE TANK

16492

RING, O(FOR RADIATOR RESERVE TANK COCK)

16523A

CUSHION, RADIATOR SUPPORT

16523A

CUSHION, RADIATOR SUPPORT

16535

SUPPORT, RADIATOR, LOWER

16535

SUPPORT, RADIATOR, LOWER

16582

BRACKET, RADIATOR, NO.1

16582

BRACKET, RADIATOR, NO.1

16711

SHROUD, FAN

90118WC015

Крепеж

90118WC129

Крепеж

90118WC129

Крепеж

90118WC129

Крепеж

90118WC129

Крепеж

90118WCC48

Крепеж

90118WCC48

Крепеж

90118WCC48

Крепеж

90118WCC49

Крепеж

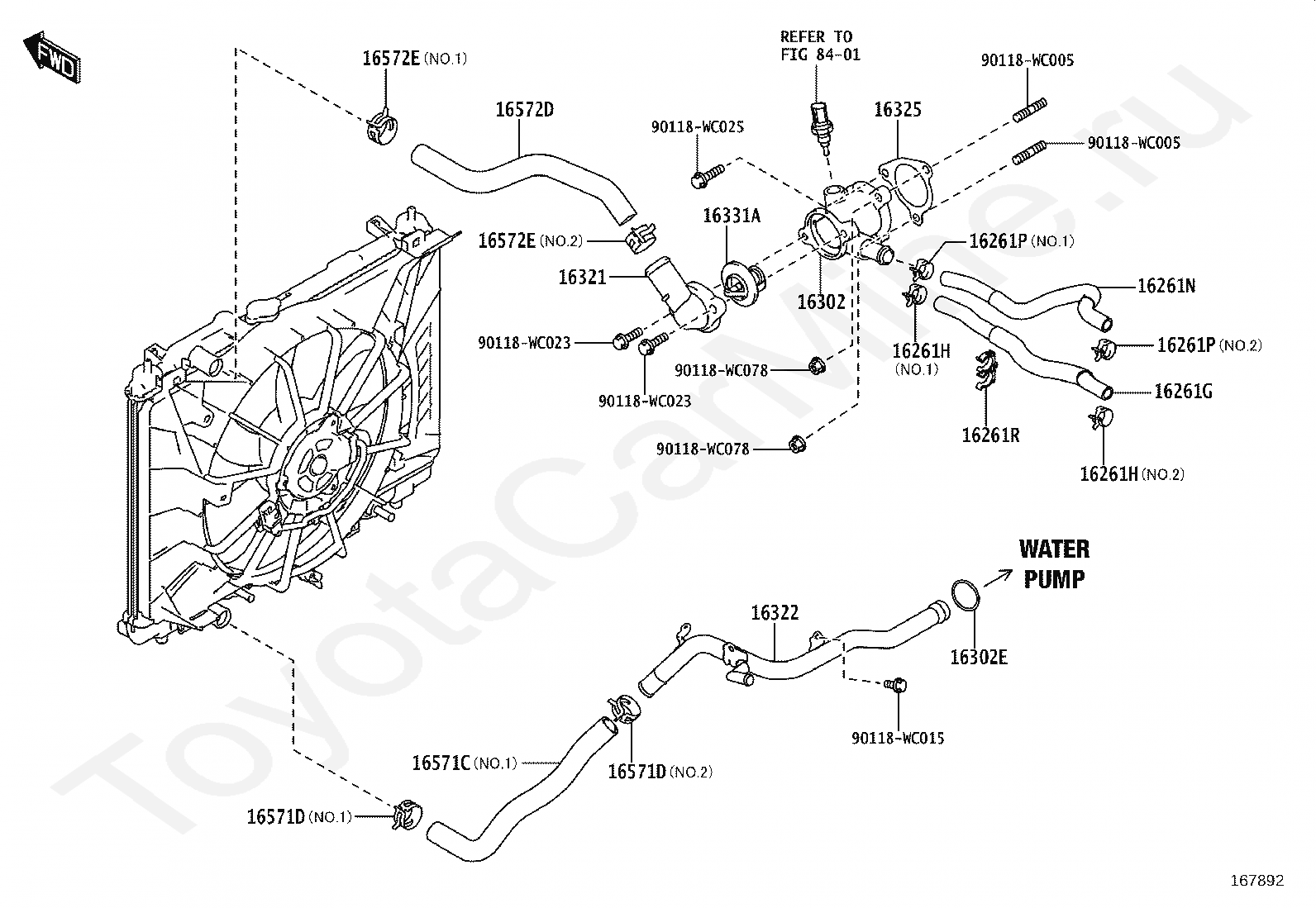

Код

Описание

16261G

HOSE, WATER BY-PASS, NO.1

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261H

CLIP(FOR WATER BY-PASS HOSE NO.1)

16261N

HOSE, WATER BY-PASS, NO.2

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261P

CLIP(FOR WATER BY-PASS HOSE NO.2)

16261R

CLAMP OR CLIP(FOR WATER BY-PASS HOSE)

16302

HOUSING SUB-ASSY, WATER INLET

16302E

RING, O(FOR WATER INLET PIPE)

16321

INLET, WATER

16322

PIPE, WATER INLET

16325

GASKET, WATER INLET HOUSING, NO.1

16331A

THERMOSTAT

16571C

HOSE, RADIATOR, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16571D

CLIP, RADIATOR HOSE, NO.1

16572D

HOSE, RADIATOR, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

16572E

CLIP, RADIATOR HOSE, NO.2

8401

переход к группе запчастей

90118WC005

Крепеж

90118WC005

Крепеж

90118WC015

Крепеж

90118WC023

Крепеж

90118WC023

Крепеж

90118WC025

Крепеж

90118WC078

Крепеж

90118WC078

Крепеж
