Реле и кнопки Тойота URBAN CRUISER, Европа, 2009/01 - 2014/05, 1,3 литра, 16 клапанов DOHC, EFI, N(MODEL MARK), NSP110, механика, МКПП, 6 скоростей, правый руль, 399W

Код

Описание

8271552N30

Крепеж

8271552R80

Крепеж

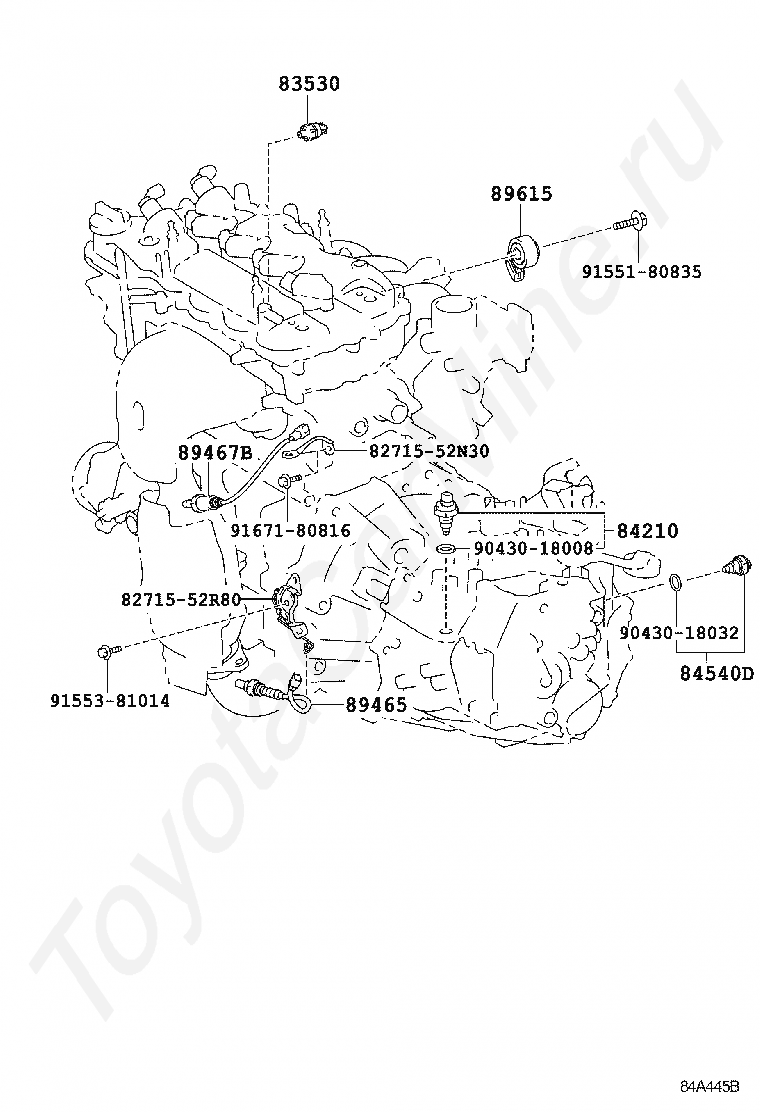

83530

SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

84210

SWITCH ASSY, BACK-UP LAMP

84540D

SWITCH ASSY, NEUTRAL START

89465

SENSOR, OXYGEN

89467B

SENSOR, AIR FUEL RATIO

89615

SENSOR, KNOCK CONTROL

9043018008

Крепеж

9043018032

Крепеж

9155180835

Крепеж

9155381014

Крепеж

9167180816

Крепеж

Код

Описание

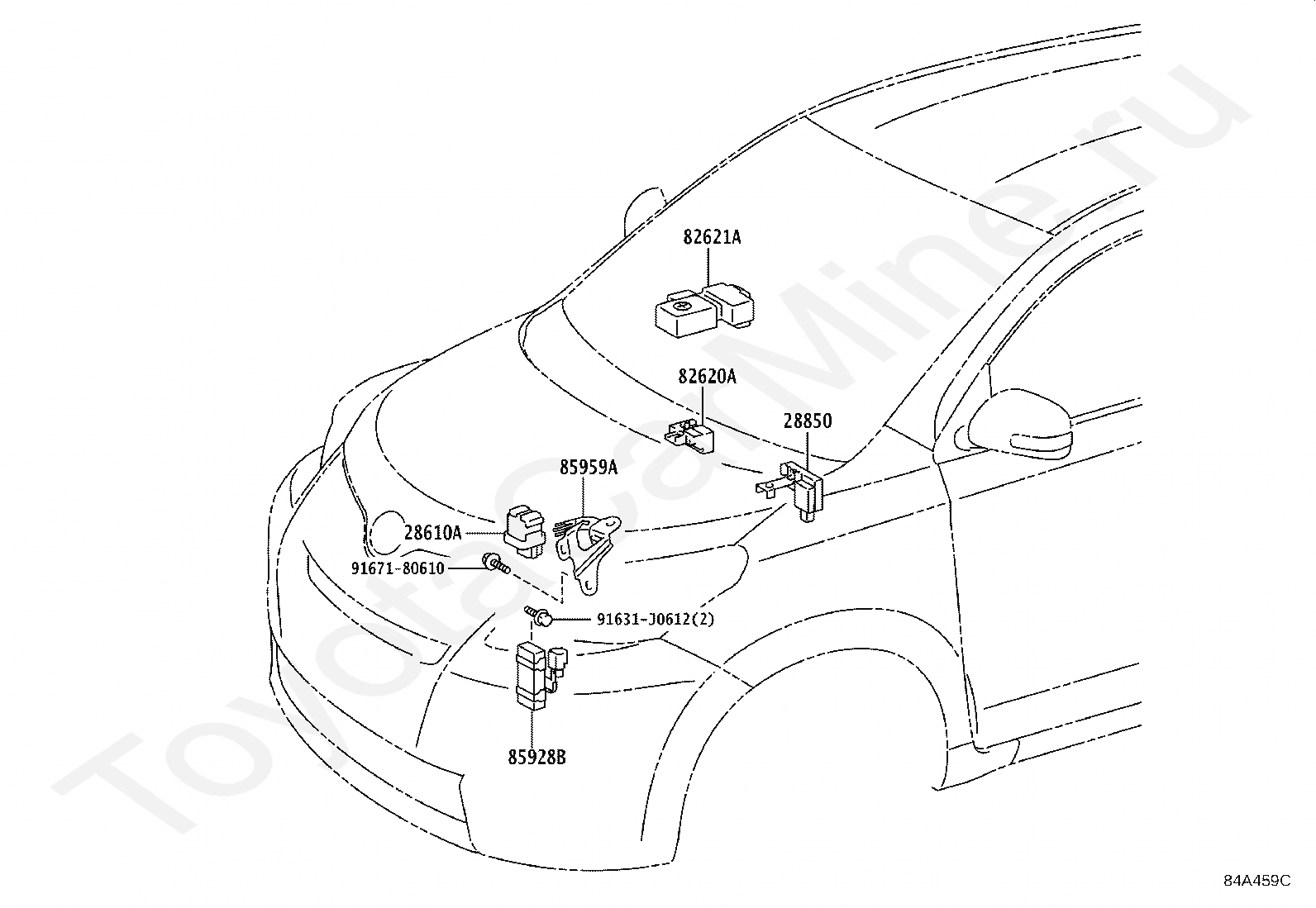

28610A

RELAY ASSY, GLOW PLUG(SUB)

28850

SENSOR ASSY, BATTERY CURRENT

82620A

BLOCK ASSY, FUSIBLE LINK

82621A

COVER, FUSIBLE LINK

85928B

RESISTOR, COOLING FAN

85959A

HOLDER, RELAY

91631J0612

Крепеж

9167180610

Крепеж

Код

Описание

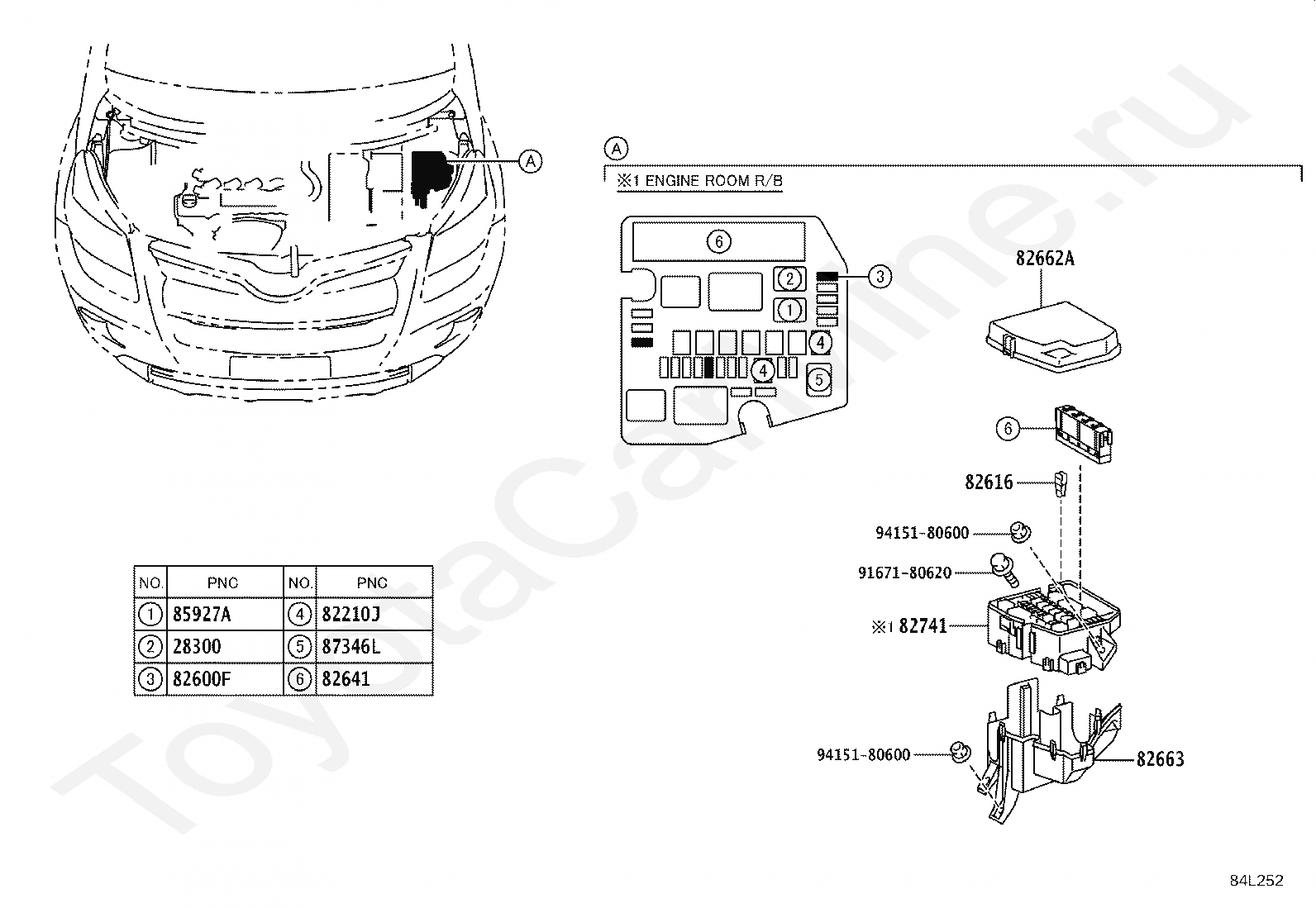

28300

RELAY ASSY, STARTER

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82616

PULLER, FUSE

82641

RELAY, INTEGRATION NO.1

82662A

COVER, RELAY BLOCK, UPPER, NO.1

82663

COVER, RELAY BLOCK, LOWER

82741

BLOCK, ENGINE ROOM RELAY

85927A

RELAY, COOLING FAN, NO.2

87346L

RELAY, PTC HEATER

9167180620

Крепеж

9415180600

Крепеж

9415180600

Крепеж

Код

Описание

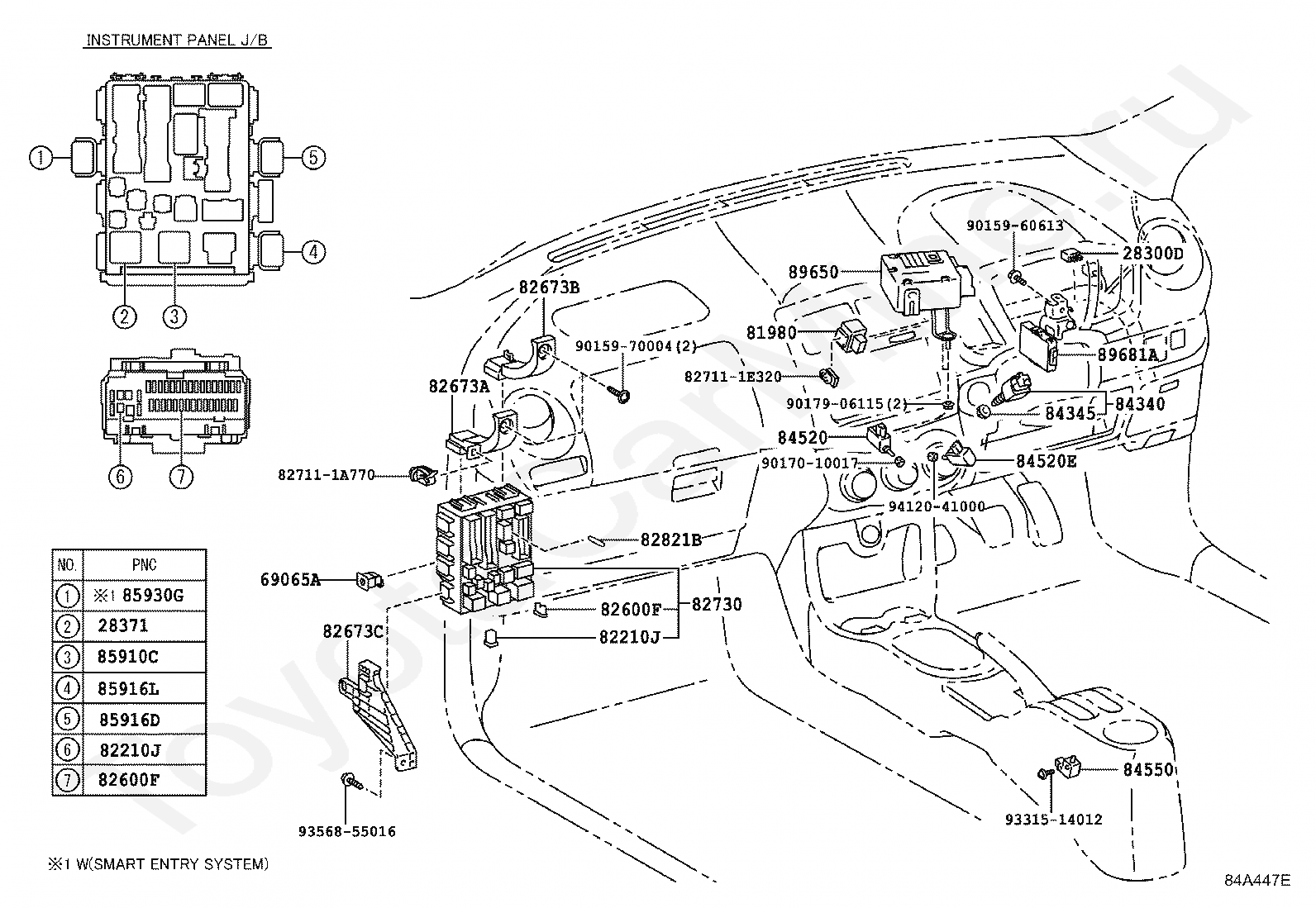

28300D

RELAY, STARTER CUT

28371

RELAY, IGNITION, NO.1

69065A

CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH

81980

FLASHER ASSY, TURN SIGNAL

82210J

FUSIBLE LINK

82210J

FUSIBLE LINK

82600F

FUSE, FUSE BLOCK

82600F

FUSE, FUSE BLOCK

82673A

BRACKET, JUNCTION BLOCK

82673B

BRACKET, JUNCTION BLOCK

82673C

BRACKET, JUNCTION BLOCK

827111A770

Крепеж

827111E320

Крепеж

82730

BLOCK ASSY, INSTRUMENT PANEL JUNCTION

82821B

COVER, CONNECTOR

84340

SWITCH ASSY, STOP LAMP

84345

ADJUSTER, STOP LAMP SWITCH MOUNTING

84520

SWITCH ASSY, CLUTCH START

84520E

SWITCH ASSY, CLUTCH START, NO.2

84550

SWITCH ASSY, PARKING BRAKE

85910C

RELAY ASSY (FOR HEATER BLOWER MOTOR)

85916D

RELAY, FOG LAMP

85916L

RELAY, REAR FOG LAMP

85930G

RELAY, ACC

89650

COMPUTER ASSY, POWER STEERING

89681A

COMPUTER, POWER MANAGEMENT CONTROL

9015960613

Крепеж

9015970004

Крепеж

9017010017

Крепеж

9017906115

Крепеж

9331514012

Крепеж

9356855016

Крепеж

9412041000

Крепеж

Код

Описание

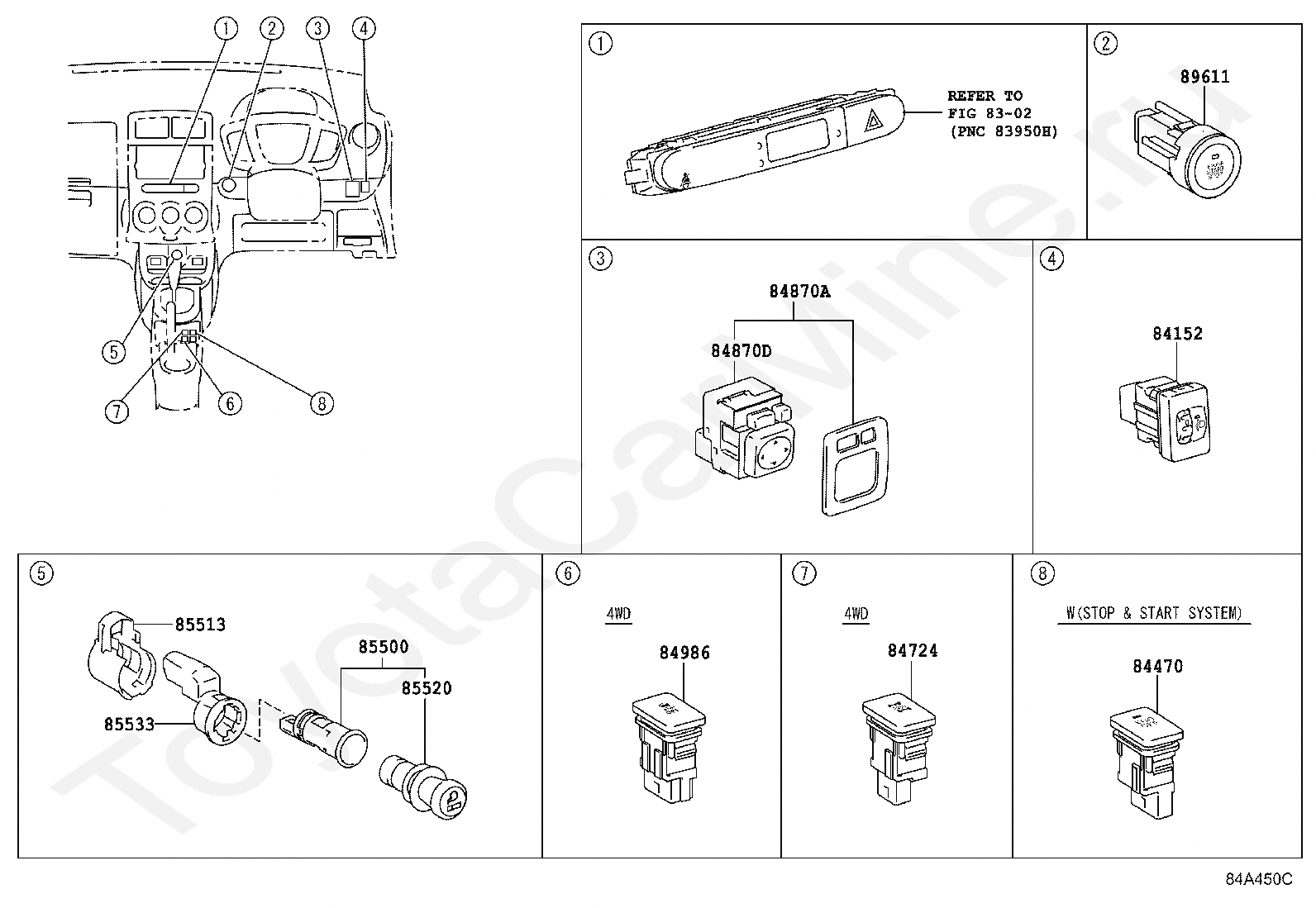

8302

переход к группе запчастей

84152

SWITCH, HEADLAMP LEVELING

84470

SWITCH ASSY, WARNING CANCELING

84724

SWITCH, 4 WHEEL DRIVE CONTROL

84870A

SWITCH ASSY, OUTER MIRROR

84870D

SWITCH ASSY, OUTER MIRROR, NO.2

84986

SWITCH, VEHICLE STABILITY CONTROL

85500

LIGHTER ASSY, CIGARETTE

85513

COVER, CIGARETTE LIGHTER

85520

KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER

85533

LENS, CIGARETTE LIGHTER INDICATOR

89611

SWITCH, PUSH START

Код

Описание

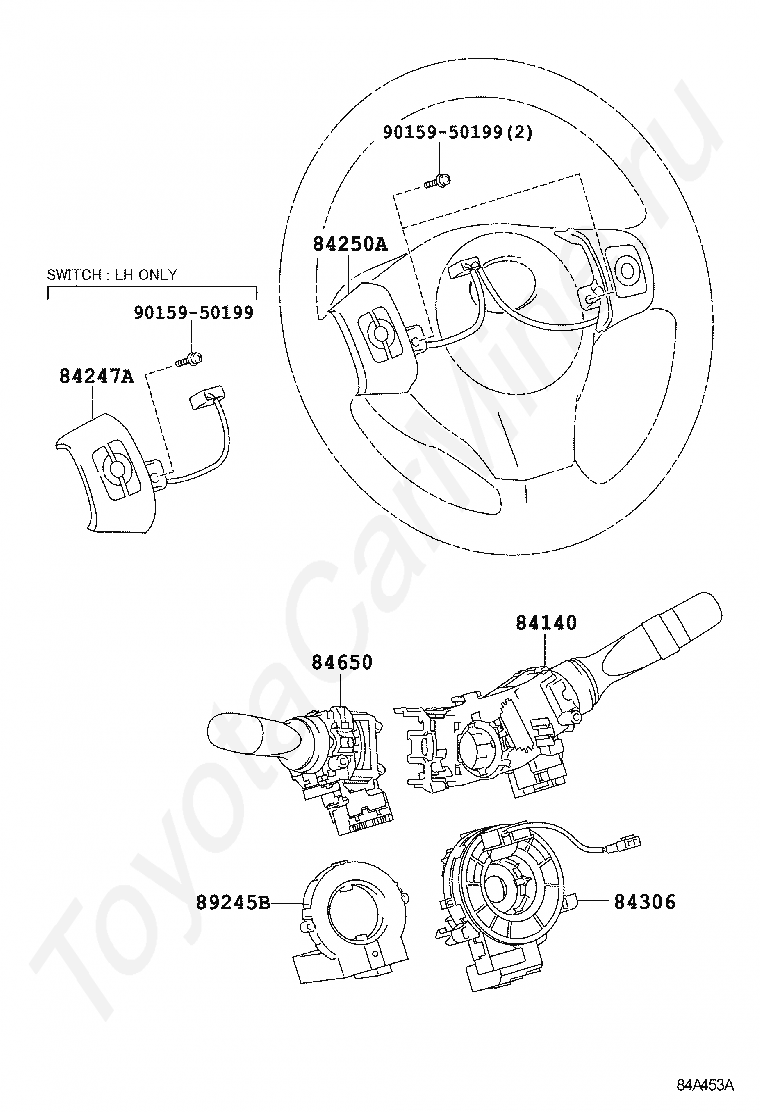

84140

SWITCH ASSY, HEADLAMP DIMMER

84247A

SWITCH, STEERING PAD, LH

84250A

SWITCH ASSY, STEERING PAD

84306

CABLE SUB-ASSY, SPIRAL

84650

SWITCH ASSY, WINDSHIELD WIPER

89245B

SENSOR, STEERING

9015950199

Крепеж

9015950199

Крепеж

Код

Описание

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

83320

GAGE ASSY, FUEL SENDER

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84233

SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84234

SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810

SWITCH ASSY, POWER WINDOW REGULATOR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84810D

SWITCH ASSY, POWER WINDOW REGULATOR, REAR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84820

MASTER SWITCH ASSY, POWER WINDOW REGULATOR

84840G

SWITCH ASSY, BACK DOOR OPENER

9016440103

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

9016670001

Крепеж

93319A4010

Крепеж
