Америка

Модель

TUNDRA

VIN

Дата

2009/04

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

КПП

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

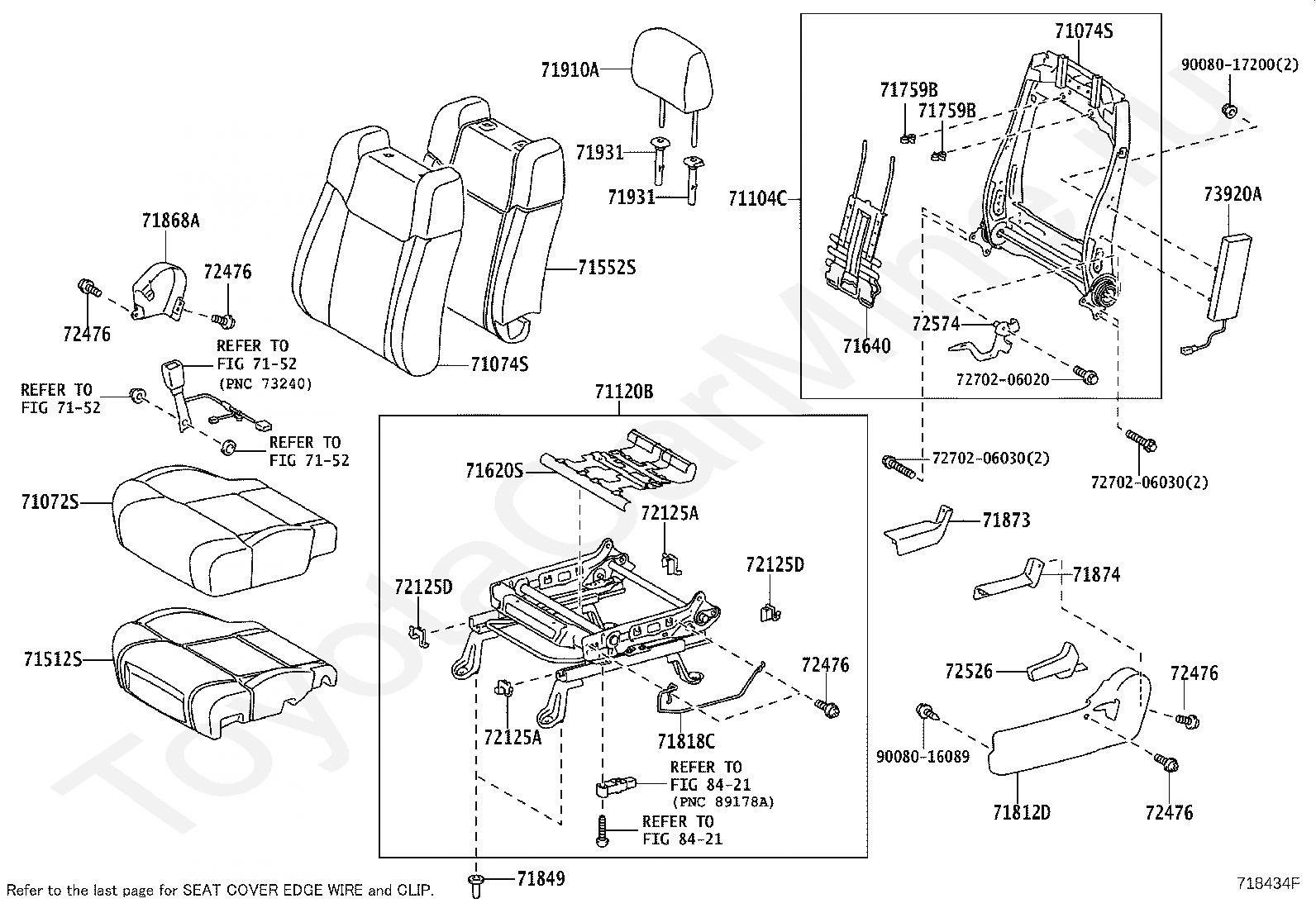

Кресла TOYOTA TUNDRA

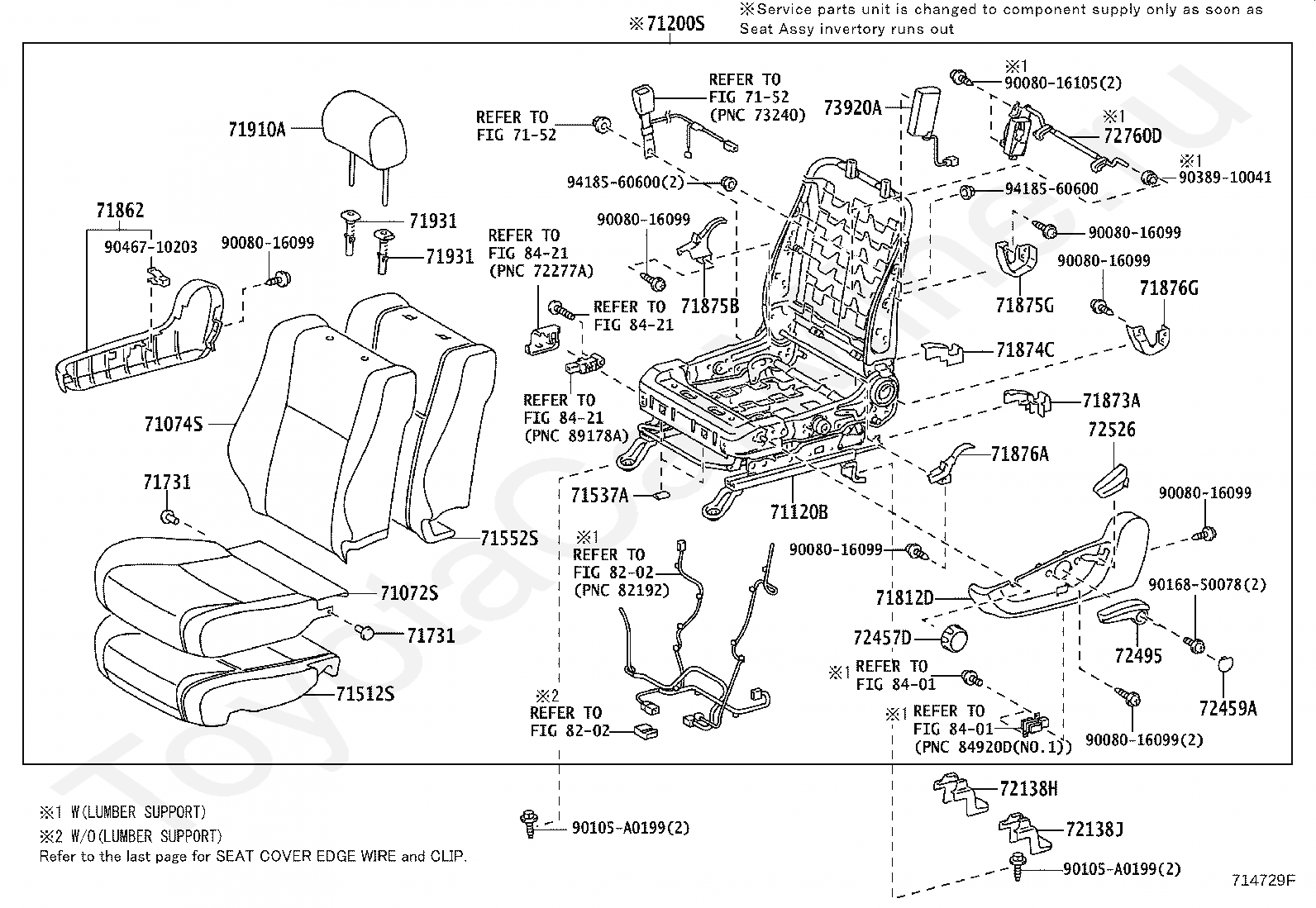

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72457D

KNOB, VERTICAL SEAT ADJUSTER, LH

72459A

CAP, VERTICAL SEAT ADJUSTER KNOB

72495

HANDLE, VERTICAL ADJUSTING, LH

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016105

Крепеж

90105A0199

Крепеж

90105A0199

Крепеж

9016850078

Крепеж

9038910041

Крепеж

9046710203

Крепеж

9418560600

Крепеж

9418560600

Крепеж

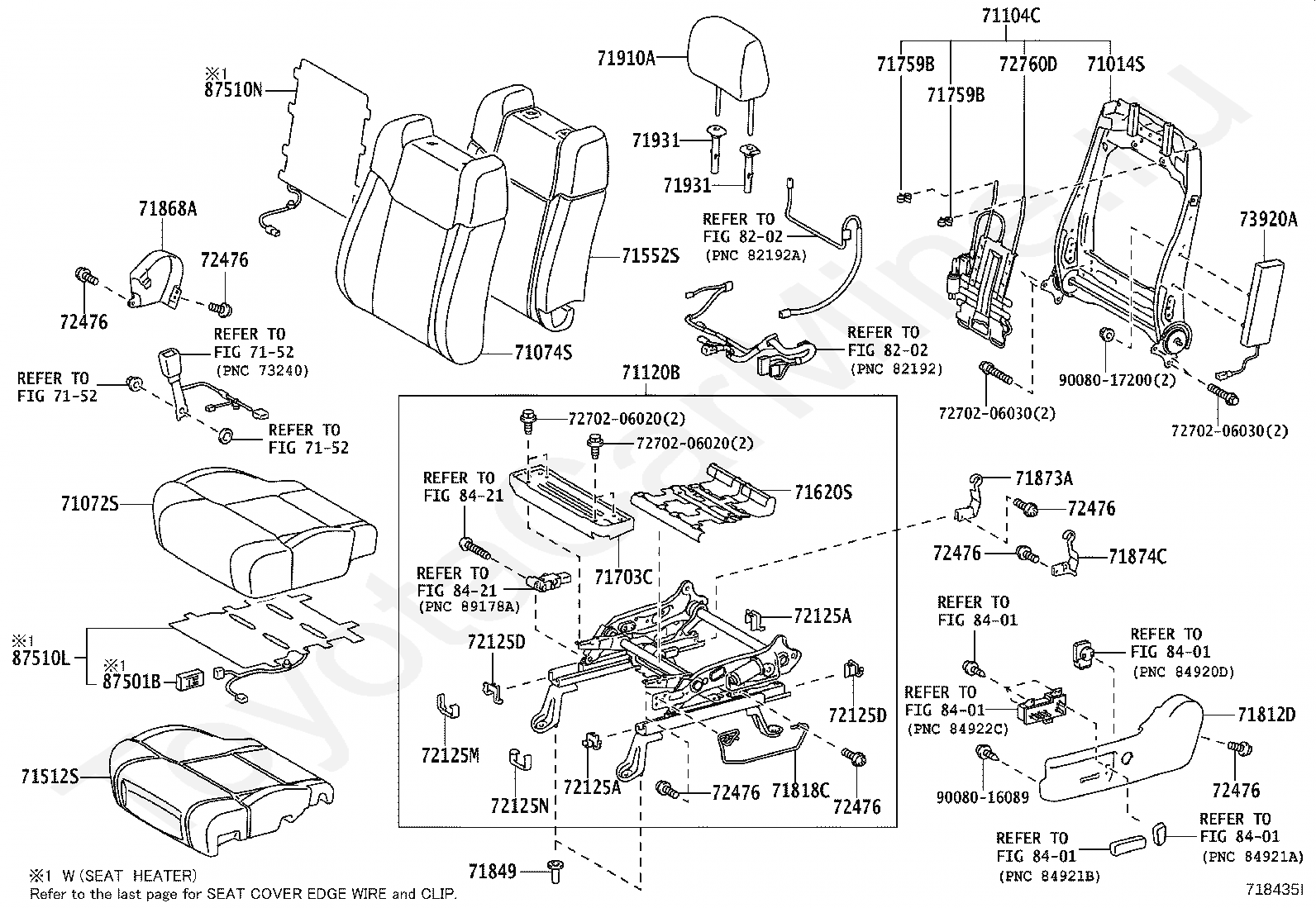

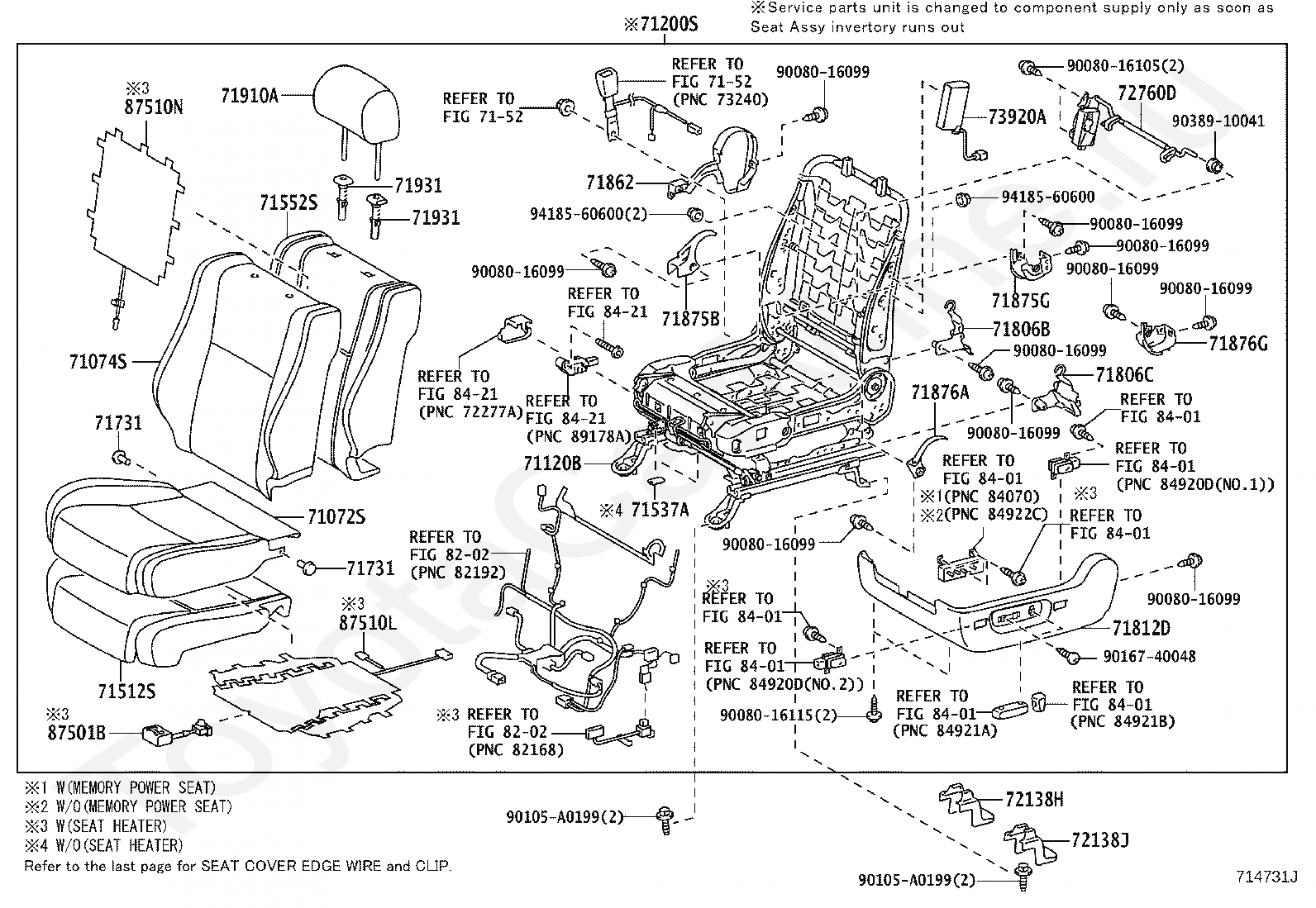

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71200S

SEAT ASSY, FRONT LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71806B

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.1

71806C

SHIELD SUB-ASSY, FRONT SEAT CUSHION, LH NO.2

71812D

SHIELD, FRONT SEAT CUSHION, LH

71862

SHIELD, FRONT SEAT CUSHION, INNER LH

71875B

COVER, RECLINING ADJUSTER INSIDE, RH

71875G

COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

71876A

COVER, RECLINING ADJUSTER INSIDE, LH

71876G

COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72138H

COVER, FRONT SEAT TRACK, LH REAR INNER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016105

Крепеж

9008016115

Крепеж

90105A0199

Крепеж

90105A0199

Крепеж

9016740048

Крепеж

9038910041

Крепеж

9418560600

Крепеж

9418560600

Крепеж

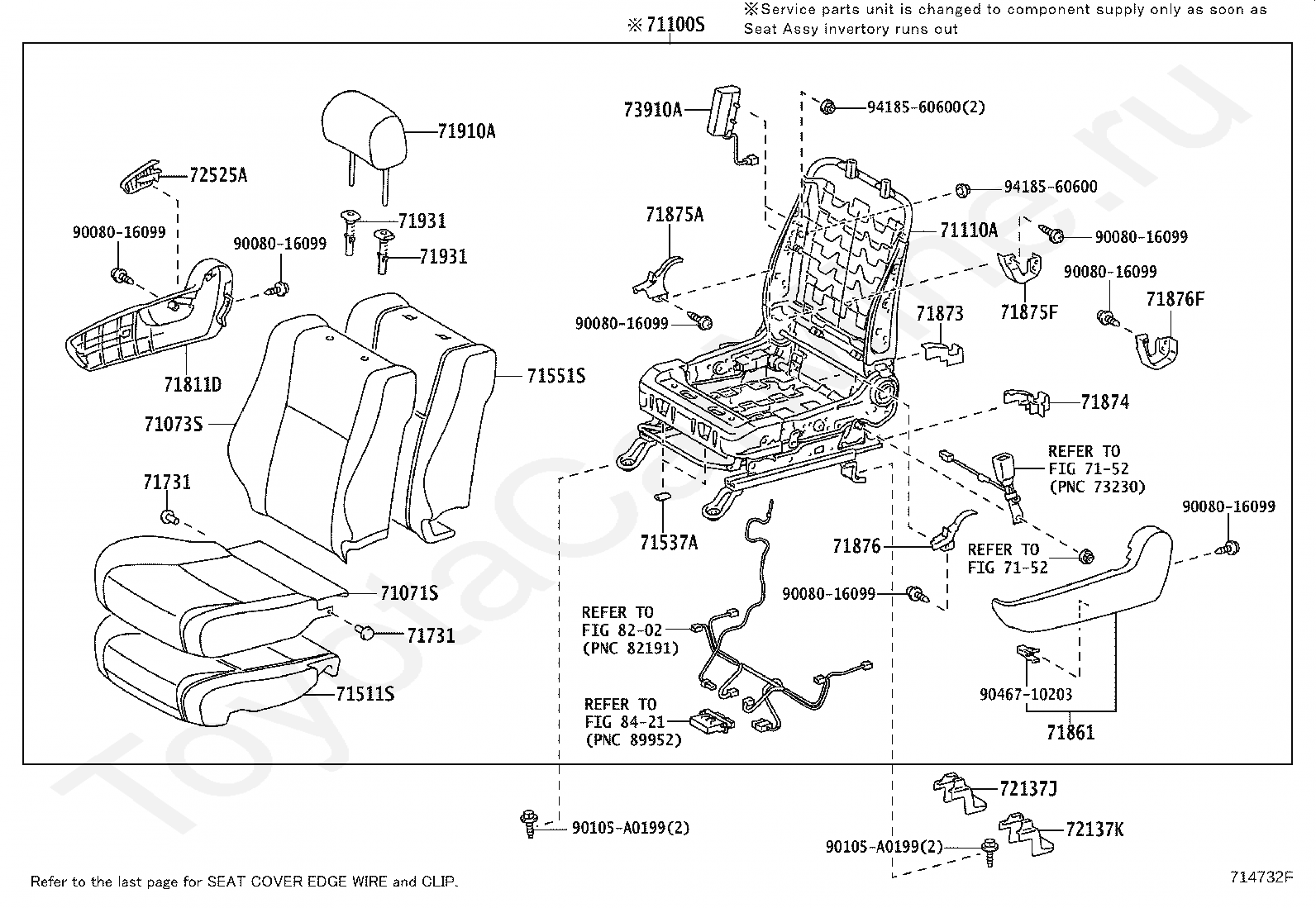

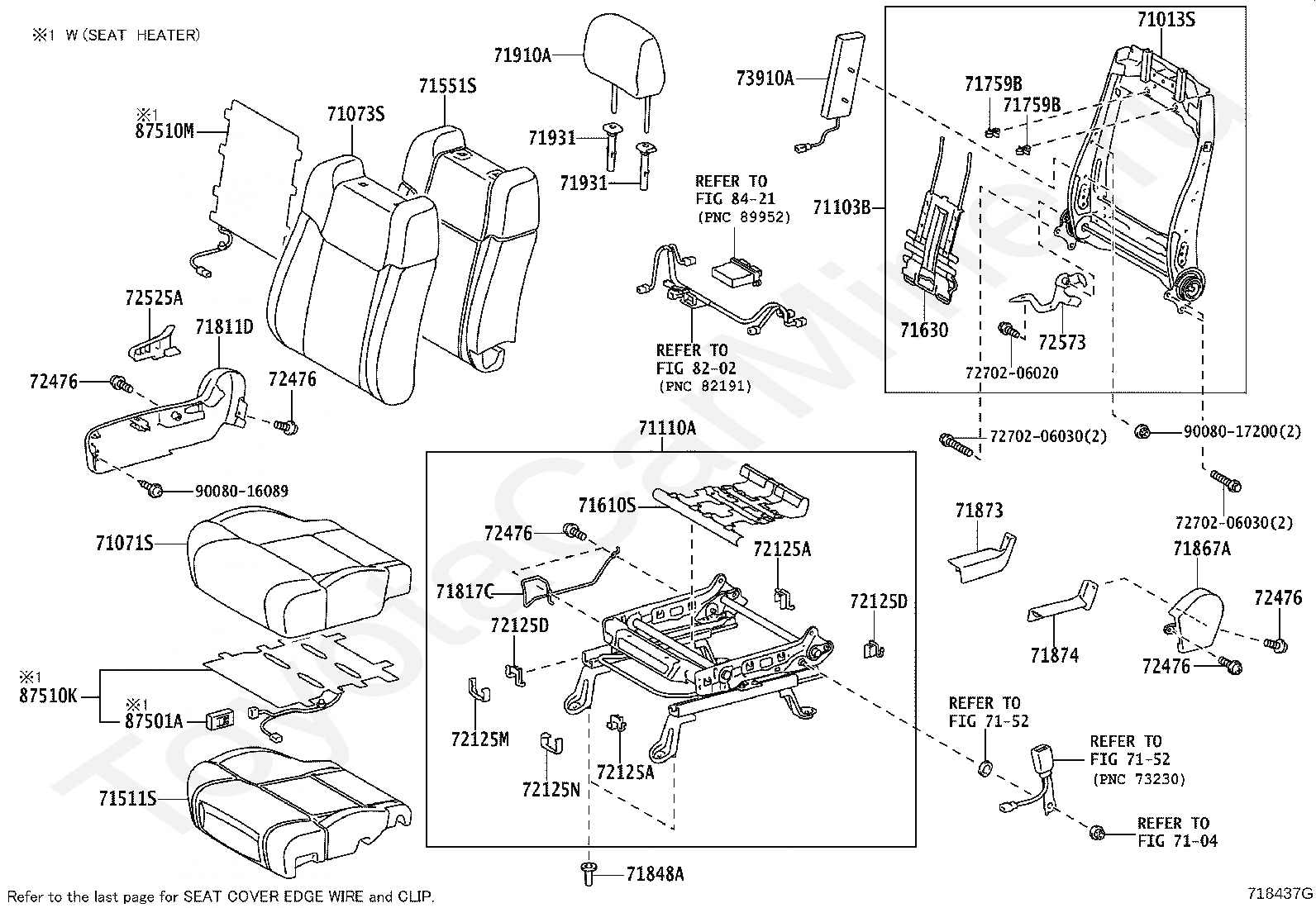

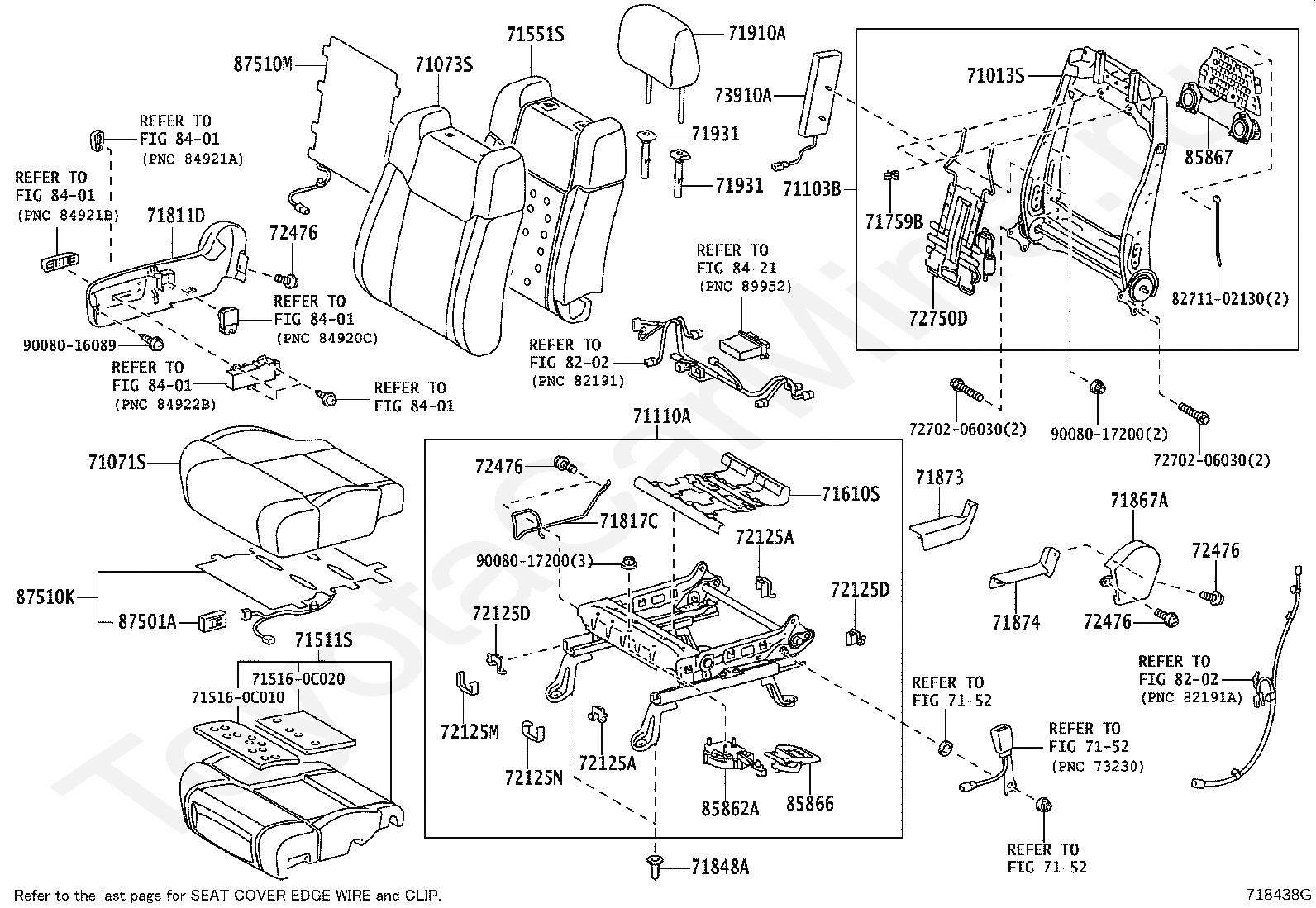

Код

Описание

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71100S

SEAT ASSY, FRONT RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71537A

PROTECTOR, FRONT SEAT CUSHION

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71731

FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT)

71811D

SHIELD, FRONT SEAT CUSHION, RH

71861

SHIELD, FRONT SEAT CUSHION, INNER RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71875A

COVER, RECLINING ADJUSTER INSIDE, RH

71875F

COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

71876

COVER, RECLINING ADJUSTER INSIDE, LH

71876F

COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72137K

COVER, FRONT SEAT TRACK, RH REAR INNER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8421

переход к группе запчастей

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

9008016099

Крепеж

90105A0199

Крепеж

90105A0199

Крепеж

9046710203

Крепеж

9418560600

Крепеж

9418560600

Крепеж

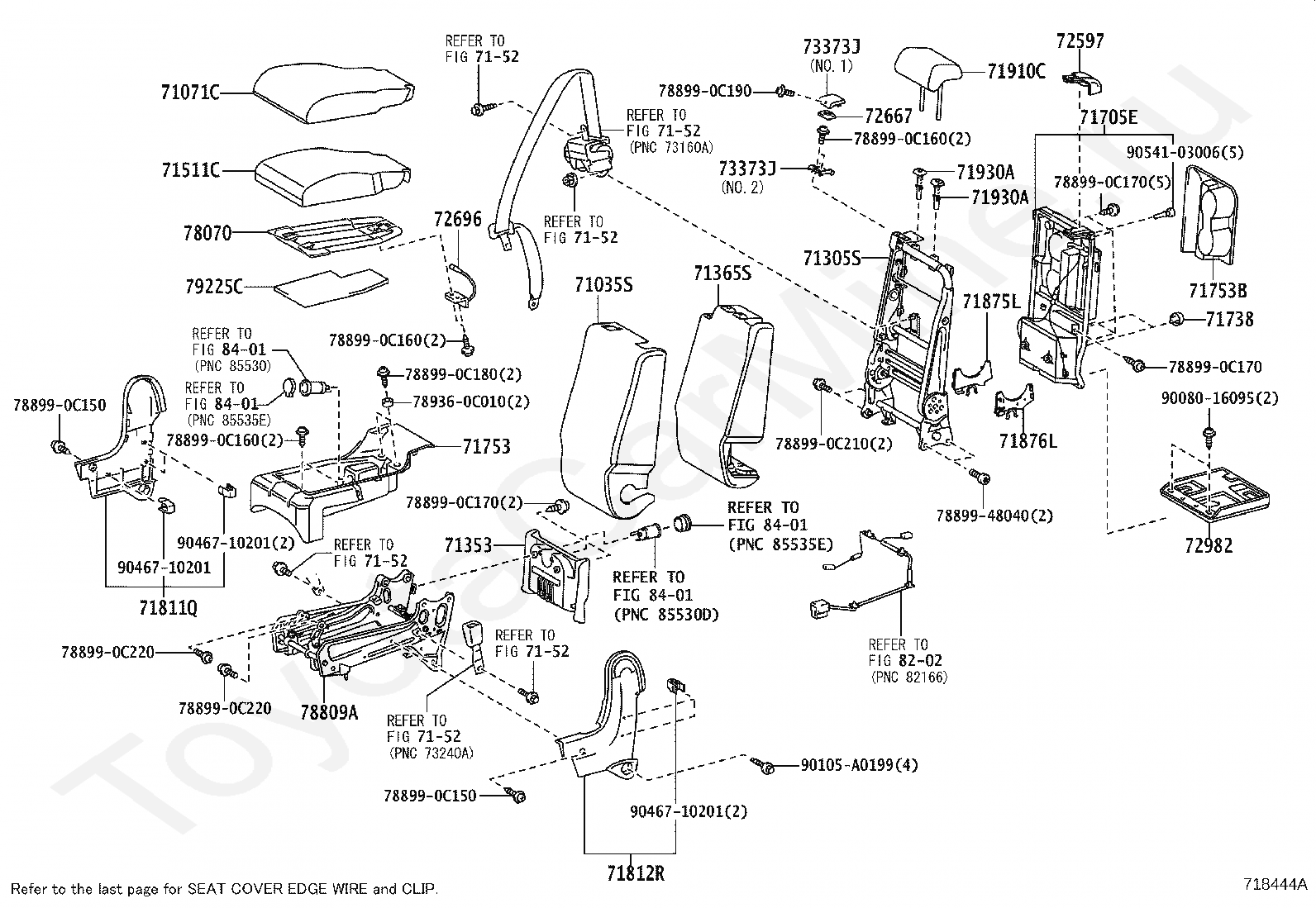

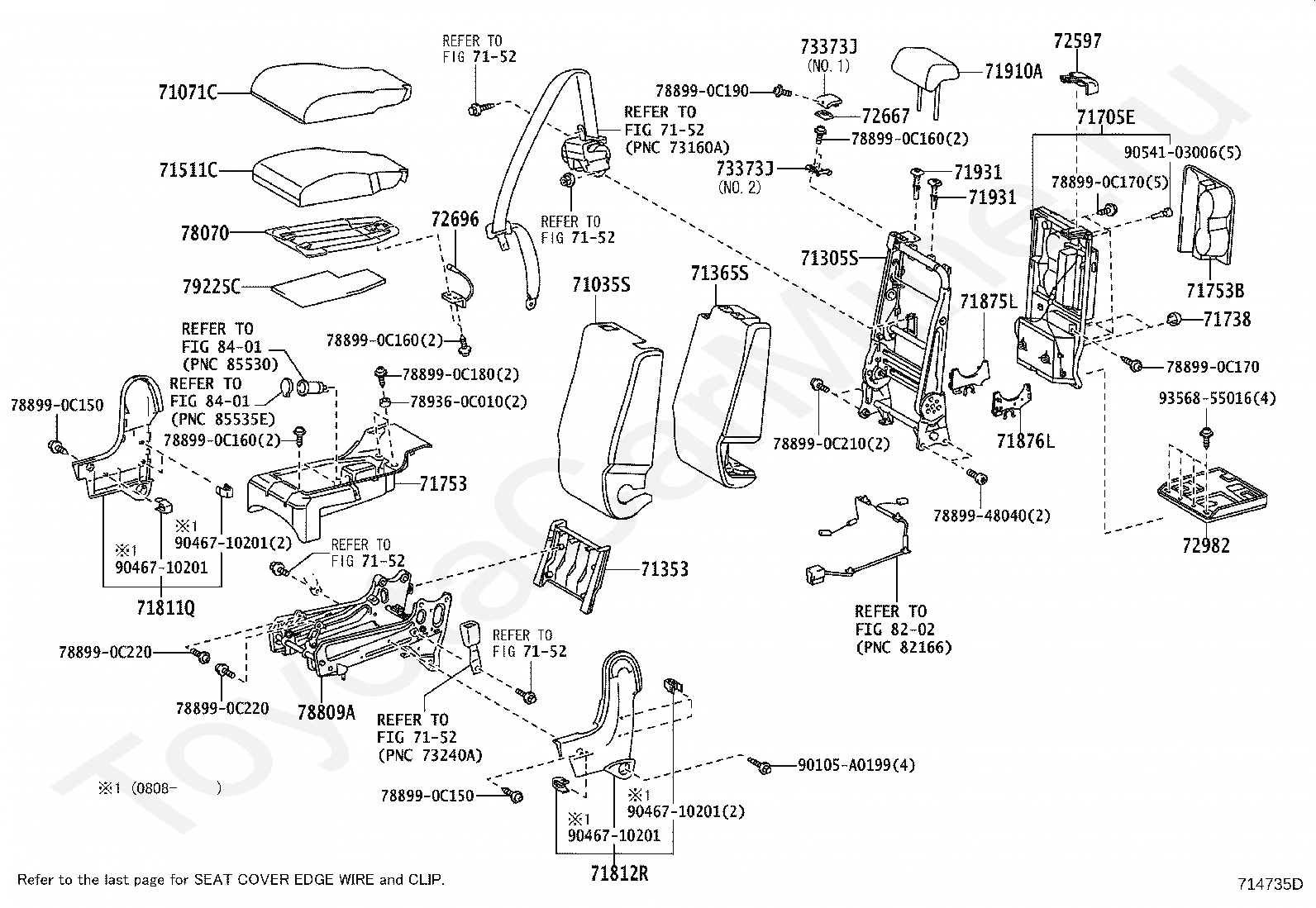

Код

Описание

71035S

COVER, FRONT SEAT BACK, CENTER

71071C

COVER, FRONT SEAT CUSHION, CENTER

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71353

PANEL, CENTER SEAT BACK

71365S

PAD, CENTER SEAT BACK

71511C

PAD, FRONT SEAT CUSHION, CENTER

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71705E

BOARD SUB-ASSY, FRONT SEAT BACK

71738

COVER, SEAT FASTENER

71753

TRAY, FRONT SEAT UNDER

71753B

TRAY, FRONT SEAT

71811Q

SHIELD, CENTER SEAT CUSHION, RH

71812R

SHIELD, CENTER SEAT CUSHION, LH

71875L

COVER, RECLINING ADJUSTER INSIDE, RH (FOR CENTER SEAT)

71876L

COVER, RECLINING ADJUSTER INSIDE, LH (FOR CENTER SEAT)

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72597

BEZEL, RECLINING REMOTE CONTROL

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72696

LATCH, REAR SEAT LOCK

72982

COVER, FRONT SEAT CENTER ARMREST

73373J

COVER, FRONT SEAT SHOULDER BELT

73373J

COVER, FRONT SEAT SHOULDER BELT

78070

FRAME ASSY, SUB SEAT

78809A

SUPPORT SUB-ASSY, CENTER SUB SEAT BRACKET

788990C150

Крепеж

788990C150

Крепеж

788990C160

Крепеж

788990C160

Крепеж

788990C160

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C180

Крепеж

788990C190

Крепеж

788990C210

Крепеж

788990C220

Крепеж

788990C220

Крепеж

7889948040

Крепеж

789360C010

Крепеж

79225C

CARPET, CENTER SEAT CUSHION

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

90105A0199

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9054103006

Крепеж

9356855016

Крепеж

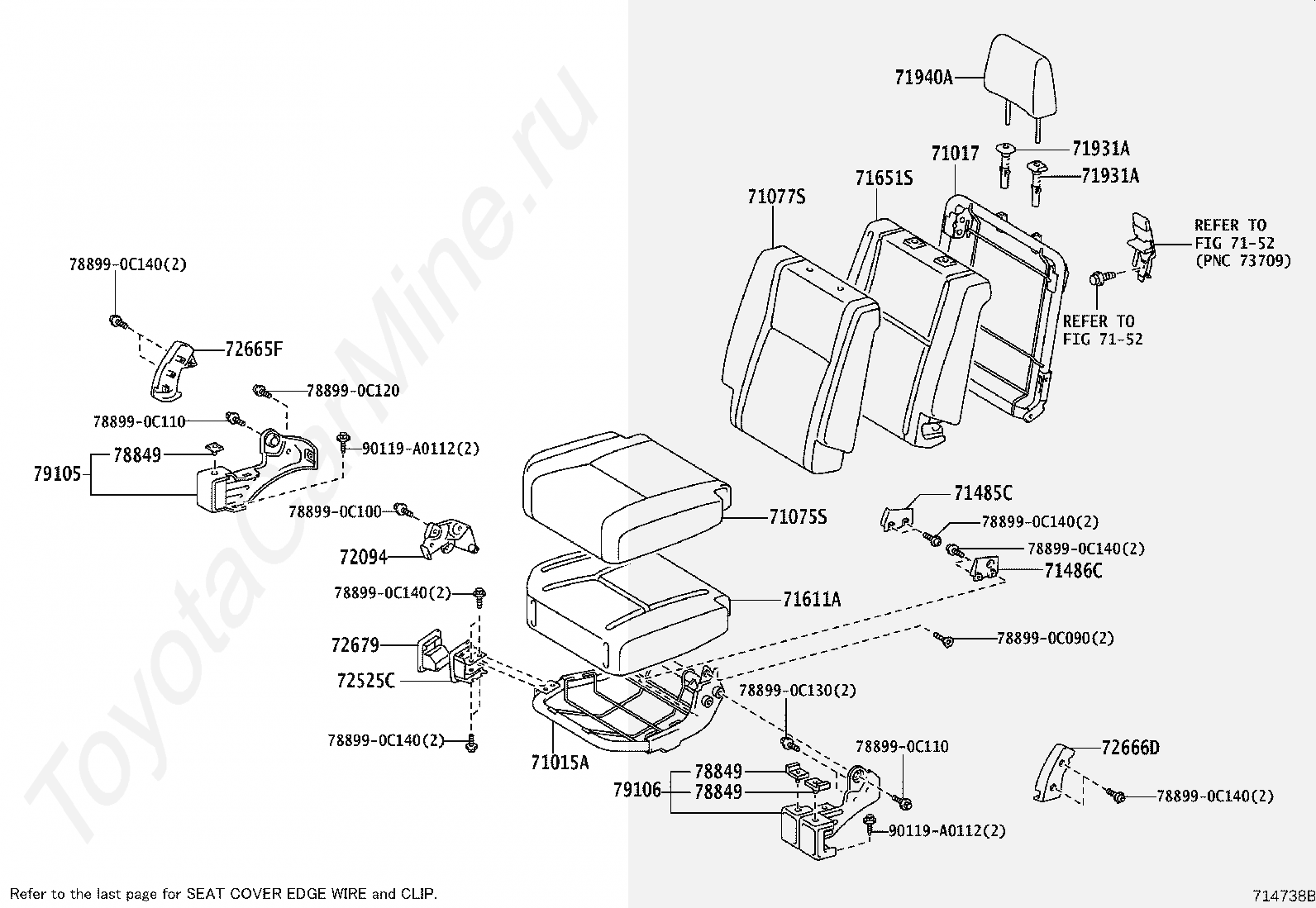

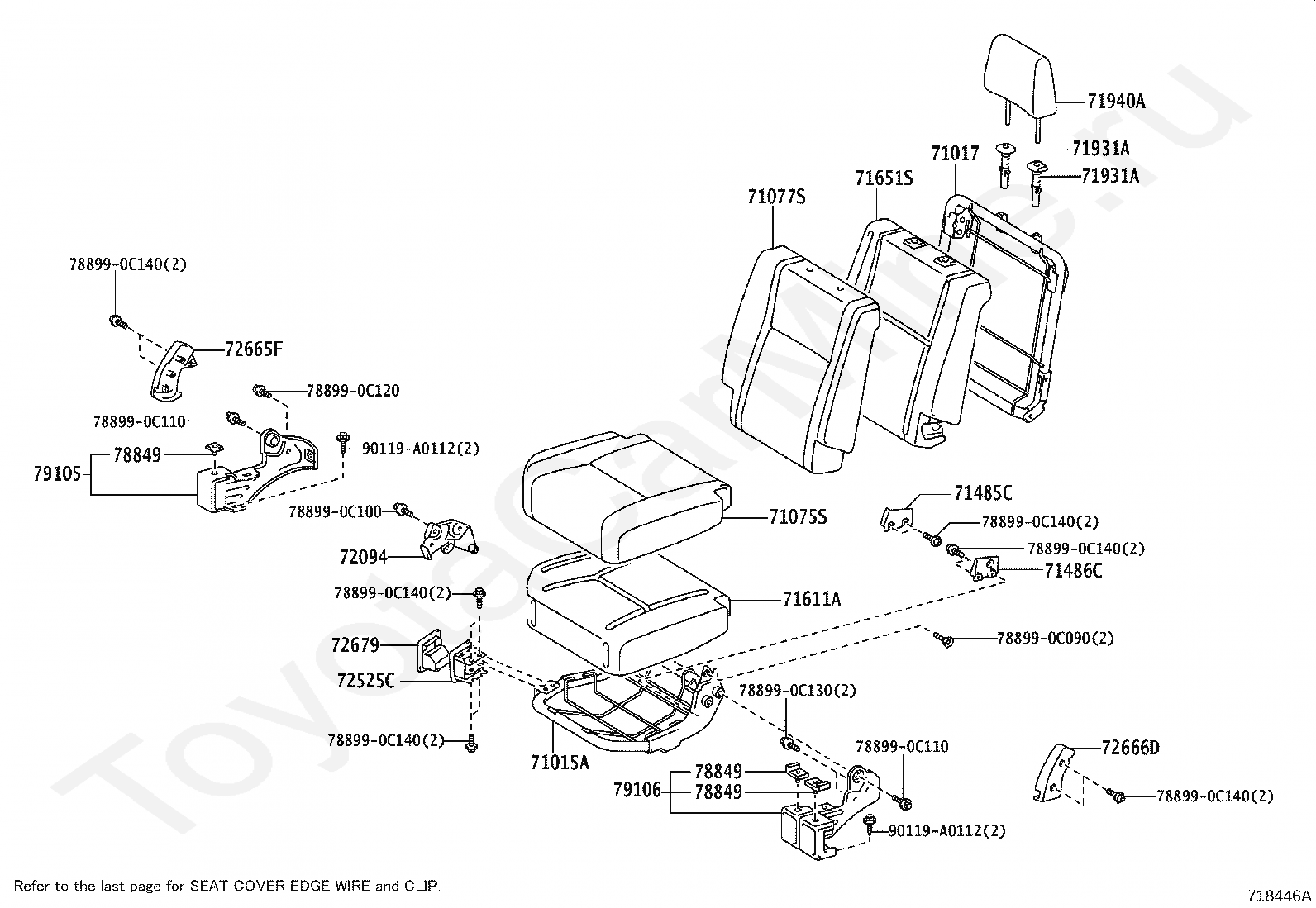

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

71611A

PAD, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72094

LOCK SUB-ASSY, REAR SEAT TURN

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

72666D

COVER, REAR SEAT LOCK, LH(FOR RH SEAT)

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

78849

BUMPER, SUB SEAT LEG

78849

BUMPER, SUB SEAT LEG

78849

BUMPER, SUB SEAT LEG

788990C090

Крепеж

788990C100

Крепеж

788990C110

Крепеж

788990C110

Крепеж

788990C120

Крепеж

788990C130

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

90119A0112

Крепеж

90119A0112

Крепеж

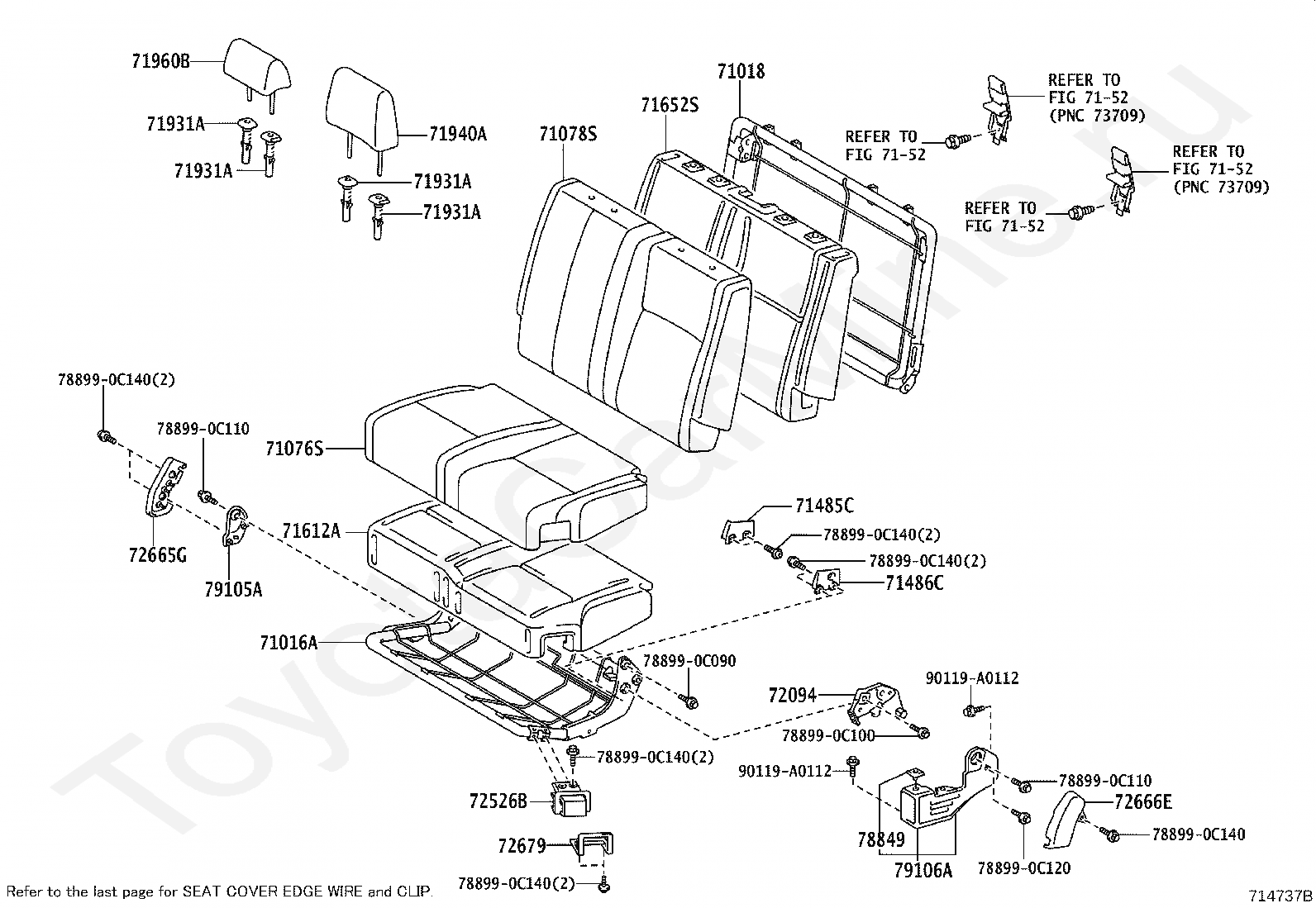

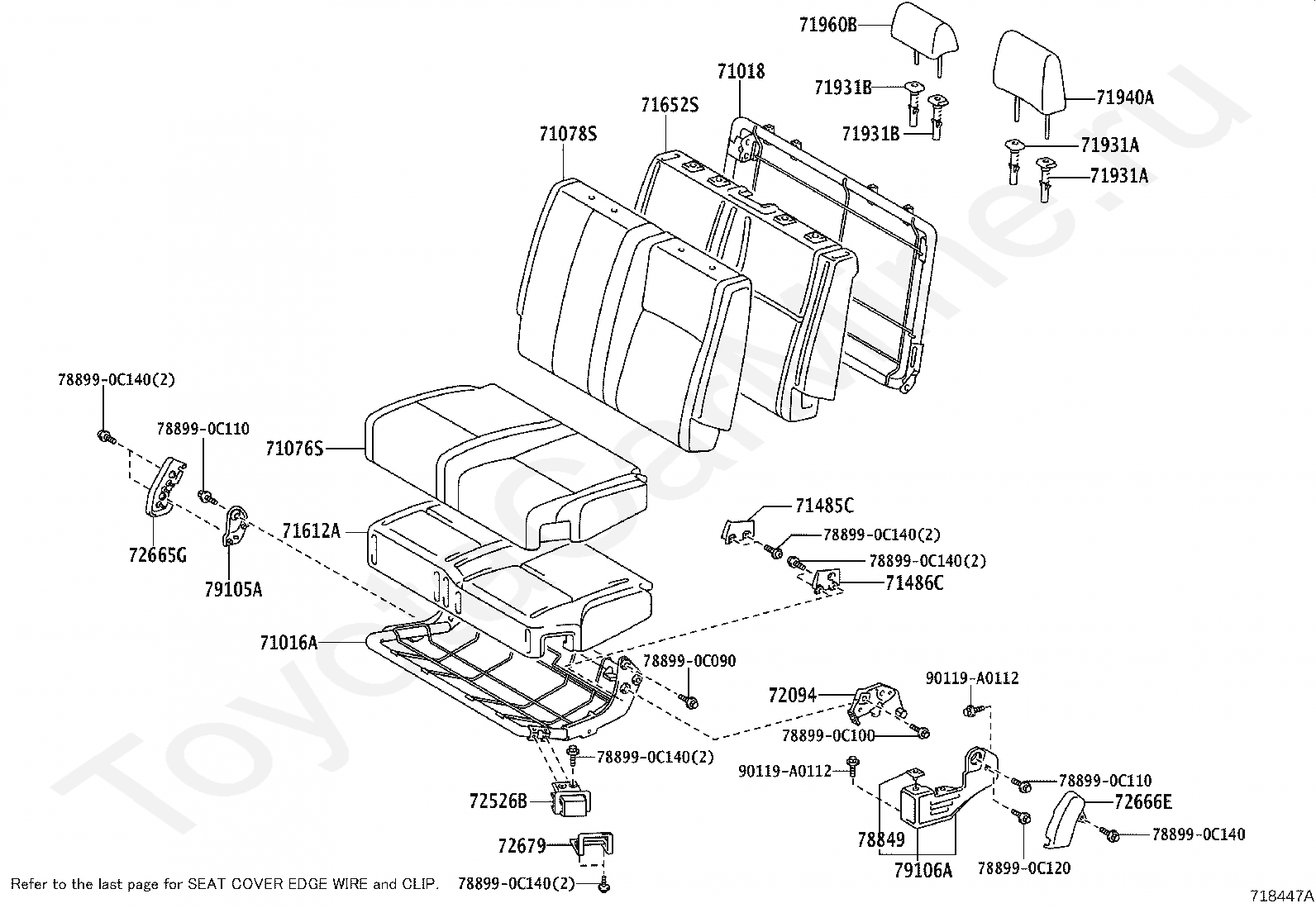

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71612A

PAD, REAR SEAT CUSHION, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72094

LOCK SUB-ASSY, REAR SEAT TURN

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

78849

BUMPER, SUB SEAT LEG

788990C090

Крепеж

788990C100

Крепеж

788990C110

Крепеж

788990C110

Крепеж

788990C120

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

79105A

LEG SUB-ASSY, NO.1 SEAT

79106A

LEG SUB ASSY, SEAT, LH

90119A0112

Крепеж

90119A0112

Крепеж

Код

Описание

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71104C

FRAME SUB-ASSY, FRONT SEAT BACK MAIN, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71640

SPRING ASSY, FRONT SEAT BACK, LH

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71818C

WIRE, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72526

HANDLE, RECLINING ADJUSTER RELEASE, LH

72574

LEVER, RECLINING CONTROL, LH

7270206020

Крепеж

7270206030

Крепеж

7270206030

Крепеж

73920A

AIR BAG ASSY, FRONT SEAT, LH

8421

переход к группе запчастей

8421

переход к группе запчастей

9008016089

Крепеж

9008017200

Крепеж

Код

Описание

71014S

FRAME SUB-ASSY, FRONT SEAT BACK, LH

71072S

COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71074S

COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71104C

FRAME SUB-ASSY, FRONT SEAT BACK MAIN, LH

71120B

FRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71512S

PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71552S

PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)

71620S

SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71703C

PANEL SUB-ASSY, FRONT SEAT CUSHION

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71812D

SHIELD, FRONT SEAT CUSHION, LH

71818C

WIRE, FRONT SEAT CUSHION SHIELD, LH

71849

CAP, SEAT ADJUSTER COVER, LH

71868A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH

71873A

SHIELD, FRONT SEAT CUSHION, LOWER

71874C

SHIELD, FRONT SEAT CUSHION, LOWER

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125M

COVER, SEAT TRACK, UPPER NO.3

72125N

COVER, SEAT TRACK, UPPER NO.4

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

7270206020

Крепеж

7270206020

Крепеж

7270206030

Крепеж

7270206030

Крепеж

72760D

ADJUSTER ASSY, LUMBAR SUPPORT, LH

73920A

AIR BAG ASSY, FRONT SEAT, LH

8202

переход к группе запчастей

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

8421

переход к группе запчастей

87501B

CONTROL SUB-ASSY, SEAT HEATER, LH

87510L

HEATER ASSY, FRONT SEAT CUSHION, LH

87510N

HEATER ASSY, FRONT SEAT BACK, LH

9008016089

Крепеж

9008017200

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

7104

переход к группе запчастей

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71103B

FRAME SUB-ASSY, FRONT SEAT BACK MAIN, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71630

SPRING ASSY, FRONT SEAT BACK, RH

71759B

HOOK, FRONT SEAT BACK

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71817C

WIRE, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125M

COVER, SEAT TRACK, UPPER NO.3

72125N

COVER, SEAT TRACK, UPPER NO.4

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72525A

HANDLE, RECLINING ADJUSTER RELEASE, RH

72573

LEVER, RECLINING CONTROL, RH

7270206020

Крепеж

7270206030

Крепеж

7270206030

Крепеж

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8421

переход к группе запчастей

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9008016089

Крепеж

9008017200

Крепеж

Код

Описание

71013S

FRAME SUB-ASSY, FRONT SEAT BACK, RH

71071S

COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71073S

COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71103B

FRAME SUB-ASSY, FRONT SEAT BACK MAIN, RH

71110A

FRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71511S

PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

715160C010

Крепеж

715160C020

Крепеж

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71551S

PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)

71610S

SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71759B

HOOK, FRONT SEAT BACK

71811D

SHIELD, FRONT SEAT CUSHION, RH

71817C

WIRE, FRONT SEAT CUSHION SHIELD, RH

71848A

CAP, SEAT ADJUSTER COVER, RH

71867A

SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH

71873

SHIELD, FRONT SEAT CUSHION, LOWER RH

71874

SHIELD, FRONT SEAT CUSHION, LOWER LH

71910A

HEADREST ASSY, FRONT SEAT

71931

SUPPORT, FRONT SEAT HEADREST

71931

SUPPORT, FRONT SEAT HEADREST

72125A

COVER, SEAT TRACK, UPPER REAR

72125A

COVER, SEAT TRACK, UPPER REAR

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125D

COVER, SEAT TRACK, UPPER REAR NO.2

72125M

COVER, SEAT TRACK, UPPER NO.3

72125N

COVER, SEAT TRACK, UPPER NO.4

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

72476

SCREW, HORIZONTAL JACK, INNER

7270206030

Крепеж

7270206030

Крепеж

72750D

ADJUSTER ASSY, LUMBAR SUPPORT, RH

73910A

AIR BAG ASSY, FRONT SEAT, RH

8202

переход к группе запчастей

8202

переход к группе запчастей

8271102130

Крепеж

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8421

переход к группе запчастей

85862A

BLOWER, REAR SEAT CLIMATE CONTROL, RH

85866

DUCT, SEAT CUSHION CLIMATE CONTROL, RH

85867

BLOWER, SEAT BACK CLIMATE CONTROL, RH

87501A

CONTROL SUB-ASSY, SEAT HEATER, RH

87510K

HEATER ASSY, FRONT SEAT CUSHION, RH

87510M

HEATER ASSY, FRONT SEAT BACK, RH

9008016089

Крепеж

9008017200

Крепеж

9008017200

Крепеж

Код

Описание

71035S

COVER, FRONT SEAT BACK, CENTER

71071C

COVER, FRONT SEAT CUSHION, CENTER

71305S

FRAME SUB-ASSY, CENTER SEAT BACK

71353

PANEL, CENTER SEAT BACK

71365S

PAD, CENTER SEAT BACK

71511C

PAD, FRONT SEAT CUSHION, CENTER

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

7152

переход к группе запчастей

71705E

BOARD SUB-ASSY, FRONT SEAT BACK

71738

COVER, SEAT FASTENER

71753

TRAY, FRONT SEAT UNDER

71753B

TRAY, FRONT SEAT

71811Q

SHIELD, CENTER SEAT CUSHION, RH

71812R

SHIELD, CENTER SEAT CUSHION, LH

71875L

COVER, RECLINING ADJUSTER INSIDE, RH (FOR CENTER SEAT)

71876L

COVER, RECLINING ADJUSTER INSIDE, LH (FOR CENTER SEAT)

71910C

HEADREST ASSY, FRONT SEAT

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

71930A

SUPPORT ASSY, FRONT SEAT HEADREST

72597

BEZEL, RECLINING REMOTE CONTROL

72667

BEZEL, REAR SEAT BACK LOCK, UPPER

72696

LATCH, REAR SEAT LOCK

72982

COVER, FRONT SEAT CENTER ARMREST

73373J

COVER, FRONT SEAT SHOULDER BELT

73373J

COVER, FRONT SEAT SHOULDER BELT

78070

FRAME ASSY, SUB SEAT

78809A

SUPPORT SUB-ASSY, CENTER SUB SEAT BRACKET

788990C150

Крепеж

788990C150

Крепеж

788990C160

Крепеж

788990C160

Крепеж

788990C160

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C170

Крепеж

788990C180

Крепеж

788990C190

Крепеж

788990C210

Крепеж

788990C220

Крепеж

788990C220

Крепеж

7889948040

Крепеж

789360C010

Крепеж

79225C

CARPET, CENTER SEAT CUSHION

8202

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

8401

переход к группе запчастей

9008016095

Крепеж

90105A0199

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9046710201

Крепеж

9054103006

Крепеж

Код

Описание

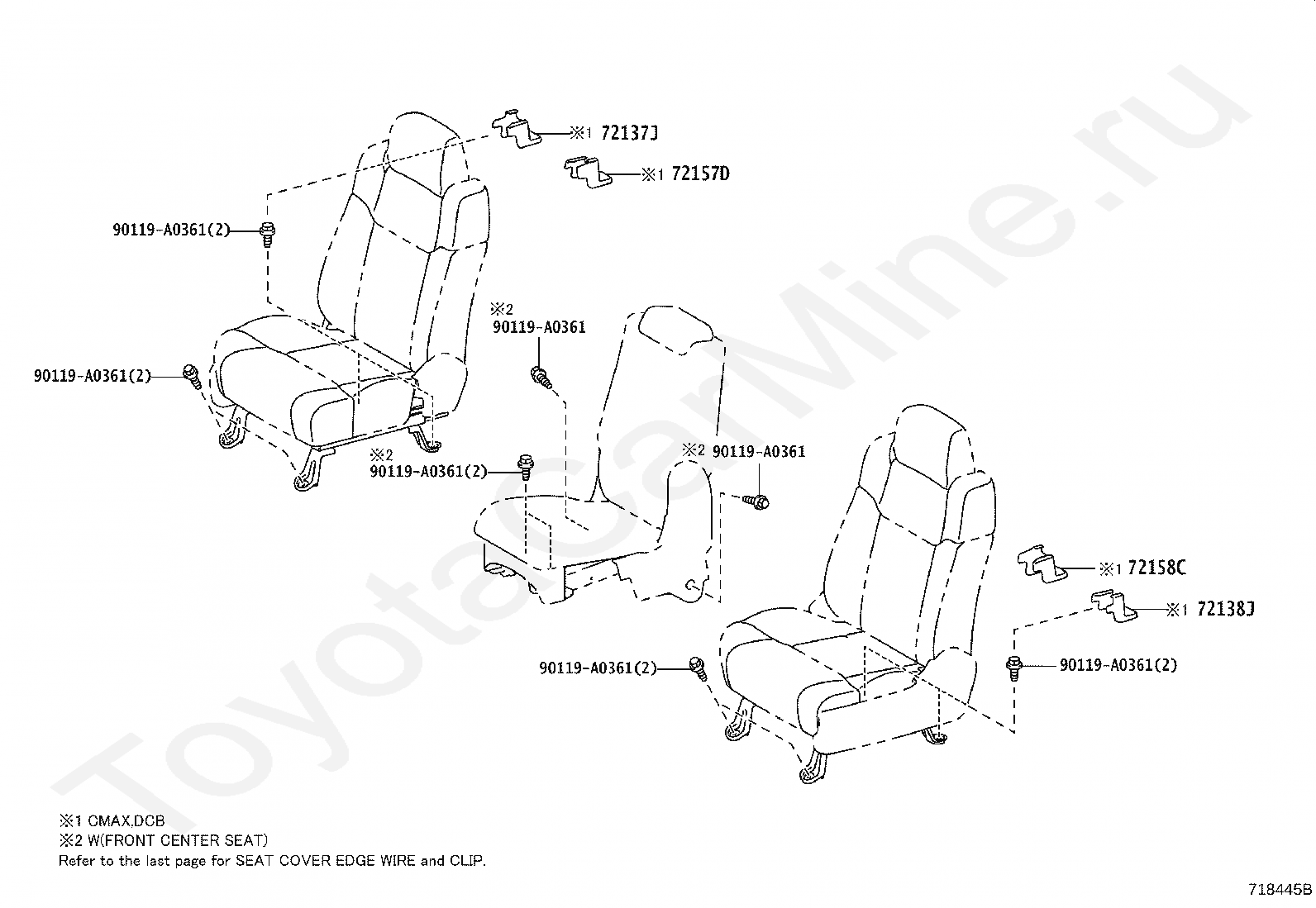

72137J

COVER, FRONT SEAT TRACK, RH REAR OUTER

72138J

COVER, FRONT SEAT TRACK, LH REAR OUTER

72157D

COVER, SEAT TRACK BRACKER, INNER RH

72158C

COVER, SEAT TRACK BRACKET, INNER LH

90119A0361

Крепеж

90119A0361

Крепеж

90119A0361

Крепеж

90119A0361

Крепеж

90119A0361

Крепеж

90119A0361

Крепеж

90119A0361

Крепеж

Код

Описание

71015A

FRAME SUB-ASSY, REAR SEAT CUSHION, RH

71017

FRAME SUB-ASSY, REAR SEAT BACK, RH

71075S

COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

71077S

COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

71611A

PAD, REAR SEAT CUSHION, RH

71651S

PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

72094

LOCK SUB-ASSY, REAR SEAT TURN

72525C

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

72665F

COVER, REAR SEAT LOCK, RH(FOR RH SEAT)

72666D

COVER, REAR SEAT LOCK, LH(FOR RH SEAT)

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

78849

BUMPER, SUB SEAT LEG

78849

BUMPER, SUB SEAT LEG

78849

BUMPER, SUB SEAT LEG

788990C090

Крепеж

788990C100

Крепеж

788990C110

Крепеж

788990C110

Крепеж

788990C120

Крепеж

788990C130

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

79105

LEG SUB-ASSY, NO.1 SEAT, RH

79106

LEG SUB ASSY, NO.1 SEAT, LH

90119A0112

Крепеж

90119A0112

Крепеж

Код

Описание

71016A

FRAME SUB-ASSY, REAR SEAT CUSHION, LH

71018

FRAME SUB-ASSY, REAR SEAT BACK, LH

71076S

COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)

71078S

COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71485C

COVER, REAR SEAT HINGE, RH

71486C

COVER, REAR SEAT HINGE, LH

71612A

PAD, REAR SEAT CUSHION, LH

71652S

PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)

71931A

SUPPORT, REAR SEAT HEADREST

71931A

SUPPORT, REAR SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71931B

SUPPORT ASSY, REAR NO.1 SEAT HEADREST

71940A

HEADREST ASSY, REAR SEAT

71960B

HEADREST ASSY, REAR SEAT, CENTER

72094

LOCK SUB-ASSY, REAR SEAT TURN

72526B

HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

72665G

COVER, REAR SEAT LOCK, RH(FOR LH SEAT)

72666E

COVER, REAR SEAT LOCK, LH(FOR LH SEAT)

72679

BEZEL, REAR SEAT BACK LOCK CONTROL

78849

BUMPER, SUB SEAT LEG

788990C090

Крепеж

788990C100

Крепеж

788990C110

Крепеж

788990C110

Крепеж

788990C120

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

788990C140

Крепеж

79105A

LEG SUB-ASSY, NO.1 SEAT

79106A

LEG SUB ASSY, SEAT, LH

90119A0112

Крепеж

90119A0112

Крепеж

Код

Описание

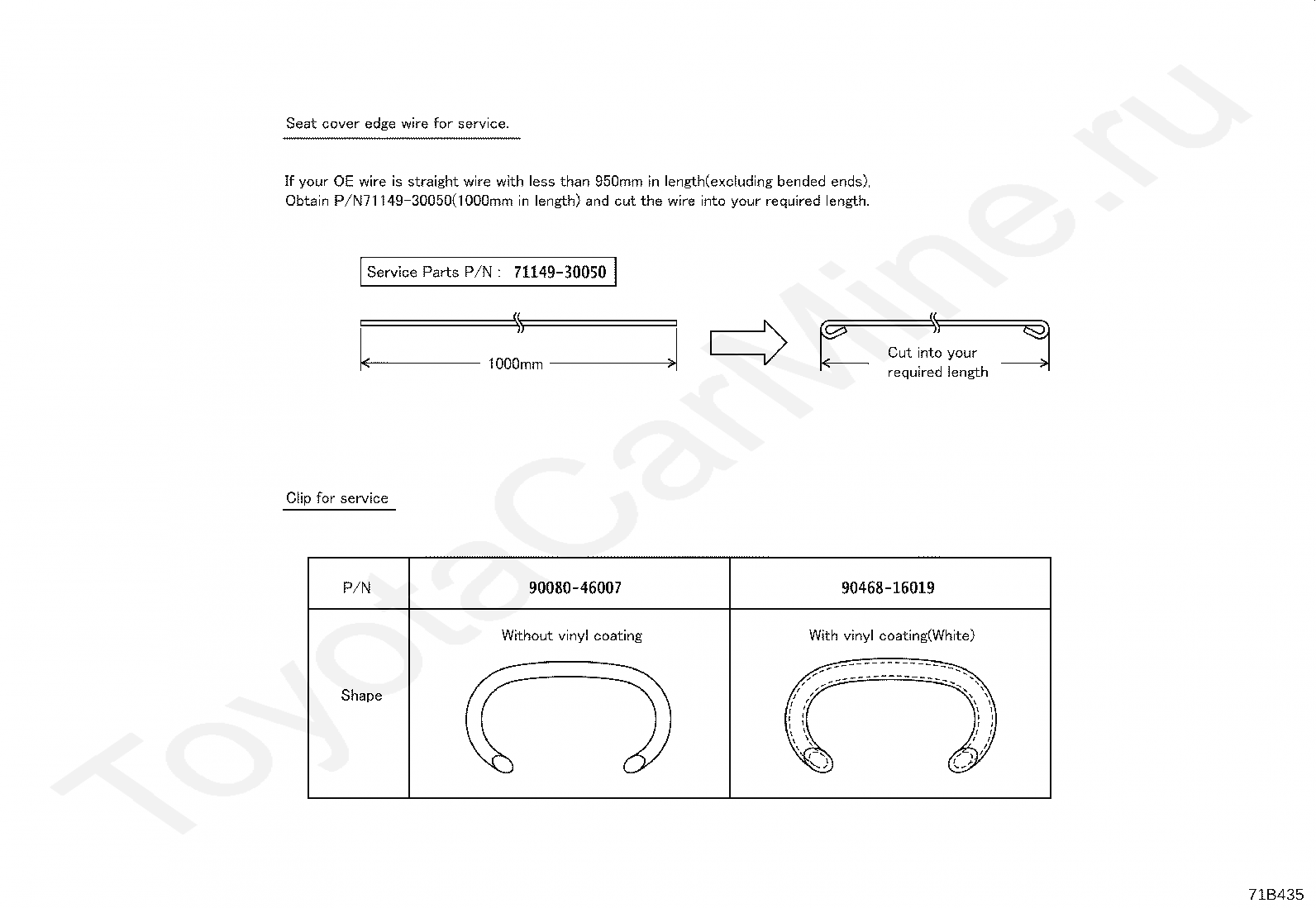

7114930050

Крепеж

9008046007

Крепеж

9046816019

Крепеж

> Запчасти TUNDRA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
