Америка

Модель

TUNDRA

VIN

Дата

2009/04

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

КПП

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

ROOF PANEL & BACK PANEL TOYOTA TUNDRA

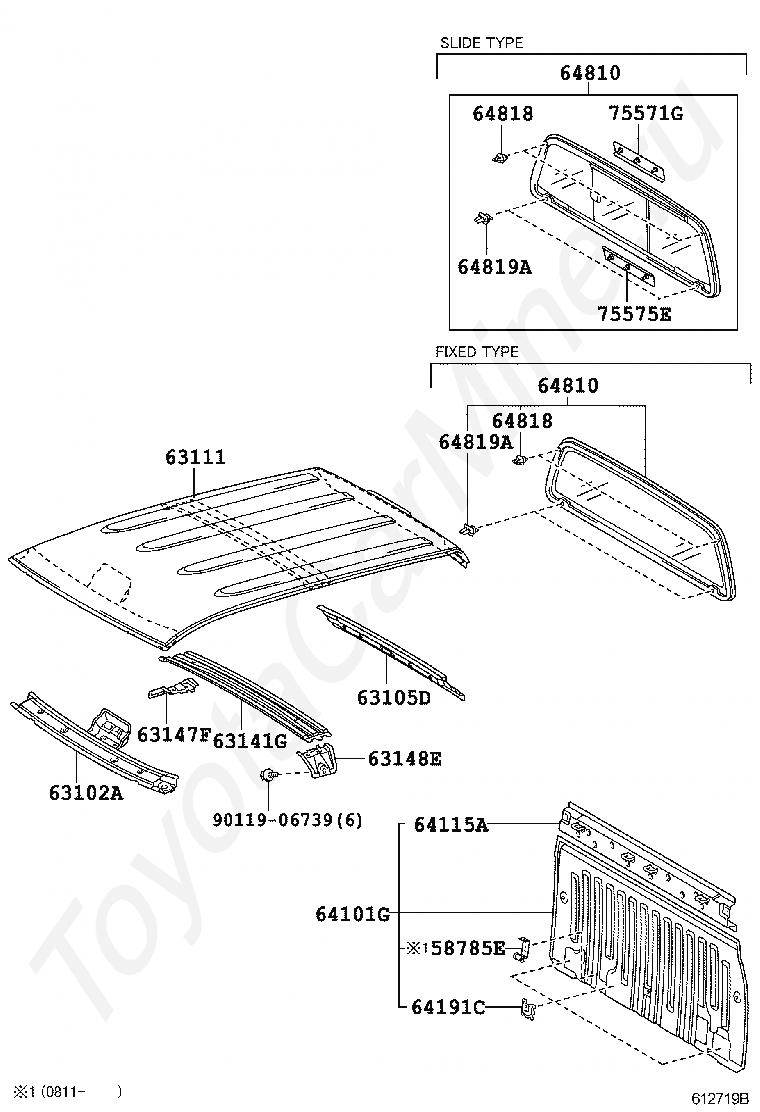

Код

Описание

58785E

BRACKET, TOOL BAG BAND

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105D

FRAME SUB-ASSY, BACK WINDOW, UPPER

63111

PANEL, ROOF

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63147F

BRACKET, ROOF PANEL REINFORCEMENT, RH

63148E

BRACKET, ROOF PANEL REINFORCEMENT, LH

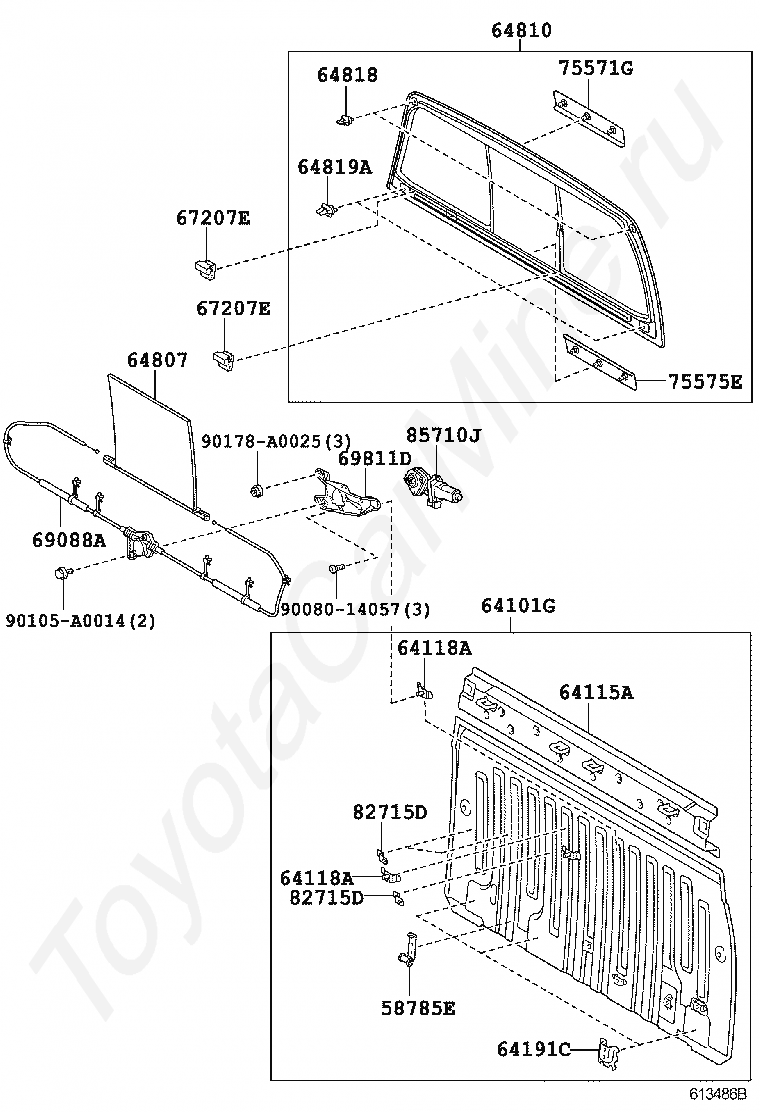

64101G

PANEL SUB-ASSY, BACK

64115A

REINFORCEMENT, BACK, UPPER

64191C

BRACKET, REAR SEAT BELT ANCHORAGE, RH

64810

WINDOW ASSY, BACK

64810

WINDOW ASSY, BACK

64818

SPACER, BACK WINDOW GLASS

64818

SPACER, BACK WINDOW GLASS

64819A

SPACER, BACK WINDOW GLASS, NO.2

64819A

SPACER, BACK WINDOW GLASS, NO.2

75571G

MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

75575E

MOULDING, BACK WINDOW, OUTSIDE LOWER

9011906739

Крепеж

Код

Описание

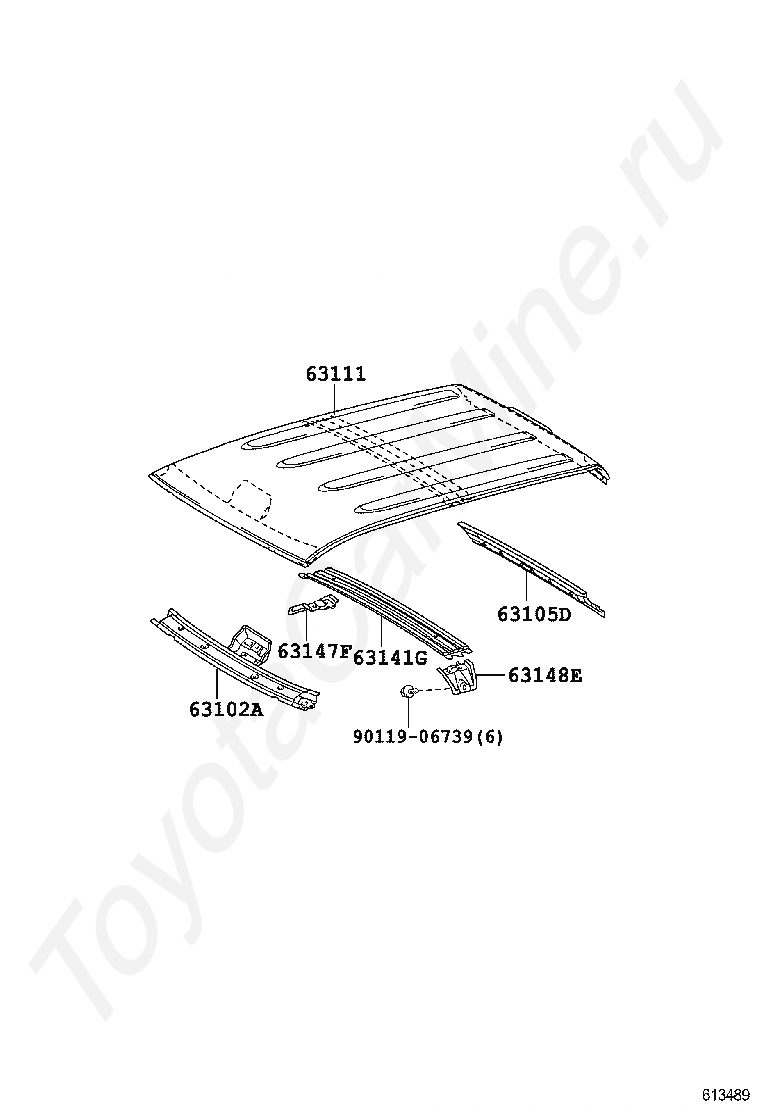

63102A

PANEL SUB-ASSY, WINDSHIELD HEADER

63105D

FRAME SUB-ASSY, BACK WINDOW, UPPER

63111

PANEL, ROOF

63141G

REINFORCEMENT, ROOF PANEL, NO.1

63147F

BRACKET, ROOF PANEL REINFORCEMENT, RH

63148E

BRACKET, ROOF PANEL REINFORCEMENT, LH

9011906739

Крепеж

Код

Описание

58785E

BRACKET, TOOL BAG BAND

64101G

PANEL SUB-ASSY, BACK

64115A

REINFORCEMENT, BACK, UPPER

64118A

REINFORCEMENT, UPPER BACK, NO.4 RH

64118A

REINFORCEMENT, UPPER BACK, NO.4 RH

64191C

BRACKET, REAR SEAT BELT ANCHORAGE, RH

64807

GLASS SUB-ASSY, BACK WINDOW SLIDE

64810

WINDOW ASSY, BACK

64818

SPACER, BACK WINDOW GLASS

64819A

SPACER, BACK WINDOW GLASS, NO.2

67207E

STOPPER SUB-ASSY, BACK DOOR

67207E

STOPPER SUB-ASSY, BACK DOOR

69088A

CABLE SUB-ASSY, DOOR WINDOW REGULATOR

69811D

PLATE, DOOR WINDOW REGULATOR BASE

75571G

MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

75575E

MOULDING, BACK WINDOW, OUTSIDE LOWER

82715D

BRACKET, WIRING HARNESS CLAMP

82715D

BRACKET, WIRING HARNESS CLAMP

85710J

MOTOR ASSY, POWER WINDOW REGULATOR

9008014057

Крепеж

90105A0014

Крепеж

90178A0025

Крепеж
