Америка

Модель

TUNDRA

VIN

Дата

2009/04

Двигатель

5,7 литра, 32 клапана, DOHC, EFI

Класс

SR-5 TYPE,GLX TYPE

Фрейм

USK56

КПП

АКПП, 6 скоростей

Опции

DOOR CONTROL BATTERY HIGH EFFICIENCY TWIN CAM S TYPE 456W

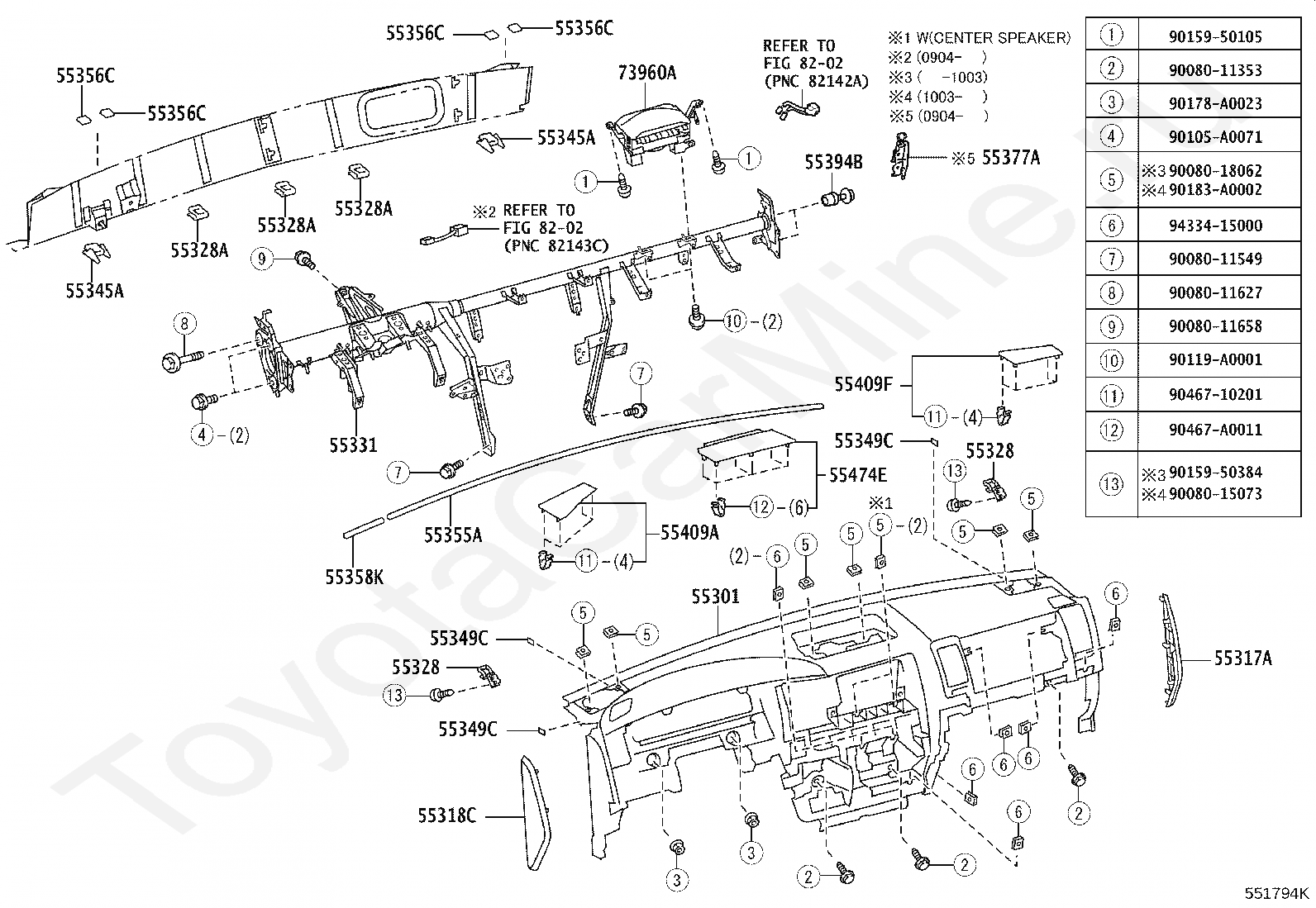

Торпеда с бардачком TOYOTA TUNDRA







Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55328

PIN, INSTRUMENT PANEL, NO.1

55328

PIN, INSTRUMENT PANEL, NO.1

55328A

STAY, INSTRUMENT PANEL, NO.3

55328A

STAY, INSTRUMENT PANEL, NO.3

55328A

STAY, INSTRUMENT PANEL, NO.3

55331

REINFORCEMENT, INSTRUMENT PANEL

55345A

CLIP, INSTRUMENT PANEL, NO.1

55345A

CLIP, INSTRUMENT PANEL, NO.1

55349C

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55355A

PLATE, INSTRUMENT PANEL

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55356C

CUSHION, INSTRUMENT PANEL, NO.2

55358K

CUSHION, INSTRUMENT PANEL, NO.4

55377A

BRACKET, INSTRUMENT PANEL MOUNTING, NO.2

55394B

BOLT, INSTRUMENT PANEL

55409A

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

55409F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55474E

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

73960A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

8202

переход к группе запчастей

8202

переход к группе запчастей

9008011353

Крепеж

9008011549

Крепеж

9008011627

Крепеж

9008011658

Крепеж

9008015073

Крепеж

9008018062

Крепеж

90105A0071

Крепеж

90119A0001

Крепеж

9015950105

Крепеж

9015950384

Крепеж

90178A0023

Крепеж

90183A0002

Крепеж

9046710201

Крепеж

90467A0011

Крепеж

9433415000

Крепеж

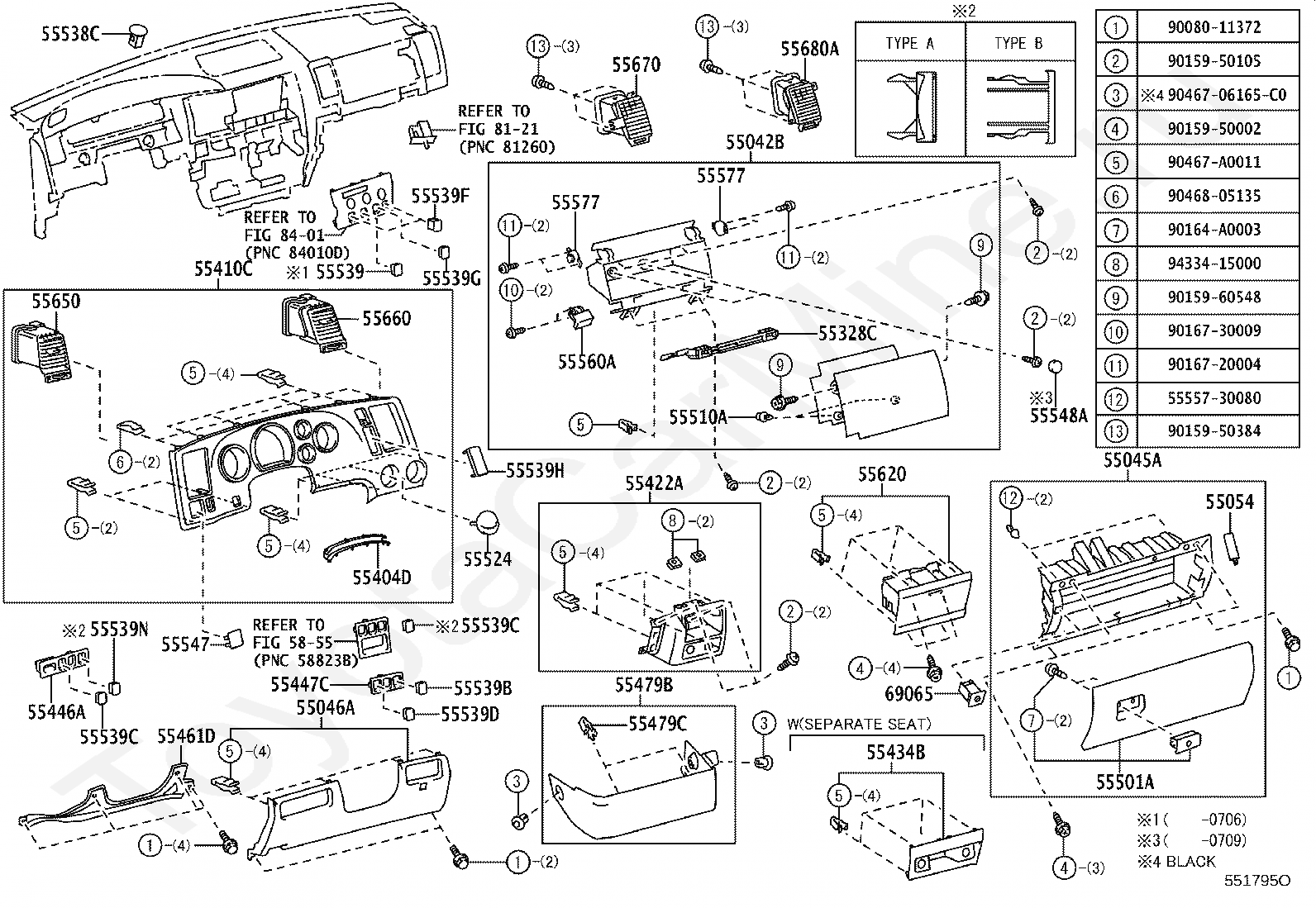

Код

Описание

55042B

DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55328C

PIN, INSTRUMENT PANEL, NO.2

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55422A

PANEL, INSTRUMENT CLUSTER FINISH, LOWER

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55461D

INSERT, INSTRUMENT PANEL SAFETY PAD, NO.1

55479B

COVER, INSTRUMENT, LOWER CENTER

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55501A

DOOR SUB-ASSY, GLOVE COMPARTMENT

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55524

COVER, SWITCH BACE HOLE

55538C

COVER, COOLER SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55539C

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55539F

COVER, SPARE SWITCH HOLE

55539G

COVER, SPARE SWITCH HOLE

55539H

COVER, SPARE SWITCH HOLE

55539N

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

55548A

COVER, INSTRUMENT PANEL HOLE

5555730080

Крепеж

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55620

HOLDER ASSY, INSTRUMENT PANEL CUP

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

5855

переход к группе запчастей

69065

CYLINDER SUB-ASSY, AIR BAG CUT OFF SW

8121

переход к группе запчастей

8401

переход к группе запчастей

9008011372

Крепеж

9015950002

Крепеж

9015950105

Крепеж

9015950384

Крепеж

9015960548

Крепеж

90164A0003

Крепеж

9016720004

Крепеж

9016730009

Крепеж

9046706165C0

Крепеж

90467A0011

Крепеж

9046805135

Крепеж

9433415000

Крепеж

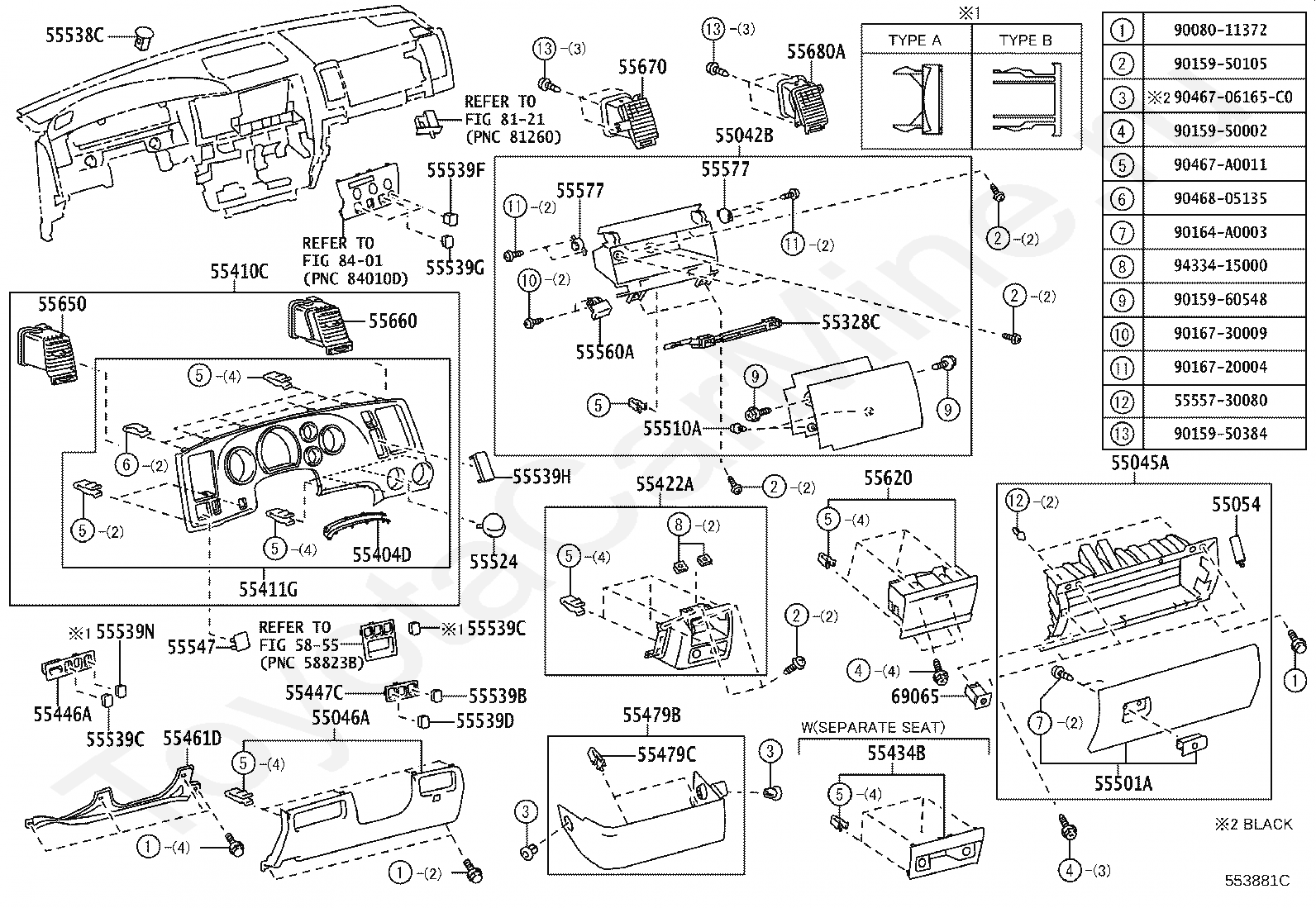

Код

Описание

55042B

DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55328C

PIN, INSTRUMENT PANEL, NO.2

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55411G

PANEL, INSTRUMENT CLUSTER FINISH, NO.1

55422A

PANEL, INSTRUMENT CLUSTER FINISH, LOWER

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55461D

INSERT, INSTRUMENT PANEL SAFETY PAD, NO.1

55479B

COVER, INSTRUMENT, LOWER CENTER

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55501A

DOOR SUB-ASSY, GLOVE COMPARTMENT

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55524

COVER, SWITCH BACE HOLE

55538C

COVER, COOLER SWITCH HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55539C

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55539F

COVER, SPARE SWITCH HOLE

55539G

COVER, SPARE SWITCH HOLE

55539H

COVER, SPARE SWITCH HOLE

55539N

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

5555730080

Крепеж

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55620

HOLDER ASSY, INSTRUMENT PANEL CUP

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

5855

переход к группе запчастей

69065

CYLINDER SUB-ASSY, AIR BAG CUT OFF SW

8121

переход к группе запчастей

8401

переход к группе запчастей

9008011372

Крепеж

9015950002

Крепеж

9015950105

Крепеж

9015950384

Крепеж

9015960548

Крепеж

90164A0003

Крепеж

9016720004

Крепеж

9016730009

Крепеж

9046706165C0

Крепеж

90467A0011

Крепеж

9046805135

Крепеж

9433415000

Крепеж

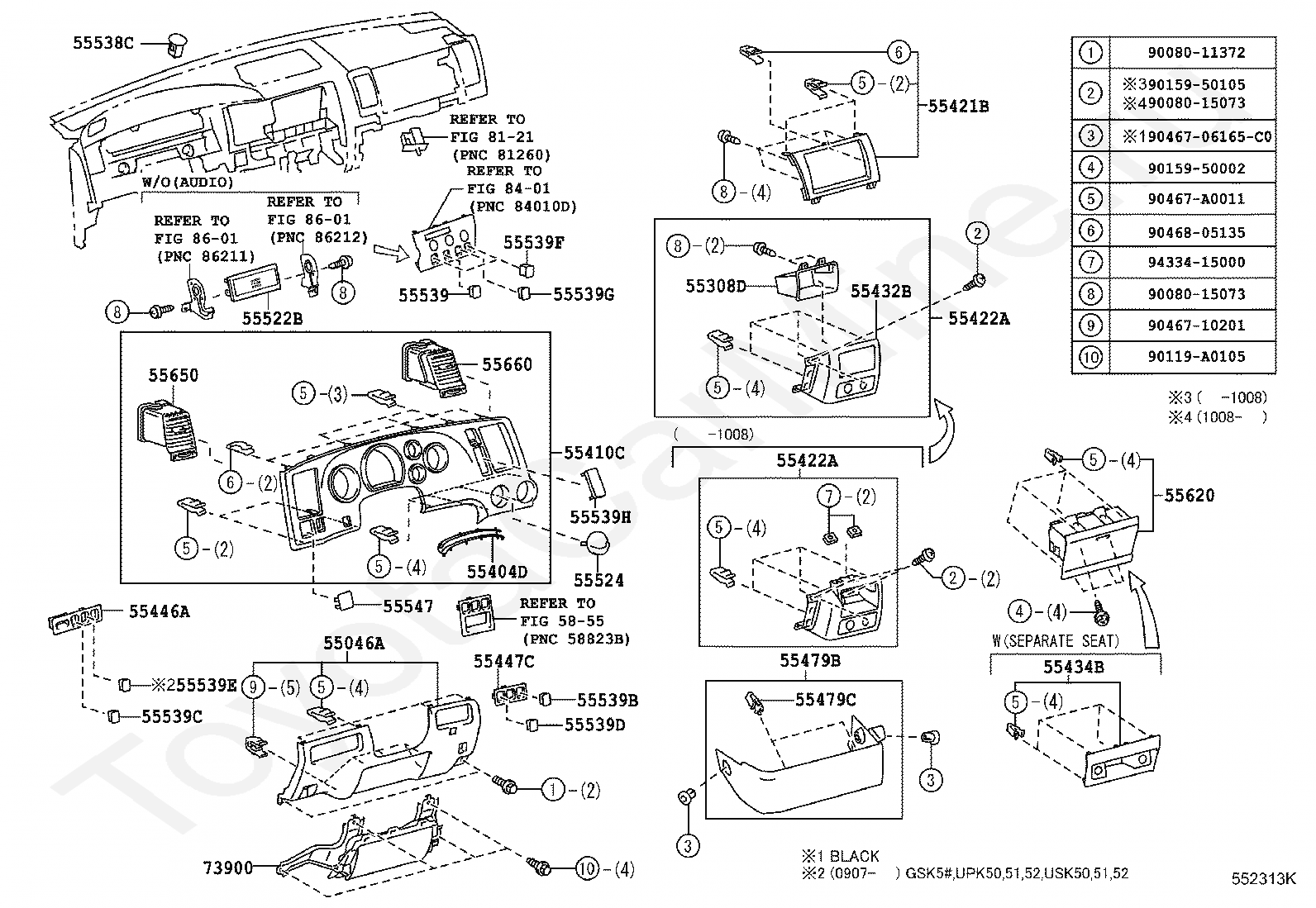

Код

Описание

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55308D

BOX SUB-ASSY, INSTRUMENT PANEL, CENTER

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55421B

PANEL, INSTRUMENT CLUSTER FINISH, UPPER

55422A

PANEL, INSTRUMENT CLUSTER FINISH, LOWER

55422A

PANEL, INSTRUMENT CLUSTER FINISH, LOWER

55432B

PANEL, INSTRUMENT PANEL FINISH, LOWER

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55479B

COVER, INSTRUMENT, LOWER CENTER

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55522B

COVER, RADIO TUNER OPENING

55524

COVER, SWITCH BACE HOLE

55538C

COVER, COOLER SWITCH HOLE

55539

COVER, SPARE SWITCH HOLE

55539B

COVER, SPARE SWITCH HOLE, NO.2

55539C

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55539F

COVER, SPARE SWITCH HOLE

55539G

COVER, SPARE SWITCH HOLE

55539H

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

55620

HOLDER ASSY, INSTRUMENT PANEL CUP

55650

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660

REGISTER ASSY, INSTRUMENT PANEL, NO.2

5855

переход к группе запчастей

73900

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1

8121

переход к группе запчастей

8401

переход к группе запчастей

8601

переход к группе запчастей

8601

переход к группе запчастей

9008011372

Крепеж

9008015073

Крепеж

9008015073

Крепеж

90119A0105

Крепеж

9015950002

Крепеж

9015950105

Крепеж

9046706165C0

Крепеж

9046710201

Крепеж

90467A0011

Крепеж

9046805135

Крепеж

9433415000

Крепеж

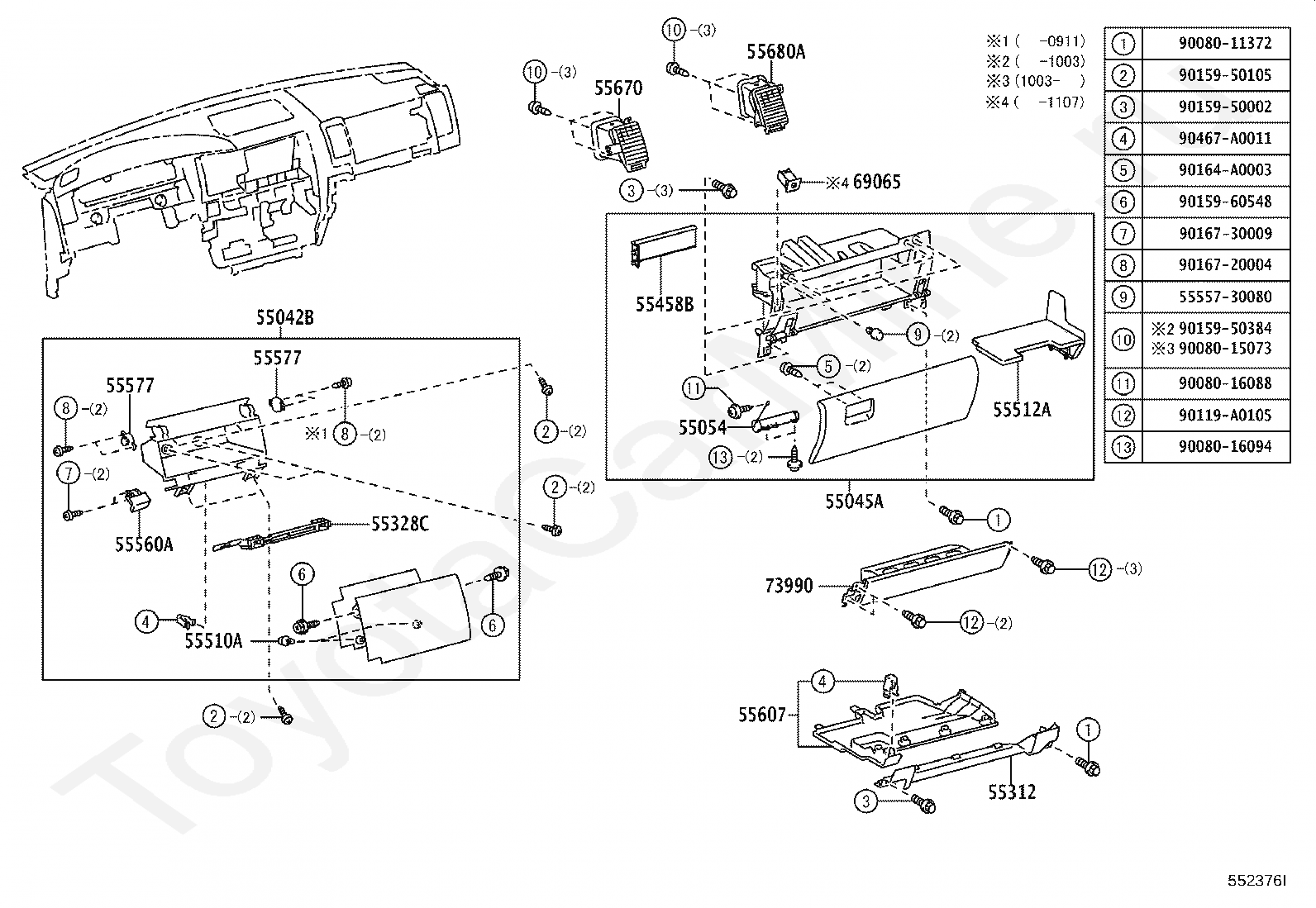

Код

Описание

55042B

DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55312

PANEL, INSTRUMENT, LOWER

55328C

PIN, INSTRUMENT PANEL, NO.2

55458B

COVER, INSTRUMENT, LWR

55510A

CUSHION(FOR GLOVE COMPARTMENT DOOR)

55512A

PLATE, GLOVE COMPARTMENT

5555730080

Крепеж

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55577

SPRING, GLOVE COMPARTMENT DOOR LOCK, NO.2

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55670

REGISTER ASSY, INSTRUMENT PANEL, NO.3

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

69065

CYLINDER SUB-ASSY, AIR BAG CUT OFF SW

73990

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2

9008011372

Крепеж

9008015073

Крепеж

9008016088

Крепеж

9008016094

Крепеж

90119A0105

Крепеж

9015950002

Крепеж

9015950105

Крепеж

9015950384

Крепеж

9015960548

Крепеж

90164A0003

Крепеж

9016720004

Крепеж

9016730009

Крепеж

90467A0011

Крепеж

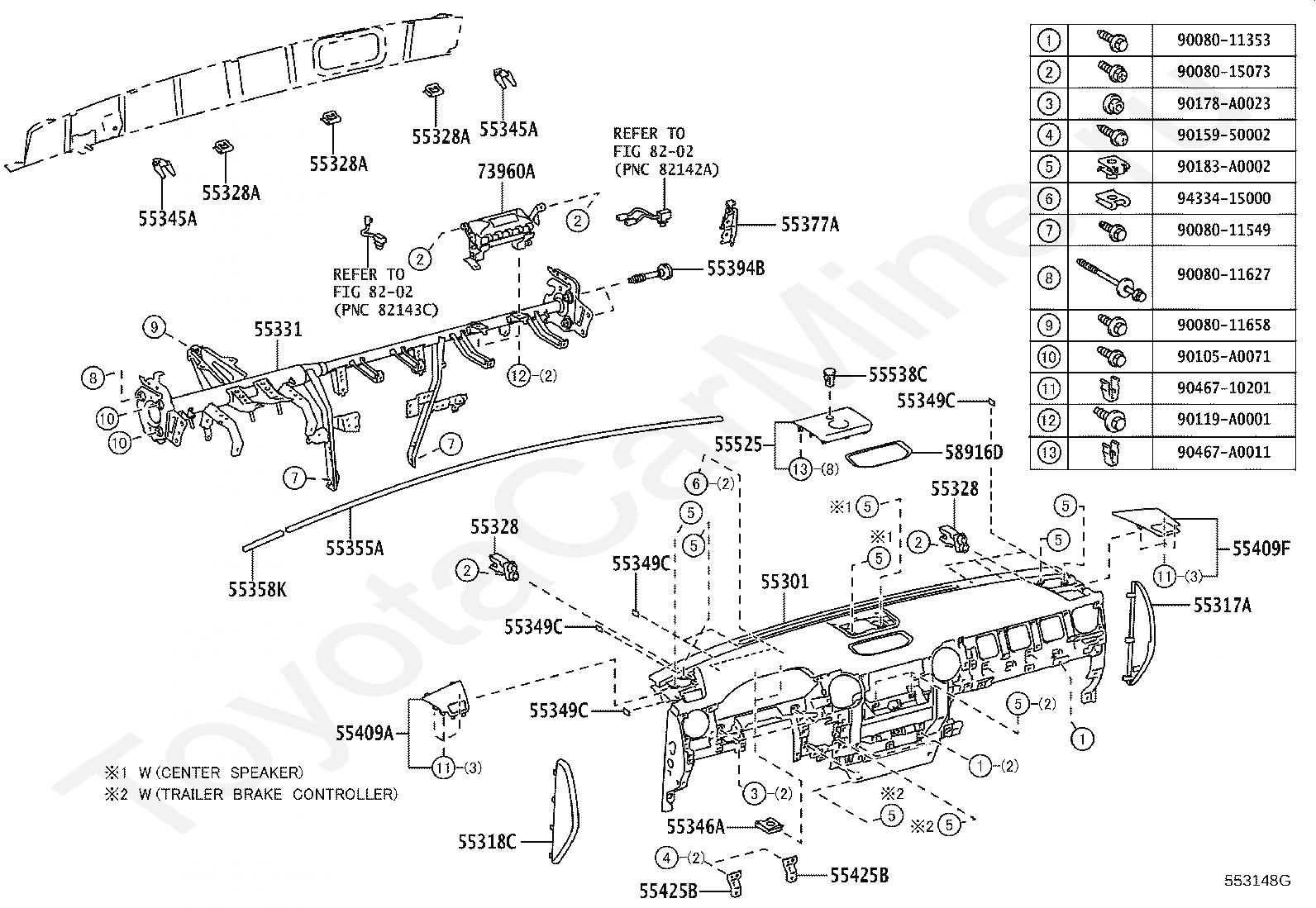

Код

Описание

55301

PANEL SUB-ASSY, INSTRUMENT

55317A

PANEL, INSTRUMENT SIDE, RH

55318C

PANEL, INSTRUMENT SIDE, LH

55328

PIN, INSTRUMENT PANEL, NO.1

55328

PIN, INSTRUMENT PANEL, NO.1

55328A

STAY, INSTRUMENT PANEL, NO.3

55328A

STAY, INSTRUMENT PANEL, NO.3

55328A

STAY, INSTRUMENT PANEL, NO.3

55331

REINFORCEMENT, INSTRUMENT PANEL

55345A

CLIP, INSTRUMENT PANEL, NO.1

55345A

CLIP, INSTRUMENT PANEL, NO.1

55346A

CLIP, INSTRUMENT PANEL, NO.2

55349C

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55349C

CUSHION, INSTRUMENT PANEL

55355A

PLATE, INSTRUMENT PANEL

55358K

CUSHION, INSTRUMENT PANEL, NO.4

55377A

BRACKET, INSTRUMENT PANEL MOUNTING, NO.2

55394B

BOLT, INSTRUMENT PANEL

55409A

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

55409F

PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55425B

REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

55425B

REINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

55525

COVER, SPEAKER HOLE, NO.1

55538C

COVER, COOLER SWITCH HOLE

58916D

MAT, BOX BOTTOM

73960A

AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

8202

переход к группе запчастей

8202

переход к группе запчастей

9008011353

Крепеж

9008011549

Крепеж

9008011627

Крепеж

9008011658

Крепеж

9008015073

Крепеж

90105A0071

Крепеж

90119A0001

Крепеж

9015950002

Крепеж

90178A0023

Крепеж

90183A0002

Крепеж

9046710201

Крепеж

90467A0011

Крепеж

9433415000

Крепеж

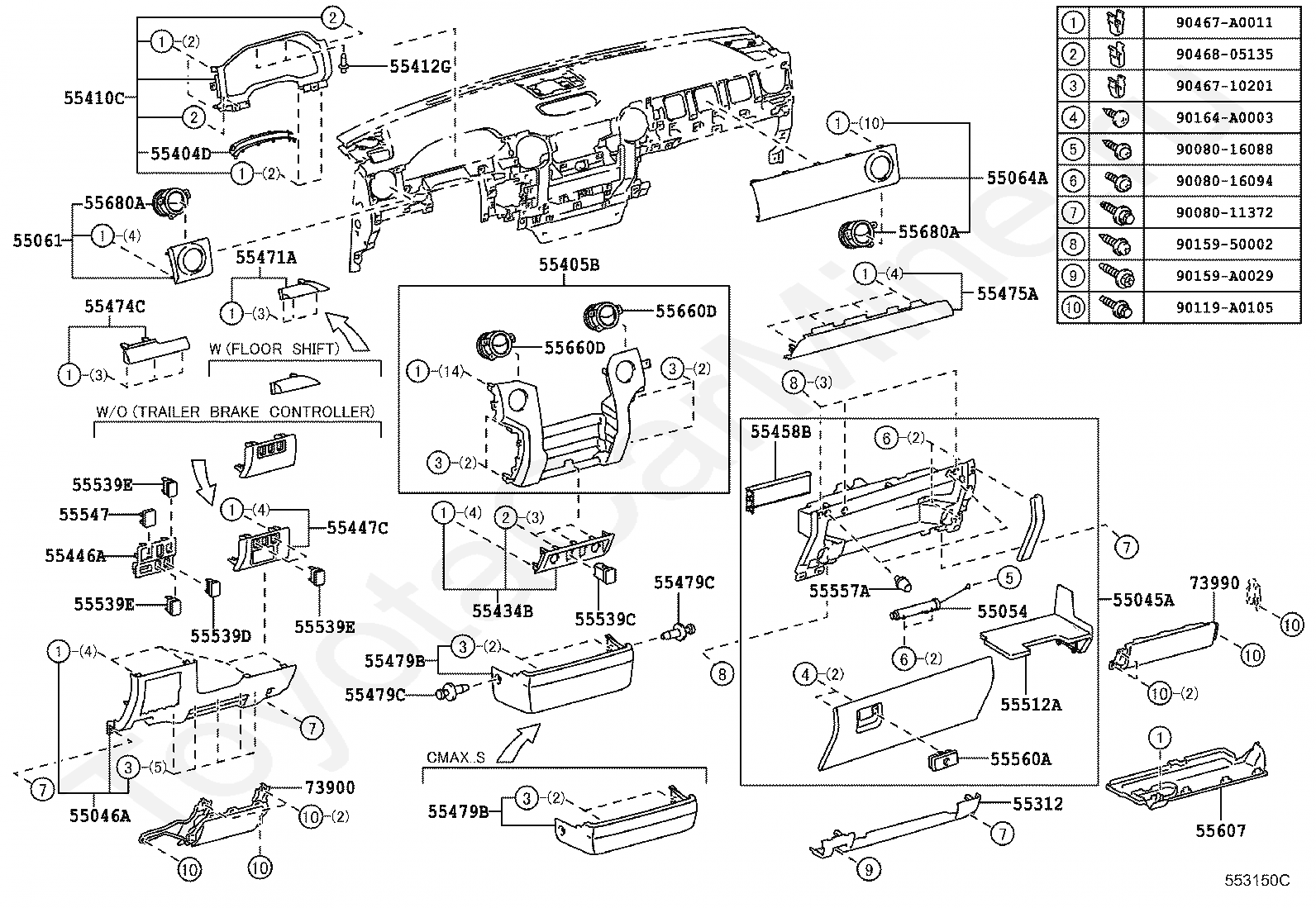

Код

Описание

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55061

REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

55064A

REGISTER SUB-ASSY, INSTRUMENT, NO.4

55312

PANEL, INSTRUMENT, LOWER

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55412G

CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55458B

COVER, INSTRUMENT, LWR

55471A

ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL

55474C

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55475A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

55479B

COVER, INSTRUMENT, LOWER CENTER

55479B

COVER, INSTRUMENT, LOWER CENTER

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55512A

PLATE, GLOVE COMPARTMENT

55539C

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55660D

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660D

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

73900

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1

73990

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2

9008011372

Крепеж

9008016088

Крепеж

9008016094

Крепеж

90119A0105

Крепеж

9015950002

Крепеж

90159A0029

Крепеж

90164A0003

Крепеж

9046710201

Крепеж

90467A0011

Крепеж

9046805135

Крепеж

Код

Описание

55045A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH

55046A

PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER LH

55054

STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR

55061

REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1

55064A

REGISTER SUB-ASSY, INSTRUMENT, NO.4

55312

PANEL, INSTRUMENT, LOWER

55404D

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

55405B

PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

55410C

PANEL ASSY, INSTRUMENT CLUSTER FINISH

55412G

CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL)

55434B

PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

55446A

BASE, SWITCH HOLE, NO.1

55447C

BASE, SWITCH HOLE, NO.2

55458B

COVER, INSTRUMENT, LWR

55471A

ORNAMENT, INSTRUMENT CLUSTER FINISH PANEL

55474C

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

55475A

GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2

55479B

COVER, INSTRUMENT, LOWER CENTER

55479B

COVER, INSTRUMENT, LOWER CENTER

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55479C

CLIP(FOR INSTRUMENT LOWER COVER)

55512A

PLATE, GLOVE COMPARTMENT

55539C

COVER, SPARE SWITCH HOLE

55539D

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55539E

COVER, SPARE SWITCH HOLE

55547

COVER, REMOTE CONTROL MIRROR HOLE

55557A

CUSHION, GLOVE COMPARTMENT DOOR CHECK

55560A

LOCK ASSY, GLOVE COMPARTMENT DOOR

55607

COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

55660D

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55660D

REGISTER ASSY, INSTRUMENT PANEL, NO.1

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

55680A

REGISTER ASSY, INSTRUMENT PANEL, NO.4

73900

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1

73990

AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2

9008011372

Крепеж

9008016088

Крепеж

9008016094

Крепеж

90119A0105

Крепеж

9015950002

Крепеж

90159A0029

Крепеж

90164A0003

Крепеж

90167A0015

Крепеж

9046710201

Крепеж

9046713082A0

Крепеж

90467A0011

Крепеж

9046805135

Крепеж

9354053008

Крепеж

> Запчасти TUNDRA > Поиск по каталогу

Купить

Ваше имя
Ваш телефон
Ваша электронная почта
Оставляя свои данные в форме, вы подтверждаете свое согласие с Политикой конфиденциальности
