1201
переход к группе запчастей
1503
переход к группе запчастей

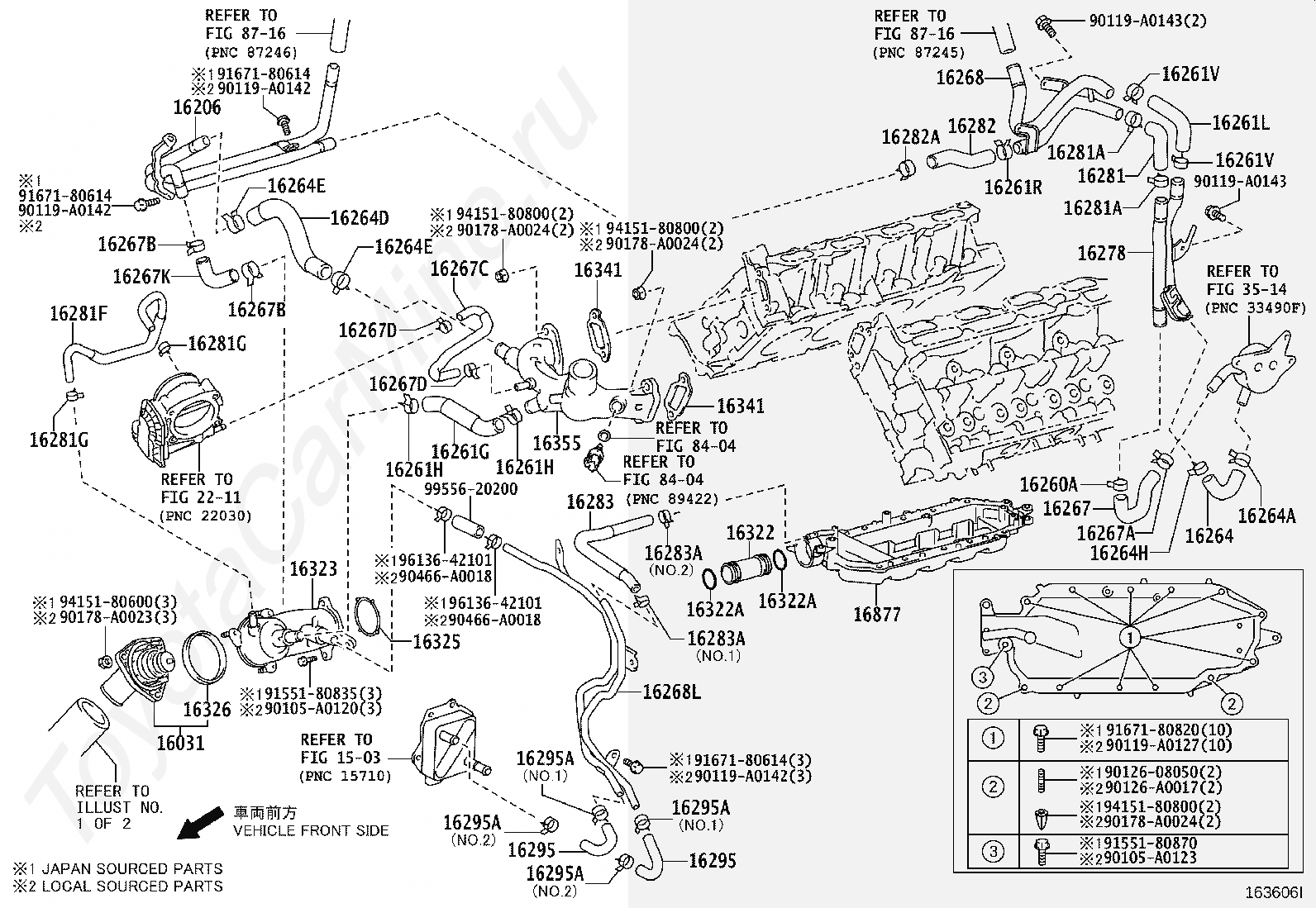

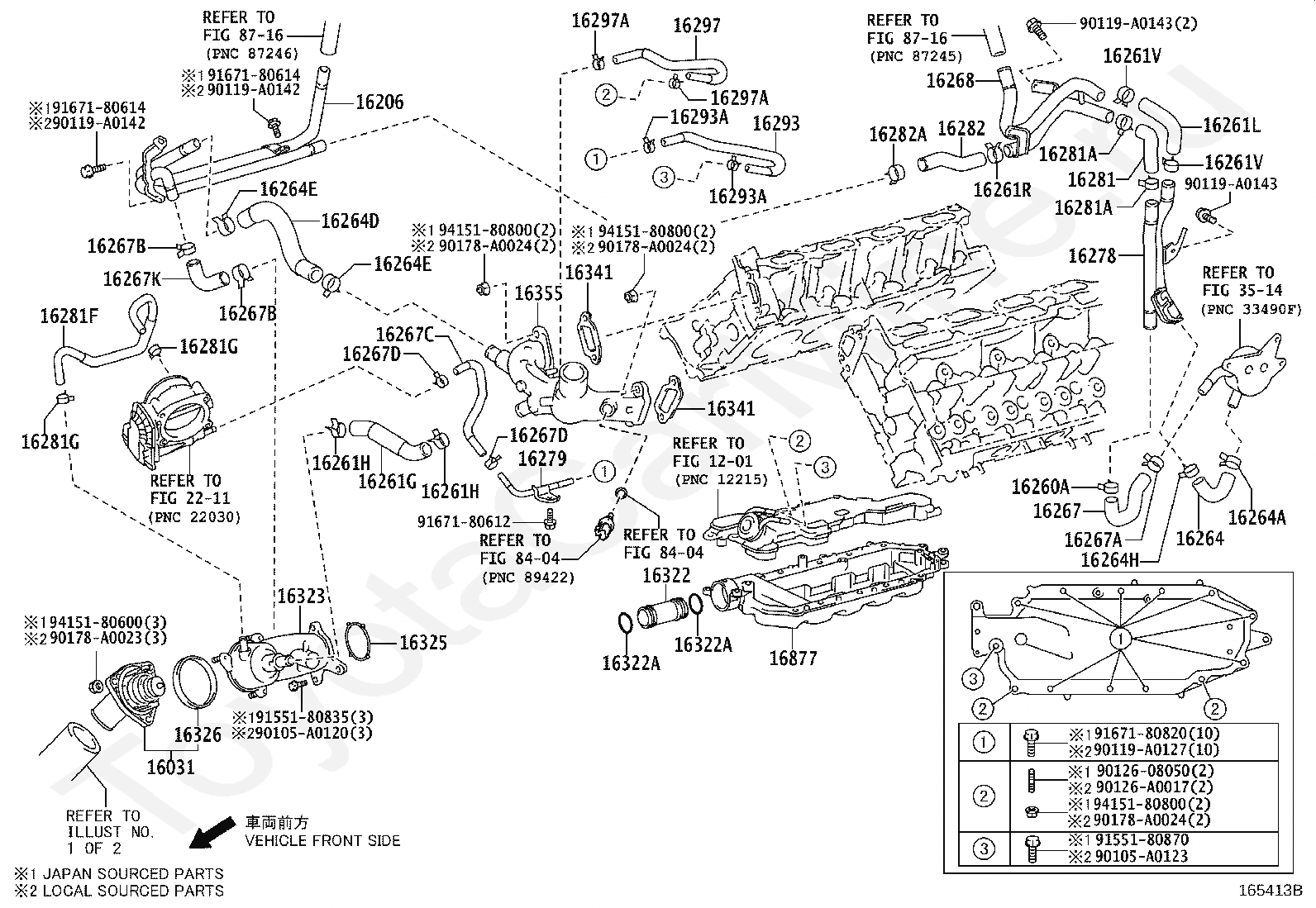

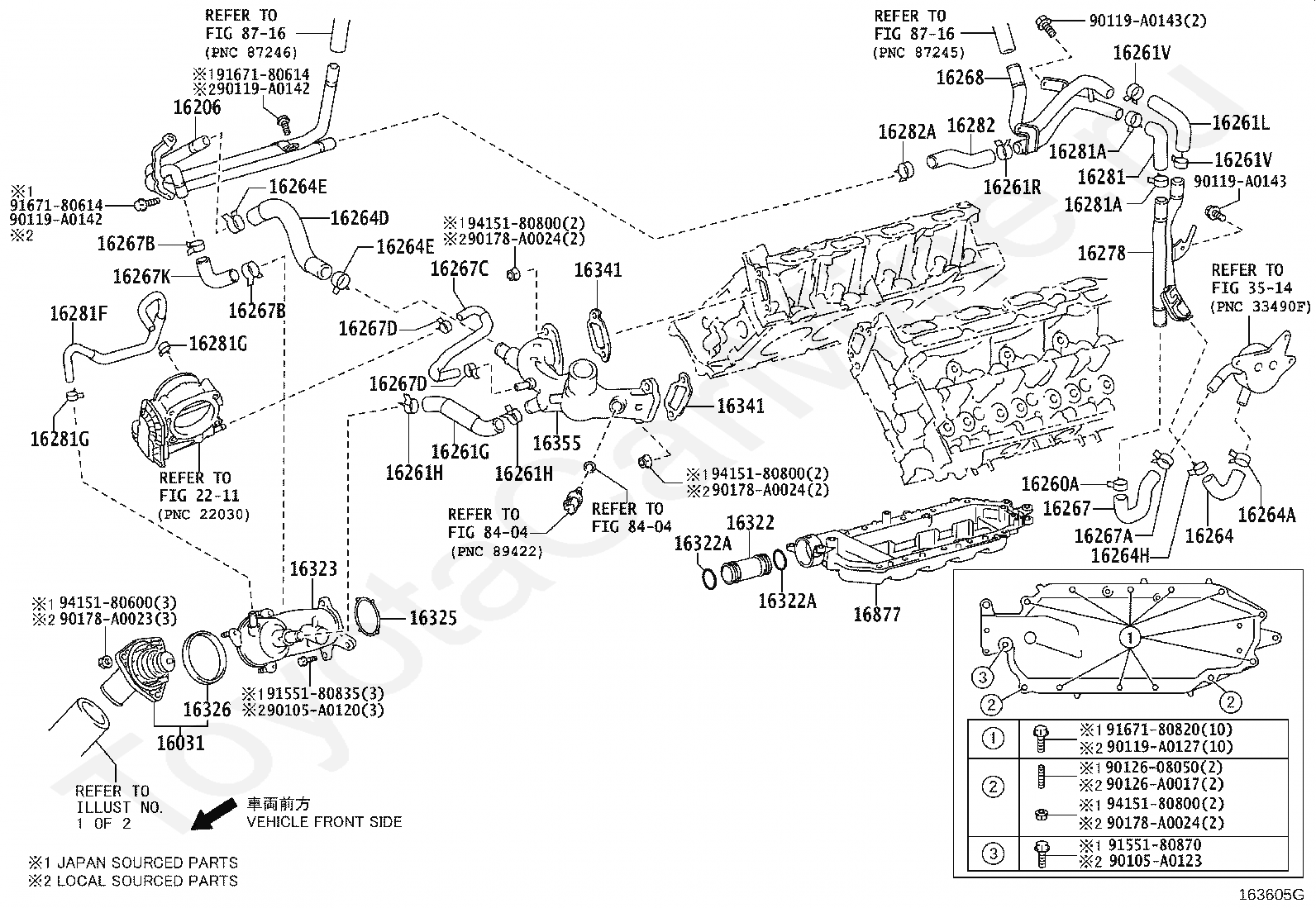

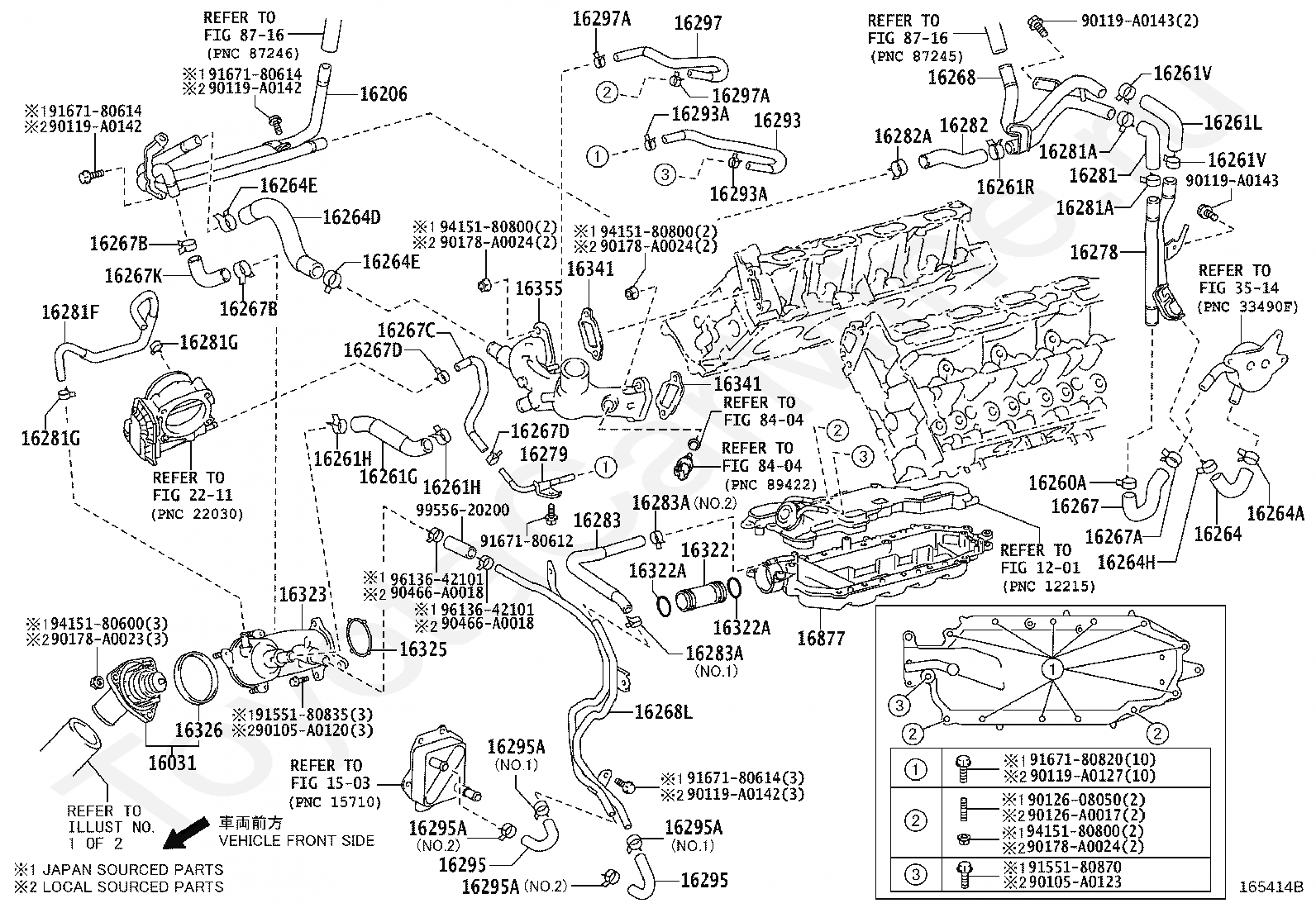

16031
WATER INLET SUB-ASSY, W/THERMOSTAT
16206
PIPE SUB-ASSY, WATER BY-PASS
16260A
CLIP(FOR WATER BY-PASS HOSE ASSY)
16261G
HOSE, WATER BY-PASS, NO.1
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261H
CLIP(FOR WATER BY-PASS HOSE NO.1)
16261L
HOSE, WATER BY-PASS
16261R
CLAMP OR CLIP(FOR WATER BY-PASS HOSE)
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261V
CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264
HOSE, WATER BY-PASS, NO.2
16264A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16264D
HOSE, WATER BY-PASS, NO.2
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16264E
CLIP(FOR WATER BY-PASS HOSE NO.2)
16264H
CLIP(FOR WATER BY-PASS HOSE NO.3)
16267
HOSE, WATER BY-PASS, NO.3
16267A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16267B
CLIP(FOR WATER BY-PASS HOSE)
16267C
HOSE, WATER BY-PASS, NO.4
16267D
CLIP(FOR WATER BY-PASS HOSE NO.4)
16267D
CLIP(FOR WATER BY-PASS HOSE NO.4)
16267K
HOSE, WATER BY-PASS, NO.3
16268
PIPE, WATER BY-PASS, NO.1
16268L
PIPE, WATER BY-PASS
16278
PIPE, WATER BY-PASS, NO.2
16279
PIPE, WATER BY-PASS, NO.3
16281
HOSE, WATER BY-PASS, NO.4
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16281F
HOSE, WATER BY-PASS, NO.5
16281G
CLIP(FOR WATER BY-PASS HOSE NO.5)
16281G
CLIP(FOR WATER BY-PASS HOSE NO.5)
16282
HOSE, WATER BY-PASS, NO.5
16282A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283
HOSE, WATER BY-PASS, NO.6
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16283A
CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16293
HOSE, WATER BY-PASS, NO.10
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16293A
CLIP(FOR WATER BY-PASS HOSE NO.10)
16295
HOSE, WATER BY-PASS, NO.7
16295
HOSE, WATER BY-PASS, NO.7
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16295A
CLIP(FOR WATER BY-PASS HOSE NO.7)
16297
HOSE, WATER BY-PASS, NO.9
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16297A
CLIP(FOR WATER BY-PASS HOSE NO.9)
16322A
RING, O(FOR WATER INLET)
16322A
RING, O(FOR WATER INLET)
16323
HOUSING, WATER INLET
16325
GASKET, WATER INLET HOUSING, NO.1
16326
GASKET, WATER INLET HOUSING, NO.2
16341
GASKET, WATER OUTLET
16341
GASKET, WATER OUTLET
16355
JOINT, WATER BY-PASS, FRONT
16877
COVER, HEAT EXCHANGER, NO.1
2211
переход к группе запчастей
3514
переход к группе запчастей
8404
переход к группе запчастей
8404
переход к группе запчастей
8716
переход к группе запчастей
8716
переход к группе запчастей
