Каталог
Модель
VIN
Дата
Двигатель
Кузов
Фрейм
Опции
Код
Описание

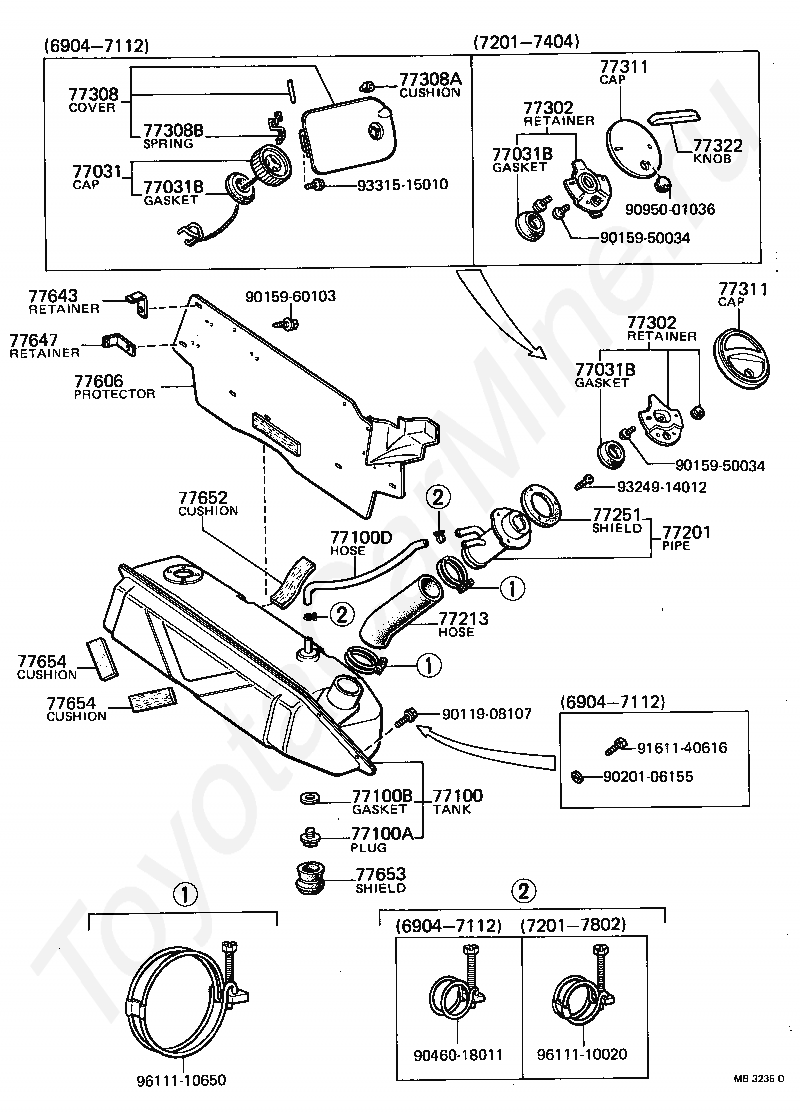

77031
CAP ASSY, FUEL TANK
77031B
GASKET (FOR FUEL TANK CAP)
77100
TANK ASSY, FUEL
77100A
PLUG(FOR FUEL TANK)
77100B
GASKET(FOR FUEL TANK)
77100D
HOSE, FUEL, NO.1(FOR FUEL TANK)
77201
PIPE SUB-ASSY, FUEL TANK INLET
77213
HOSE, FUEL TANK SUB INLET
77251
SHIELD, FUEL TANK, INLET, NO.1
77302
RETAINER, FUEL TANK CAP
77308
COVER SUB-ASSY, FUEL INLET BOX
77308A
CUSHION(FOR FUEL INLET BOX COVER)
77308B
SPRING, TORSION(FOR FUEL INLET BOX COVER)
77311
CAP, FUEL TANK
77322
KNOB, FUEL TANK CAP
77606
PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77643
RETAINER, FUEL TANK PROTECTOR
77647
RETAINER, FUEL TANK PROTECTOR, SIDE
77652
CUSHION, FUEL TANK, NO.1
77653
SHIELD, FUEL TANK DRAIN PLUG
77654
CUSHION, FUEL TANK, NO.2
9011908107
Крепеж
9015950034
9015960103
9020106155
9046018011
9095001036
9161140616
9324914012
9331515010
9611110020
9611110650

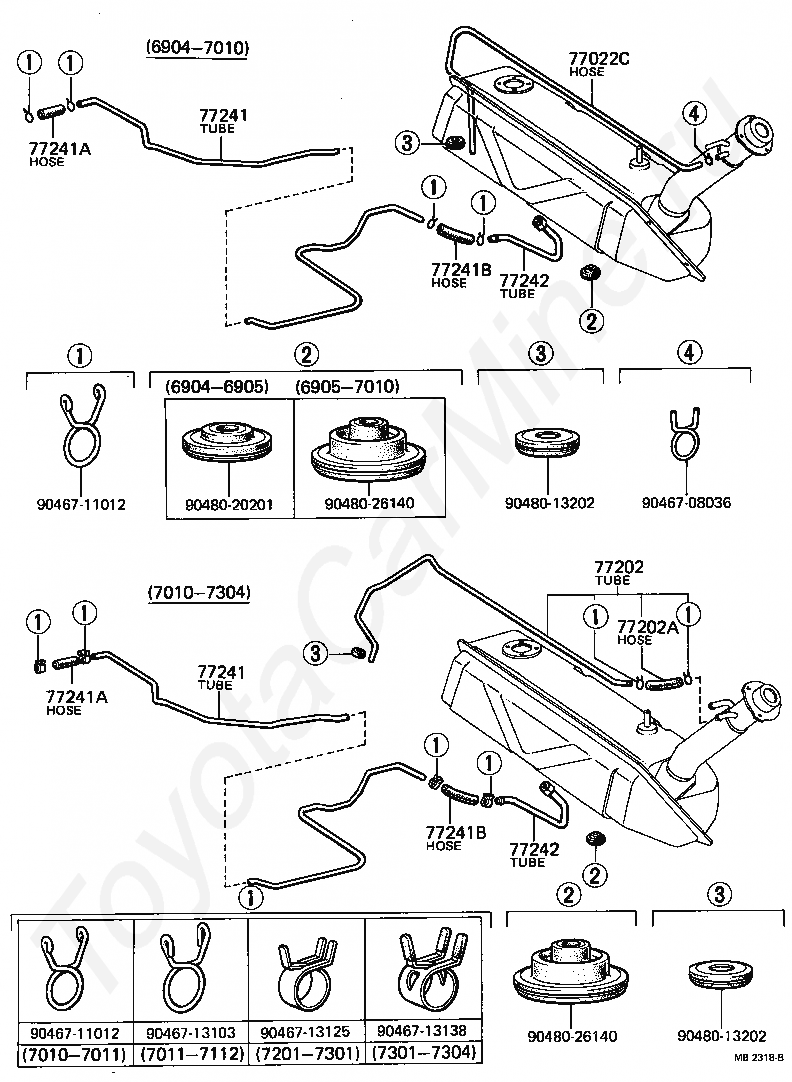

77022C
HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
77202
TUBE SUB-ASSY, BREATHER
77202A
HOSE, FUEL, NO.1 (FOR BREATHER TUBE)
77241
TUBE, FUEL MAIN, NO.1
77241A
HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77241B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77242
TUBE, FUEL MAIN, NO.2
9046708036
9046711012
9046713103
9046713125
9046713138
9048013202
9048020201
9048026140

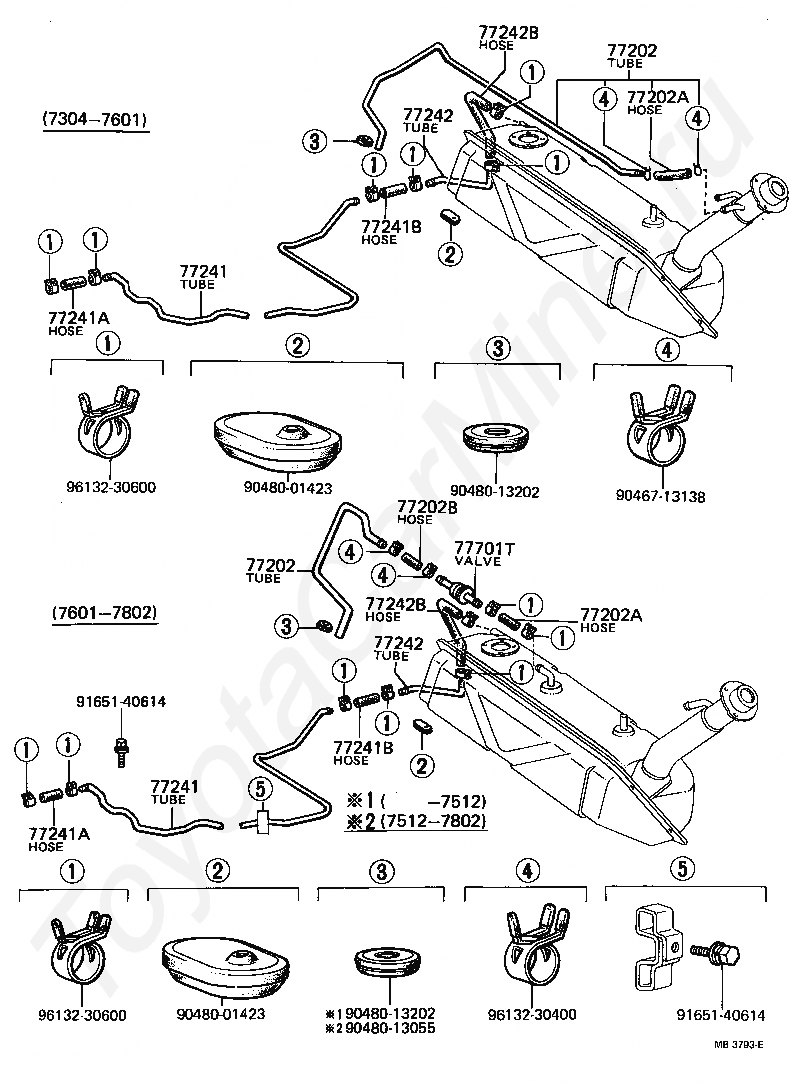

77202B
HOSE, FUEL, NO.2 (FOR BREATHER TUBE)
77242B
HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
77701T
VALVE, CHECK (FOR MAIN FUEL TANK)
9048001423
9048013055
9165140614
9613230400
9613230600
