Каталог

Япония

Модель

TOYOACE/DYNA

VIN

Дата

1985/08

Двигатель

2,4 литра, дизель

Фрейм

LY60

КПП

механика МКПП, 5 скоростей

Опции

TOYOACE LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK 15T WT1 DSL CBU

REAR BODY FLOOR & FENDER TOYOTA TOYOACE/DYNA

Код

Описание

65023

BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, RH

65024

BRACKET SUB-ASSY, REAR CROSS SILL MOUNTING, LH

65100

FLOOR ASSY, REAR BODY

65240

CROSSMEMBER, REAR BODY FLOOR, TAIL

65317

PANEL, FLOOR SIDE, RH

65318

PANEL, FLOOR SIDE, LH

65329

BRACKET, REAR FENDER

65329

BRACKET, REAR FENDER

66010

FENDER ASSY, REAR BODY, REAR RH

66016

GUSSET SUB-ASSY, GATE HINGE, RH

66017

GUSSET SUB-ASSY, GATE HINGE, LH

66020

FENDER ASSY, REAR BODY, REAR LH

66210

FENDER ASSY, REAR BODY, FRONT RH

66220

FENDER ASSY, REAR BODY, FRONT LH

66223

STAY, REAR FENDER REAR PLATE

66223

STAY, REAR FENDER REAR PLATE

66241

MUDGUARD, REAR

66242

PLATE, REAR MUDGUARD SET RETAINER

66321

BUMPER, GATE RUBBER

66321

BUMPER, GATE RUBBER

9011906094

Крепеж

9015050031

Крепеж

9015050031

Крепеж

9017905095

Крепеж

9017905095

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017906009

Крепеж

9017906164

Крепеж

9152160816

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9165140616

Крепеж

9166540825

Крепеж

9327018016

Крепеж

Код

Описание

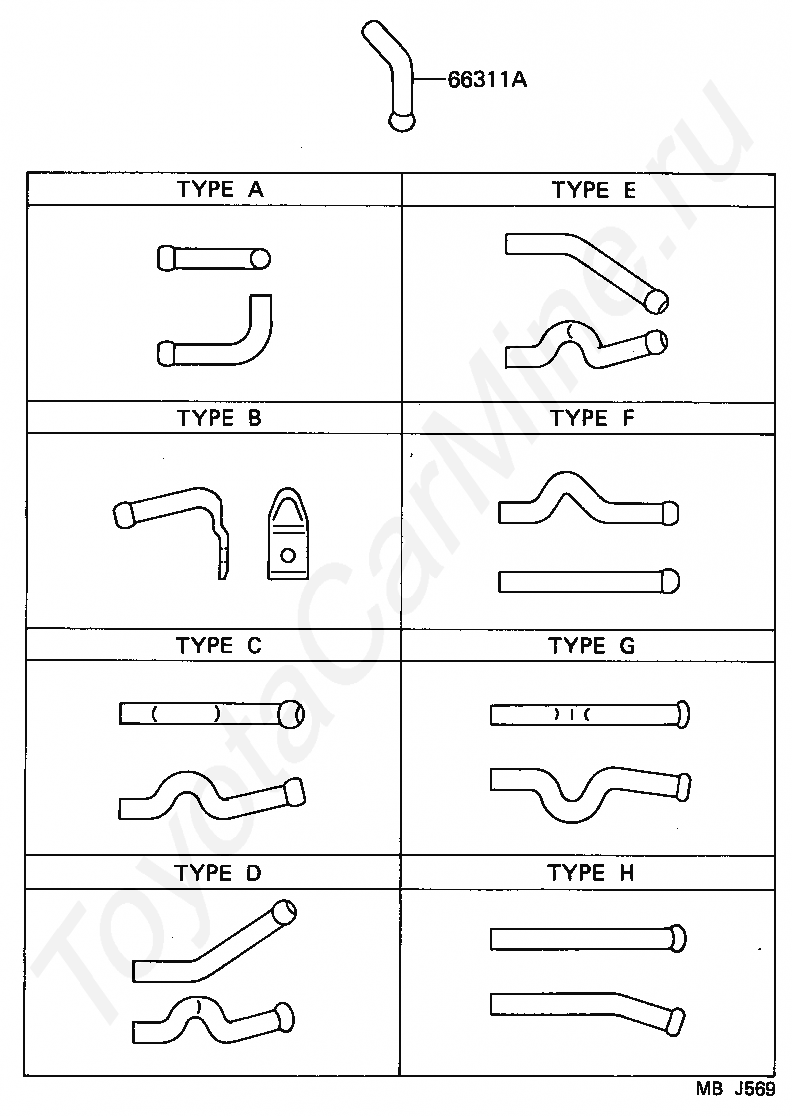

66311A

HOOK, ROPE, NO.1

REAR BODY FLOOR & FENDER TOYOTA TOYOACE/DYNA
