Каталог

Япония

Модель

TOYOACE/DYNA

VIN

Дата

1985/08

Двигатель

2,4 литра, дизель

Фрейм

LY60

КПП

механика МКПП, 5 скоростей

Опции

TOYOACE LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW) STEEL-MADE DECK 15T WT1 DSL CBU

Ручной тормоз TOYOTA TOYOACE/DYNA

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46105

BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

46110C

PIN(FOR PARKING BRAKE HANDLE SET)

46114

PIN, PARKING BRAKE PLUNGER

46117

SLEEVE, PARKING BRAKE PLUNGER

46275

PLATE, PARKING BRAKE RELEASE CAUTION

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301B

BUSH(FOR INTERMEDIATE LEVER)

46301B

BUSH(FOR INTERMEDIATE LEVER)

46301D

COLLAR(FOR INTERMEDIATE LEVER)

46301E

PIN, W/HOLE(FOR INTERMEDIATE LEVER)

46301F

SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

46301G

BOLT(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46311D

WASHER, TYPE C(FOR PARKING BRAKE PAWL)

46410

CABLE ASSY, PARKING BRAKE, NO.1

46410D

PIN(FOR PARKING BRAKE FRONT CABLE)

46481

CONNECTOR, PARKING CABLE

9017908123

Крепеж

9165140820

Крепеж

9412040600

Крепеж

9418041000

Крепеж

9538102520

Крепеж

9538102520

Крепеж

Код

Описание

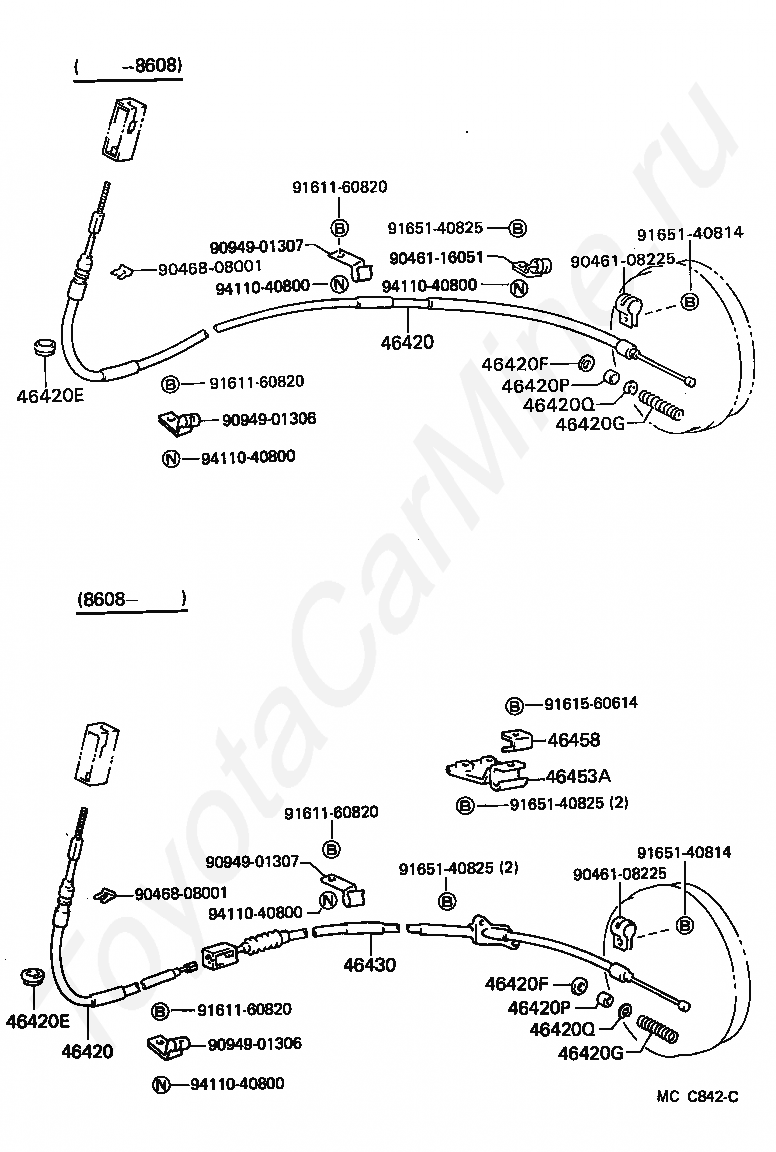

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420E

GROMMET(FOR PARKING BRAKE CABLE CLAMP)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46430

CABLE ASSY, PARKING BRAKE, NO.3

46453A

BRACKET, CABLE SUPPORT, NO.3

46458

RETAINER, CABLE

9046108225

Крепеж

9046108225

Крепеж

9046116051

Крепеж

9046808001

Крепеж

9046808001

Крепеж

9094901306

Крепеж

9094901306

Крепеж

9094901307

Крепеж

9094901307

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161160820

Крепеж

9161560614

Крепеж

9165140814

Крепеж

9165140814

Крепеж

9165140825

Крепеж

9165140825

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

Код

Описание

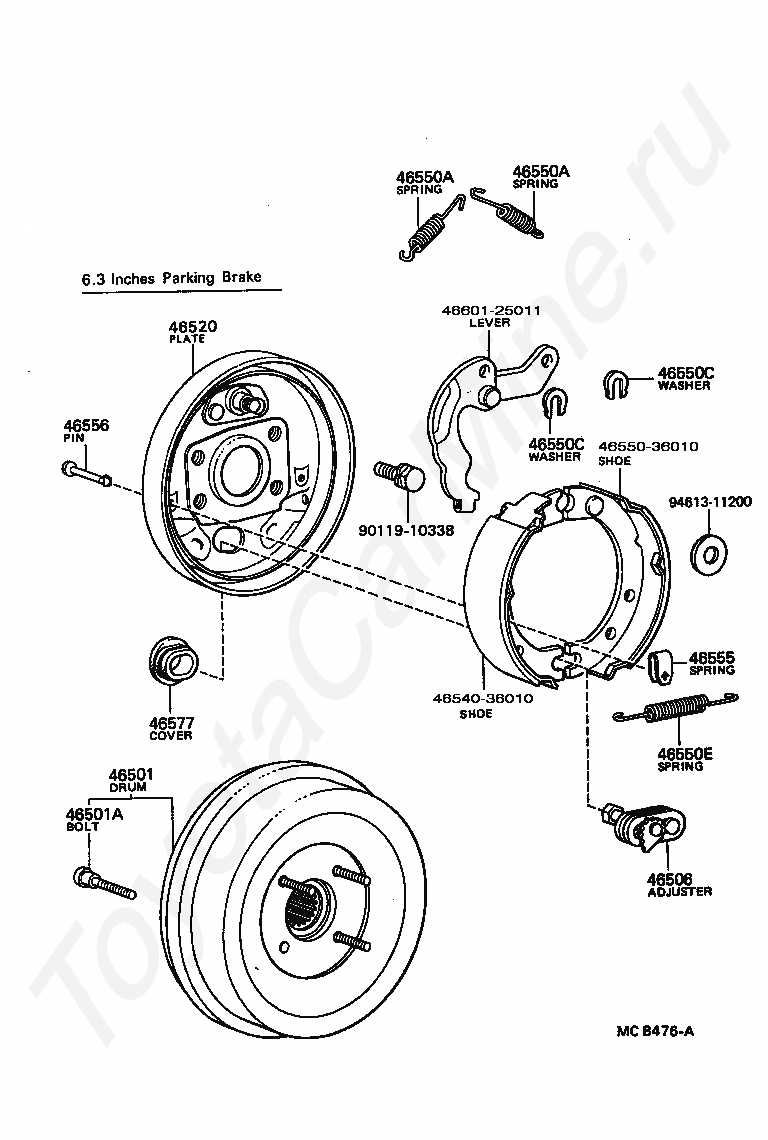

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

4654036010

Крепеж

4655036010

Крепеж

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

4660125011

Крепеж

9011910338

Крепеж

9461311200

Крепеж

Ручной тормоз TOYOTA TOYOACE/DYNA
