Каталог

Европа

Модель

TOYOACE

VIN

Дата

1984/09

Двигатель

1,6 литра

Кузов

LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW)

Фрейм

RY30

КПП

МКПП, 4 ступени, на руле

Опции

правый руль DOUBLE TIRE 1.5 TONNE COMPLETED VEHICLE GENERAL COUNTRIES

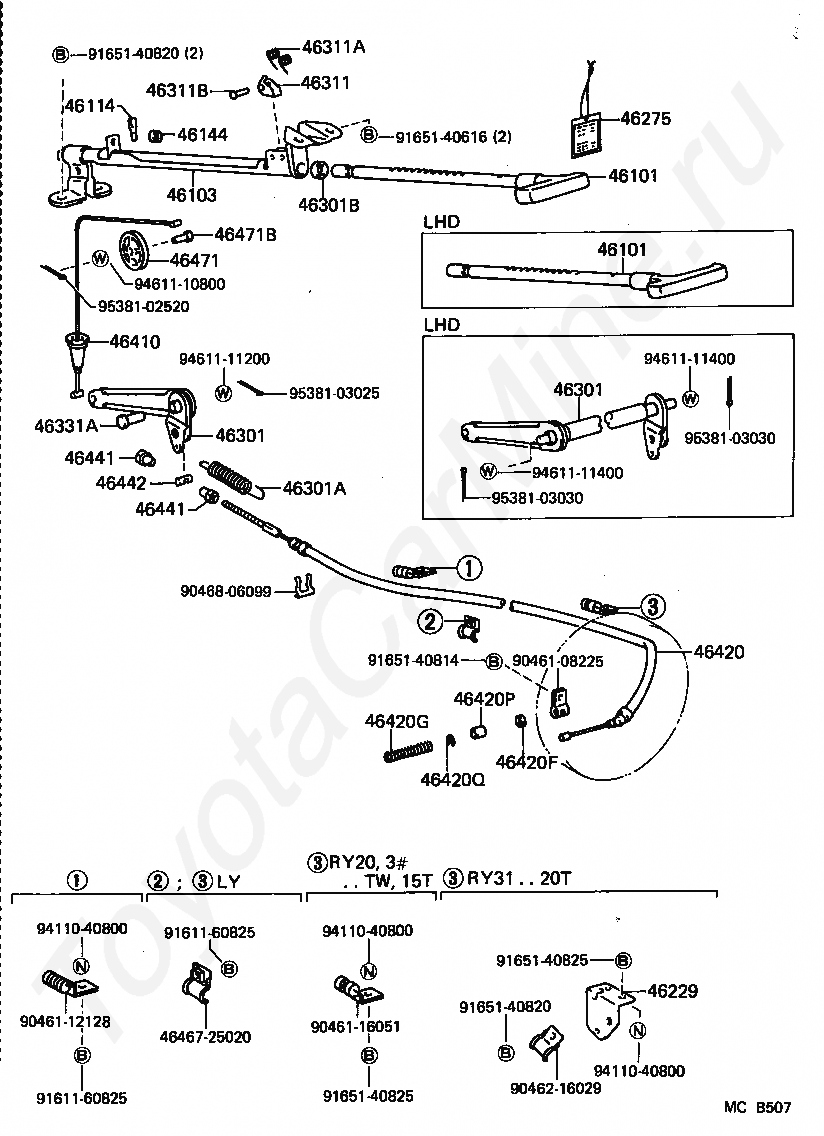

Ручной тормоз TOYOTA TOYOACE

Код

Описание

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46101

HANDLE SUB-ASSY, PARKING BRAKE CONTROL

46103

GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

46114

PIN, PARKING BRAKE PLUNGER

46144

ANTI-RATTLE, PARKING BRAKE PLUNGER

46229

SUPPORT, PARKING BRAKE CABLE GUIDE

46275

PLATE, PARKING BRAKE RELEASE CAUTION

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301

LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

46301A

SPRING, TENSION(FOR INTERMEDIATE LEVER)

46301B

BUSH(FOR INTERMEDIATE LEVER)

46311

PAWL, PARKING BRAKE

46311A

SPRING(FOR PARKING BRAKE PAWL)

46311B

PIN, PARKING BRAKE PAWL PIVOT

46331A

PIN, W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)

46410

CABLE ASSY, PARKING BRAKE, NO.1

46420

CABLE ASSY, PARKING BRAKE, NO.2

46420F

SEAL, DUST(FOR PARKING BRAKE CABLE)

46420G

SPRING(FOR PARKING CABLE INNER WIRE SET)

46420P

SPACER, PARKING BRAKE

46420Q

RING, E(FOR PARKING BRAKE CABLE)

46441

NUT, WIRE ADJUSTING, NO.1

46441

NUT, WIRE ADJUSTING, NO.1

46442

PIN, WIRE PIVOT

4646725020

Крепеж

46471

PULLEY, WIRE

46471B

PIN, W/HOLE(FOR WIRE PULLEY SET)

9046108225

Крепеж

9046112128

Крепеж

9046116051

Крепеж

9046216029

Крепеж

9046806099

Крепеж

9161160825

Крепеж

9161160825

Крепеж

9165140616

Крепеж

9165140814

Крепеж

9165140820

Крепеж

9165140820

Крепеж

9165140825

Крепеж

9165140825

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9411040800

Крепеж

9461110800

Крепеж

9461111200

Крепеж

9461111400

Крепеж

9461111400

Крепеж

9538102520

Крепеж

9538103025

Крепеж

9538103030

Крепеж

9538103030

Крепеж

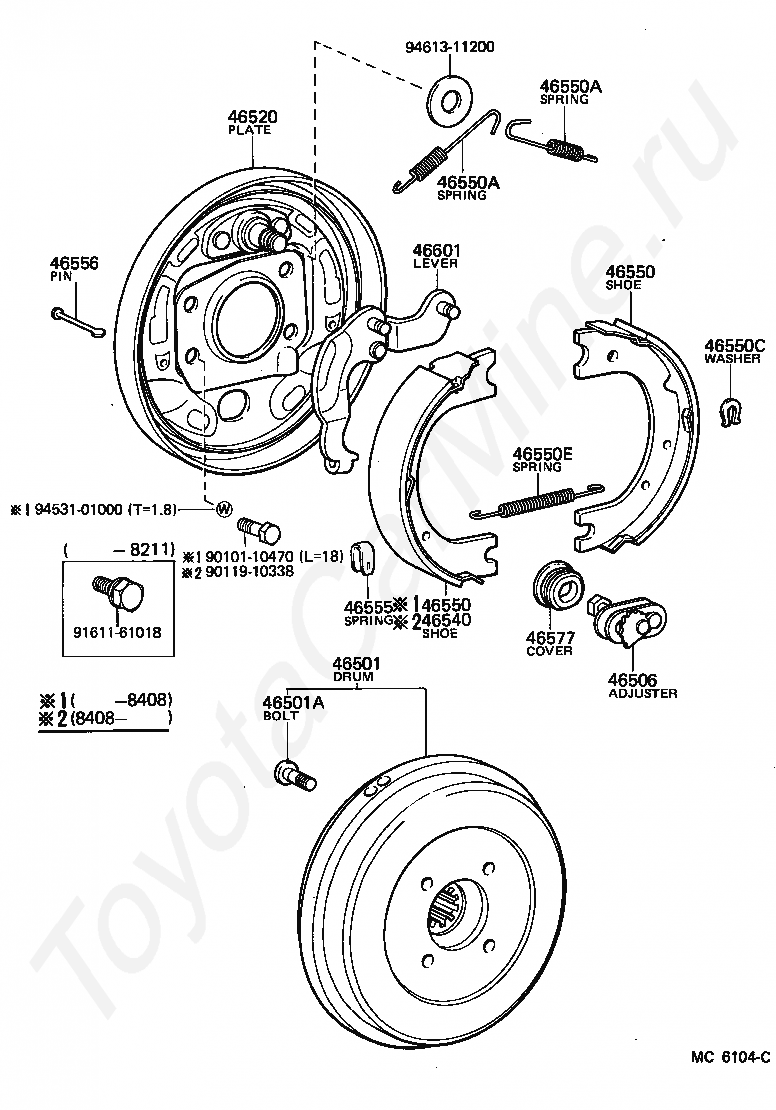

Код

Описание

46501

DRUM SUB-ASSY, PARKING BRAKE

46501A

BOLT, SERRATION(FOR PARKING BRAKE DRUM)

46506

ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER

46520

PLATE SUB-ASSY, PARKING BRAKE

46540

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550

SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550A

SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)

46550C

WASHER, TYPE C(FOR PARKING BRAKE SHOE)

46550E

SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)

46555

SPRING, BRAKE SHOE HOLD DOWN

46556

PIN, SHOE HOLD DOWN SPRING

46577

COVER, ADJUSTING CAM HOLE

46601

LEVER SUB-ASSY, PARKING BRAKE SHOE

9010110470

Крепеж

9011910338

Крепеж

9161161018

Крепеж

9453101000

Крепеж

9461311200

Крепеж

Ручной тормоз TOYOTA TOYOACE
