Каталог

Европа

Модель

TOYOACE

VIN

Дата

1984/09

Двигатель

1,6 литра

Кузов

LOW FLAT DECK OPENING ON THREE SIDES (JUST LOW)

Фрейм

RY30

КПП

МКПП, 4 ступени, на руле

Опции

правый руль DOUBLE TIRE 1.5 TONNE COMPLETED VEHICLE GENERAL COUNTRIES

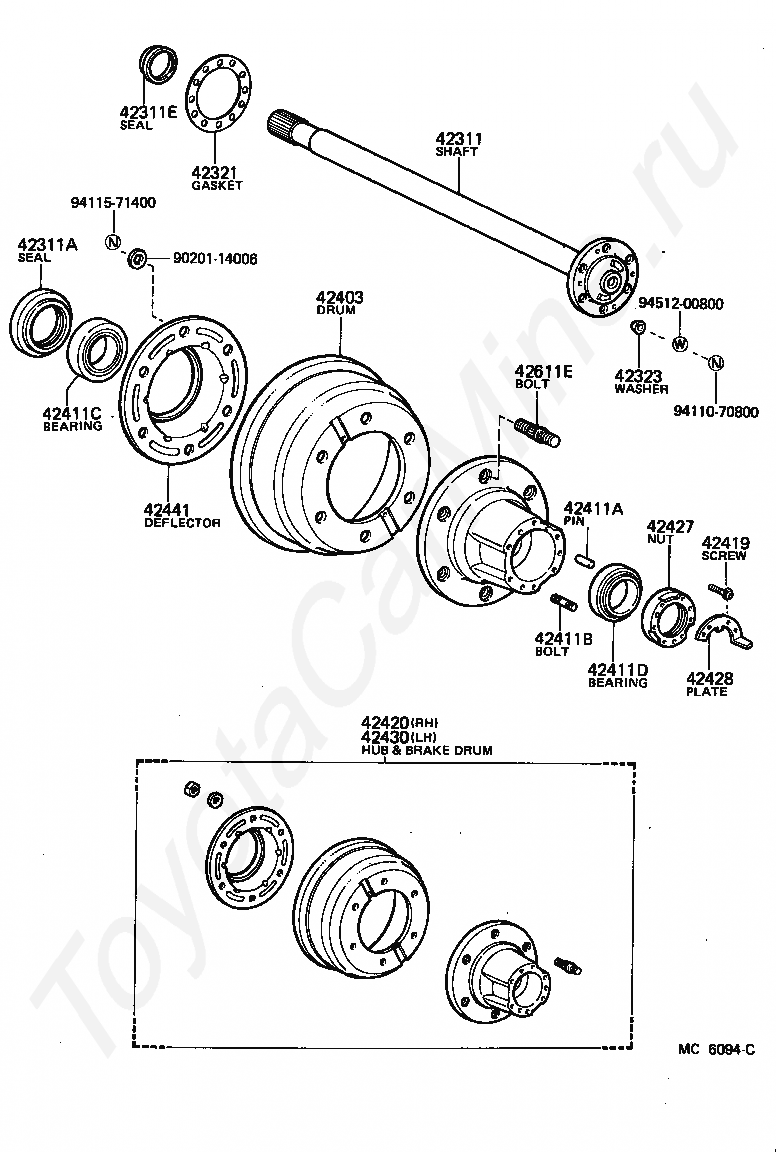

Задняя ступица и тормозной диск TOYOTA TOYOACE

Код

Описание

42311

SHAFT, REAR AXLE

42311A

SEAL, OIL (FOR REAR AXLE SHAFT)

42311E

SEAL, OIL (FOR REAR AXLE SHAFT OUTER)

42321

GASKET, REAR AXLE SHAFT

42323

WASHER, CONE (FOR REAR AXLE SHAFT)

42403

DRUM SUB-ASSY, REAR BRAKE

42411A

PIN, STRAIGHT (FOR REAR AXLE HUB)

42411B

BOLT, STUD (FOR REAR AXLE HUB)

42411C

BEARING, TAPERED ROLLER (FOR REAR AXLE INNER BEARING)

42411D

BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING)

42419

SCREW, REAR AXLE BEARING LOCK NUT

42420

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH

42427

NUT, REAR AXLE BEARING LOCK

42428

PLATE, REAR AXLE LOCK NUT

42430

HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH

42441

DEFLECTOR, BRAKE DRUM OIL

42611E

BOLT, HUB (FOR REAR AXLE)

9020114006

Крепеж

9411070800

Крепеж

9411571400

Крепеж

9451200800

Крепеж

Задняя ступица и тормозной диск TOYOTA TOYOACE
